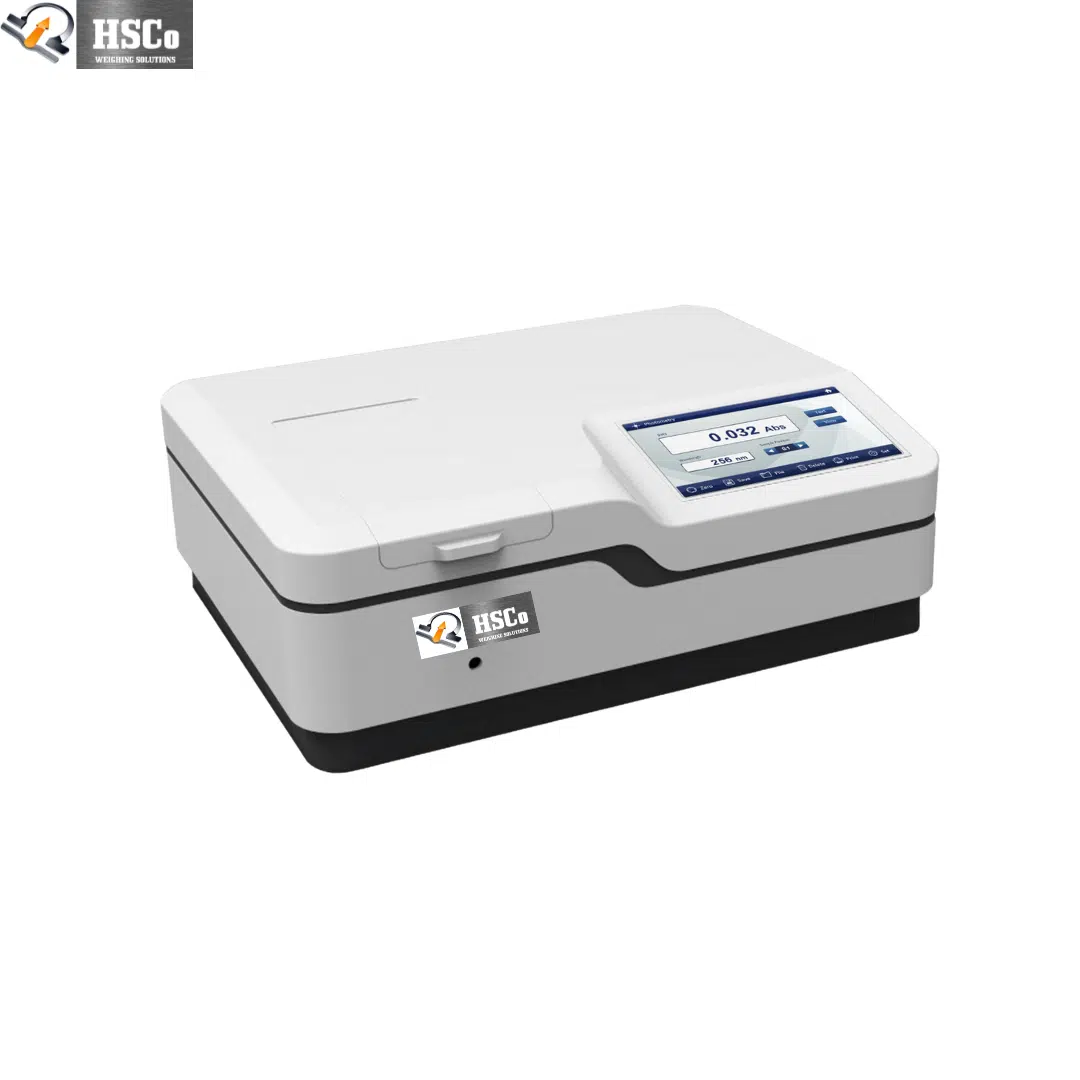

The HSCo TSD series is a double-beam UV-Vis spectrophotometer with a 10.1-inch colour touch screen. It covers 190 to 1100 nm, compares sample and reference beams at the same time for stable, accurate readings, and handles photometry, quantitative analysis, kinetics, spectrum scans, DNA/protein and multi-wavelength tests. Deuterium and tungsten lamps swap without realignment, and 1024 MB of memory stores results and working curves.
Why labs choose it
- Double beam. Compensates for lamp drift in real time.
- 190 – 1100 nm with a 1200 lines/mm grating.
- 10.1-inch colour touch screen with a Windows-style interface.
- Many test modes: photometric, quantitative, kinetics, spectrum scan, DNA/protein, multi-wavelength.
- 1024 MB memory; export to Excel via USB.
- Plug-in lamps. Deuterium and tungsten, no optical realignment needed.
- Large sample chamber for 5 – 100 mm cuvettes.
Models
| Model | Spectral bandwidth |
|---|---|
| HSCE-SPM-TSD2 | 2 nm |
| HSCE-SPM-TSD1 | 1 nm |
| HSCE-SPM-TSD05 | 0.5 / 1 / 2 / 4 / 5 nm (selectable) |
Specifications
| Optical system | Double beam, grating 1200 lines/mm |
|---|---|
| Wavelength range | 190 – 1100 nm, auto setting |
| Wavelength accuracy / repeatability | ±0.1 nm at 656.1 nm, ±0.3 nm overall / ≤ 0.1 nm |
| Photometric accuracy | ±0.2%T; ±0.002 A (0 – 0.5 A); ±0.004 A (0.5 – 1 A) |
| Photometric repeatability | ≤ 0.15%T; 0.001 A (0 – 0.5 A); 0.002 A (0.5 – 1 A) |
| Photometric range | 0 – 200%T; −0.3 to 3 A; 0 – 9999 C |
| Stray light | ≤ 0.03%T at 220 nm and 360 nm |
| Noise | 0.0005 A at 500 nm |
| Work modes | T, A, C, E |
| Scan speed | High, medium, low (max 3000 nm/min) |
| Light source | Deuterium and tungsten lamps |
| Detector | Silicon photodiode |
| Outputs | USB drive, USB host, RS232 |
| Power | AC 110 – 220 V, 50/60 Hz |
| Supplied with | 4 × 10 mm glass cuvettes, 2 × 10 mm quartz cuvettes, power cord, manual, PC software |
| Options | Calibration standards kit (sold separately), auto 8-cell holder, film and tube holders, Peltier/sipper, integrating sphere, reflection accessories, built-in printer |
| Warranty | 1 year |
Where it is used
Pharmaceutical QC, environmental and water testing, food and beverage, chemical, paint and ink labs, universities and R&D. Browse all spectrophotometers.
Questions buyers ask
The reference beam is measured at the same time as the sample, cancelling lamp fluctuations for more stable results.
190 to 1100 nm, UV and visible.
Yes, via USB to Excel, or through RS232.
Yes, check it regularly with certified reference standards for wavelength, photometric accuracy and stray light.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the bandwidth and accessories you need. Hindustan Scale Company, Mumbai, since 1955.
