The HSCo dial reading rotational viscometer measures the viscous resistance and absolute viscosity of fluids such as grease, paint, food products, medicines, adhesives and cosmetics. A spindle turns in the sample and the resistance is read on a clear dial. It measures from 1 up to 2 × 10⁶ mPa·s within ±5% (Newtonian fluids), with eight rotor speeds from 0.3 to 60 rpm and four rotors (#1 – #4; #0 optional), on a stable bench stand.
Why labs choose it
- Wide range: 1 to 2 × 10⁶ mPa·s.
- Eight speeds: 0.3, 0.6, 1.5, 3, 6, 12, 30 and 60 rpm.
- Four rotors, plus an optional #0 rotor.
- Clear dial reading of the spindle resistance.
- Stable, adjustable stand for repeatable readings.
Specifications
| Type | Rotational viscometer, dial reading |
|---|---|
| Measuring range | 1 – 2 × 10⁶ mPa·s |
| Error | ±5% (Newtonian fluids) |
| Rotor speeds | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm |

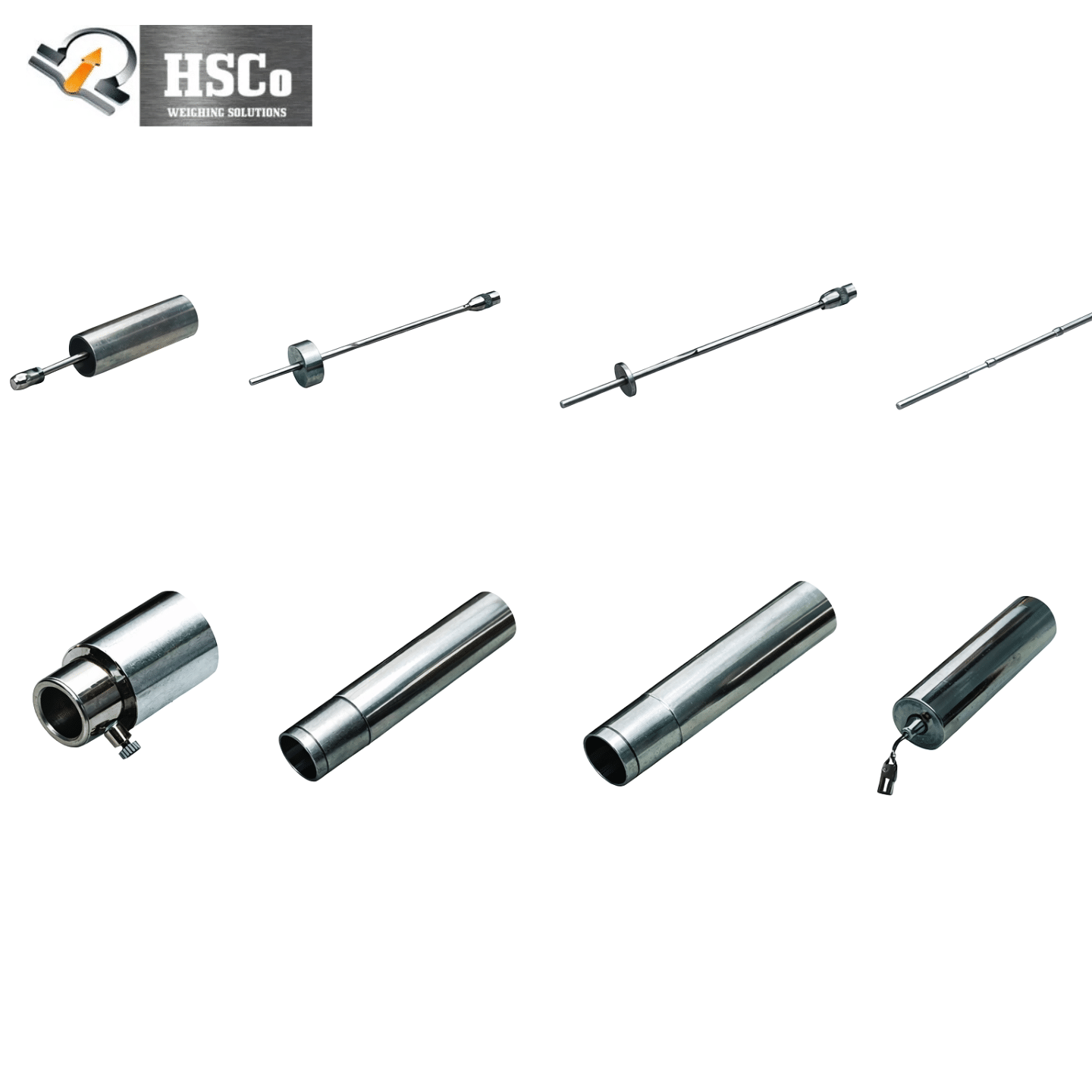

| Rotors | #1, #2, #3, #4 (#0 optional) |
| Stand | Stable, adjustable bench stand |
| Size / weight | 300 × 300 × 450 mm / 2 kg; packed 470 × 297 × 420 mm |
| Warranty | 1 year |
Which viscosity tester?
For a quick efflux-time check of paints and inks, see the Ford cup viscosity tester. Browse all density and viscosity meters.
Where it is used
Pharmaceutical, paint and ink, petrochemical and oil, food, cosmetics and chemical industries, and laboratory and R&D testing.
Questions buyers ask
A spindle turns in the fluid; its resistance is read on the dial and gives the viscosity.
1 to 2 × 10⁶ mPa·s, within ±5% for Newtonian fluids.
Grease, paint, food products, medicines, adhesives, cosmetics, oils and chemicals.
Order or ask for a quotation
Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
