We are a reputed manufacturer, supplier and top global exporter of the Touch Screen Viscometers with Variable Speeds and High Precision, which provides reliable viscosity testing service to both the laboratories and the industrial use. We are a well-known supplier of high-quality testing instruments in Mumbai. HSCo was founded in 1955 in Masjid Bunder, Mumbai. We have a large number of viscometers that are utilized in the pharmaceutical, chemical, and research laboratories. Besides our high presence in Maharashtra, our happy customers are also in the states of Delhi, Tamil Nadu, Odisha, West Bengal, Punjab, and Gujarat among other foreign market locations.
TECHNICAL FEATURES

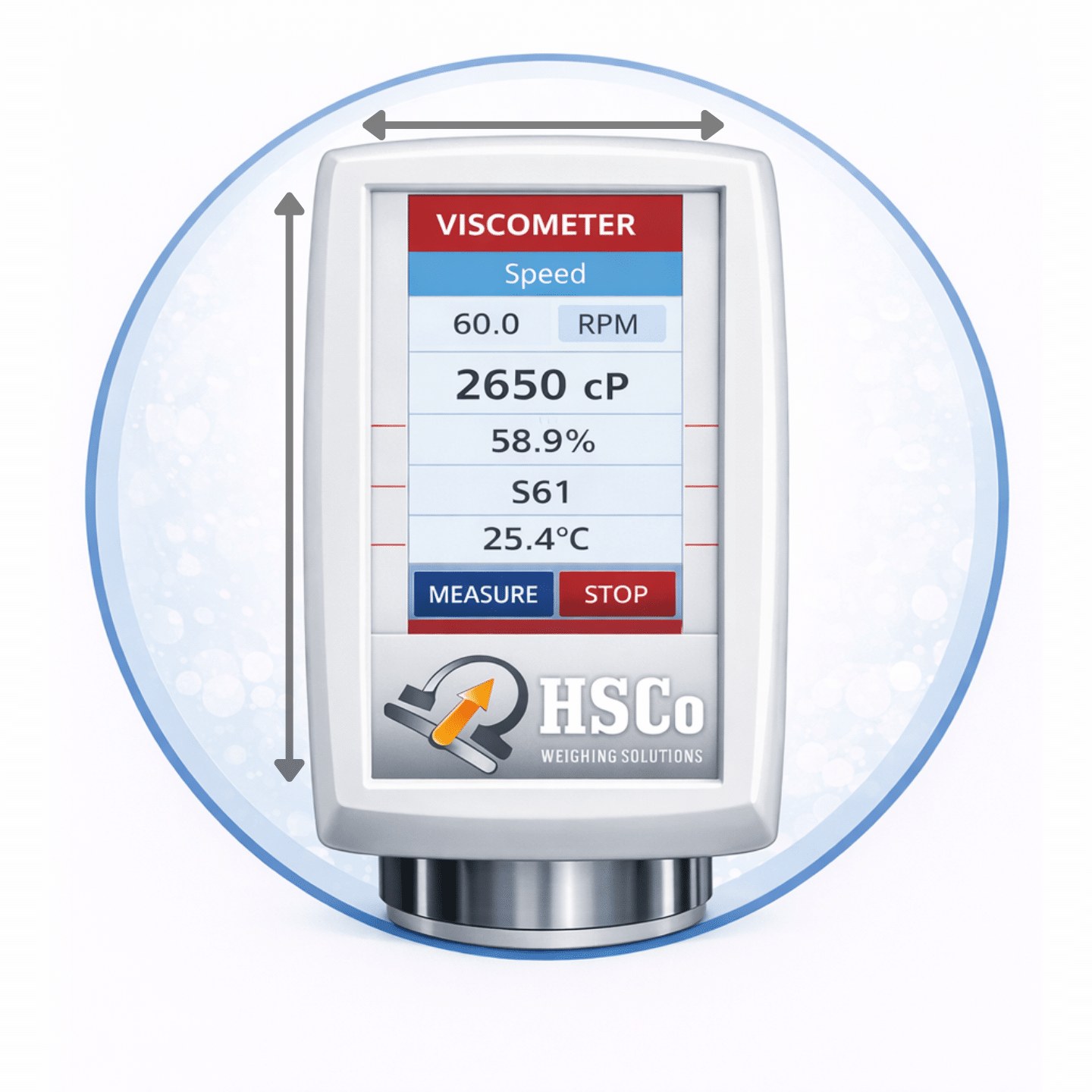

ULTRACLEAR LARGE DISPLAY
High-resolution screen for clear real-time data.
- Data Capture and Storage
User-friendly, intuitive interface for easy navigation.
Touch-sensitive screen for smooth adjustments.
Displays viscosity, rotor speed, and test parameters.
Error alerts and status indicators for smooth operation.
Data storage and export options for easy results management.
Energy-saving mode for extended device life.
SMOOTH TOUCH SENSETIVITY ON THE VISCOMETER
Registers light taps and gestures for quick and easy control.
- Intelligent Interface that uses AI Technology
High responsiveness ensures seamless user interaction.
Allows precise adjustments without forceful pressing.
Provides immediate visual feedback on changes in settings or data.
Enhances overall usability, making the instrument intuitive.
Reduces the need for physical buttons, making it easier to clean.
Contributes to a modern, sleek, and efficient design

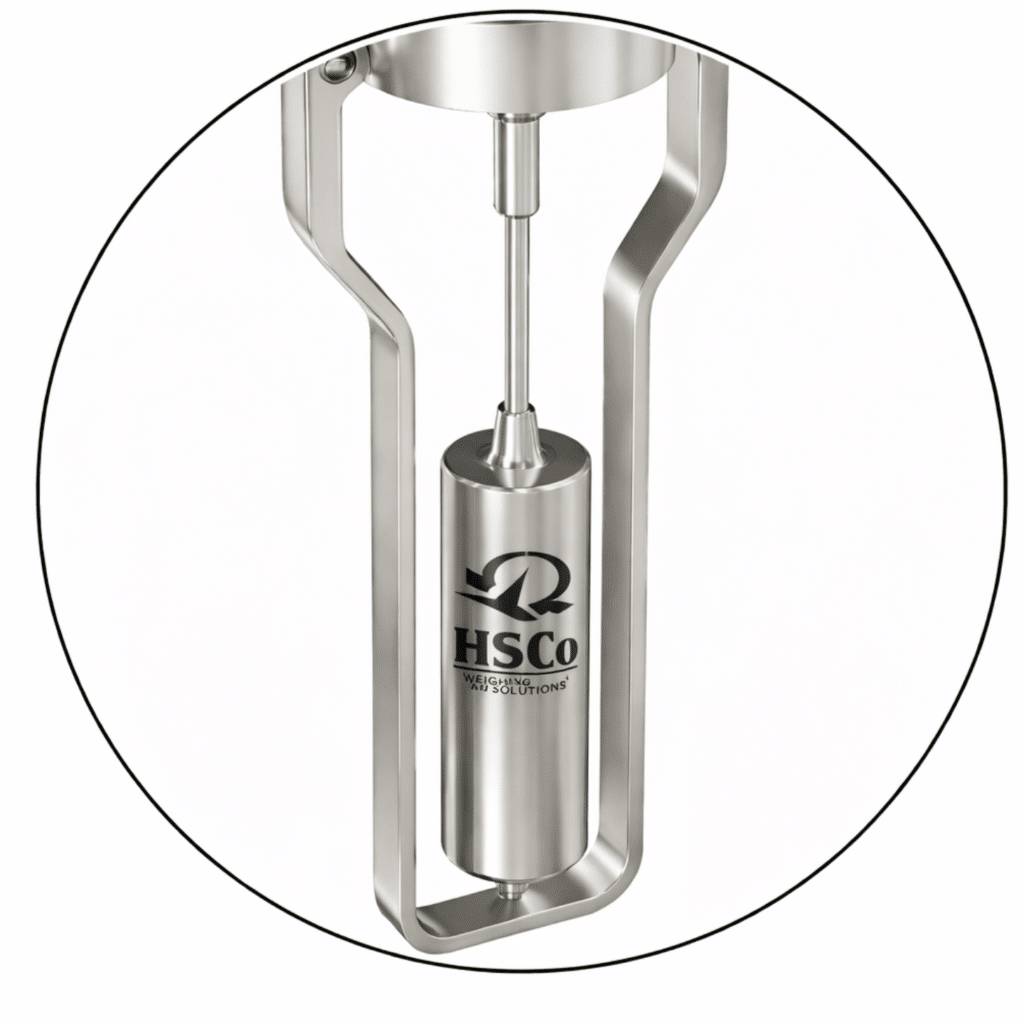

Quick-Spin Viscosity Spindle
Digital Display for easy-to-read measurements.
- Jewel Pivot for Spindle - Extremely Low Friction
Adjustable Speed Control to test different viscosities.
Multiple Spindles for various liquid types.
Automatic Calibration for accurate results.
Stable, Adjustable Stand to prevent movement during testing.
Compact & User-Friendly Design.
Stable Support Stand
The viscometer comes with a stable, adjustable stand that holds the spindle and sample securely during testing.
This prevents movement or vibration, helping ensure accurate and repeatable viscosity measurements.
The stand is compact and user-friendly, designed to keep the unit steady in a lab setting.
Easy connectivity with RS232 Interface
Enables data transfer to external devices.
Allows bidirectional communication.
- Facilitates integration with external software.
- Compatible with various devices.
Servo Motors in Viscometers - German Engineered Servo Motors
Closed-loop control with encoder feedback
Very high torque accuracy
Smooth rotation even at ultra-low speeds
Handles wide viscosity range seamlessly
APPLICATIONS
All Touch Screens Viscometers with Variable Speeds and High Precision units are carefully inspected and tested by our highly qualified QC and technical team. All viscometers are calibrated carefully, functionally tested and their performance verified and then acceptable to be dispatched. Once the product is successfully tested, it is packed carefully in heavy duty cartons, bubble wrap and protective material to facilitate safe transportation. We have also been able to distribute our scales to other markets such as Saudi Arabia, Paraguay, and Muscat, Oman. We provide Government certificates and user manual with each product.
VIDEO
OTHER FEATURES
Features & Advantages
| Feature | Advantage |
|---|---|
| LCD Display | Provides clear and easy-to-read data for enhanced user visibility. |
| High Sensitivity with Strong Anti-Interference Design | Ensures precise and stable data collection, even in challenging environments. |
| Wide Voltage Compatibility (110–240V) | Suitable for use across different countries with varying power standards. |
| Modern Aesthetic with Superior Build Quality | Combines elegant design with excellent value for money. |
| RS232 Interface | Enables seamless connectivity with computers, printers, and other peripherals. |
| Adjustable Speed Control | Offers flexibility and ease of use across various testing requirements. |

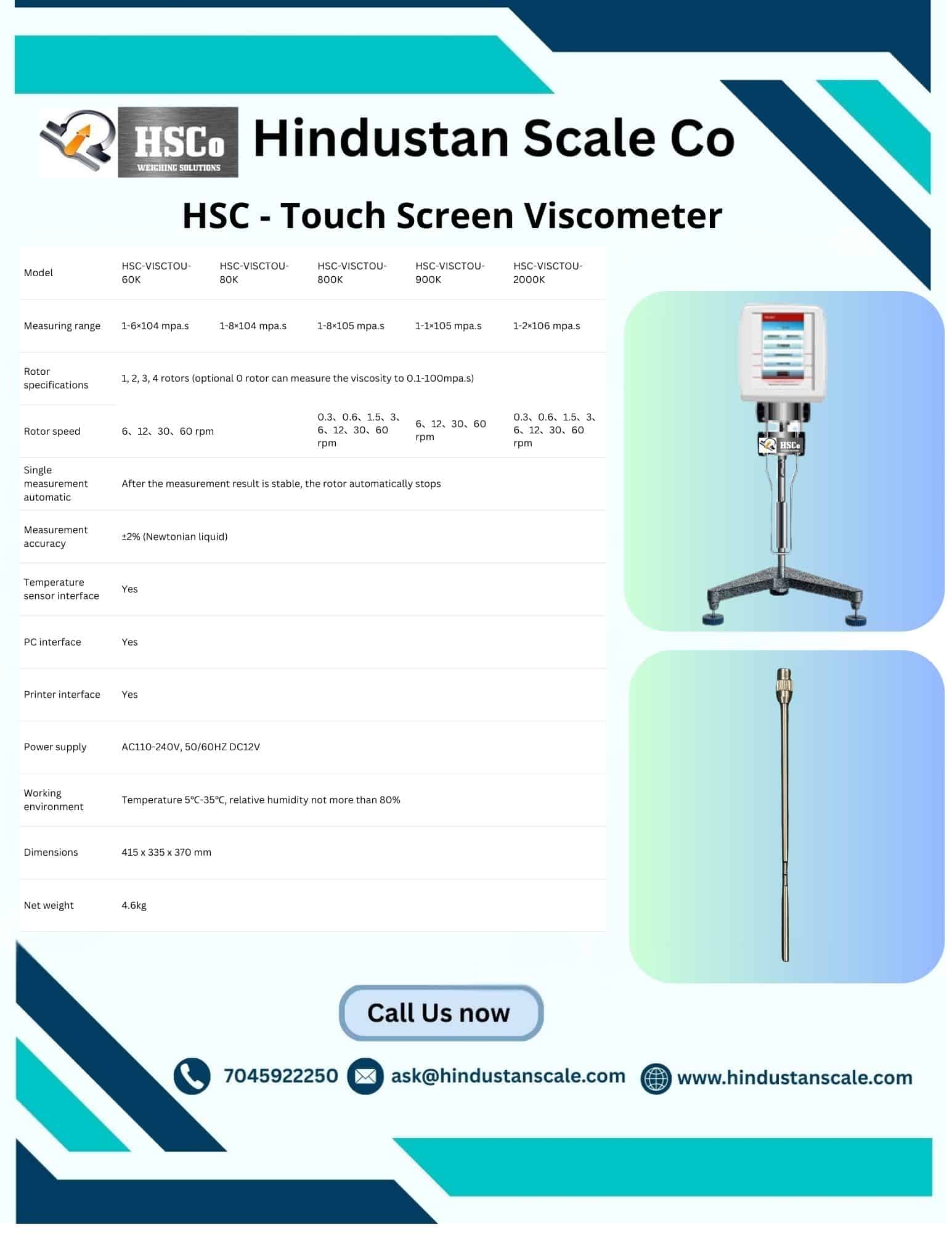

Model | HSC-VISCTOU-60K | HSC-VISCTOU-80K | HSC-VISCTOU-800K | HSC-VISCTOU-900K | HSC-VISCTOU-2000K |
Measuring range | 1-6×104 mpa.s | 1-8×104 mpa.s | 1-8×105 mpa.s | 1-1×105 mpa.s | 1-2×106 mpa.s |
Rotor specifications | 1, 2, 3, 4 rotors (optional 0 rotor can measure the viscosity to 0.1-100mpa.s) | ||||
Rotor speed | 6、12、30、60 rpm | 0.3、0.6、1.5、3、 6、12、30、60 rpm | 6、12、30、60 rpm | 0.3、0.6、1.5、3、 6、12、30、60 rpm | |
Single measurement automatic |
After the measurement result is stable, the rotor automatically stops | ||||
Measurement accuracy | ±2% (Newtonian liquid) | ||||
Temperature sensor interface | Yes | ||||
PC interface | Yes | ||||
Printer interface | Yes | ||||
Power supply | AC110-240V, 50/60HZ DC12V | ||||
Working environment | Temperature 5℃-35℃, relative humidity not more than 80% | ||||
Dimensions | 415 x 335 x 370 mm | ||||
Net weight | 4.6kg | ||||
FAQ
A viscometer with an intuitive touch screen interface that allows precise viscosity measurements.
It measures fluid viscosity by rotating a spindle, with the speed and precision controlled via the touch screen.
The touch screen offers ease of use, quick settings adjustments, and enhanced measurement accuracy.
Yes, it comes with a variable speed option to measure viscosity at different speeds for greater flexibility.
It features advanced sensors and control systems for extremely accurate and consistent viscosity readings.
It is ideal for industries like pharmaceuticals, food processing, cosmetics, and chemicals.
The user-friendly interface makes it easy for both beginners and experts to operate the device.
It is suitable for measuring a wide range of fluids, from low-viscosity liquids to highly viscous materials.
It is suitable for measuring a wide range of fluids, from low-viscosity liquids to highly viscous materials.
Calibration is straightforward and typically requires a reference fluid or standard calibration procedure for accuracy.
