Standard Viscometer with Keypad – Variable Speed, up to 2,000,000 mPa·s
Price range: ₹60,000.00 through ₹95,500.00 (ex. GST) (₹70,800.00 – ₹112,690.00 incl. GST)
Rotational viscometer with keypad: five models up to 2,000,000 mPa·s, spindles 1–4 (0 optional), variable speeds, auto stop when stable, ±2%, PC and printer interfaces, carry case.

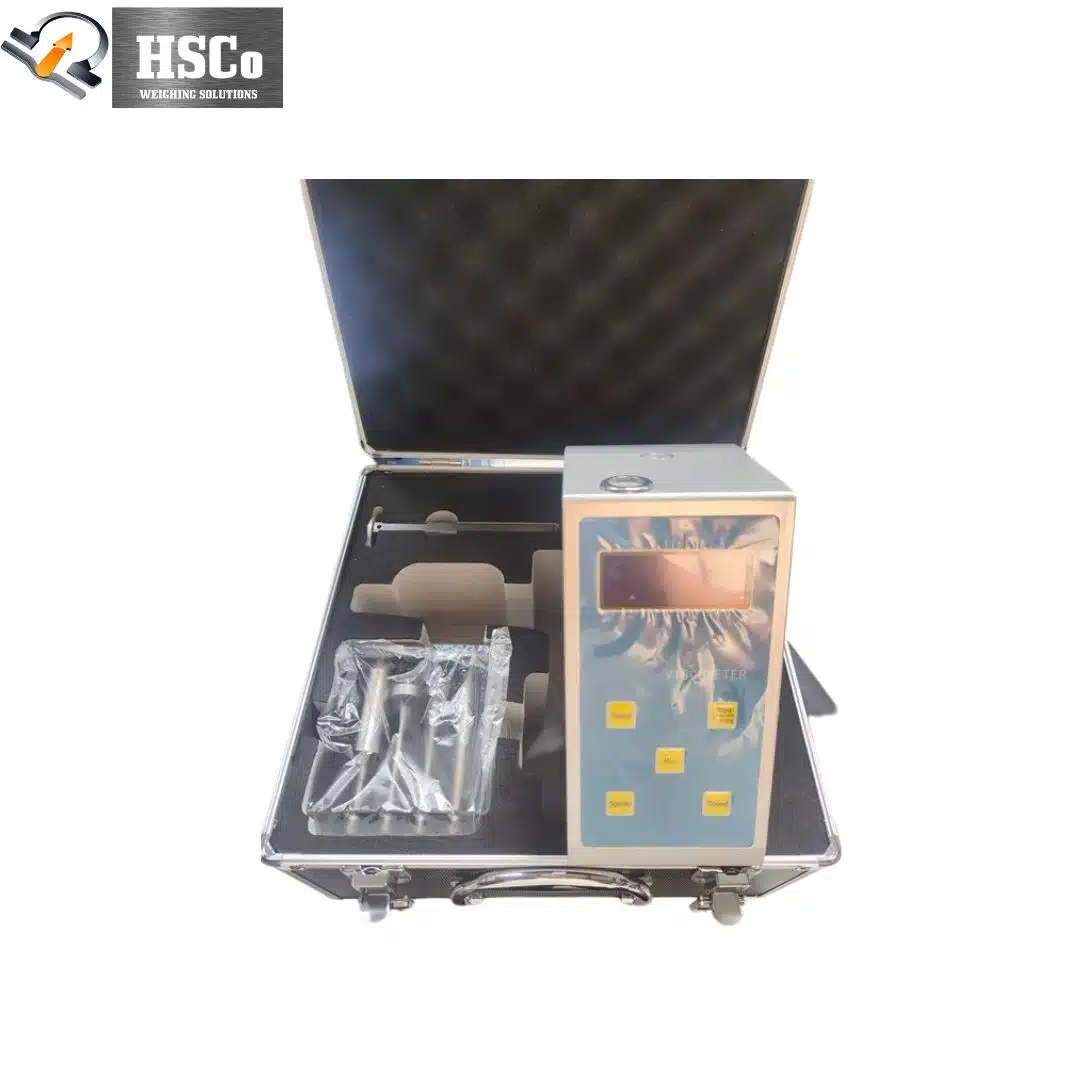

The HSCo standard viscometer with keypad is a rotational viscometer for measuring the viscosity of liquids from 1 mPa·s up to 2 million mPa·s, depending on the model. Simple keypad control, variable spindle speeds, automatic stop once the reading is stable and ±2% accuracy on Newtonian liquids make it a practical QC instrument for paints, pharma, food, cosmetics and petrochemicals. It comes in a carry case with spindles and stand.
Why labs choose it
- Five ranges from 60,000 to 2,000,000 mPa·s; the optional 0 spindle reads down to 0.1–100 mPa·s.
- Easy keypad. Dedicated function keys, no accidental touch inputs.
- Automatic measurement. The spindle stops by itself once the reading is stable.
- Accurate. ±2% on Newtonian liquids, with a servo motor and encoder feedback for smooth low speeds.
- Connects. Temperature sensor, PC (RS232) and printer interfaces.
- Stable stand and a carry case for storage.
Models
| Model | Measuring range | Spindle speeds |
|---|---|---|
| HSC-VISCKEY-60K | 1 – 60,000 mPa·s | 6, 12, 30, 60 rpm |
| HSC-VISCKEY-80K | 1 – 80,000 mPa·s | 0.3 – 60 rpm (8 speeds) |
| HSC-VISCKEY-800K | 1 – 800,000 mPa·s | 6, 12, 30, 60 rpm |
| HSC-VISCKEY-1000K | 1 – 100,000 mPa·s | 0.3 – 60 rpm (8 speeds) |
| HSC-VISCKEY-2000K | 1 – 2,000,000 mPa·s | 0.3 – 60 rpm (8 speeds) |
| Spindles | 1, 2, 3, 4 (optional 0 spindle for 0.1–100 mPa·s) |
|---|---|
| Accuracy | ±2% (Newtonian liquids) |
| Measurement | Single automatic measurement; stops when stable |
| Interfaces | Temperature sensor, PC, printer |
| Power | AC 110–240 V, 50/60 Hz; DC 12 V |
| Working environment | 5 – 35 °C; humidity ≤ 80% |
| Size and weight | 415 × 335 × 370 mm; 4.6 kg |
| Warranty | 1 year |
Where it is used
Paints and inks, pharmaceuticals, food and beverages, cosmetics, petrochemicals, chemicals and R&D labs. Add a viscometer stand or spindles; browse all density and viscosity meters.
Questions buyers ask
By the thickest sample: up to 60,000 mPa·s for thin liquids, up to 2 million for pastes.
±2% for Newtonian liquids.
Yes, with the optional 0 spindle (0.1–100 mPa·s).
Yes, it has PC and printer interfaces.
More questions about the keypad viscometer
What is the cheapest keypad option, and what comes with it?
HSC-VISCKEY-60K is the lowest-priced HSCo rotational viscometer at Rs 60,000 + GST, or Rs 70,800 including GST. The product page lists spindles 1-4 and a carry case with it.
Which keypad option adds slower speeds for paint or food lab QC?
HSC-VISCKEY-80K covers 1-80,000 mPa·s with eight speeds from 0.3-60 rpm. HSC-VISCKEY-60K covers 1-60,000 mPa·s at 6, 12, 30 and 60 rpm. The keypad series is listed for paint and food labs; send your expected viscosity range to confirm the choice.
Which PC port should my lab prepare for?
HSC-VISCKEY specifies an RS232 PC connection and a printer interface. Include your PC and printer connection requirements when requesting the quotation.
What does the optional spindle for water or thin oils cost?
Optional Spindle 0 for HSC-VISCKEY costs Rs 15,000 + GST, or Rs 17,700 including GST. Its listed uses include water, thin oils and solvents; send your instrument model to confirm the fit.
How do I order a keypad viscometer?
Order HSC-VISCKEY by selecting the range on its product page, or call or WhatsApp +91-7045922250. For a quotation, email hsc@hindustanscale.com with your sample type, expected viscosity range, quantity and accessory requirements.
HSC-VISCKEY options and documents
Does HSCo make Brookfield-type keypad viscometers?
HSCo makes the HSC-VISCKEY in Mumbai as part of its own Brookfield-type rotational viscometer range.
Can HSC-VISCKEY test hot samples?
The HSCo HSC-VISCKEY accepts samples up to 180 °C and includes a temperature probe. Its heating jacket costs extra, price on request. Sample volume depends on the container; HSC-VISCKEY can be supplied in servo-motor or stepper-motor versions.
Which certificates and IQ/OQ/PQ papers can I get?
The HSCo HSC-VISCKEY includes HSCo’s free test certificate; a NABL calibration certificate is available on request at extra cost. IQ/OQ/PQ papers are price on request for HSC-VISCKEY. This keypad viscometer has no user log-ins or audit trail (21 CFR Part 11).
Can I order Bluetooth, Wi-Fi or lab software connections?
Yes. On order, the HSCo HSC-VISCKEY takes USB, Bluetooth with the HSCo app, Wi-Fi to the HSCo cloud portal, a printer, Excel export or a link to your lab software; the price is on request.
Order or ask for a quotation
Choose the range above, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your sample type. Hindustan Scale Company, Mumbai, since 1955.
| Measuring Range | 1-6×104 mpa.s, 1-8×104 mpa.s, 1-8×105 mpa.s, 1-1×105 mpa.s, 1-2×106 mpa.s |
|---|
How to Use HSCo Standard Viscometers with Keypad & Variable Speed | Step-by-Step Guide · Watch it on our Help & Videos page
