Ford Cup Viscosity Tester – Stainless Steel, 100 ml Cup, Stand, ±3%
₹115,000.00 (ex. GST) (₹135,700.00 incl. GST)
Stainless-steel Ford cup viscosity tester: 100 ml cup, efflux time 30 – 100 s at 25 ± 1 °C, ±3%, heavy stand with polished steel rod and adjustable arm, 1.84 kg. For paints, coatings and inks. 1-year warranty.
Out of stock

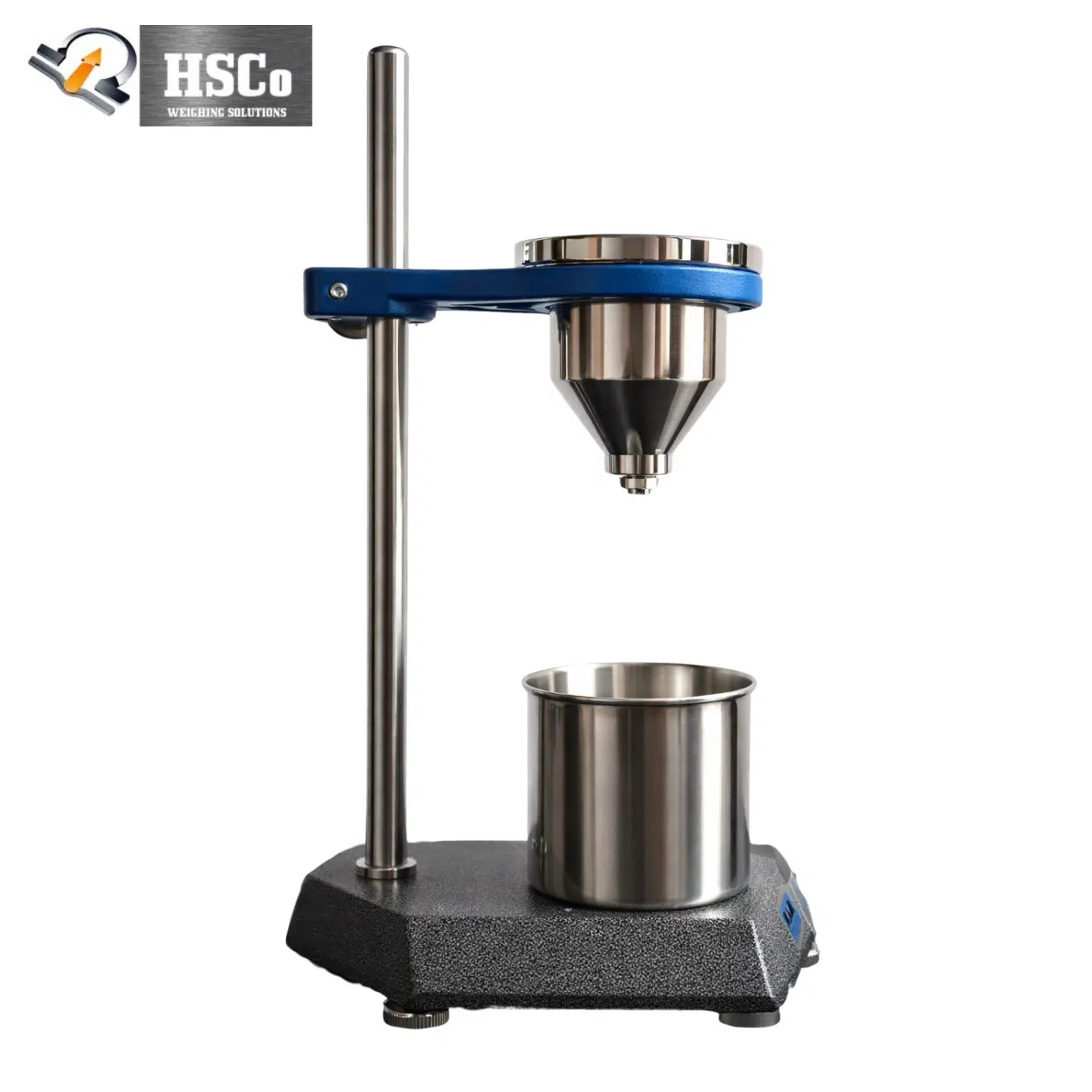

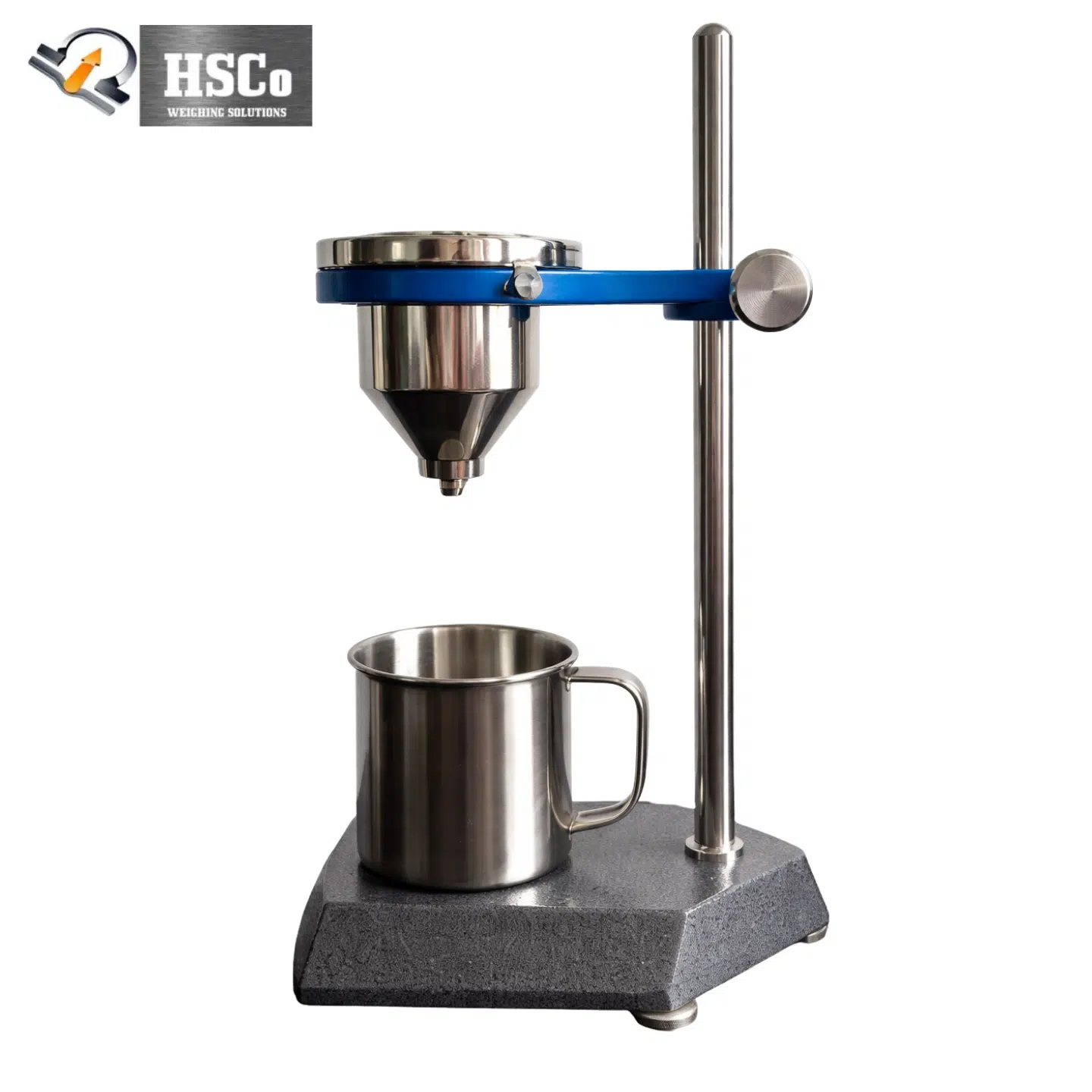

The HSCo stainless-steel Ford cup viscosity tester measures the viscosity of paints, coatings, inks and other Newtonian or near-Newtonian liquids by the time they take to flow out of a 100 ml cup. Fill the cup, time the flow through the orifice, and compare. It works for efflux times from 30 to 100 seconds at 25 ± 1 °C within ±3%, and comes on a heavy stand with a polished stainless-steel rod and an adjustable arm.
Why buyers choose it
- Simple and quick: fill, time the flow, read the viscosity.
- 100 ml stainless-steel cup, easy to clean, corrosion resistant.
- ±3% error over 30 – 100 s efflux times.
- Stable stand with adjustable arm and levelling feet.
- Portable for field and production checks.
Specifications
| Type | Ford flow cup (gravity) viscosity tester |
|---|---|
| Cup capacity | 100 ml, stainless steel |
| Efflux time range | 30 – 100 s |
| Test temperature | 25 ± 1 °C |
| Error | ±3% |
| Stand | Heavy metal base, polished stainless-steel rod, adjustable arm, anti-slip levelling feet |
| Size / weight | 103 × 150 × 290 mm / 1.84 kg; packed 144 × 200 × 325 mm |
| You also need | A timer (stopwatch) |
| Warranty | 1 year |
Which viscosity tester?
For absolute viscosity with a rotating spindle, see the dial reading rotational viscometer. Browse all density and viscosity meters.
Where it is used
Paint, coating and ink makers, automotive, chemical, petrochemical, food and cosmetics industries, and quality control and R&D labs.
Questions buyers ask
Fill the cup, open the orifice and time how long the liquid takes to flow out; the efflux time shows the viscosity.
Low to medium viscosity liquids: paints, coatings, inks, oils and similar.
Only a timer. The stand is included.
Order or ask for a quotation
Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
| Measuring range | 1-6×104 mpa.s, 1-8×104 mpa.s, 1-8×105 mpa.s, 1-2×106 mpa.s |
|---|
