Single Ended Fixed Beam Load Cell HSC LCX-5 – Round Section, Nickel-Plated Alloy Steel
Price on Request
Single-ended fixed beam load cell HSC LCX-5: circular cross-section, nickel-plated alloy steel, glue-potted and covered for moisture resistance, 1.2 mV/V, ±0.02% FS, capacities 5 and 7. For vehicle, hopper, platform and process scales. 1-year warranty.

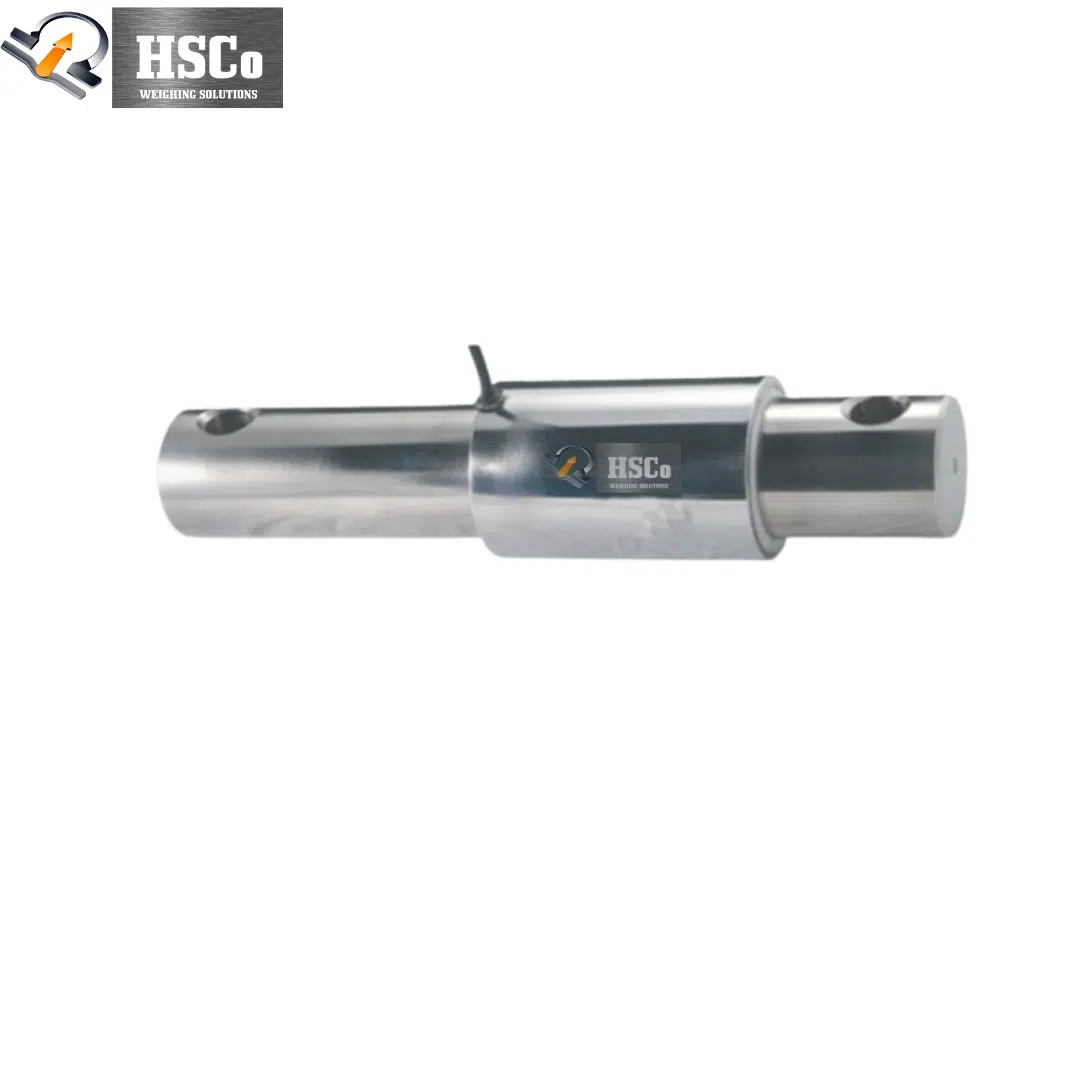

The HSC LCX-5 is a single-ended fixed beam load cell with a circular cross-section, made of high-quality alloy steel with electroless nickel plating. Its gauges are glue-potted and covered, so it is sealed and resists moisture. It is easy to install and interchangeable, and is used in vehicle scales, hopper scales, small and medium platform scales and process scales.
Why scale makers choose it
- Round-section fixed beam, easy to install and interchange.
- Nickel-plated alloy steel for durability.
- Sealed: glue-potted and covered, good moisture resistance.
- Accurate: ±0.02% FS total error.
Specifications
| Model | HSC LCX-5 |
|---|---|
| Type | Single-ended fixed beam, circular cross-section |
| Capacities | 5 and 7 (see dimensions) |
| Sensitivity | 1.2 ± 0.01 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 20 V DC maximum |
| Material | Alloy steel, electroless nickel plated; glue-potted and covered |
| Wiring | Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Warranty | 1 year |

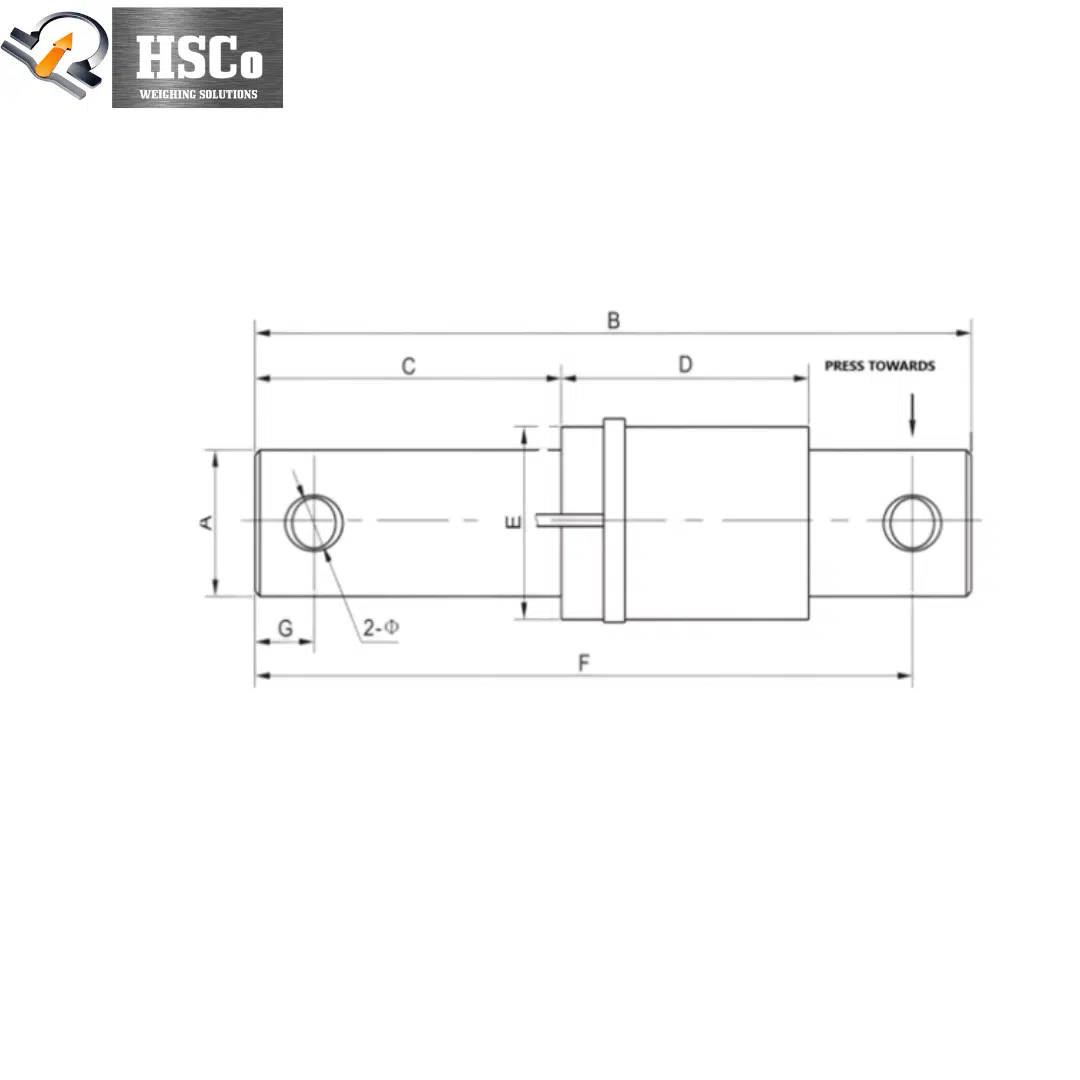

Dimensions (mm), from the drawing:
| Capacity | A | B | C | D | E | G | H |
|---|---|---|---|---|---|---|---|
| 5 | 54 | 305 | 150 | 85 | 75 | 22 | 20 |
| 7 | 62 | 340 | 155 | 100 | 88 | 29 | 26 |
Which load cell?
For a double-ended beam for truck scales, see the LCQ-2; for a single-ended cantilever beam, the LCX-6-A. Browse all load cells.
Where it is used
Vehicle and transport scales, hopper scales, small and medium platform scales, and process weighing.
Questions buyers ask
High-quality alloy steel with electroless nickel plating; the gauges are glue-potted and covered.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
