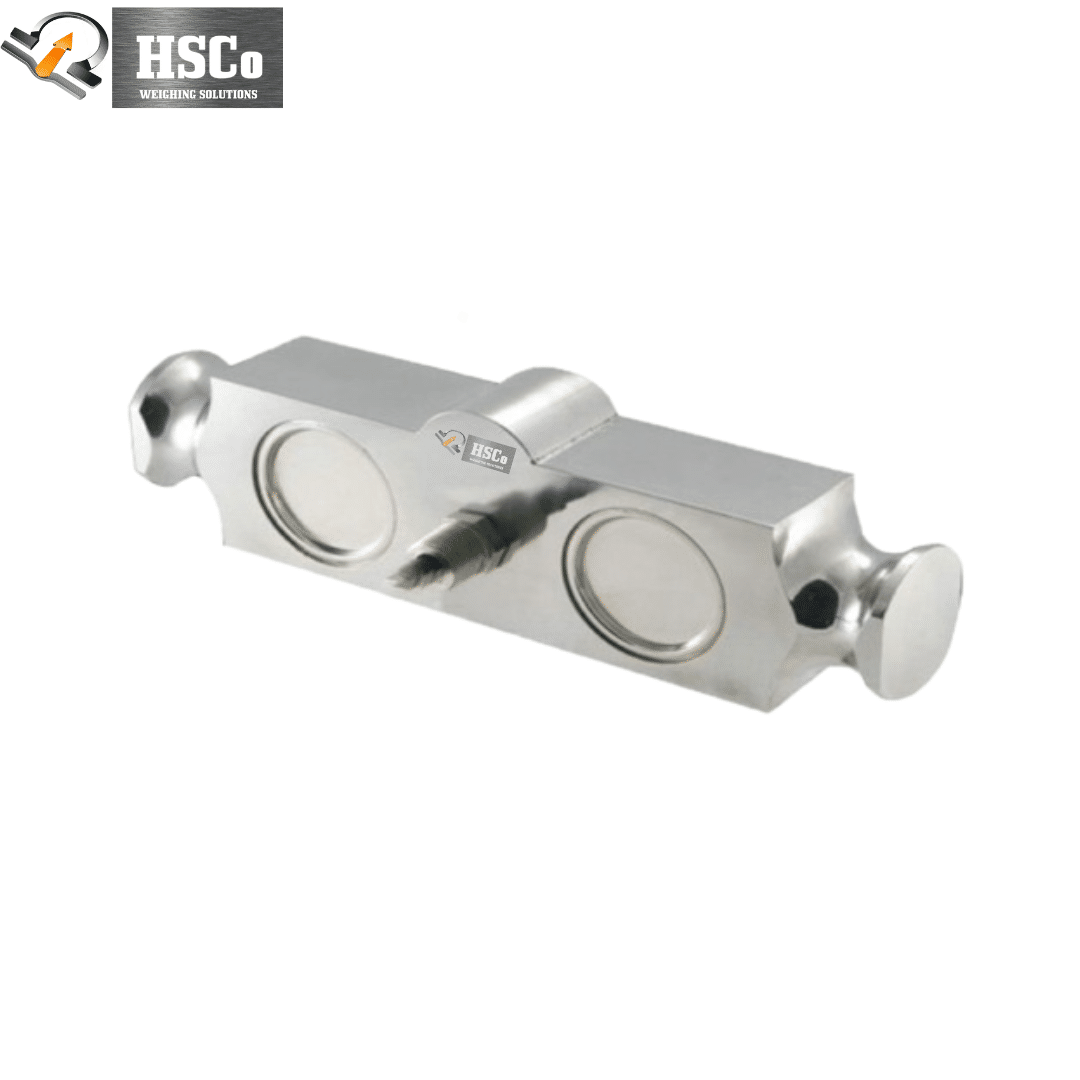

The HSC LCQ-4 is a heavy double-ended shear beam (bridge) load cell, listed for ladle weighing, with a floating bearing that resets itself and resists side and reverse loads. A moisture-proof seal (IP67 or IP68) suits harsh sites. It is easy to install and interchangeable, in capacities from 40 to 125 klb (about 18 to 57 tonnes), for truck scales, railway scales, hopper scales and special scales.
Why scale makers choose it
- Floating bearing: self-resetting, strong against side and reverse loads.
- High capacities: 40 to 125 klb, about 18 to 57 t.
- Sealed: IP67 or IP68.
- Accurate: ±0.02% FS total error.
- Easy to install and interchange.
Specifications
| Model | HSC LCQ-4 |
|---|---|
| Type | Double-ended shear beam (bridge type), floating bearing |
| Capacities | 40, 50, 65, 75, 100, 125 klb (about 18.1, 22.7, 29.5, 34.0, 45.4, 56.7 t) |
| Sensitivity | 3.0 ± 0.002 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 750 ± 10 Ω / 702 ± 3 Ω (703 ± 5 Ω with cable over 15 m) |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP67 or IP68 |
| Material | Alloy steel |
| Cable | 10 m or 12 m, Ø6 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
For 40 to 75 klb, see the LCQ-3; for 2 to 35 klb, the LCQ-2. Browse all load cells.
Where it is used
Ladle and heavy process weighing, electronic truck and railway scales, hopper scales and special heavy-duty scales.
Questions buyers ask
40, 50, 65, 75, 100 and 125 klb, about 18 to 57 tonnes.
It lets the cell reset itself after each load and resist side and reverse forces.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
