Double Shear Beam Load Cell HSC LCQ-2 – 2 to 35 klb, IP67/IP68, for Truck and Hopper Scales
Price on Request
Double-ended shear beam load cell HSC LCQ-2: 2 to 35 klb (about 0.9–15.9 t), floating bearing for self-reset and side-load resistance, alloy steel, IP67/IP68, 3.0 mV/V, ±0.02% FS, OIML R60. For truck, railway and hopper scales. 1-year warranty.

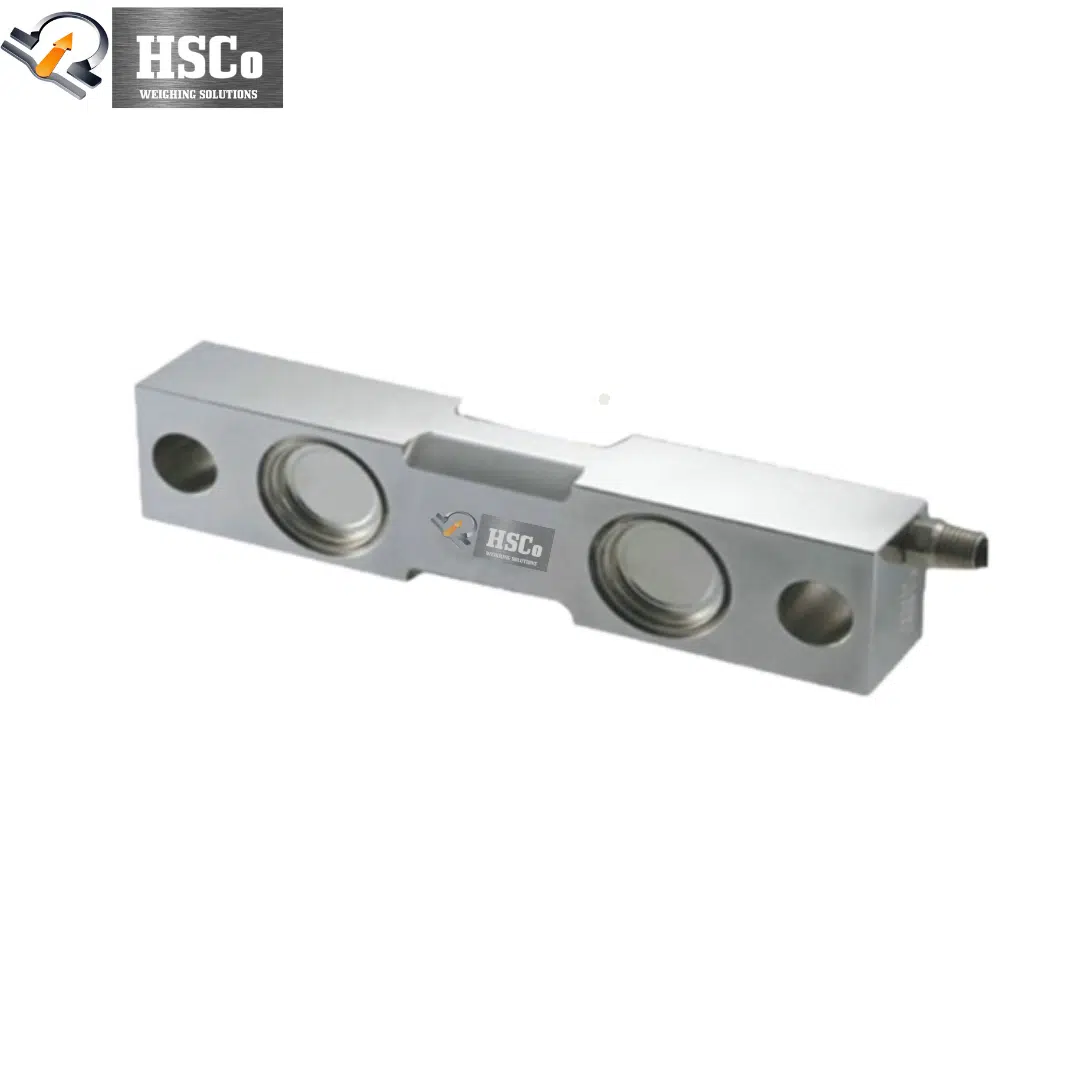

The HSC LCQ-2 is a double-ended shear beam load cell for truck scales, railway scales, hopper scales and special scales. A floating bearing lets it reset itself and stand up to side loads, and a moisture-proof seal (IP67 or IP68) suits harsh sites. It is easy to fit and interchangeable, in capacities from 2 to 35 klb (about 0.9 to 15.9 tonnes).
Why scale makers choose it
- Double shear beam with a floating bearing: self-resetting, strong against side loads.
- Sealed: IP67 or IP68.
- Accurate: ±0.02% FS total error.
- Robust: alloy steel, safe to 150% and limit 180% of capacity.
- Easy to install and interchange.
Specifications
| Model | HSC LCQ-2 |
|---|---|
| Type | Double-ended shear beam, floating bearing |
| Capacities | 2, 2.2, 3, 5, 10, 25, 35 klb (about 0.9 – 15.9 t) |
| Sensitivity | 3.0 ± 0.002 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 750 ± 10 Ω / 702 ± 3 Ω (703 ± 5 Ω with cable over 15 m) |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP67 or IP68 |
| Material | Alloy steel |
| Cable | 10 m or 12 m, Ø6 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |

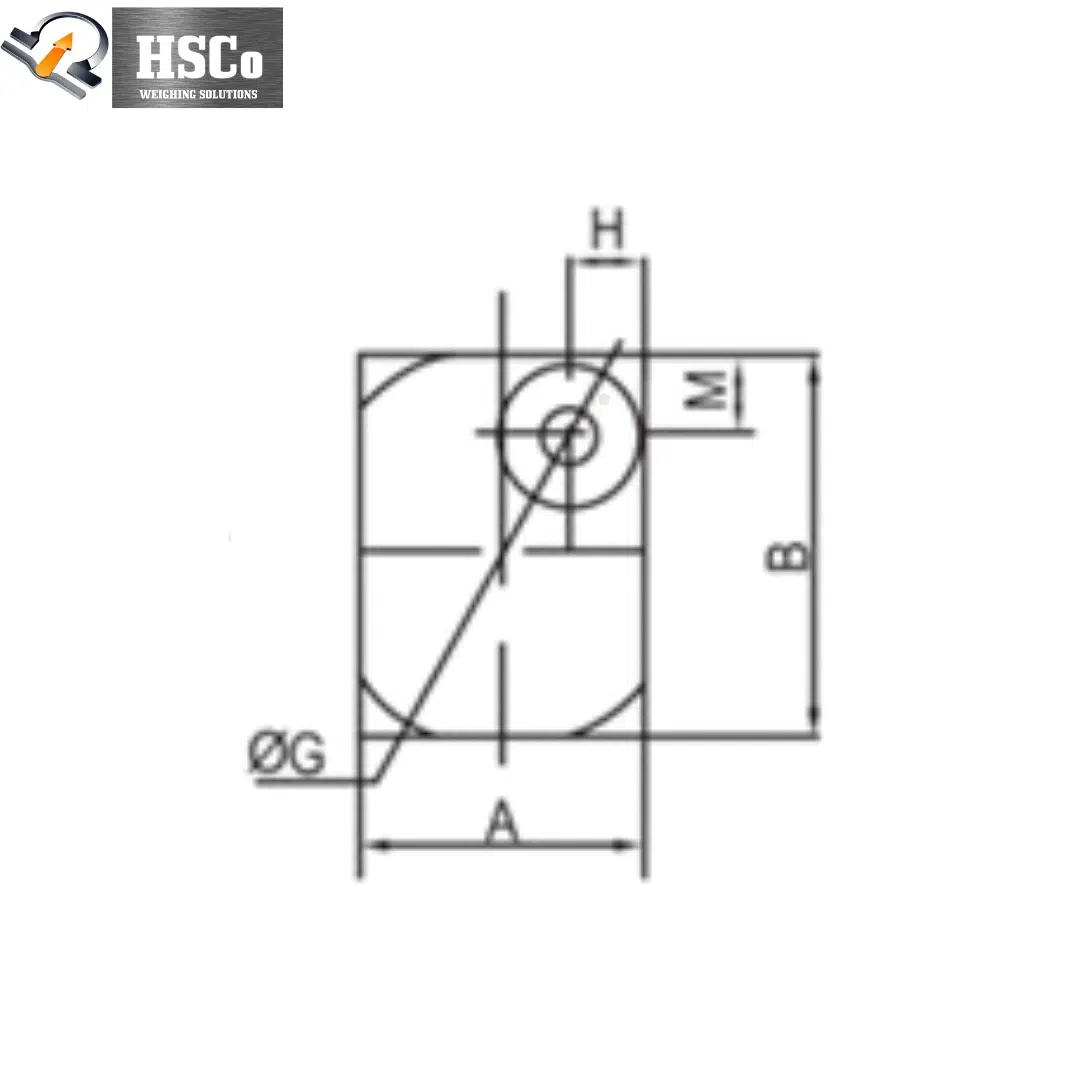

Dimensions (mm), from the drawing:
| Capacity (klb) | A | B | C | D | E | F | G | H | M |
|---|---|---|---|---|---|---|---|---|---|
| 2 – 5 | 31 | 31 | 190.5 | 159.1 | 12.7 | 30.5 | 31.5 | 8 | 6.5 |
| 10 – 35 | 36.6 | 48.5 | 222 | 190.5 | 19 | 42 | 50.6 | 10 | 9.5 |
Which load cell?
For weighbridges, see the LCQ-9 weighbridge load cell; for a low-profile compression cell, the LCL-2. Browse all load cells.
Where it is used
Electronic truck scales, railway scales, hopper and tank scales, and special-purpose industrial scales.
Questions buyers ask
2, 2.2, 3, 5, 10, 25 and 35 klb, about 0.9 to 15.9 tonnes.
It lets the cell reset itself after each load and resist side forces.
It is sealed to IP67, or IP68 on request.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
