The HSC LCQ-3 is a heavy double-ended shear beam load cell for truck scales, railway scales, hopper scales and special scales. Like the LCQ-2 it has a floating bearing that resets itself and resists side loads, and a moisture-proof seal (IP67 or IP68) for harsh sites, but in higher capacities: 40, 50, 65 and 75 klb (about 18 to 34 tonnes).
Why scale makers choose it
- Double shear beam with a floating bearing: self-resetting, strong against side loads.
- High capacities: 40 to 75 klb, about 18 to 34 t.
- Sealed: IP67 or IP68.
- Accurate: ±0.02% FS total error.
- Easy to install and interchange.
Specifications
| Model | HSC LCQ-3 |
|---|---|
| Type | Double-ended shear beam, floating bearing |
| Capacities | 40, 50, 65, 75 klb (about 18.1, 22.7, 29.5, 34.0 t) |
| Sensitivity | 3.0 ± 0.002 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 750 ± 10 Ω / 702 ± 3 Ω (703 ± 5 Ω with cable over 15 m) |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP67 or IP68 |
| Material | Alloy steel |

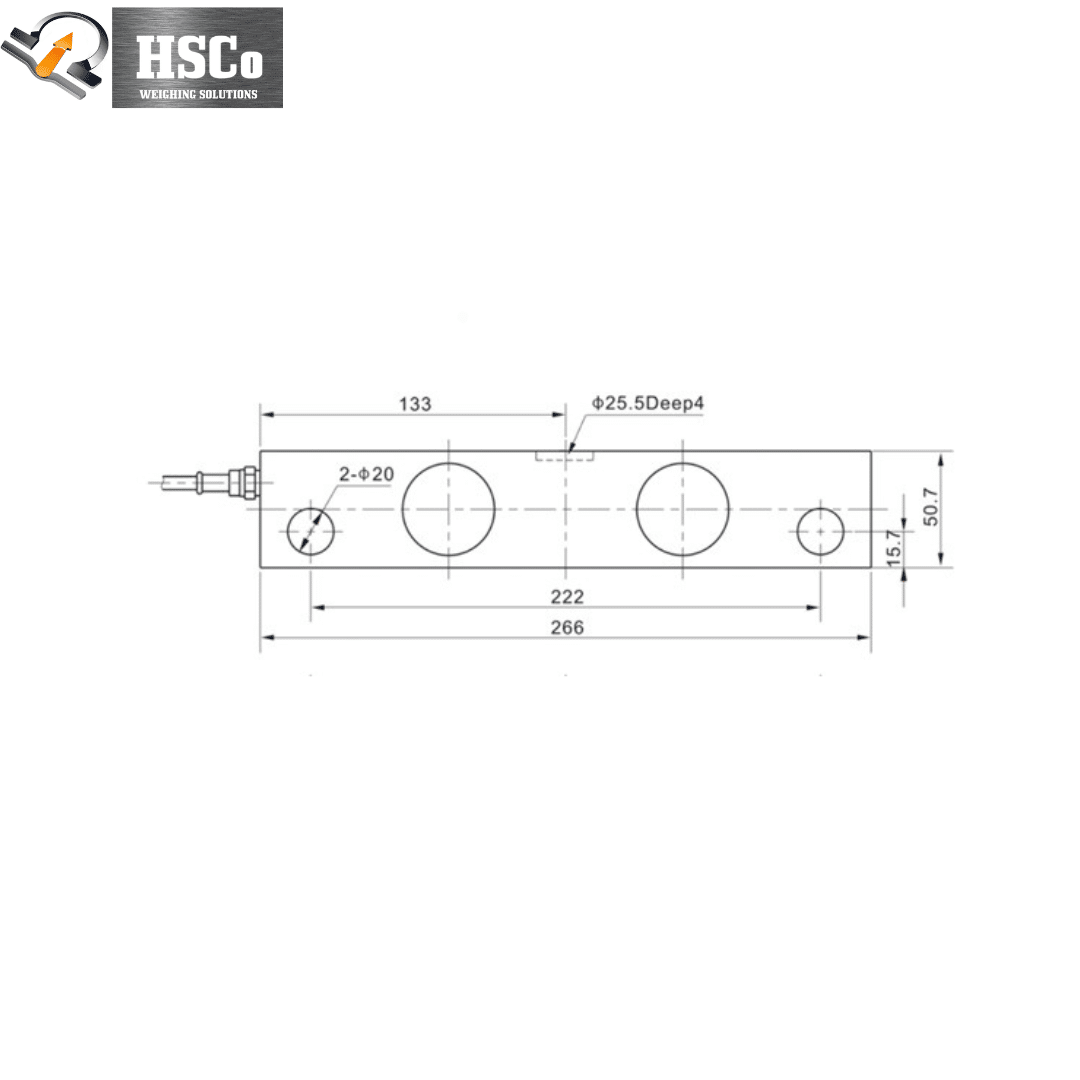

| Size | 266 mm long; mounting holes Ø20 mm, 222 mm apart |

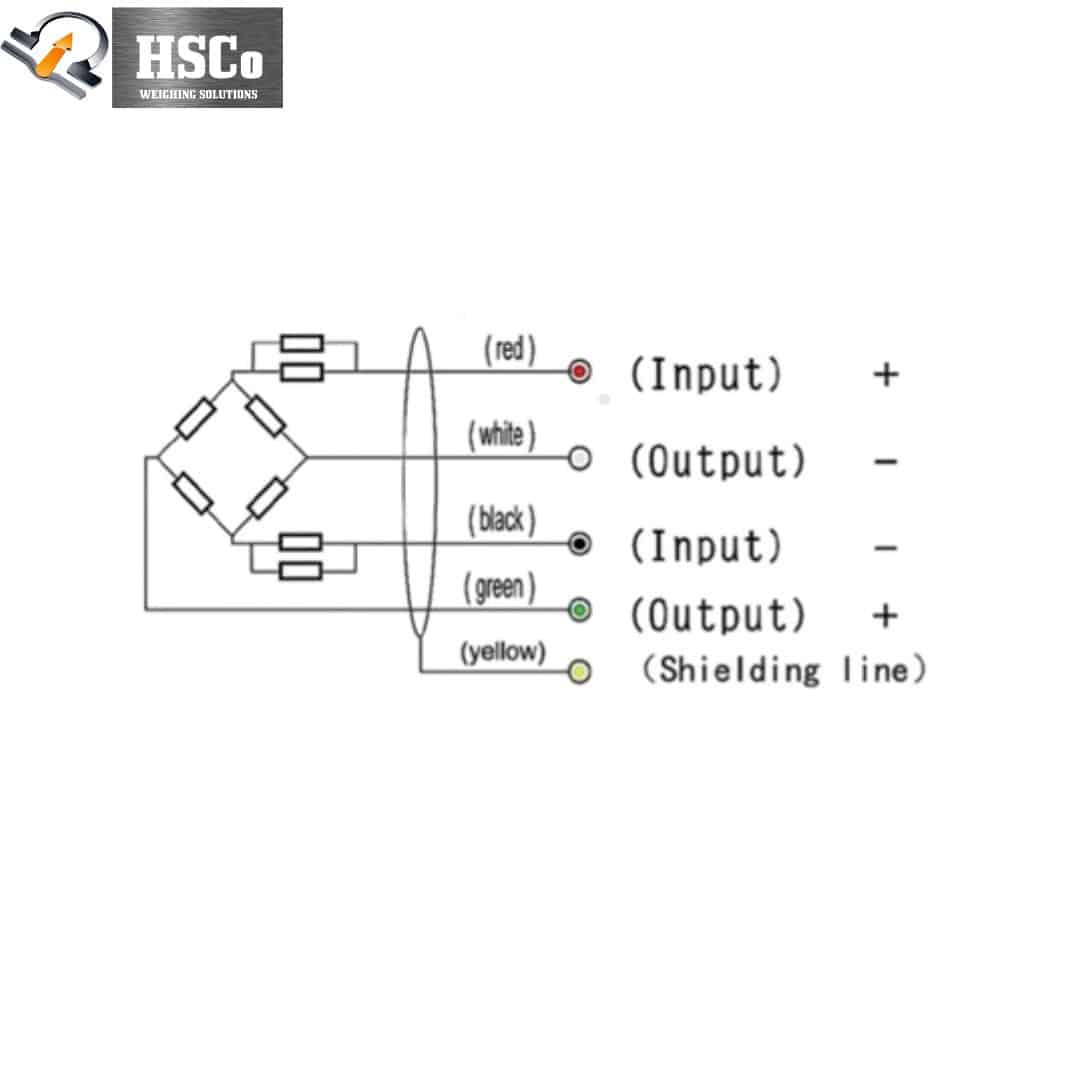

| Cable | 10 m or 12 m, Ø6 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
For 2 to 35 klb, see the LCQ-2; for weighbridges, the LCQ-9. Browse all load cells.
Where it is used
Electronic truck scales, railway scales, hopper and tank scales, and special heavy-duty industrial scales.
Questions buyers ask
40, 50, 65 and 75 klb, about 18 to 34 tonnes.
Same design and electrical figures, in higher capacities and a longer body.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
