Mini Platform Scale Load Cell – Single Point, 100 to 200 kg, C3
Price on Request
Economical single-point aluminium load cell for bench, counting and postal scales and check weighers: 100, 150 or 200 kg, class C2/C3, platform up to 400 × 400 mm, glue sealed, 3 m cable. 1-year warranty.
The HSCo table top cum mini platform scale load cell is an economical, low-profile single-point load cell in anodised aluminium alloy. One cell carries a platform up to 400 × 400 mm and reads the same wherever the load sits, so it is used to build bench, counting and postal scales and check weighers. It comes in 100, 150 and 200 kg capacities, accuracy class C2 or C3.
Why builders choose it
- Single point. Off-centre loads read correctly; one cell per platform up to 400 × 400 mm.
- Economical and low profile.
- Accurate. Class C2 or C3; non-linearity under ±0.03% of full scale.
- Sealed. Glue-sealed, colourless anodised aluminium alloy.
- Standard 350 Ω output on a 3 m, 4 mm cable.
Specifications
| Type | Single-point (platform) load cell |
|---|---|
| Capacities | 100, 150, 200 kg |
| Accuracy class | C2 / C3 |
| Recommended platform | Up to 400 × 400 mm |
| Non-linearity | < ±0.03% FSO |
| Creep (30 min) | < ±0.025% FSO |
| Zero balance | < ±1% FSO |
| Excitation | 9 V DC; 12 V DC maximum |
| Safe / ultimate load | 120% / 150% of rated capacity |
| Input / output resistance | 400 ± 10 Ω / 350 ± 5 Ω |
| Insulation | > 5,000 MΩ |
| Temperature compensation | −10 to +40 °C |
| Material | Aluminium alloy, colourless anodised; glue sealed |

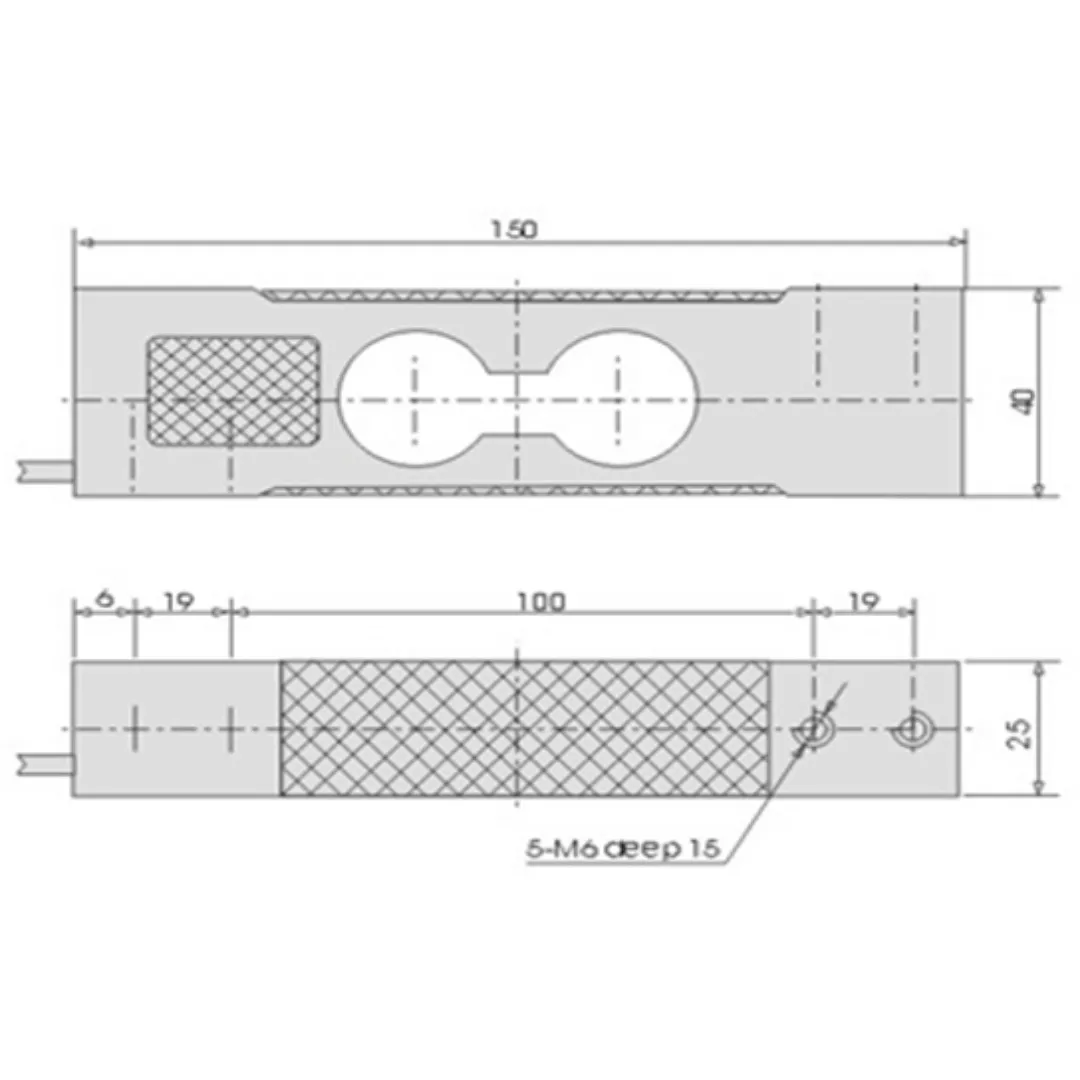

| Size | About 150 mm long, 40 mm high; M6 mounting threads |
| Cable | 4 mm, 3 m |
| Warranty | 1 year |
Where it is used
Bench, counting and postal scales, and check weighers. For 30 – 500 kg, see the LCP-4 single point load cell; for big platforms up to 3,000 kg, the jumbo platform scale load cell. Browse all load cells.
Questions buyers ask
What platform size can it carry?
Up to 400 × 400 mm on a single cell.
Which capacities are available?
100, 150 and 200 kg.
What accuracy class is it?
C2 or C3.
What is it made of?
Colourless anodised aluminium alloy, glue sealed.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity, platform size and quantity. Hindustan Scale Company, Mumbai, since 1955.
