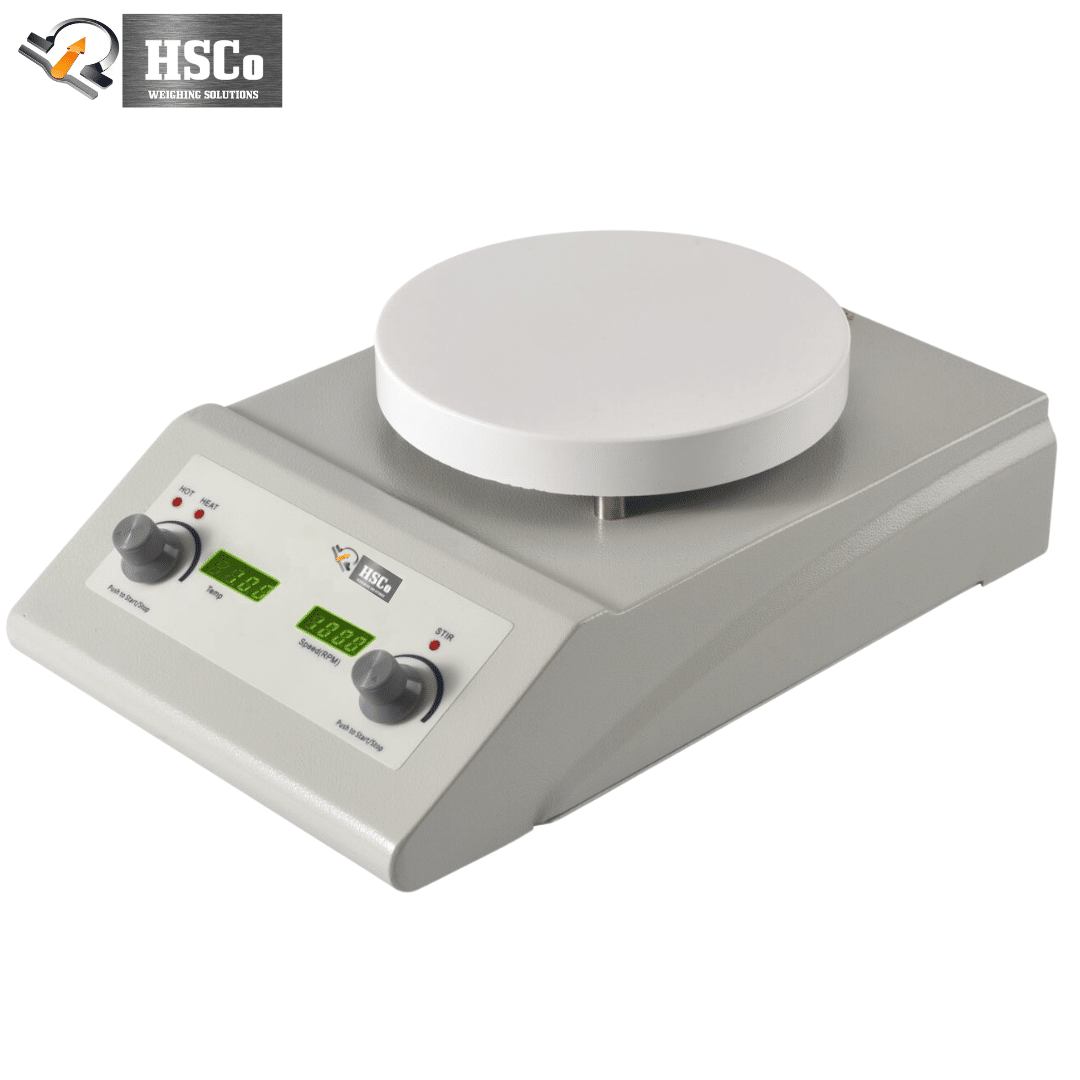

The HSC-MSH-150 is a magnetic stirrer hotplate for everyday lab heating and stirring. A 150 mm ceramic-coated aluminium plate heats to 400 °C, a quiet brushless drive stirs from 150 to 1,500 rpm for volumes up to 10 litres of water, and an external PT1000 probe with PID control holds the liquid temperature within ±0.1 °C.
Why labs choose it
- Simple control. Two knobs set speed (1 rpm steps) and temperature; a dual LED shows set and actual values.
- Accurate temperature. PID control with an external PT1000 probe holds the medium to ±0.1 °C.
- Chemical-resistant top. White ceramic coating resists acids, bases and stains and wipes clean.
- Safety built in. A flashing HOT warning until the plate cools below 50 °C, plus overheat and dry-run protection.
- Data ready. USB / RS-485 port for PC logging and GLP records.
Specifications
| Model | HSC-MSH-150 |
|---|---|
| Stirring positions | 1 |
| Volume | Up to 10 L (water) |
| Speed | 150 – 1,500 rpm, 1 rpm resolution; brushless DC motor |
| Temperature | 35 – 400 °C |
| Plate | Ceramic-coated aluminium, Ø150 mm |
| External probe | PT1000, Ø3 × 150 mm; ±0.1 °C control |
| Stir bar length | 25 – 60 mm |
| Interface | USB / RS-485 |
| Protection | IP21 |
| Operating conditions | 5 – 40 °C, up to 80% RH |
| Power | 600 W; 110–130 V or 220–240 V, 50/60 Hz |
| Size and weight | 190 × 290 × 100 mm; 3.5 kg |
| Warranty | 1 year |
Where it is used
Dissolving, heating and mixing in chemistry, pharma, food and teaching labs. For thick materials, see the high-torque overhead stirrer; browse all temperature control equipment.
Questions buyers ask
Up to 400 °C.
Up to 10 litres of water.
±0.1 °C in the liquid, using the external PT1000 probe.
A HOT warning flashes until the plate has cooled below 50 °C.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
