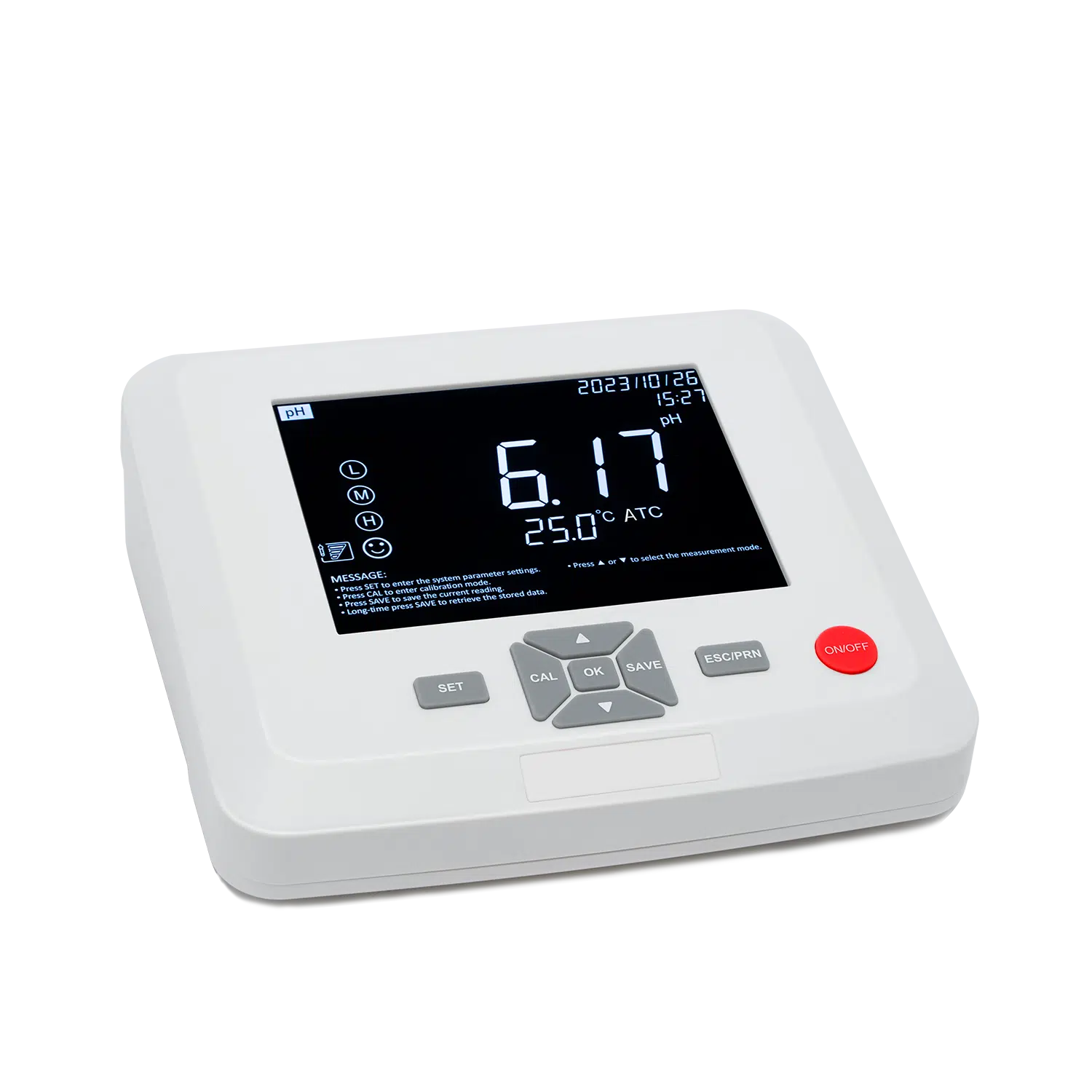

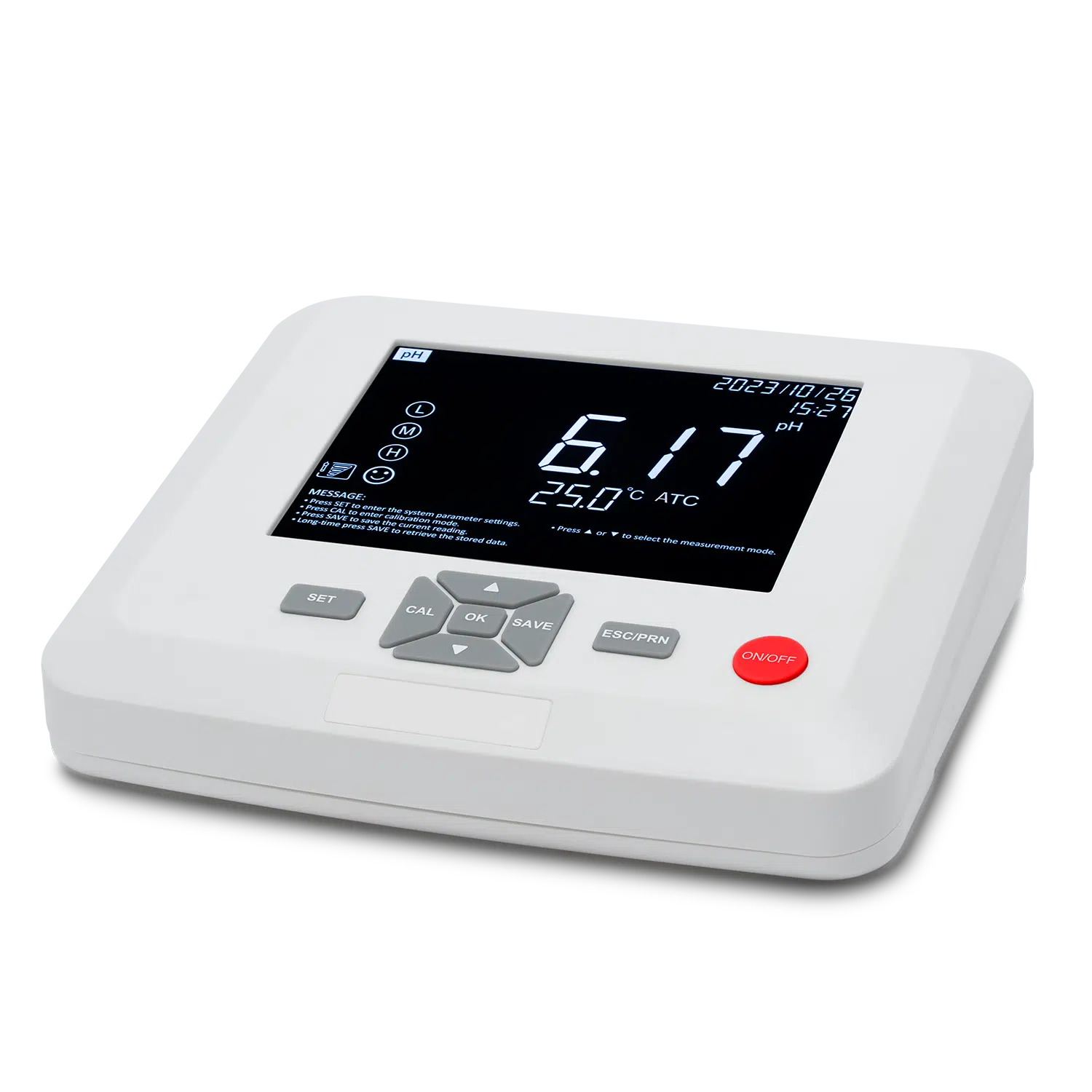

The HSCo HSCM Master Series keypad bench meters measure pH, conductivity and dissolved oxygen (DO) on the lab bench: one parameter, or two or all three in a single instrument. pH reads to ±0.01 pH with 1 – 3 point automatic calibration; conductivity covers 0 – 200 mS/cm with TDS, salinity and resistivity; DO covers 0 – 20 mg/L with automatic pressure and temperature compensation. Every model measures temperature, compensates for it automatically, and sends results to a USB stick or a printer.
Why labs choose it
- Seven models: pH, conductivity or DO, or any combination.
- Accurate pH: ±0.01 pH, 1 – 3 point auto calibration, ORP too.
- Automatic temperature compensation on every parameter.
- Data out to a USB stick or printer.
- Complete kit with probes, solutions, adaptor and a flexible probe holder.
Models
| Model | Measures |
|---|---|
| HSCM-P200K | pH, mV (ORP), temperature |
| HSCM-C200K | Conductivity, TDS, salinity, resistivity, temperature |
| HSCM-D200K | DO, temperature |
| HSCM-PC200K | pH + ORP + conductivity |
| HSCM-PD200K | pH + ORP + DO |
| HSCM-CD200K | Conductivity + DO |
| HSCM-PCD200K | pH + ORP + conductivity + DO |
Specifications
| pH range / resolution / accuracy | −2.00 to 20.00 pH / 0.1 or 0.01 / ±0.01 pH |
|---|---|
| pH calibration / ATC | 1 – 3 points, automatic / −9.9 to 130.0 °C |
| ORP | −1999.9 to +1999.9 mV; ±0.1% FS ±1 digit |
| Conductivity | 0 – 200.0 mS/cm, auto-ranging; resolution 0.001; ±1.0% FS ±1 digit; one-point auto calibration; ATC 0 – 50 °C |
| TDS / salinity / resistivity | 0 – 100.0 g/L / 0.00 – 100.00 ppt / 5.000 Ω·cm – 100.0 MΩ·cm |
| DO | 0.00 – 20.00 mg/L, ±0.30 mg/L ±1 digit; saturation 0.0 – 200.0% |
| DO compensation | Automatic barometric pressure (0 – 200.0 kPa) and temperature (0 – 50 °C); manual salinity 0 – 45 ppt |
| Temperature | −9.9 to 130.0 °C, ±0.2 °C |
| Data export | USB stick or printer |
| Power | 12 V DC adaptor |

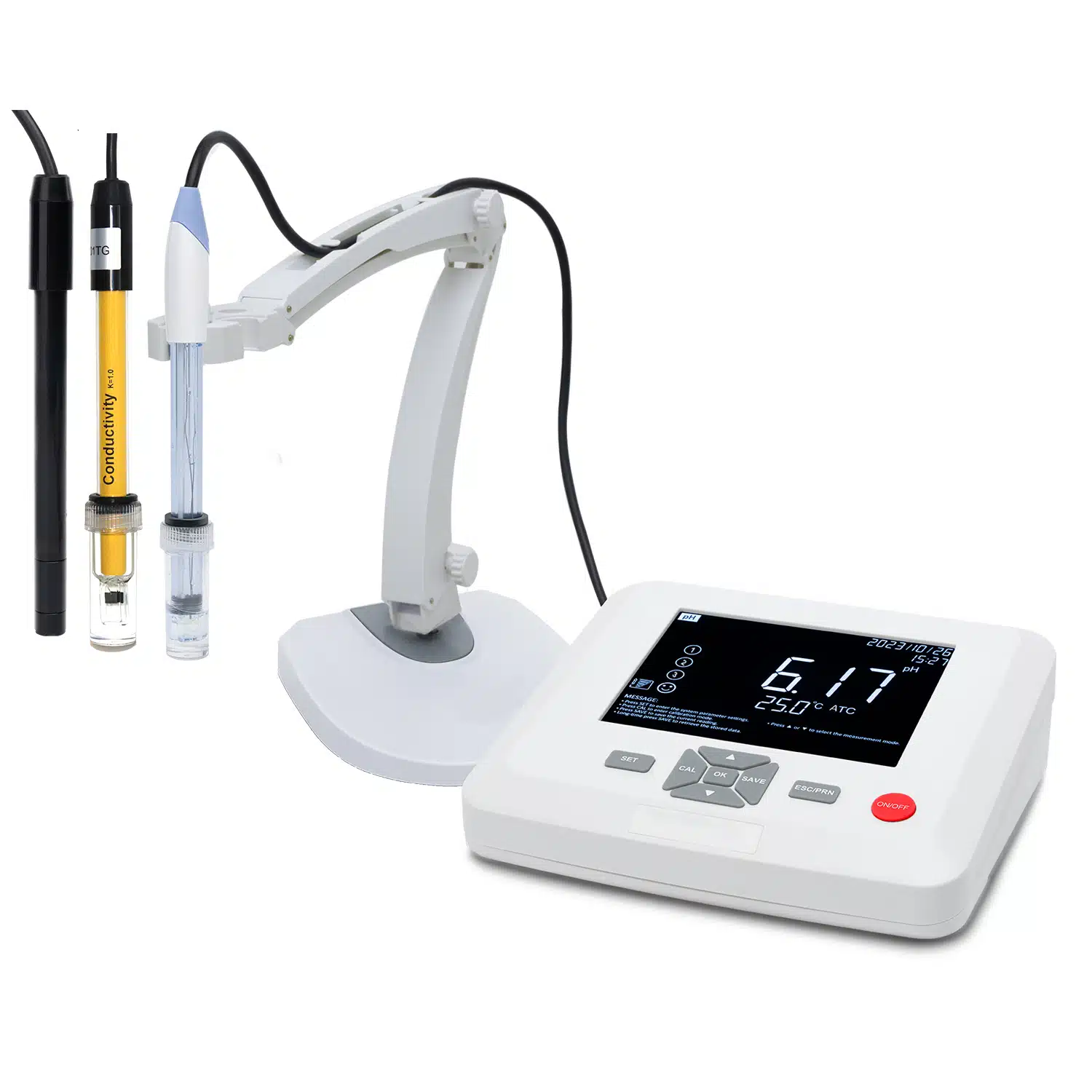

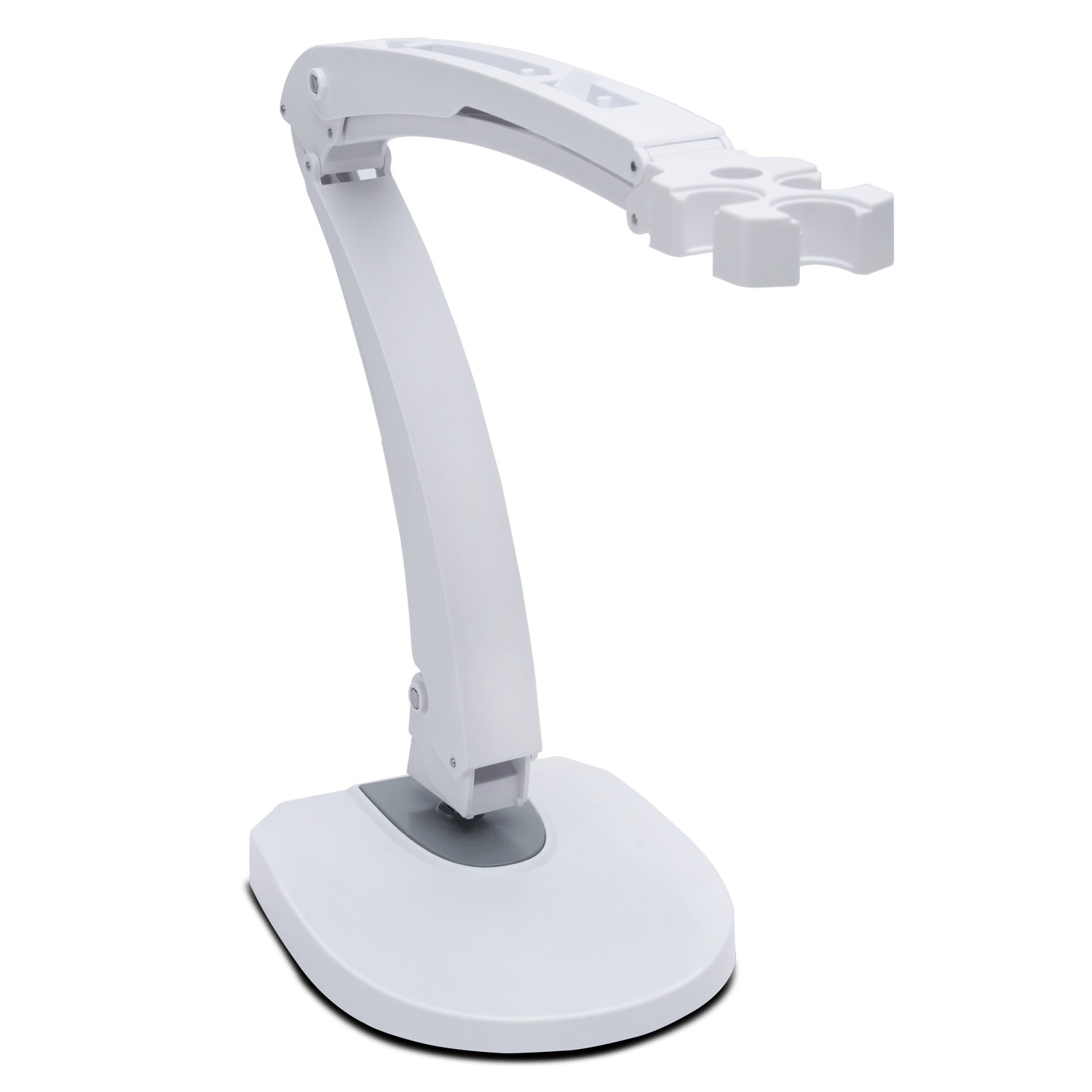

| Kit items | Meter; plastic ATC pH probe 201T; glass ATC conductivity probe CON201TG (K = 1.0); polarographic DO probe DO01-2M (2 m cable); pH buffers 4.00 / 7.00 / 10.01 (50 ml each); conductivity standards 84 µS/cm, 1413 µS/cm, 12.88 mS/cm (50 ml each); DO membrane refill solution DOS-01 (30 ml) and sensor caps DOSC (3); power adaptor; flexible probe holder F01. Probes and solutions come for the parameters your model measures. |
| Warranty | 1 year |
Which meter?
For a touch screen, 5-point pH calibration and data logging, see the Master Series touch-screen meters; to test in the field, the Master Series portable meters. Spare probes are on the probes page and buffers on the standard solutions page. Browse all pH and conductivity meters.
Where it is used
Water purity and environmental testing, chemical sample testing, research institutions and industrial quality control labs.
Questions buyers ask
Yes. The HSCM-PCD200K measures all three; other models measure one or two.
±0.01 pH, with 1 – 3 point automatic calibration and automatic temperature compensation.
To a USB stick or a printer.
A 12 V DC power adaptor, supplied.
Order or ask for a quotation
Tell us which parameters you need. Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
