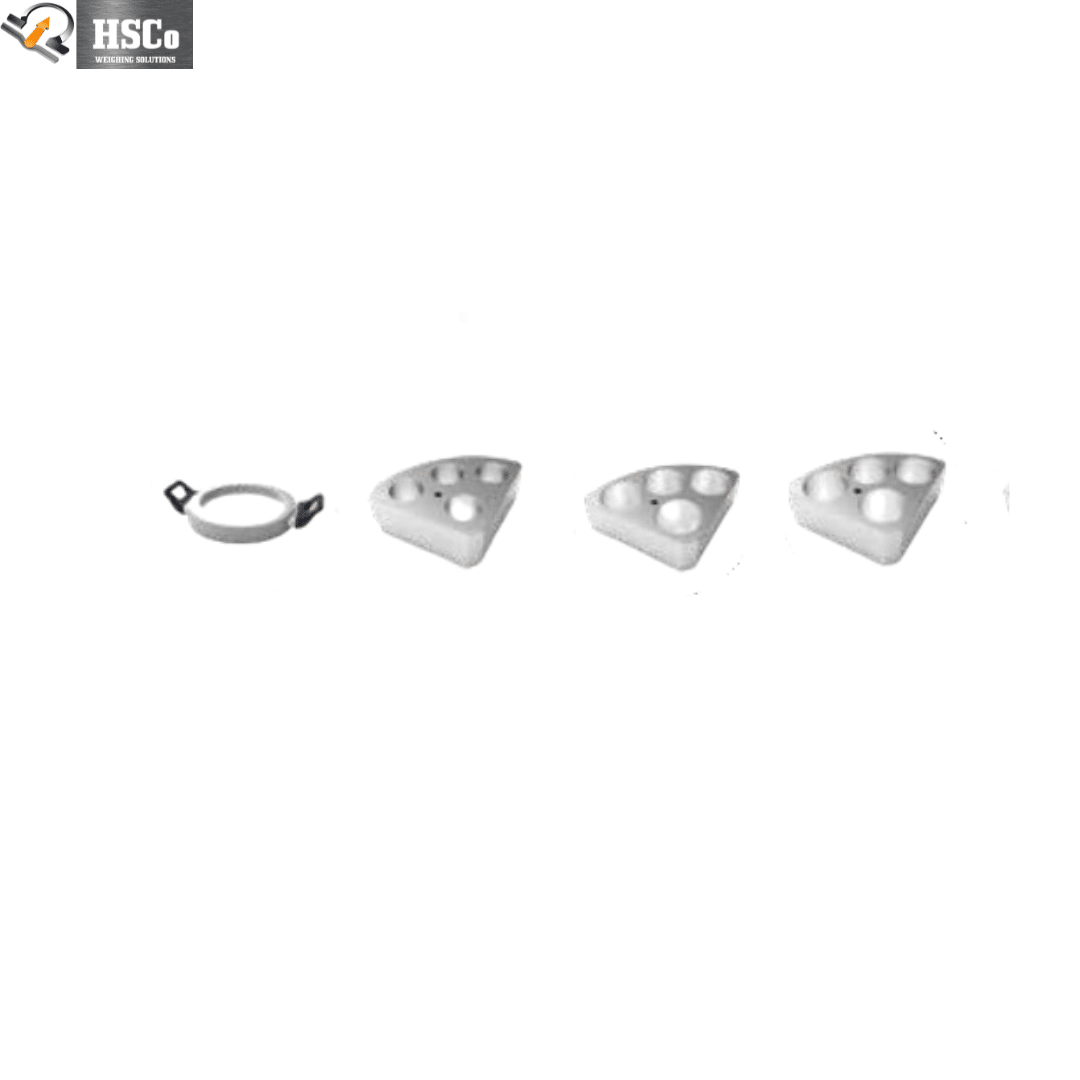

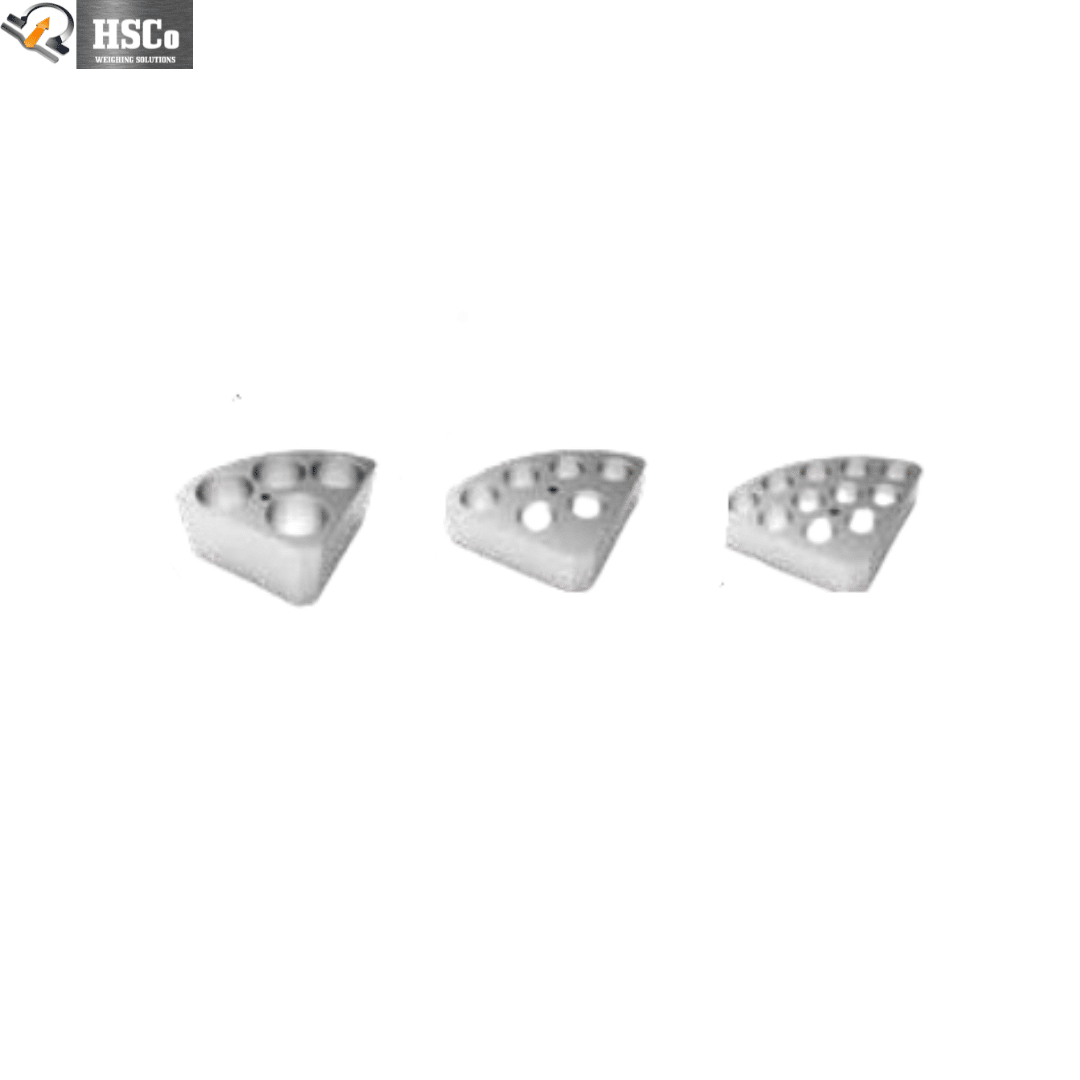

The HSCo heating module holds vials on the plate of a magnetic stirrer: a 200 mm tray with interchangeable blocks drilled for vials, from eleven 4 ml vials to four 40 ml vials per block. On a heating stirrer, several samples are heated and stirred together. It is made to work with all types of magnetic stirrers, basic, digital and professional, for chemical synthesis, reagent preparation, food testing and pharmaceutical R&D.
Why labs choose it
- Several vials at once on a heating stirrer.
- Six block sizes: 4, 8, 16, 20, 30 and 40 ml vials.
- Interchangeable blocks in a 200 mm tray.
- Fits all types of magnetic stirrers.
Specifications
| Part | Holes | Hole diameter | Hole depth |
|---|---|---|---|
| Tray | – | 200 mm (tray) | – |
| Block for 16 ml vials | 4 | 21.6 mm | 32 mm |
| Block for 20 ml vials | 4 | 28 mm | 24 mm |
| Block for 30 ml vials | 4 | 28 mm | 30 mm |
| Block for 40 ml vials | 4 | 28 mm | 43 mm |
| Block for 8 ml vials | 6 | 17.75 mm | 26 mm |
| Block for 4 ml vials | 11 | 15.2 mm | 22 mm |
Which stirrer?
Use it with a heating stirrer such as the heating plate magnetic stirrer (Pro Series) or the stainless steel heated-plate stirrer with timer. For larger flasks, see the heating jacket; for stir bars, the stirring bars. Browse all magnetic stirrers.
Where it is used
Chemical synthesis, reagent preparation, food testing and pharmaceutical R&D.
Questions buyers ask
4, 8, 16, 20, 30 and 40 ml vials, each in its own block; the table gives the hole sizes.
From four (16 – 40 ml blocks) to eleven (4 ml block) per block.
It is made to work with all types of magnetic stirrers. Tell us your model to confirm.
Order or ask for a quotation
Tell us your stirrer model and the vial sizes you use. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
