TECHNICAL FEATURES

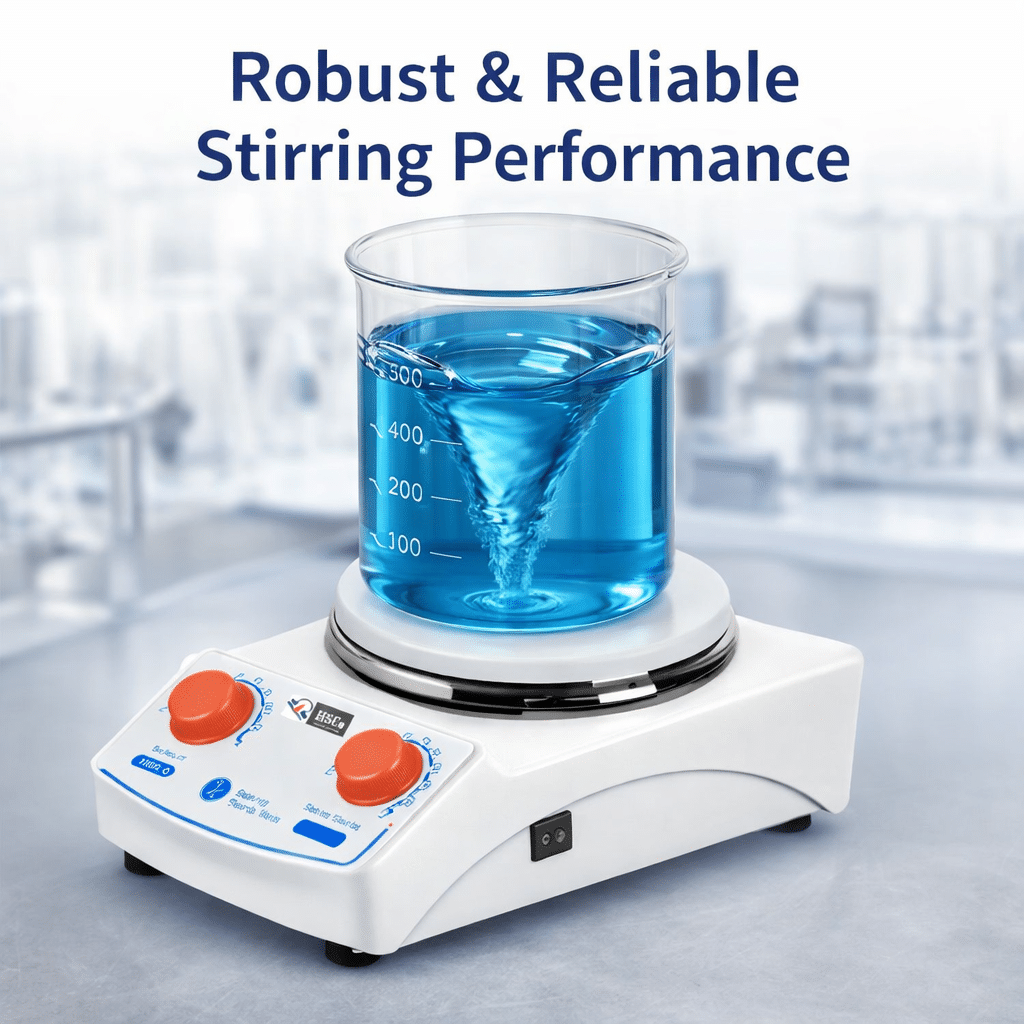

Robust & Reliable Stirring Performance
Provides consistent stirring for a wide range of laboratory applications.
Equipped with a powerful motor that ensures efficient mixing even for more viscous liquids.
Ensures uniformity in liquid solutions by maintaining stable mixing speeds.
Designed to handle long-term use without compromising performance.
Compatible with various types of containers and fluids, offering flexibility in use.
Suitable for chemical mixing, reagent preparation, and other routine lab tasks.

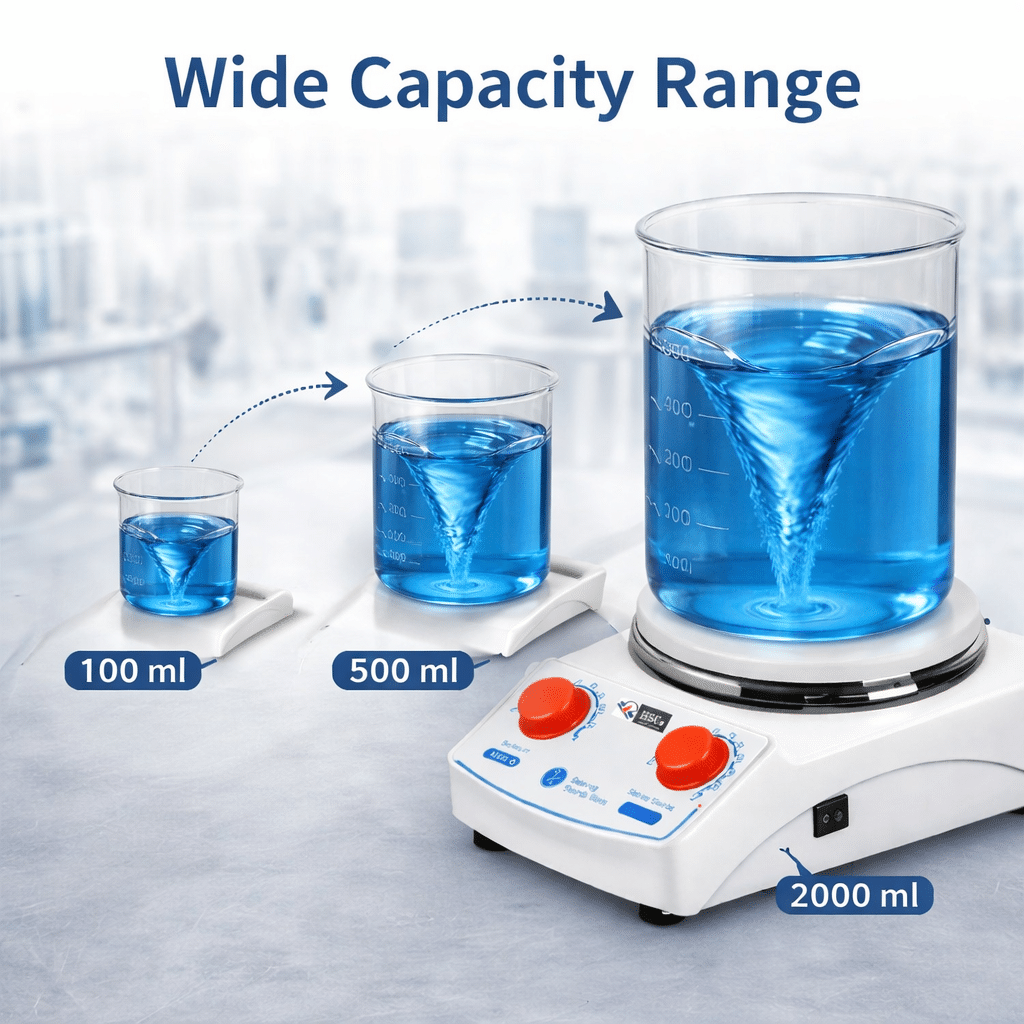

Wide Capacity Range
Available in multiple capacity models: 1 L, 2 L, 3 L, 4 L, 5 L, 10L and 20 L.
Can handle a wide range of liquid volumes, making it versatile for different lab needs.
Perfect for both small-scale and large-scale applications.
Ideal for educational labs or facilities with varying experiment sizes.
Offers easy scalability depending on the experiment’s volume.
Helps reduce the need for multiple stirrers by offering different sizes.

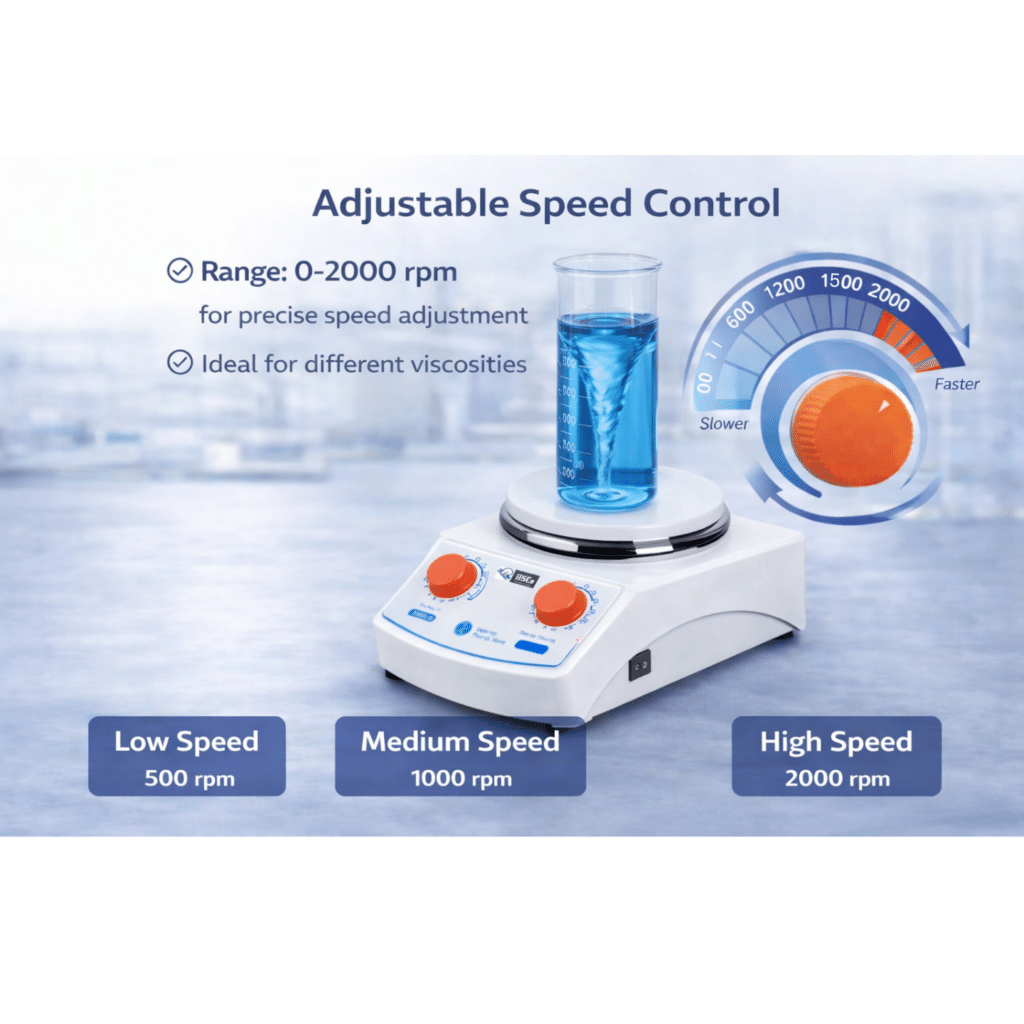

Adjustable Speed Control
Adjustable speed range from 0 to 2000 rpm, offering precise control over the stirring rate.
Suitable for both low-speed stirring of delicate mixtures and high-speed mixing of thicker liquids.
The speed control dial allows for easy adjustments during experiments.
Provides flexibility for stirring various viscosities of liquids.
Increases user control, enhancing reliability for different types of mixing tasks.
Ensures consistent performance by allowing fine-tuned speeds for various processes.

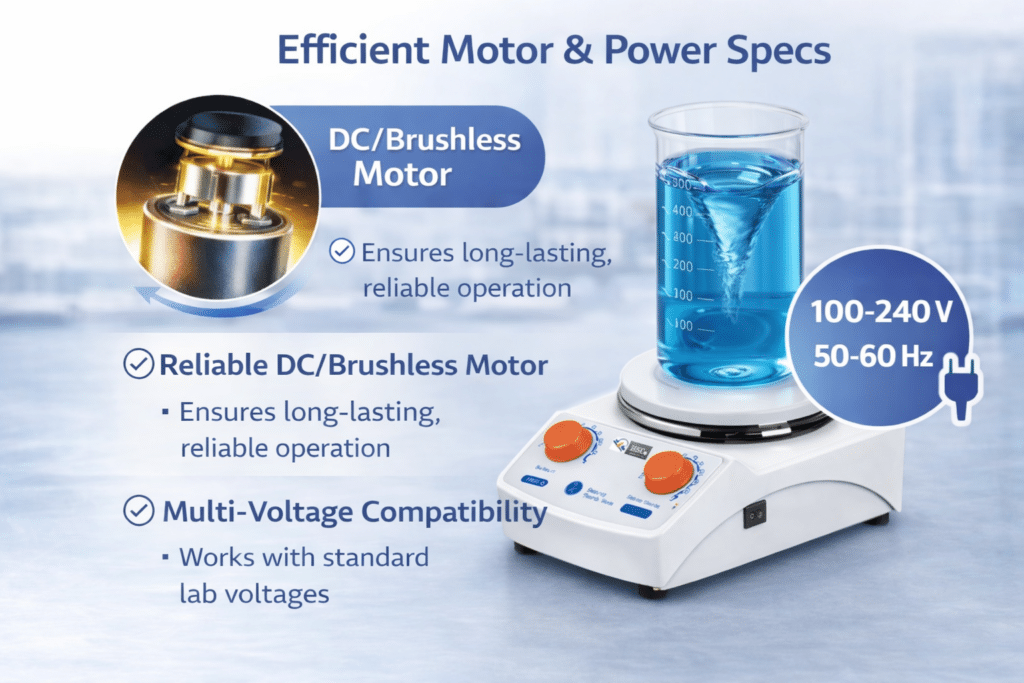

Efficient Motor & Power Specs
Powered by a DC brushless motor (depending on the model) for smooth and efficient operation.
Designed to handle varying workloads without overheating or underperformance.
Compatible with 100-240V power sources, ideal for use in laboratories worldwide.
Consumes low power, reducing electricity costs over time.
Brushless motor increases operational lifespan and reduces maintenance needs.
The high-efficiency motor ensures consistent performance even under continuous use.
Magnetic Beads
Materials: Ceramic, stainless steel, and PTFE.
Size: Typically 3mm to 10mm in diameter.
Shape: Spherical or oval.
Magnetic Core: Interacts with the stirrer’s magnetic field.
Durability: Ceramic and steel are durable; PTFE is chemically resistant.
Use: Ideal for stirring liquids and solutions in labs.
Pack: Available in bulk or sets.
Applications
Video
FAQ
It is a laboratory device that combines heating and magnetic stirring for mixing and heating liquid samples.
It’s used in chemical labs, pharmaceutical testing, food testing, and R&D environments.
Yes, the Hot Plate Magnetic Stirrer Pro Series heats liquids with adjustable temperature control.
Yes, it uses magnetic stirring to mix liquids efficiently.
Yes, the stirring speed is adjustable up to about 2000 rpm.
Yes, it’s designed for continuous operation in demanding lab work.
It comes in multiple sizes from 1 L up to 20 L options.
Yes, it includes a user‑friendly interface and digital adjustment controls.

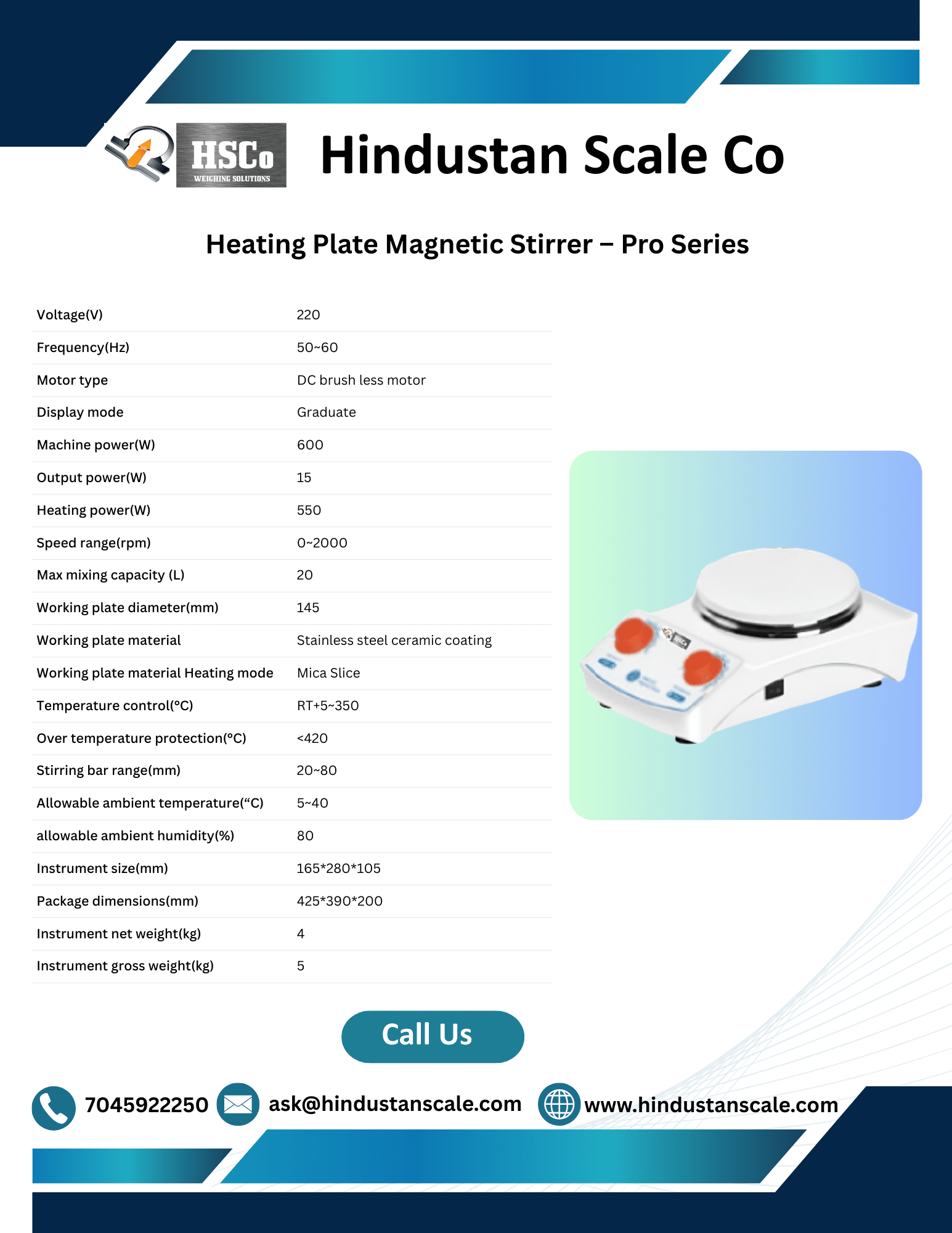

OTHER DETAILS
Model | |
Voltage(V) | 220 |
Frequency(Hz) | 50~60 |
Working time(min) | / |
Motor type | DC brush less motor |
Display mode | Graduate |
Machine power(W) | 600 |
Output power(W) | 15 |
Heating power(W) | 550 |
Speed range(rpm) | 0~2000 |
Max mixing capacity (L) | 20 |
Working plate diameter(mm) | 145 |
Working plate material | Stainless steel ceramic coating |
Working plate material Heating mode | Mica Slice |
Temperature control(°C) | RT+5~350 |
Temperature Resolution(°C) | / |
Over temperature protection(°C) | <420 |
Exterior Temp Sensor | / |
Sensor control accuracy(°C) | / |
Temp control accuracy(°C) | / |
Temp set accuracy(°C) | / |
Stirring bar range(mm) | 20~80 |
Allowable ambient temperature(“C) | 5~40 |
allowable ambient humidity(%) | 80 |
Instrument size(mm) | 165*280*105 |
Package dimensions(mm) | 425*390*200 |
Instrument net weight(kg) | 4 |
Instrument gross weight(kg) | 5 |
