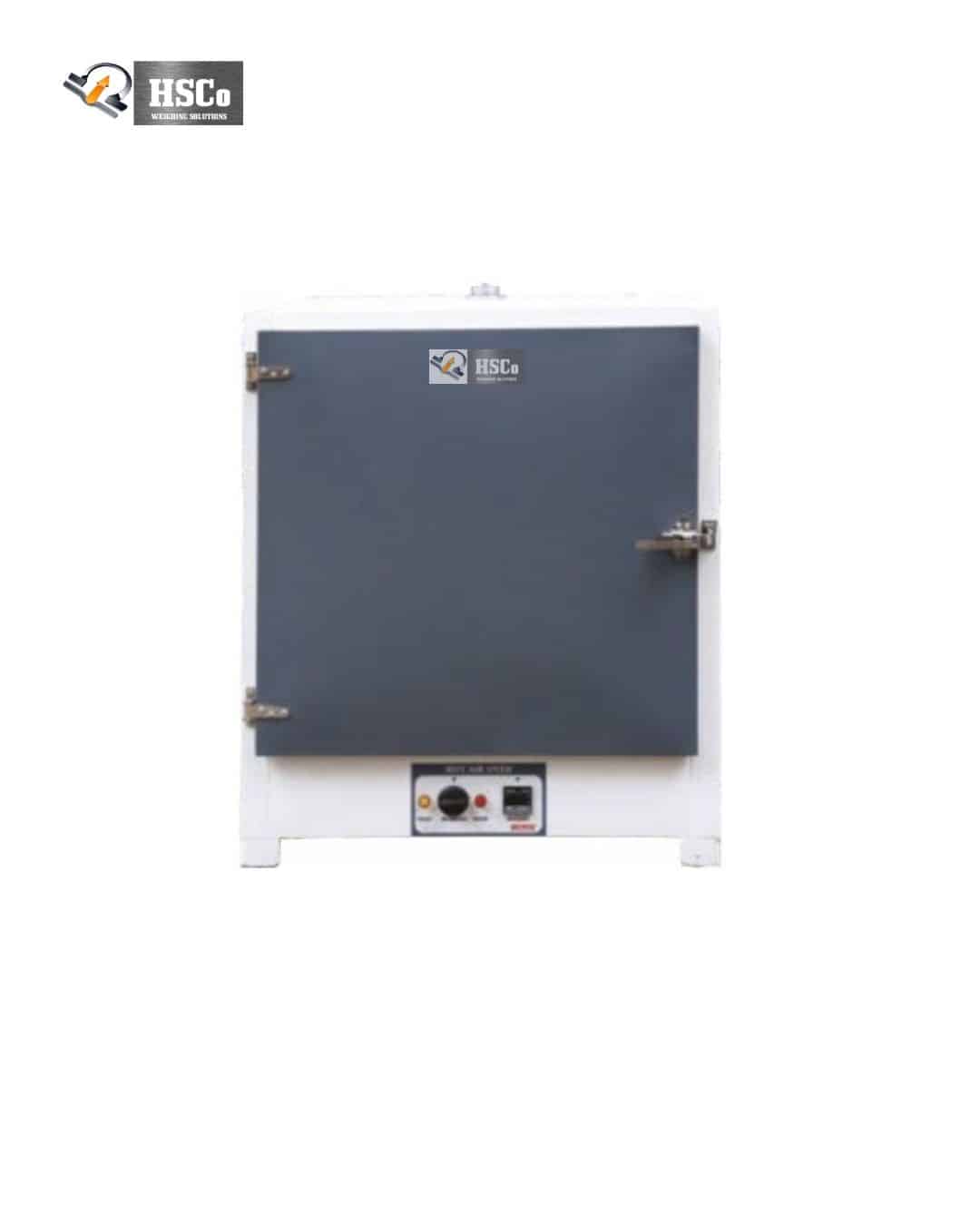

The HSCo hot air oven, lab type, high precision model, is for labs that need precise, steady dry heat for drying, sterilising, material testing and research. It heats from 50 to 250 °C, held within ±1 °C by a microprocessor auto-tune PID controller with a PT-100 sensor and a dual PV / SV display. Nichrome heaters at the bottom spread the heat evenly, and top vents let hot fumes out. The double-walled body has a mild-steel or SS 304 inner chamber, a powder-coated GI outer body and glass-wool insulation, with a fully insulated door on stainless-steel lock and hinges. Six chamber sizes are made, with galvanised wire-mesh shelves.
Why labs choose the high precision model
- ±1 °C accuracy from 50 to 250 °C.
- Auto-tune PID controller, PT-100 sensor, PV and SV displays.
- Even heat: Nichrome heaters at the bottom.
- Well insulated: double wall with glass wool; insulated door.
- Six sizes, from 12 inch cube to 24 × 24 × 36 inch.

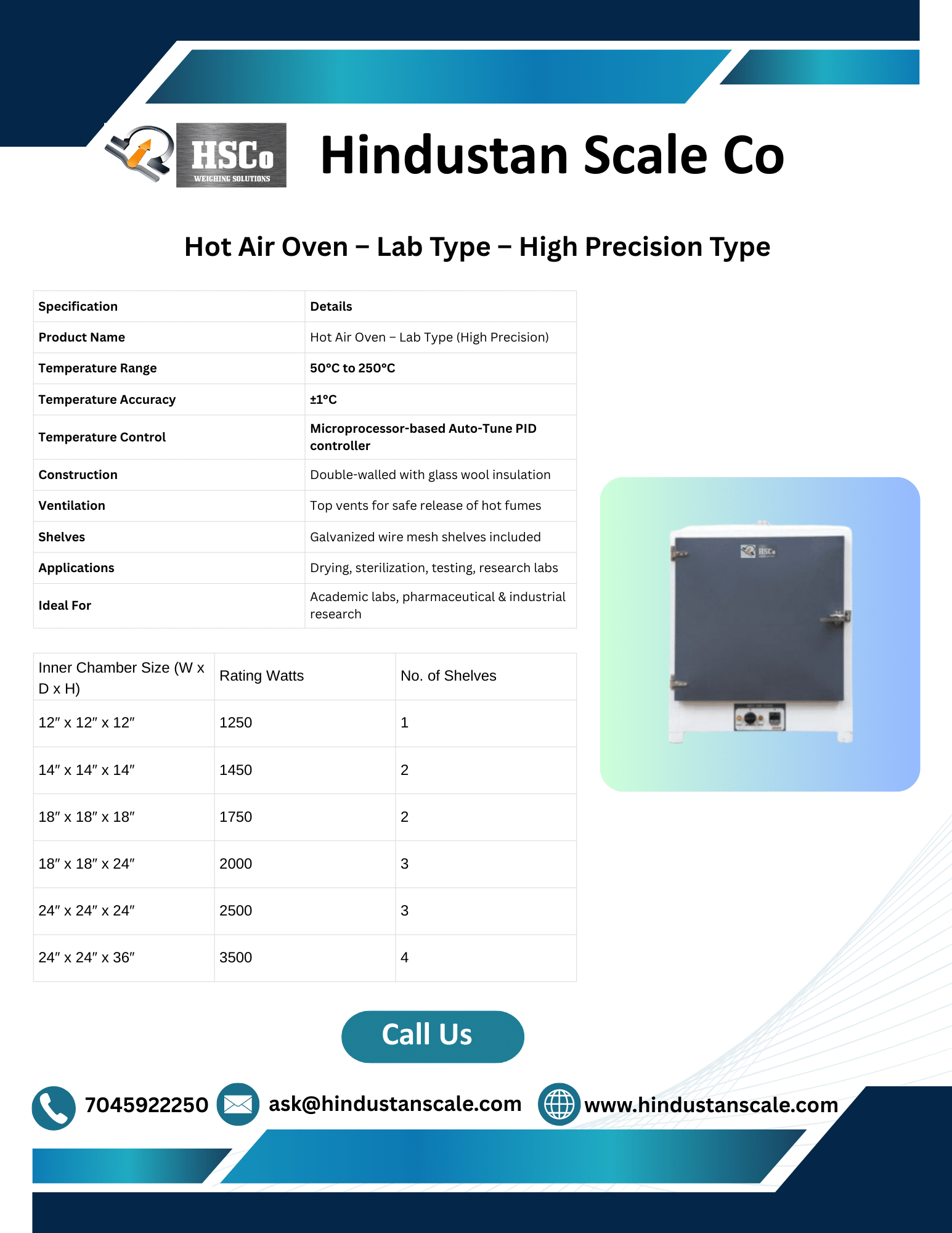

Specifications
| Inner chamber (W × D × H) | Heater rating | Shelves |
|---|---|---|
| 12″ × 12″ × 12″ | 1,250 W | 1 |
| 14″ × 14″ × 14″ | 1,450 W | 2 |
| 18″ × 18″ × 18″ | 1,750 W | 2 |
| 18″ × 18″ × 24″ | 2,000 W | 3 |
| 24″ × 24″ × 24″ | 2,500 W | 3 |
| 24″ × 24″ × 36″ | 3,500 W | 4 |
| Temperature range | 50 – 250 °C |
|---|---|
| Accuracy | ±1 °C |
| Controller | Microprocessor auto-tune PID, PT-100 sensor, dual PV / SV display |
| Heaters | Nichrome wire, fitted at the bottom |
| Construction | Double walled; inner chamber mild steel or SS 304; outer powder-coated GI; glass-wool insulation |
| Door | Fully insulated, stainless-steel lock and hinges |
| Ventilation | Top vents for hot fumes |
| Shelves | Galvanised wire mesh, included |
| Warranty | 1 year |
Which oven?
For the same sizes with a simple mechanical thermostat (±2 °C), see the hot air oven, economy model. For forced-air circulation up to 300 °C, the precision forced air drying oven HSC-OF-S; for drying under vacuum, the vacuum oven HSC-VO. Browse all ovens and furnaces.
Where it is used
Drying, sterilisation, material testing and research in academic, pharmaceutical and industrial labs.
Questions buyers ask
From 50 to 250 °C, held within ±1 °C by the PID controller.
Six: 12, 14 and 18 inch cubes, 18 × 18 × 24, 24 × 24 × 24 and 24 × 24 × 36 inch.
The high precision model has a PID digital controller (±1 °C); the economy model has a mechanical thermostat (±2 °C).
Order or ask for a quotation
Tell us the chamber size you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
