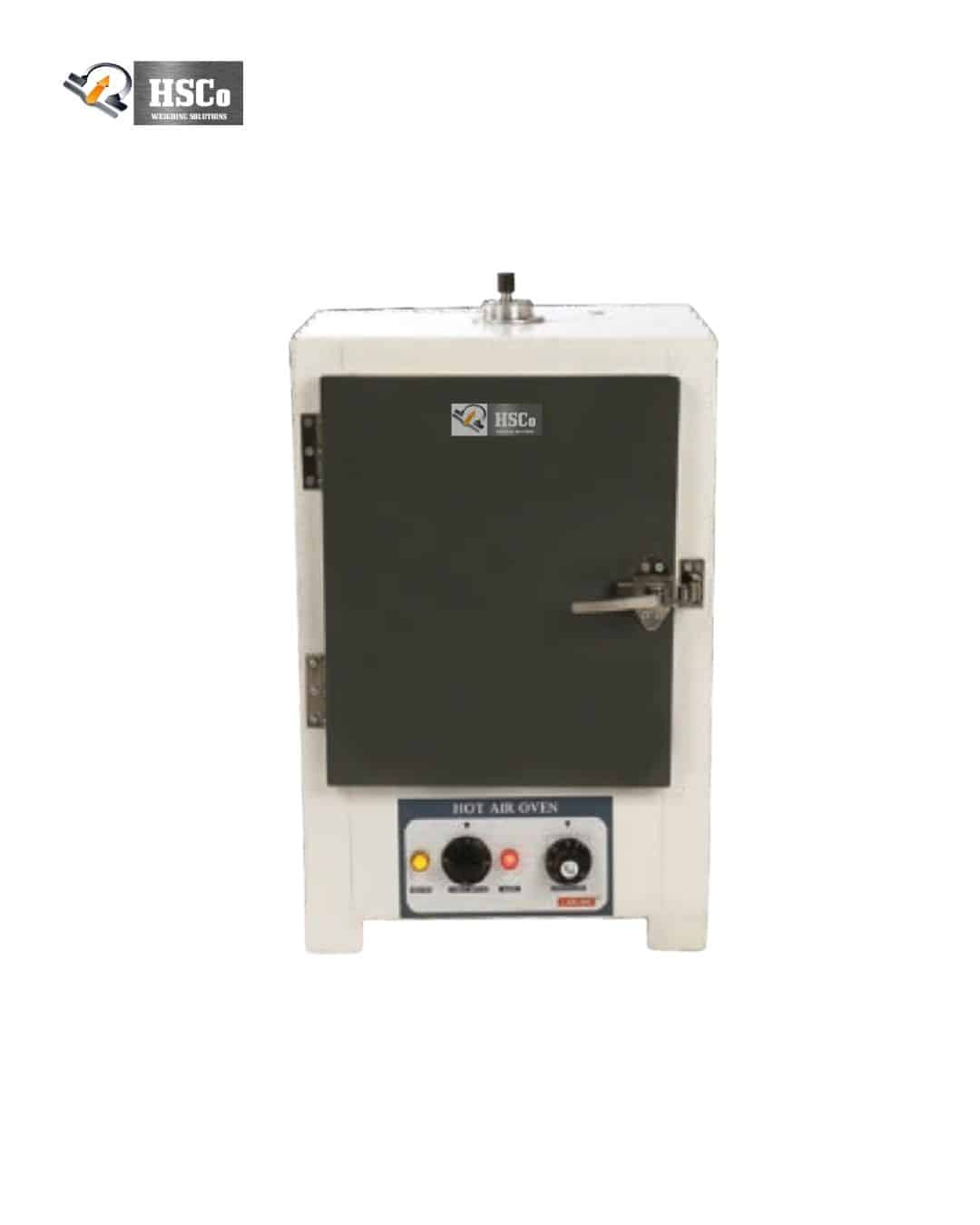

The HSCo hot air oven, lab type, economy model, gives steady dry heat for everyday drying and sterilising in research labs, schools and industrial quality-control rooms. It heats from 50 to 250 °C, held within ±2 °C by a simple mechanical thermostat. Chrome-plated Nichrome heaters at the bottom spread the heat evenly, and top vents let hot fumes out. The double-walled body has a mild-steel or SS 304 inner chamber, a powder-coated GI outer body and glass-wool insulation, with a fully insulated door on stainless-steel lock and hinges. Six chamber sizes are made, with galvanised wire-mesh shelves.
Why labs choose the economy model
- Simple to use: mechanical thermostat.
- 50 to 250 °C, ±2 °C.
- Even heat: Nichrome heaters at the bottom.
- Well insulated: double wall with glass wool; insulated door.
- Six sizes, from 12 inch cube to 24 × 24 × 36 inch.

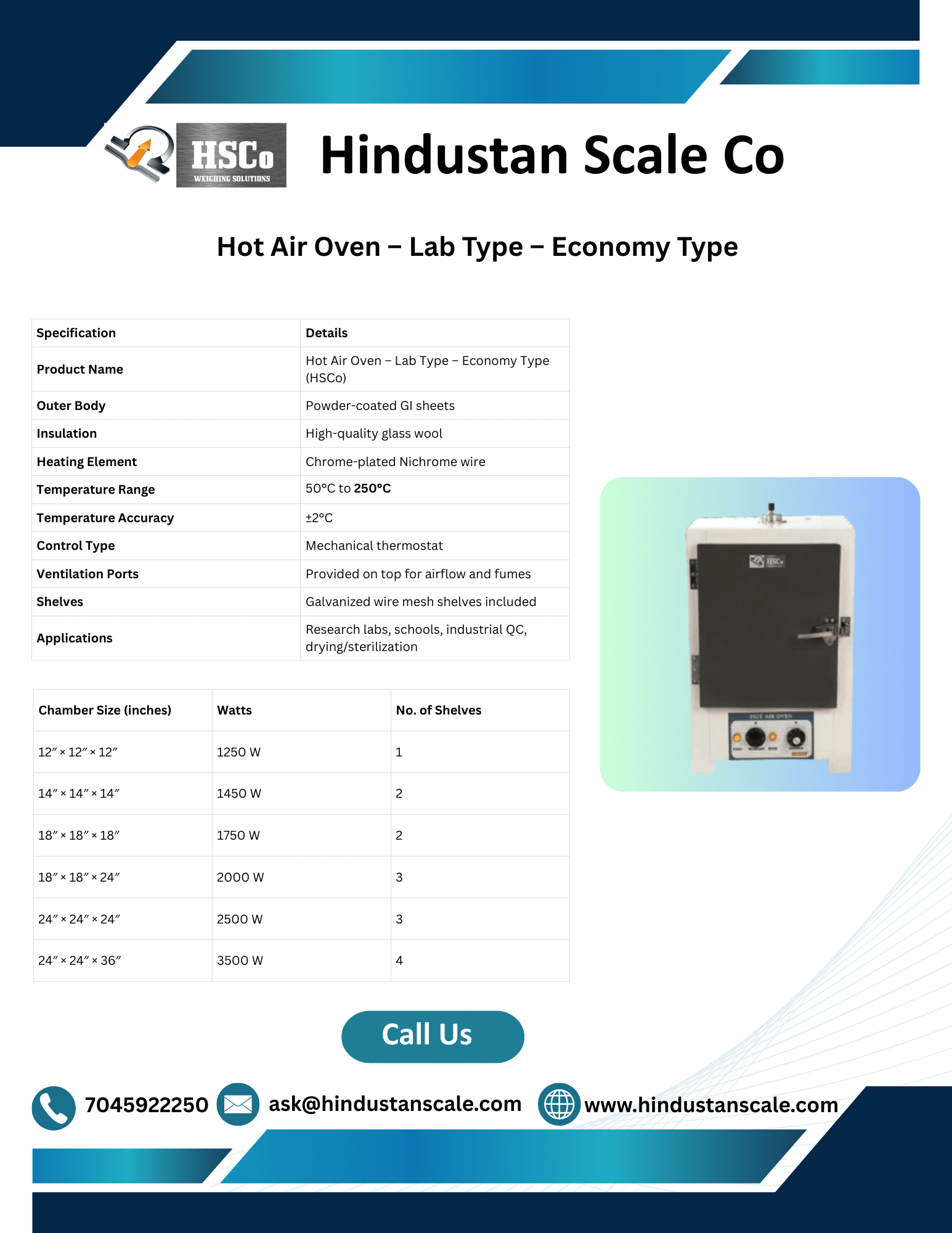

Specifications
| Inner chamber (W × D × H) | Heater rating | Shelves |
|---|---|---|
| 12″ × 12″ × 12″ | 1,250 W | 1 |
| 14″ × 14″ × 14″ | 1,450 W | 2 |
| 18″ × 18″ × 18″ | 1,750 W | 2 |
| 18″ × 18″ × 24″ | 2,000 W | 3 |
| 24″ × 24″ × 24″ | 2,500 W | 3 |
| 24″ × 24″ × 36″ | 3,500 W | 4 |
| Temperature range | 50 – 250 °C |
|---|---|
| Accuracy | ±2 °C |
| Control | Mechanical thermostat |
| Heaters | Chrome-plated Nichrome wire, fitted at the bottom |
| Construction | Double walled; inner chamber mild steel or SS 304; outer powder-coated GI; glass-wool insulation |
| Door | Fully insulated, stainless-steel lock and hinges |
| Ventilation | Top vents for hot fumes |
| Shelves | Galvanised wire mesh, included |
| Warranty | 1 year |
Which oven?
For the same sizes with a PID digital controller (±1 °C), see the hot air oven, high precision model. For forced-air circulation, the precision forced air drying oven HSC-OF-S. Browse all ovens and furnaces.
Where it is used
Dry-heat sterilisation and drying in research labs, schools and industrial quality-control rooms.
Questions buyers ask
From 50 to 250 °C, within ±2 °C.
With a mechanical thermostat. For digital PID control, choose the high precision model.
Six: 12, 14 and 18 inch cubes, 18 × 18 × 24, 24 × 24 × 24 and 24 × 24 × 36 inch.
Order or ask for a quotation
Tell us the chamber size you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
