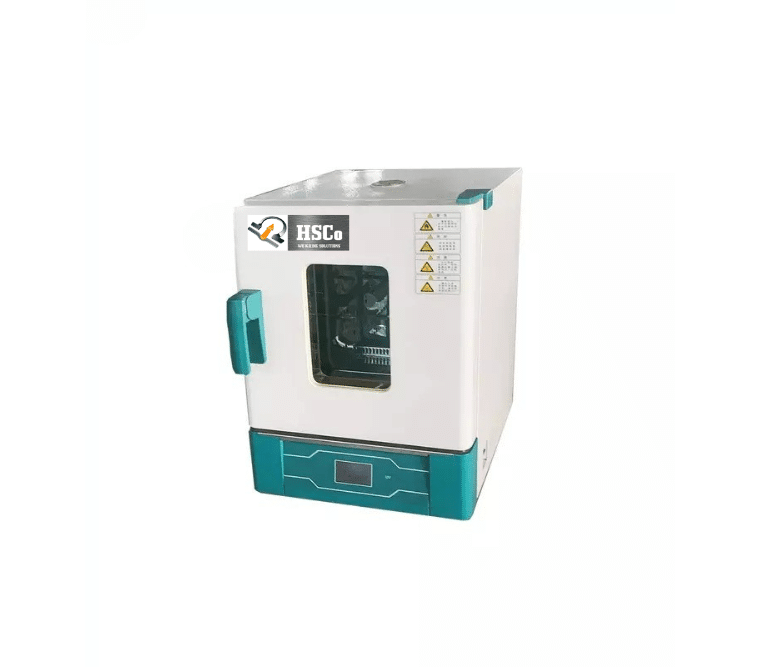

The HSCo HSC-O-DDASO dental drying and sterilizing oven dries and sterilises dental instruments, such as handpieces, impression trays and surgical tools, in dental clinics, labs and research facilities. A fan circulates hot air for even heat up to 300 °C, held within ±1 °C by a two-stage PID controller with a PT100 sensor. The 3.5-inch touch screen stores four preset modes, so the right temperature and time are chosen with one touch. It alarms and cuts the heating if the temperature overshoots. Two sizes: 30 L and 65 L, with mirror stainless-steel chambers.
Why dental clinics choose it
- Four preset modes on a 3.5-inch touch screen.
- Even heat: forced hot-air circulation, ±2.5% uniformity.
- Up to 300 °C, held within ±1 °C.
- Safe: over-temperature alarm with heating cut-off.
- Mirror stainless-steel chamber, rock-wool insulation.
Specifications
| HSC-O-DDASO-30BE | HSC-O-DDASO-65BE | |
|---|---|---|
| Volume | 30 L | 65 L |
| Inner size (W × L × H) | 310 × 310 × 310 mm | 400 × 350 × 450 mm |
| Outer size (W × L × H) | 450 × 500 × 690 mm | 540 × 550 × 830 mm |
| Power | 0.8 kW; 220 V, 3.6 A | 1.6 kW; 220 V, 7.2 A |
| Shelves (maximum) | 6 | 9 |
| Net / gross weight | 33 / 37 kg | 44 / 49 kg |
| Temperature range | Up to 300 °C |
|---|---|
| Resolution / stability / uniformity | 0.1 °C / ±1 °C / ±2.5% |
| Circulation | Forced convection |
| Control | Two-stage PID, PT100 sensor; 3.5-inch touch screen with 4 preset modes |
| Timer | 0 – 9,999 min, with timing wait; auto stop |
| Chamber / body | Mirror stainless steel / cold-rolled steel, electrostatic spray; rock-wool insulation |
| Heater | Stainless steel |
| Exhaust | Ø 35 mm on top, also a test hole |
| Safety | Over-temperature sound and light alarm with heating cut-off; power-off memory |
| Shelves | 2 supplied, 15 kg each, 35 mm spacing; 4 shelf frames |
| Options | Spare shelf; RS485 interface |
| Warranty | 1 year |
Which oven?
For general drying and sterilising in more sizes, see the hot air sterilizer and drying oven HSC-O-HASDO; to dry and incubate in one cabinet, the drying oven cum incubator. Browse all ovens and furnaces.
Where it is used
Dental clinics, dental labs and research facilities: drying and sterilising handpieces, impression trays and surgical instruments.
Questions buyers ask
The touch screen stores four modes, each with its own temperature and time, so a cycle starts with one touch.
Up to 300 °C, held within ±1 °C.
30 litres and 65 litres.
Ask for a quotation
Tell us the size you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
