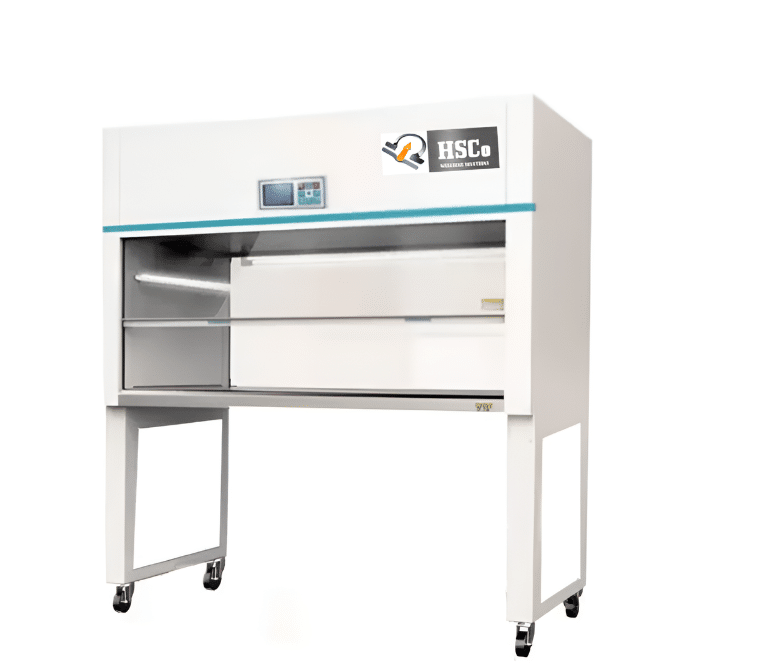

The HSCo HSC-I-ETLFC economic laminar flow cabinet gives a clean, particle-free work area at a budget price, for labs, teaching institutes, small research centres and industry. Air passes through a HEPA filter that stops 99.995% of 0.3 µm particles and flows down vertically over the stainless-steel work surface at 0.2 to 0.6 m/s, meeting ISO Class 5 (Class 100). It has fluorescent and UV lamps, an LCD panel with multi-level fan speed, two sockets inside, alarms for HEPA filter and UV lamp life, and castors. Four models seat one or two people, working from one side or both.
Why labs choose the ETLFC
- ISO Class 5 (Class 100) clean air, 99.995% at 0.3 µm.
- Vertical airflow, 0.2 – 0.6 m/s, multi-level.
- UV and fluorescent lamps, with filter and lamp life alarms.
- Stainless-steel work surface, up to 50 kg.
- Budget price; one- or two-person models on castors.
Specifications
| Model | Use | Inner size (W × D × H) | Outer size (W × D × H) | Power | Net weight |
|---|---|---|---|---|---|
| HSC-I-ETLFC-1DL | 1 person, one side | 870 × 690 × 520 mm | 1,010 × 750 × 1,600 mm | 250 W | 130 kg |
| HSC-I-ETLFC-1SL | 1 person, two sides | 870 × 690 × 520 mm | 1,010 × 780 × 1,600 mm | 250 W | 130 kg |
| HSC-I-ETLFC-2DL | 2 persons, one side | 1,360 × 690 × 520 mm | 1,500 × 750 × 1,600 mm | 500 W | 170 kg |
| HSC-I-ETLFC-2SL | 2 persons, two sides | 1,360 × 690 × 520 mm | 1,500 × 780 × 1,600 mm | 500 W | 170 kg |
| Airflow | Vertical; 0.2 – 0.6 m/s |
|---|---|
| Cleanliness | ISO Class 5 (Class 100); 99.995% at 0.3 µm; ≤ 0.5 colonies per 90 mm dish |
| HEPA filter | 820 × 600 × 50 mm, one (1-person); 610 × 610 × 50 mm, two (2-person) |
| Lamps | Fluorescent 15 W × 2; UV 15 W × 2; 300 lux at the work centre |
| Noise / vibration | 62 dB / 3 µm |
| Work surface | SUS 304 stainless steel; up to 50 kg |
| Body / door | Cold-rolled steel, electrostatic spray finish; tempered glass door |
| Controls | LCD; multi-level fan speed |
| Extras | 2 sockets inside (300 W each); HEPA filter and UV lamp life alarm; castors |
| Power supply | AC 220 V, 50 / 60 Hz; 1.1 A (1-person) / 2.3 A (2-person) |
| Warranty | 1 year |
Which clean cabinet?
For a larger work area and taller opening, see the laminar flow cabinet HSC-I-NLFC; for a single person on the bench, the desktop laminar flow cabinet or the mini laminar flow cabinet. Browse all laboratory furniture.
Where it is used
Sample preparation, microbiological testing, pharmaceutical compounding and electronics assembly, in labs, teaching institutes, small research centres and industry.
Questions buyers ask
ISO Class 5 (Class 100): the HEPA filter stops 99.995% of 0.3 µm particles.
1 or 2 is the number of users; D models are used from one side, S models from both sides.
Yes, two 15 W UV lamps, with a lamp-life alarm.
