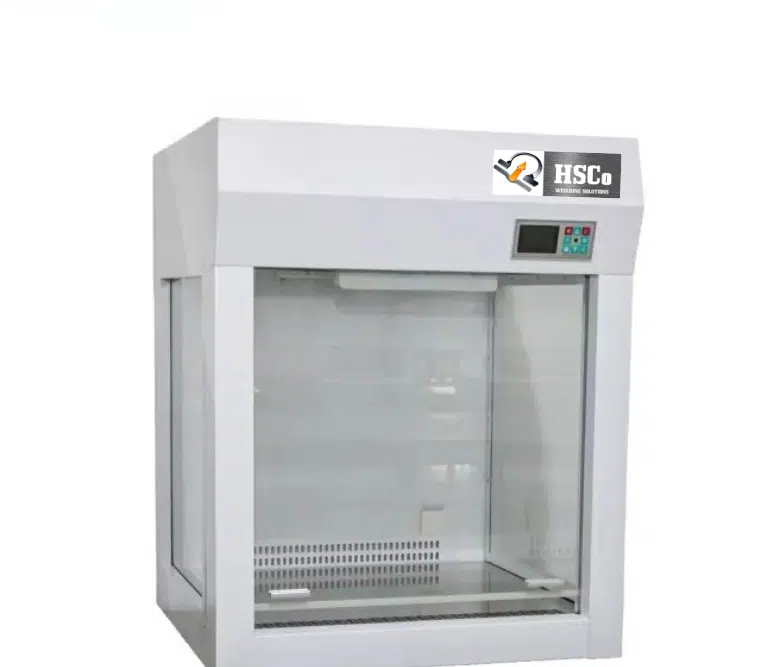

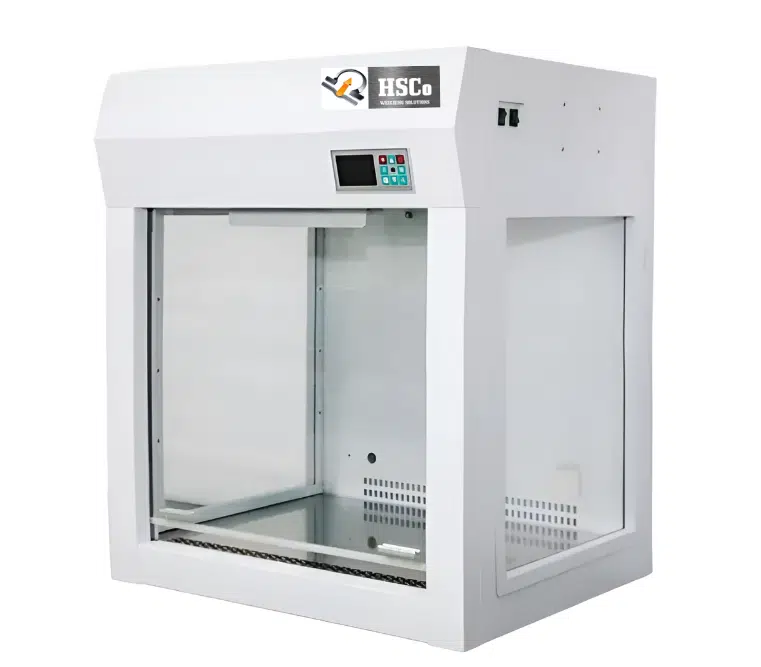

Desktop Laminar Flow Cabinet HSC-I-LFCDT – Class 100, HEPA, UV Lamp, One Person
Price on Request
Desktop laminar flow cabinet HSC-I-LFCDT-1DZ: vertical HEPA-filtered airflow to class 100 (ISO 5), ≥ 99.995% at 0.3 µm, SUS304 chamber, tempered-glass door, 8 W UV and fluorescent lamps, UV cut-off when the door opens, LED controller, ≤ 62 dB. 852 × 749 × 1,062 mm. 1-year warranty.
The HSCo HSC-I-LFCDT desktop laminar flow cabinet gives one person a clean, particle-free work area on a bench. HEPA-filtered air flows vertically down over the work surface to cleanliness class 100 (ISO class 5), stopping at least 99.995% of 0.3 µm particles. It has a SUS304 stainless-steel work chamber, a tempered-glass front door, fluorescent and UV lamps, and an LED controller with multi-level air speed. It suits microbiology, sample preparation, pharmaceutical compounding, electronics assembly and tissue culture.
Why labs choose it
- Class 100 (ISO 5) clean air, vertical laminar flow.
- HEPA filter, ≥ 99.995% at 0.3 µm, with a pre-filter.
- Fits on a bench: 852 × 749 × 1,062 mm outside.
- UV lamp for sterilising, cut off automatically when the door opens.
- Quiet: 62 dB or less.
- Reminders for filter and UV lamp replacement; built-in socket.
Specifications
| Model | HSC-I-LFCDT-1DZ |
|---|---|
| Use | One person, one side |
| Airflow | Vertical |
| Cleanliness | Class 100 (ISO class 5) |
| Filter efficiency | ≥ 99.995% at 0.3 µm |
| Colony count | ≤ 0.5 per dish (Ø 90 mm petri dish) |
| Air speed | 0.2 – 0.5 m/s, multi-level adjustable |
| Noise / vibration | ≤ 62 dB / ≤ 3 µm (semi-peak) |
| Lighting | ≥ 500 lux; 8 W fluorescent lamp |
| UV lamp | 8 W, switched off when the door opens |
| Work surface load | 50 kg |
| Chamber / shell / door | SUS304 stainless steel / cold-rolled steel, powder coated / tempered glass |
| Filters | HEPA 780 × 533 × 50 mm; pre-filter 532 × 446 × 5 mm |
| Fan / rated power | 160 W / 180 W |
| Controller | LED display |
| Other | Multi-purpose socket (up to 800 W); filter and UV lamp replacement reminders; adjustable feet |
| Inside size (W × L × H) | 788 × 613 × 700 mm |
| Outside size (W × L × H) | 852 × 749 × 1,062 mm; packed 972 × 870 × 1,292 mm |
| Power | 220 V AC, 0.8 A, 50/60 Hz |
| Net / gross weight | 90 / 120 kg |
| Options | USB data socket; colour LCD controller; special configuration for 3D printers |
| Warranty | 1 year |
Which laminar flow cabinet?
For one or two people, working from one or both sides, see the laminar flow cabinet HSC-I-NLFC; for a smaller 550 × 460 × 700 mm cabinet, the mini laminar flow cabinet. Browse all laboratory furniture.
Where it is used
Microbiology research, sample preparation, pharmaceutical compounding, electronics assembly and tissue culture, in labs with limited space.
Questions buyers ask
Class 100 (ISO class 5): the HEPA filter stops at least 99.995% of 0.3 µm particles.
Yes, an 8 W UV lamp, which switches off automatically when the door is opened.
852 × 749 × 1,062 mm outside, with a 788 × 613 × 700 mm work chamber.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
