We are a prominent international exporter and authorized distributor of the Desktop Type pH and Conductivity Meters Touch Screen Type – Edge Series, offering dependable and efficient analytical solutions for a wide range of laboratory and industrial applications. We have been operational since 1955 and based in Masjid Bunder, Mumbai. Over the years, we have gained a reputation for reliability, service, and customer satisfaction. We cater to international markets with our advanced laboratory instruments. Our satisfied clients are spread across Maharashtra, Delhi, Tamil Nadu, Odisha, West Bengal, Punjab, and Gujarat. This wide presence reflects the trust businesses place in our products and the strong reputation we have built through years of experience in the industry.
TECHNICAL FEATURES
LARGE DISPLAY FOR EASY TO USE AND CLEAR VIEW
- Extra Bright Display for Easy Viewing
- Extra Large Display for Continuous Viewing
- Wide angle display for viewing from all sides of the scale
- Anti-Heat Dissipating LED with One Year Warranty
- Decimal Point to indicate stability of the weight on the platter
SMOOTH TOUCH SENSETIVITY
- Intelligent Touch Interface with AI
- Large and Clear: Spacious display for easy viewing of measurements.
- Real-time Data Display: Displays pH, conductivity, and temperature at once.
- Customizable Interface: Choose from different layout and color options.
- Easy Navigation: Simple touch controls for quick access to functions.
- Enhanced User Experience: Provides smoother, more precise interactions.
Multi Point Calibration for Brilliant Repeatability
- Enhanced Accuracy: Ensures precise measurements at various points.
- Flexible Calibration: Supports multiple calibration solutions.
- Automatic Detection: Detects calibration solutions automatically.
- Simplified Process: Reduces manual steps, saving time.
- Consistent Results: Guarantees repeatable, reliable performance.
RESEARCH GRADE GLASS SILVER ELECTRODE
- Automatic Adjustment: Compensates for temperature changes automatically.
- Accurate Across Temperatures: Provides accurate readings despite temperature fluctuations.
- Wide Range: Works efficiently in various temperature conditions.
- Consistent Performance: Ensures reliable results in different environments.
- No Manual Intervention: Automatically adjusts without user input.
TEMPERATURE COMPENSATED MESUREMENTS
- High Precision: Delivers accurate, stable readings for scientific applications.
- Durable Construction: Resistant to wear and corrosion for long-lasting use.
- Superior Sensitivity: Ideal for measuring low-concentration samples.
- Robust Design: Made with high-quality materials for reliability.
- Versatile Use: Suitable for various scientific and industrial applications.
Datalogging for Tracebility
- Automatic Recording: Saves data automatically for future reference.
- Easy Export: Export data to external devices for analysis.
- Traceability Compliance: Ensures measurements are traceable for regulations.
- Efficient Data Management: Organizes readings for quick retrieval.
- Streamlined Workflow: Reduces errors and improves documentation accuracy.
Flexible Electrode Holder
- Can rotate and lift in multiple directions.
- Supports 3 electrodes and a temperature probe
simultaneously. - Bracket material: ABS engineering plastic (rotating
shaft: stainless-steel), sturdy and durable. - Bracket base: ABS shell, cast iron, stainless-steel axis.
- Easy to use, stable and durable
APPLICATIONS
Video
Our in-house Quality Control and technical team, carefully inspects the Desktop Type pH and Conductivity Meters Touch Screen Type – Edge Series to ensure that every unit meets strict performance and reliability standards before dispatch. Our experts carefully examine all components, verify touch screen functionality, electrode response, and calibration accuracy before the product is approved for dispatch. After testing, each unit is securely packed with foam padding, bubble wrap, and strong cartons, while wooden packaging is used where additional protection is required for long-distance transit. Every product is supplied with government certificates and a detailed user manual. We have also successfully delivered our laboratory meters to international markets such as Saudi Arabia, Paraguay (South America), and Muscat, Oman.
OTHER DETAILS

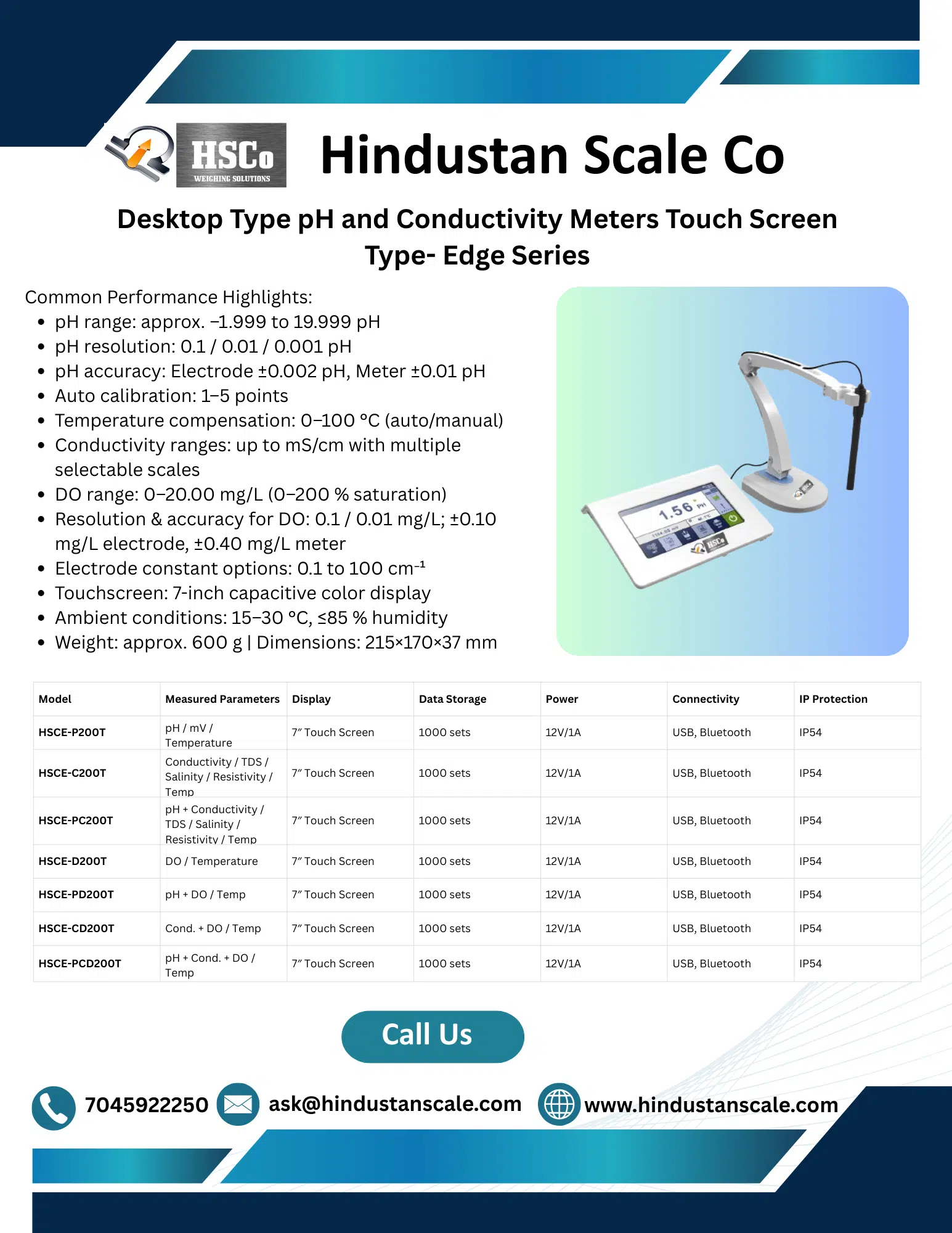

Model | HSCE-P200T | HSCE-C200T | HSCE-PC200T | HSCE-D200T | HSCE-PD200T | HSCE-CD200T | HSCE-PCD200T | ||
Standard Accessories | Mini magnetic stirrer |
|
|
|
|
|
|
| |
Electrode holder | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
pH composite electrode | ✓ |
| ✓ |
| ✓ |
| ✓ | ||
Cond. electrode (K=1) |
| ✓ | ✓ |
|
| ✓ | ✓ | ||
DO electrode |
|
|
| ✓ | ✓ | ✓ | ✓ | ||
Ion electrode |
|
|
|
|
|
|
| ||
Temperature probe | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
Reference electrode |
|
|
|
|
|
|
| ||
pH buffer solution | ✓ |
| ✓ |
| ✓ |
| ✓ | ||
DO filling solution |
|
|
| ✓ | ✓ | ✓ | ✓ | ||
Membrane cap |
|
|
| ✓ | ✓ | ✓ | ✓ | ||
Cathode polishing paper |
|
|
| ✓ | ✓ | ✓ | ✓ | ||
Power adapter | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
Manual | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
Parameters | Model | HSCE-P200T | HSCE-C200T | HSCE-PC200T | HSCE-D200T | HSCE-PD200T | HSCE-CD200T | HSCE-PCD200T | |
pH/mV | ✓ |
| ✓ |
| ✓ |
| ✓ | ||
ISE |
|
|
|
|
|
| |||
Cond./TDS/Sal./Res. |
| ✓ | ✓ |
|
| ✓ | ✓ | ||
DO |
|
|
| ✓ | ✓ | ✓ | ✓ | ||
Temp. | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
pH | Measuring range | (-1.999 ~ 19.999)pH | ✓ |
| ✓ |
| ✓ |
| ✓ |
Resolution | 0.1/0.01/0.001 pH | ||||||||
Accuracy | Electrode: ±0.002 pH, Meter: ±0.01 pH | ||||||||
Auto calibration | 1, 2, 3 point | ||||||||
Buffer | Europe & USA, NIST, China standards | ||||||||
Input current | ≤1×10-12 A | ||||||||
Input impedance | ≥3×1012 Ω | ||||||||
Stability | ±0.002 pH/3h | ||||||||
Temp. compensation | (0 ~ 100) C, auto or manual | ||||||||
mv | Measuring range | -1999.9mV ~ 0 ~ 1999.9mV | ✓ | ✓ | ✓ | ✓ | |||
Resolution | 0.1 mV | ||||||||
Accuracy | ±0.03% FS | ||||||||
pX | Measuring range | (0.000-14.000) pX |
|
|
|
|
|
|
|
Resolution | 0.01 pX | ||||||||
Accuracy | ±0.02 pX | ||||||||
Temp. compensation | (0 ~ 100) C, auto or manual | ||||||||
Auto calibration | 1, 2, 3, 4, 5 point | ||||||||
Ion Conc. | Measuring range | (0-19990) | |||||||
Resolution | 4 significant figures (scientific notation) | ||||||||
Accuracy | ±0.5% | ||||||||
Cond. | Measuring range | Conductivity | |||||||
(0.0020.00)µS/cm, (20.0200.0)µS/cm |
| ✓ | ✓ |
|
| ✓ | ✓ | ||
(2002000)µS/cm, (2.0020.00)mS/cm | |||||||||
(20.0200.0)mS/cm, | |||||||||
(2002000)mS/cm (K=10) | |||||||||
TDS:(0 ~ 100)g/L | |||||||||
Salinity:(0 ~ 100)ppt | |||||||||
Resistivity: (0 ~ 100)MΩ-cm | |||||||||
Resolution | 0.01/0.1/1µS/cm; 0.01/0.1mS/cm | ||||||||
Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | ||||||||
Temp. compensation range | (0 ~ 50) C, auto | ||||||||
Electrode constant | 0.1/0.5/1/5/10/50/100 cm-1 | ||||||||
Reference Temp. | 25℃、20℃、18℃ | ||||||||
DO | Measuring range | (0 ~ 20.00) mg/L(ppm) (0 ~ 200.0)% |
|
|
| ✓ | ✓ | ✓ | ✓ |
Resolution | 0.1/0.01 mg/L(ppm) 1/0.1 % | ||||||||
Accuracy | Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L | ||||||||
Response time | ≤30s (25 C, 90% response) | ||||||||
Residual current | ≤0.1 mg/L | ||||||||
Temp compensation | (0 ~ 45) C, auto | ||||||||
Salinity compensation | (0 ~ 45) ppt, auto | ||||||||
Pressure compensation | (80 ~ 105) kPa, auto | ||||||||
Auto calibration | Air saturated by water; water saturated by air | ||||||||
Electrode type | Polarographic | ||||||||
Temp. | Range | (-10 ~ 110) C | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Resolution | 0.1 C | ||||||||
Accuracy | 5 ~ 60℃:±0.4 C Others: ±0.8 C | ||||||||
Other | Display | 7-inch colored capacitive touch screen | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Data storage | 1000 sets | ||||||||
Power | 12V/1A | ||||||||
Output | USB, Bluetooth | ||||||||
Ambient Temp. | 15 ~ 30 C | ||||||||
Ambient Humidity | ≤85% | ||||||||
IP grade | IP54 | ||||||||
Dimensions/N.W. | 215×170×37mm/600g | ||||||||
Shipping Size/G.W. | 470x430x72mm/3kg | ||||||||
FAQ
The Edge Series is available in multiple configurations to measure pH, conductivity, dissolved oxygen (DO), or combinations of these parameters depending on the model you select.
Yes — these meters are designed for portable use with intuitive navigation and quick‑to‑read digital displays, making them suitable for field testing and site measurements.
Yes — calibration is a standard requirement for accurate readings. Most portable pH/conductivity meters support one‑ to multi‑point calibration for precision. (Typical practice for pH/conductivity instruments)
Standard accessories include electrode holders, electrodes (pH, conductivity, and temperature probes), buffer solutions, power adapter, and instruction manual.
Portable meters in this category provide reliable and precise measurements, with auto temperature compensation to enhance accuracy in varying conditions — a typical feature of quality portable testers.
Yes — temperature measurement is built into many portable pH/conductivity meters, with automatic temperature compensation to correct readings.
Routine maintenance includes calibration checks, keeping electrodes clean, and storing probes properly when not in use — standard for electrochemical sensing instruments.
Yes — replacement electrodes and calibration buffers are typically available and recommended for continued accuracy, though availability should be confirmed with the supplier.
