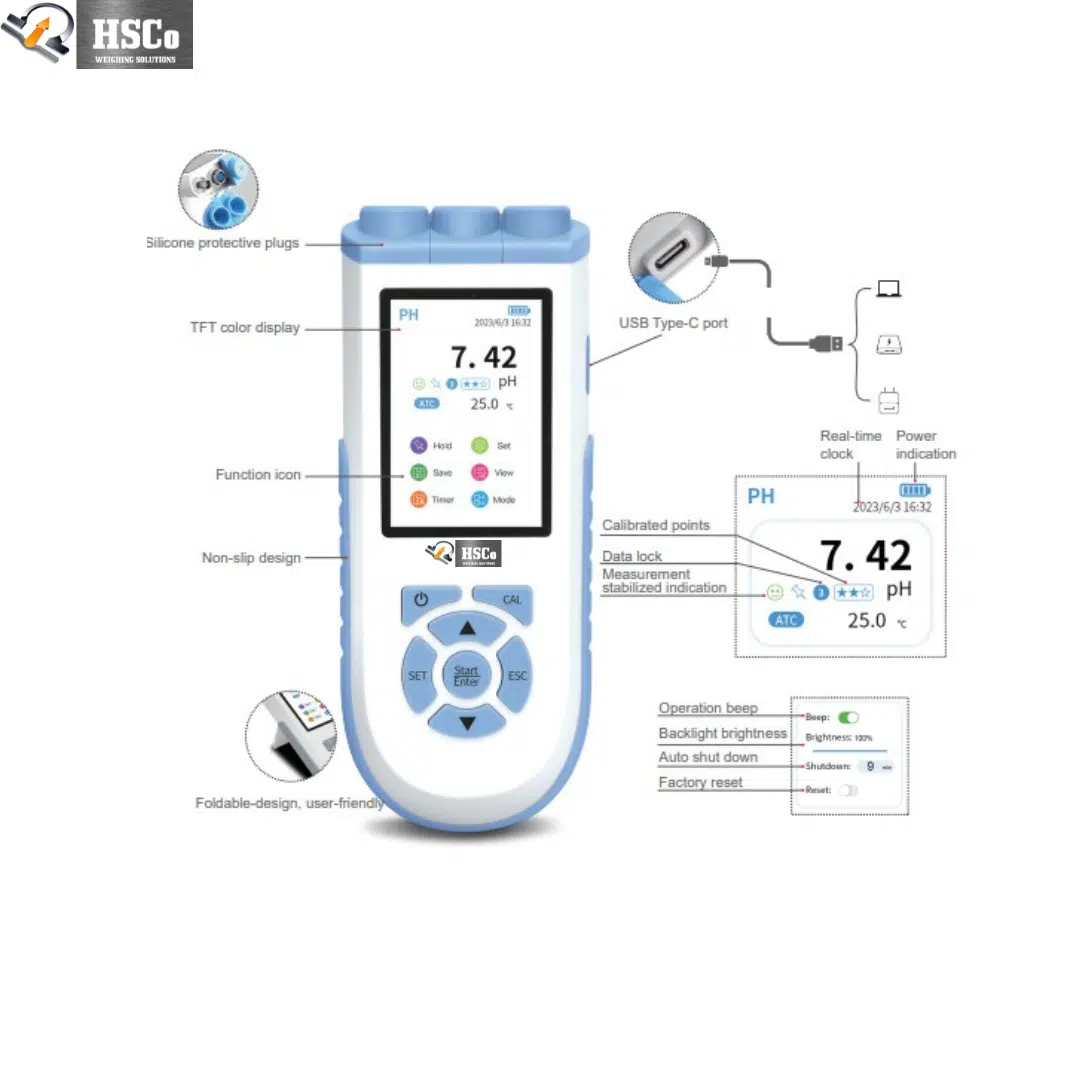

TECHNICAL FEATURES

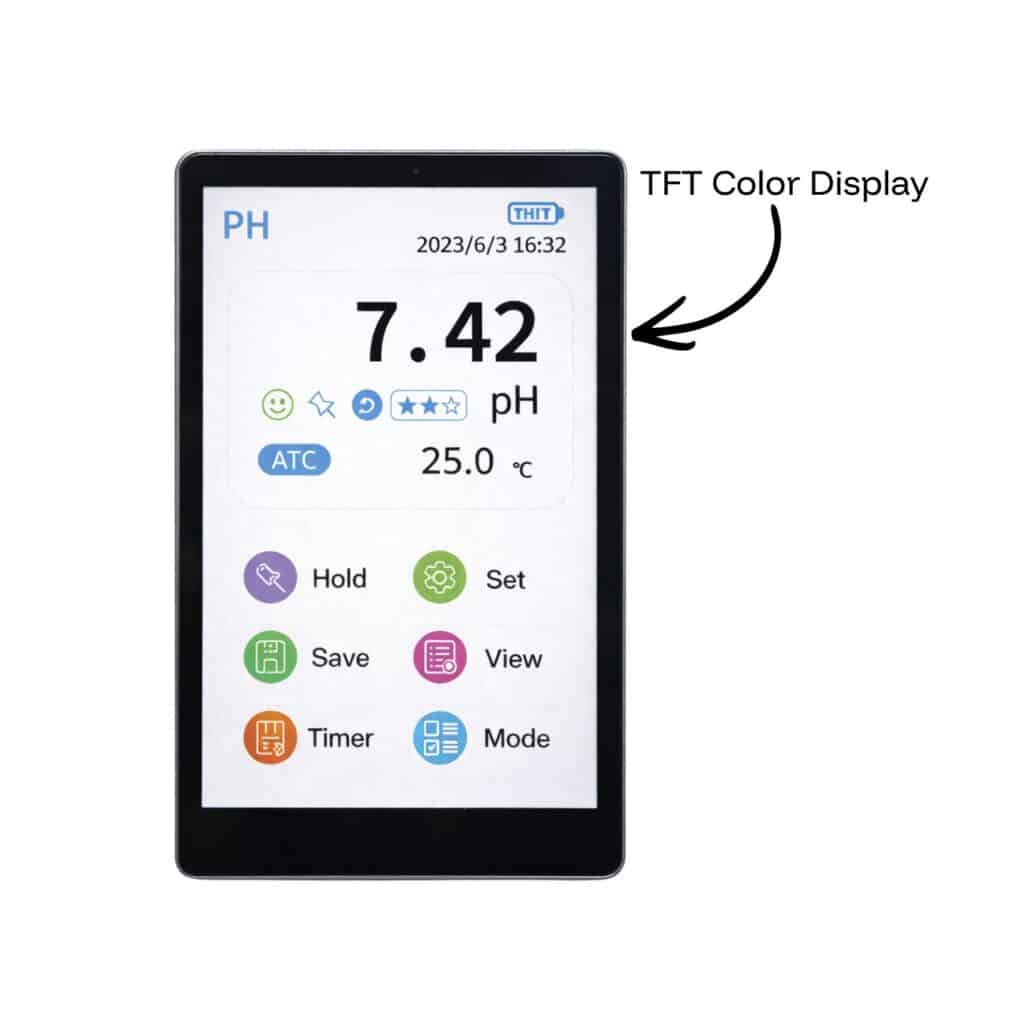

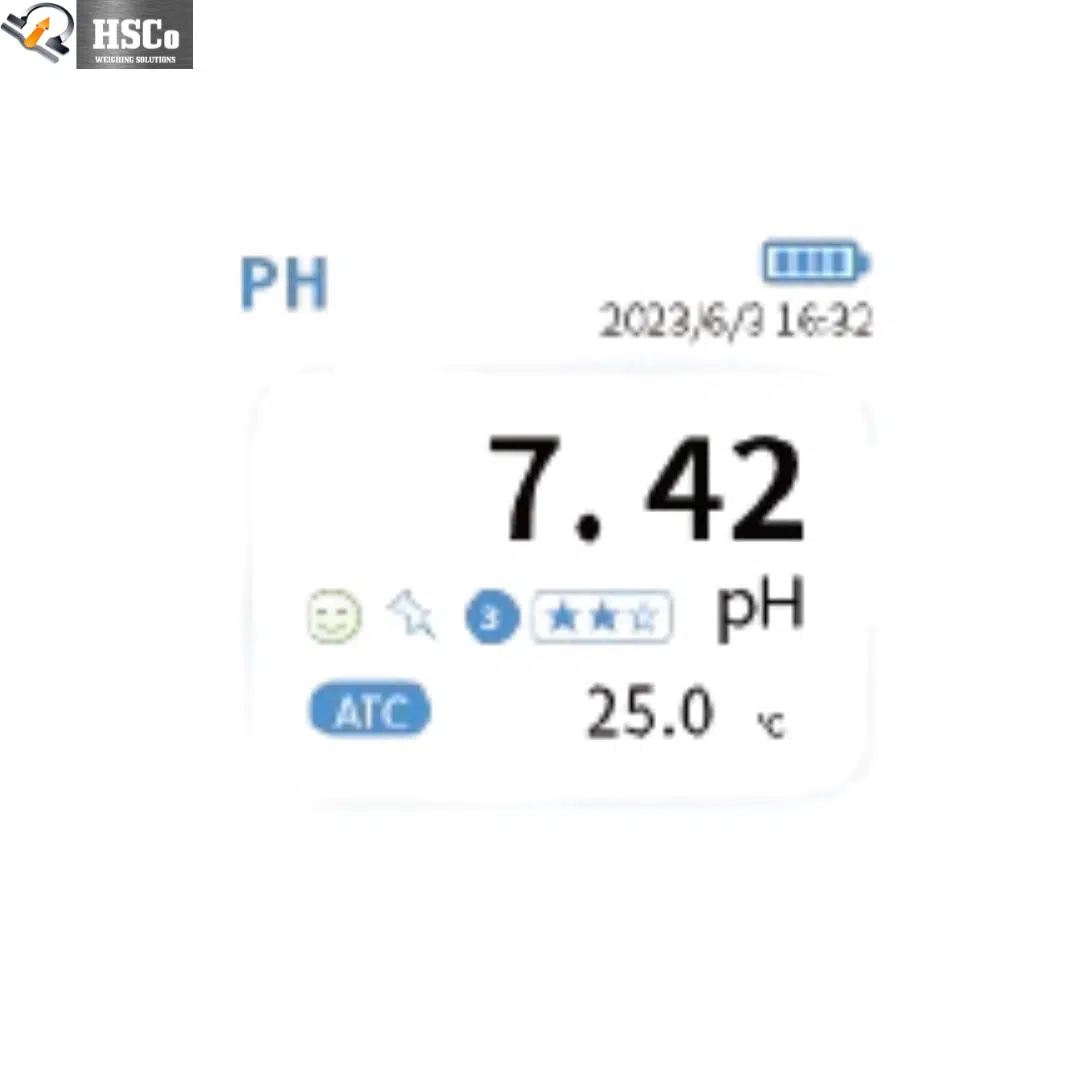

ENHANCE VISIBILITY WITH 3.5 TFT COLOR DISPLAY
- Clear and Vibrant Display: High-resolution screen ensures sharp text and vivid colors.
- Wide Viewing Angle: Consistent readability from various angles, enhancing user convenience.
- Real-Time Data Visibility: Instant updates on pH and temperature readings for efficient monitoring.

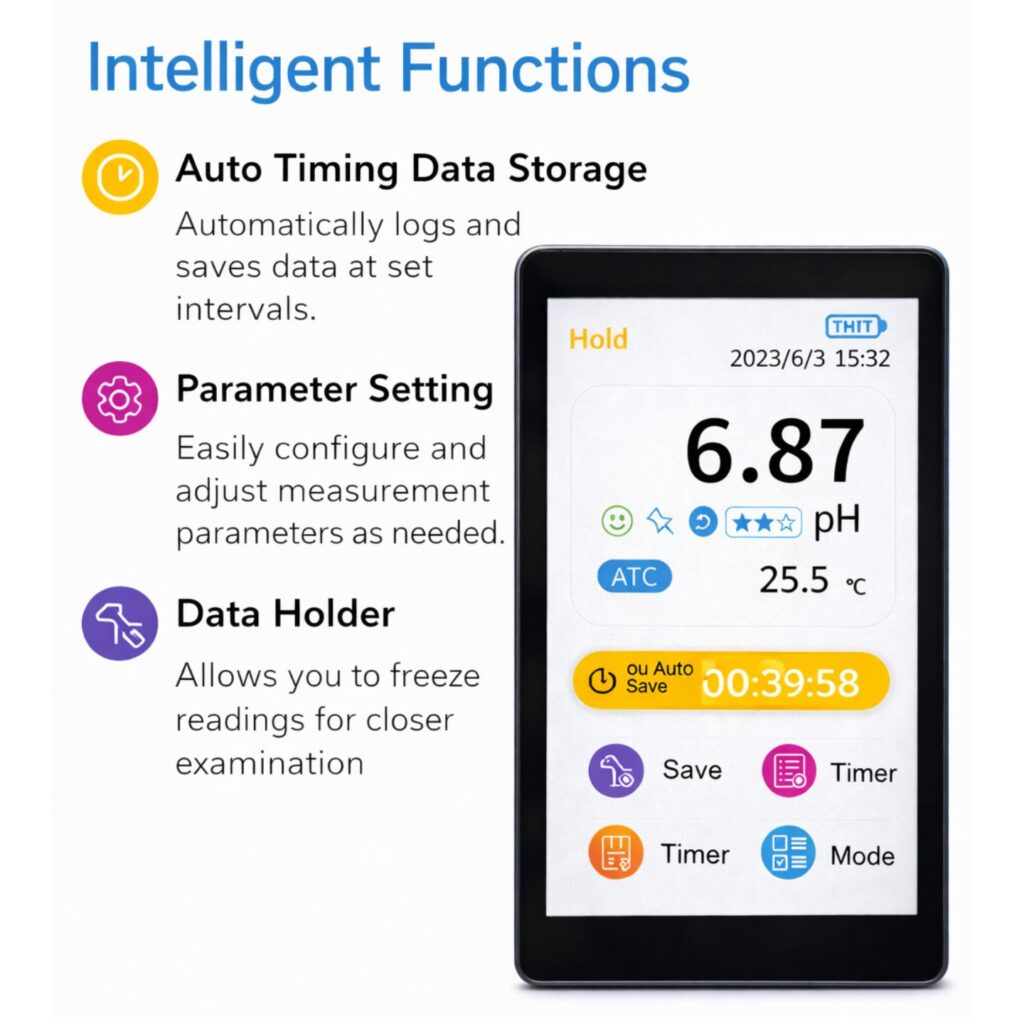

SMART AUTO TIMING & DATA STROAGE
- Automated Timing: Effortless data collection with built-in timing for consistent readings.
- Customizable Parameters: Easy configuration of measurement settings for personalized use.
- Data Storage & Hold: Secure data retention and convenient hold feature for accurate analysis.
APPLICATIONS
Video
Other Information
Specification | |||||||||
|
| Model | HSCM-P200P | HSCM-C2000P | HSCM-D200P | HSCM-PC200P | HSCM-PD200P | HSCM-CD200P | HSCM-PCD200P |
Parameter
| pH/mV. °C | ✓ | – | – | ✓ | ✓ | ✓ | ✓ | |
mV(ORP). °C | – | – | – | – | – | – | – | ||
Cond/TDS/Sal/Res. °C | – | ✓ | – | ✓ | ✓ | ✓ | ✓ | ||
DO. °C | – | – | ✓ | ✓ | ✓ | ✓ | ✓ | ||
pH
| Measurement range | (-2.000 – 20.000)pH | ✓ | – | – | ✓ | ✓ | ✓ | ✓ |
Resolution | 0.1/0.01/0.001 | ✓ | – | – | ✓ | ✓ | ✓ | ✓ | |
Accuracy | ±0.002pH ± one digit | ✓ | – | – | ✓ | ✓ | ✓ | ✓ | |
Calibration points | 1-3 pts auto | ✓ | – | – | ✓ | ✓ | ✓ | ✓ | |
ATC range | (-10.0 – 135.0)°C/(14.0 – 275.0)°F | ✓ | – | – | ✓ | ✓ | ✓ | ✓ | |
ORP
| Measurement range | (-1999.9 – +1999.9)mV | – | – | – | – | – | – | – |
Resolution | 0.1 |
| – | – | – | – | – | – | |
Accuracy | ±0.03%F.S ± one digit | – | – | – | – | – | – | – | |
Conductivity |
Measurement range
| 0-2000.0mS/cm, | – | ✓ | – | ✓ | ✓ | ✓ | ✓ |
Auto divided by range | – | – | – | – | – | – | – | ||
Match test range: 0 – 200mS/cm | – | – | – | – | – | – | – | ||
TDS: 0 – 1000.0g/L (Factor adjustable) | – | – | – | – | – | – | – | ||
Resistivity: 5.000Ω·cm – 100.0MΩ·cm | – | – | – | – | – | – | – | ||
Salinity: (0.00 – 100.00)ppt | – | – | – | – | – | – | – | ||
Calibration points | One point | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
Resolution | 0.001 | – | ✓ | – | ✓ | ✓ | ✓ | ✓ | |
ATC range | (0.0 – 50.0)°C(32.0 – 122.0)°F | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
Accuracy | ±0.5% F.S ± one digit | – | ✓ | – | ✓ | ✓ | ✓ | ✓ | |
DO | Measurement range | (0.00 – 20.00)mg/L | – | – | ✓ | ✓ | ✓ |
| ✓ |
Accuracy | ±0.30 mg/L | – | – | – |
| ✓ | ✓ | ✓ | |
|
|
|
|
|
|
| – | – | |
DO saturation |
| (0.0 – 200.0)% | – | – | ✓ | ✓ | ✓ | ✓ | |
Barometric pressure compensation | (0 – 200.0) kPa Automatic | – | – | ✓ | ✓ | ✓ | ✓ | ✓ | |
Temperature compensation | (0.0 – 50.0)°C(32.0 – 122.0)°F Automatic | – | – | ✓ | ✓ | ✓ | ✓ | ✓ | |
Salinity compensation | 0 – 45ppt Manual | – | – | ✓ | ✓ | ✓ | ✓ | ✓ | |
Temperature | Measurement range | (-10.0 – 135.0) °C/(14.0 – 275.0)°F |
| – | ✓ | ✓ | ✓ | ✓ | ✓ |
| Accuracy | ±0.2°C | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Others
| Data export/Charging socket | Type-C | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Power supply | Rechargeable battery/USB |
| ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
IP Rating | IP57 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Meter |
| ✓ | – | – | ✓ | ✓ | ✓ | ✓ |
Test kit | Plastic ATC pH probe 201T-H |
| – | ✓ | – | ✓ | ✓ | ✓ | ✓ |
Plastic ORP probe ORP301 |
| – | – | – | – | – | – | – | |
Stainless-steel temperature probe TEMP-02H |
| – | – | – | – | – | – | – | |
Plastic ATC Cond probe CON2017, K=1.0 |
| ✓ | – | – | ✓ | ✓ | – | ✓ | |
Polarographic DO probe DO01-2M-H, cable length: 2m | – | – | – | ✓ | – | – | – | – | |
Optical DO probe OD001-3M, cable length: 5m | – | – | – | – | – | – | – | – | |
pH buffer solution: pH4.00/7.00/10.01, 50mL, one for each | – | – | – | – | – | – | – | – | |
Standard ORP solution: 222mV, 50mL, 1btl | – | – | – | – | – | – | – | – | |
Standard Cond solution 84µS/1413µS/12.88mS/cm, 50mL, one for each | – | – | ✓ | – | – | – | – | – | |
DO Membrane refill solution DOS-01, 30mL, 1btl | – | – | – | ✓ | – | ✓ | ✓ | ✓ | |
DO Membrane sensor caps DOSC: 3pcs/group, 1pkg | – | – | – | ✓ | – | ✓ | ✓ | ✓ | |
Rechargeable lithium battery (pre-installed) | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
Data export/Charging cable: 1pc |
| ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
Hard carrying case (L/W/H: 33.0×27.2×8.2cm): | – | ✓ | ✓ | ✓ | – | – | – | – | |
Hard carrying case (L/W/H: 36.0×32.0×9.0cm): | – | – | – | – | ✓ | ✓ | ✓ | ✓ | |
FAQ
It is a handheld meter designed for accurate on‑site pH and conductivity testing with lab‑grade precision.
Common applications include water testing, agriculture, aquaculture, laboratories, and industrial quality control.
Yes, the Master Series includes ATC for accurate results in varying temperatures.

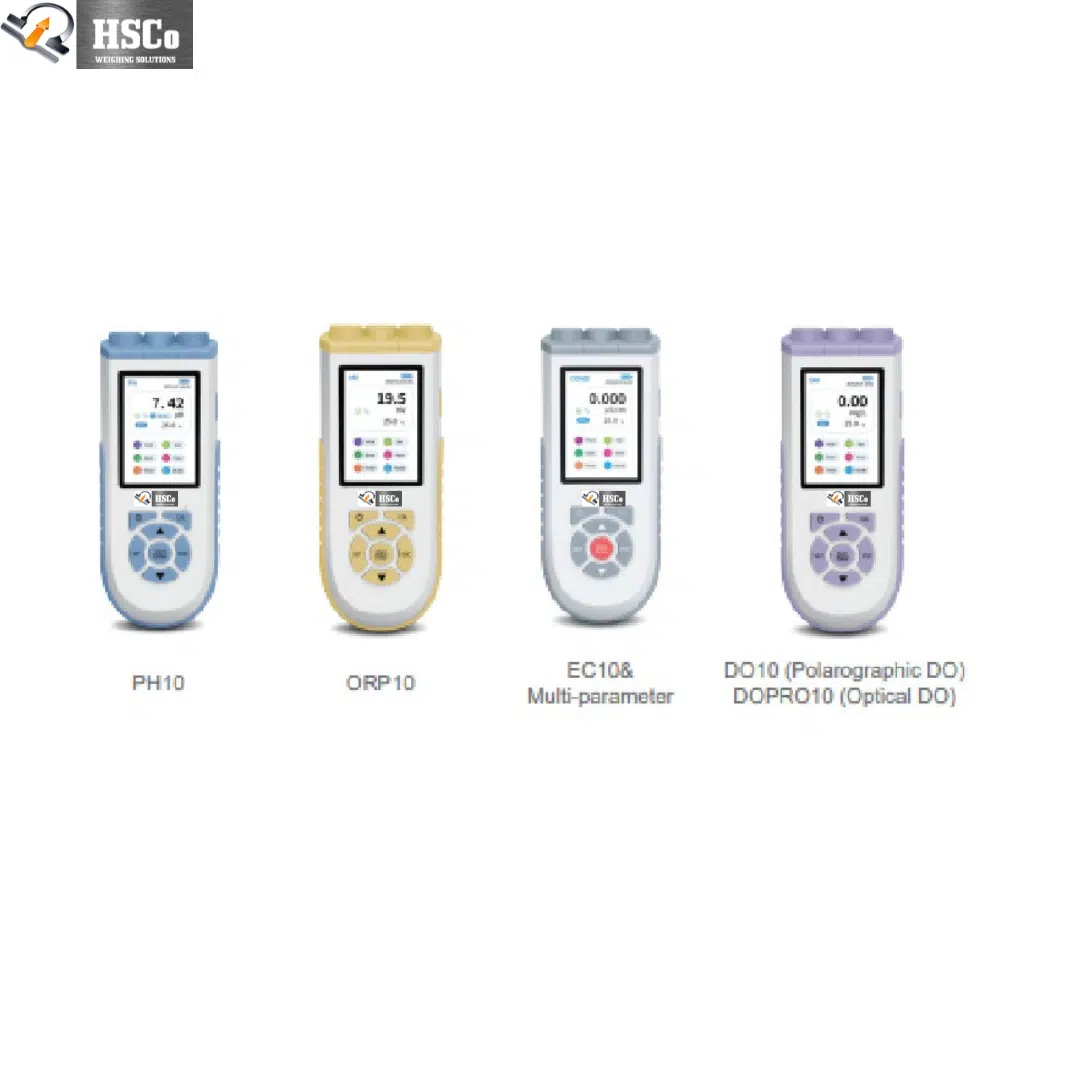

Yes — different models measure pH, conductivity, dissolved oxygen (DO), or combinations of these.
Yes, it has a compact, ergonomic design ideal for field and on‑site measurements.
It supports multi‑point automatic calibration for reliable accuracy.
Yes, the clear digital display ensures quick, stable, and reliable measurements.
Yes, it delivers laboratory‑grade accuracy for professional water quality testing.
