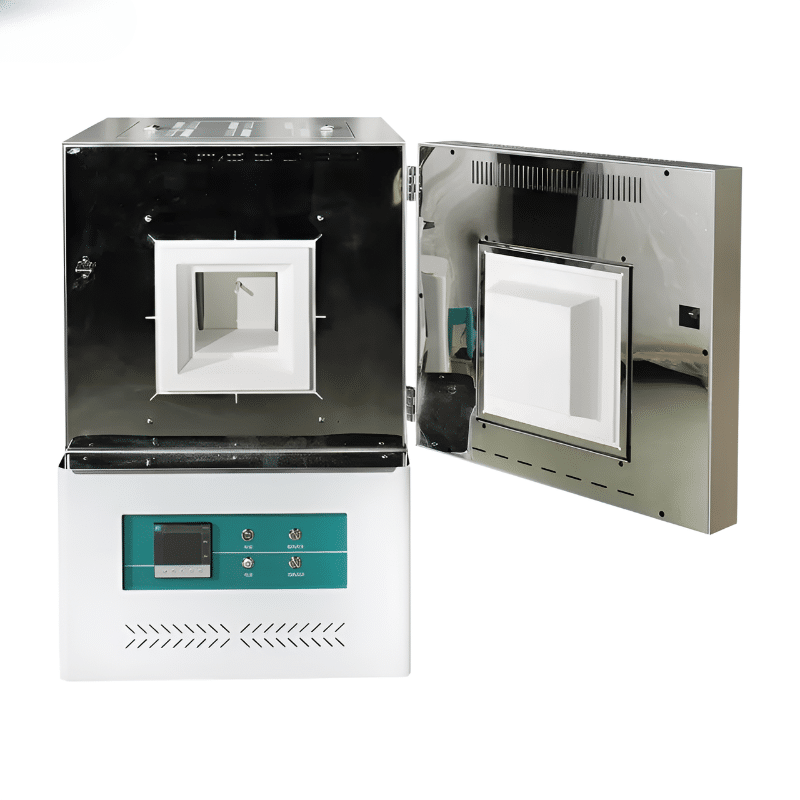

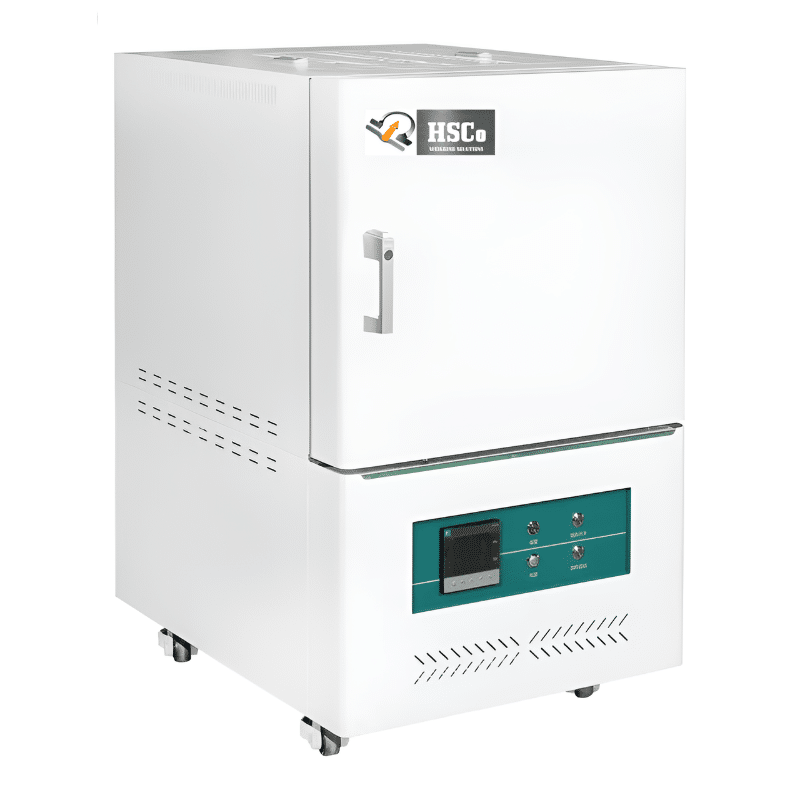

The HSC-I-CFMF series is a 1600 °C ceramic-fibre muffle furnace for sintering, ceramic and metal testing, refractory work and high-temperature annealing. Mullite fibre insulation and silicon-molybdenum heaters reach full temperature in under 130 minutes, a PID controller holds it to ±1 °C, and six chamber sizes run from 2 to 36 litres, each with a choice of three programmable controllers.
Why labs choose it
- Up to 1600 °C, 1500 °C continuous.
- Fast. Reaches maximum temperature in under 130 minutes.
- Precise. PID control, ±1 °C accuracy, S-type thermocouple.
- Efficient insulation. Polycrystalline mullite fibre chamber.
- Programmable. Constant-value or program operation; touch-screen model with curve view and USB data storage.
- Safe. Over-temperature alarm, leakage protection, sensor fault alarm and door-opening heating protection.
Models
| Model (base) | Volume | Chamber (mm) | Power | Exterior W × L × H (mm) | Net weight |
|---|---|---|---|---|---|
| HSC-I-CFMF-B-4-2-16 | 2 L | 150 × 90 × 150 | 3 kW | 600 × 755 × 1100 | 70 kg |
| HSC-I-CFMF-B-4-4-16 | 4 L | 150 × 150 × 150 | 5.5 kW | 600 × 815 × 1100 | 80 kg |
| HSC-I-CFMF-B-4-8-16 | 6.7 L | 300 × 150 × 150 | 6 kW | 750 × 815 × 1100 | 110 kg |
| HSC-I-CFMF-B-4-12-16 | 12 L | 300 × 200 × 200 | 10 kW | 750 × 865 × 1150 | 150 kg |
| HSC-I-CFMF-B-4-20-16 | 20 L | 300 × 260 × 260 | 12 kW | 750 × 925 × 1210 | 175 kg |
| HSC-I-CFMF-B-4-36-16 | 36 L | 300 × 400 × 300 | 15 kW | 750 × 1065 × 1250 | 270 kg |
Controller choices
| Suffix | Controller | Keys | Timer |
|---|---|---|---|
| none | 50-segment LED program controller | 4 keys | 0 – 9,999 min |
| P | 64-segment imported LCD program controller | 5 keys | 0 – 99 h 59 min |
| PL | 30-segment 7-inch touch screen, curve view, USB data storage | Touch | 0 – 9,999 min |
Common specifications
| Temperature | Max 1600 °C; continuous 1500 °C |
|---|---|
| Accuracy / resolution | ±1 °C / 1 °C |
| Heat-up time | Under 130 min to maximum |

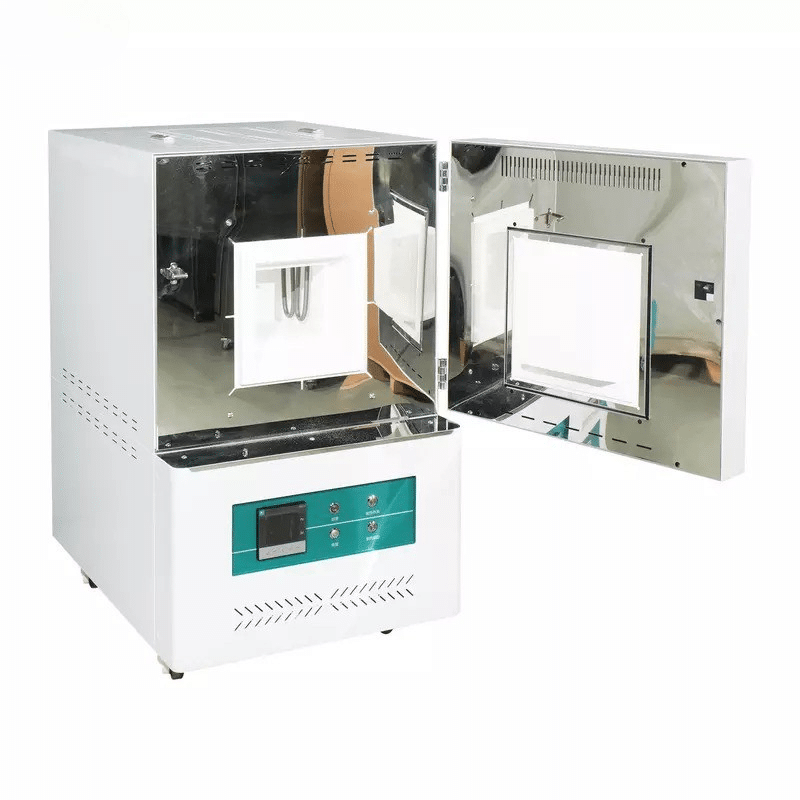

| Chamber | Polycrystalline mullite fibre |
| Outer shell | Cold-rolled steel, electrostatic spray finish |
| Heater | Silicon-molybdenum rods |
| Sensor | S-type thermocouple |
| Control | Microcomputer PID; constant-value or program operation |
| Exhaust hole | OD 22 mm, ID 18 mm |
| Extras | Heating start/stop button, sensor fault alarm, overshoot self-setting, temperature correction |
| Supply | AC 220 V or 380 V, 50 Hz (by model) |
| Option | Air inlet |
| Warranty | 1 year |
Where it is used
Advanced materials sintering, ceramic and metal testing, refractory processing and sample annealing in research and industry. For drying, see the constant temperature drying oven; browse all ovens and furnaces.
Questions buyers ask
1600 °C maximum, 1500 °C for long continuous work.
Under 130 minutes to maximum temperature.
2, 4, 6.7, 12, 20 and 36 litres.
Yes, on the PL touch-screen models, with USB data storage.
