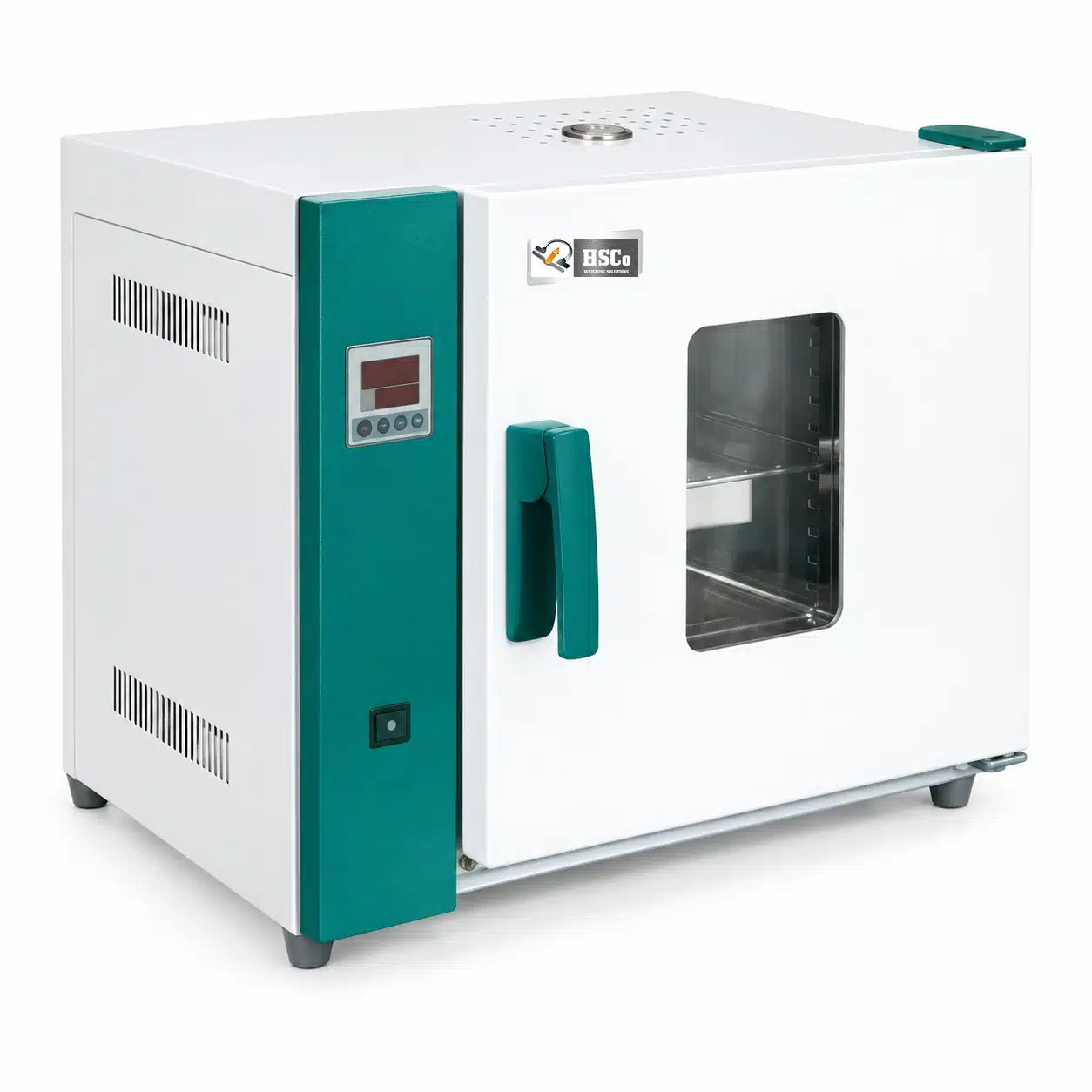

Horizontal Drying Oven HSC-O-HDO – 43 to 225 L, up to 250 °C
Price on Request
Horizontal drying oven: RT+10 to 250 °C, ±1 °C, forced or natural convection, stainless or galvanised chamber, PID, 9,999 min timer, over-temperature alarm. 43–225 L.
The HSC-O-HDO series horizontal drying oven dries samples evenly from 10 °C above room temperature up to 250 °C. Choose forced-air convection (101 models) for fast, uniform drying or natural convection (202 models) for gentle drying of powders, and a stainless-steel (B) or galvanised inner chamber. Four sizes run from 43 to 225 litres, with PID control, a 9,999-minute timer and an over-temperature alarm.
Why labs choose it
- RT+10 to 250 °C, ±1 °C, 0.1 °C resolution.
- Forced or natural convection: uniformity ±2.5% (101) or ±3.5% (202).
- Stainless-steel chamber option (B models).
- Smart control. Two-stage PID, touch keys, LED display, timer with timing wait and auto stop.
- Safe. Over-temperature sound-and-light alarm; parameter lock and power-off memory.
- Four sizes, up to 25 shelf positions.
Models
| Size | Volume | Inner (W × L × H, mm) | Exterior (W × L × H, mm) | Power | Shelf positions | Net weight |
|---|---|---|---|---|---|---|
| 0 | 43 L | 350 × 350 × 350 | 652 × 472 × 587 | 1.2 kW | 9 | 40 kg |
| 1 | 71 L | 450 × 350 × 450 | 752 × 472 × 687 | 1.6 kW | 13 | 45 kg |
| 2 | 136 L | 550 × 450 × 550 | 852 × 572 × 786 | 2.3 kW | 17 | 62 kg |
| 3 | 225 L | 600 × 500 × 750 | 902 × 622 × 986 | 3.0 kW | 25 | 77 kg |
| Convection | 101 = forced air (stainless heating tube); 202 = natural (nickel-chromium heating wire) |
|---|---|
| Temperature | RT+10 to 250 °C; ±1 °C; resolution 0.1 °C |
| Uniformity | ±2.5% (101) / ±3.5% (202) |
| Inner chamber | Stainless steel (B models) or high-strength galvanised sheet |
| Outer shell / insulation | Cold-rolled steel, electrostatic spray / rock wool board |
| Controller | Two-stage PID, touch keys, LED display, PT100 sensor |
| Timer | 0 – 9,999 min, timing wait, auto stop |
| Extras | Sensor correction, overshoot self-tuning, parameter lock, power-off memory |
| Exhaust / test hole | Ø35 mm, top |
| Shelves | 2 supplied, 15 kg each, 25 mm spacing; extra shelves optional |
| Supply | AC 220 V, 5.5 – 13.6 A by size |
| Warranty | 1 year |
Where it is used
Drying and heat treatment in pharmaceutical, chemical, electronics and polymer labs, research and industry. See also the constant temperature drying oven; browse all ovens and furnaces.
Questions buyers ask
Forced air (101) dries faster and more evenly; natural convection (202) is gentler for light powders.
Up to 250 °C, from 10 °C above room temperature.
43, 71, 136 and 225 litres.
Yes, on the B models.
