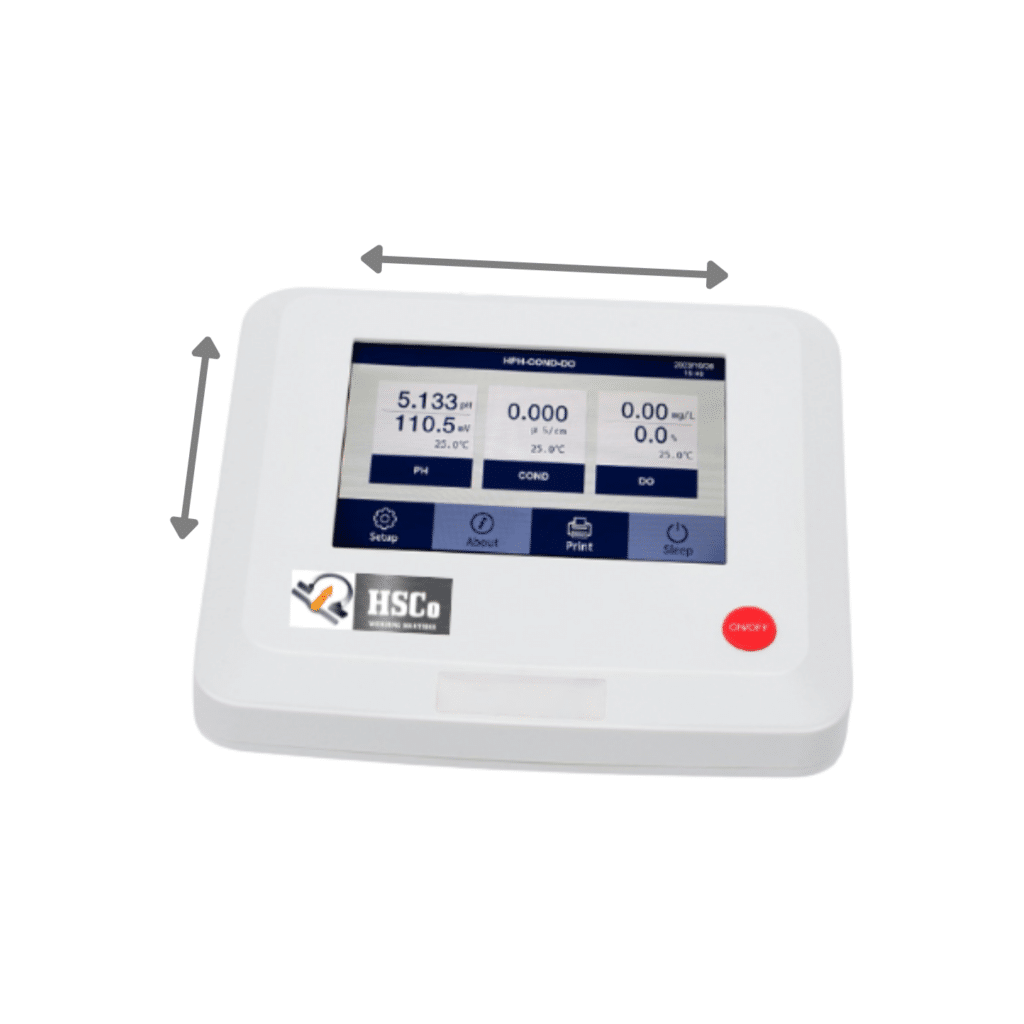

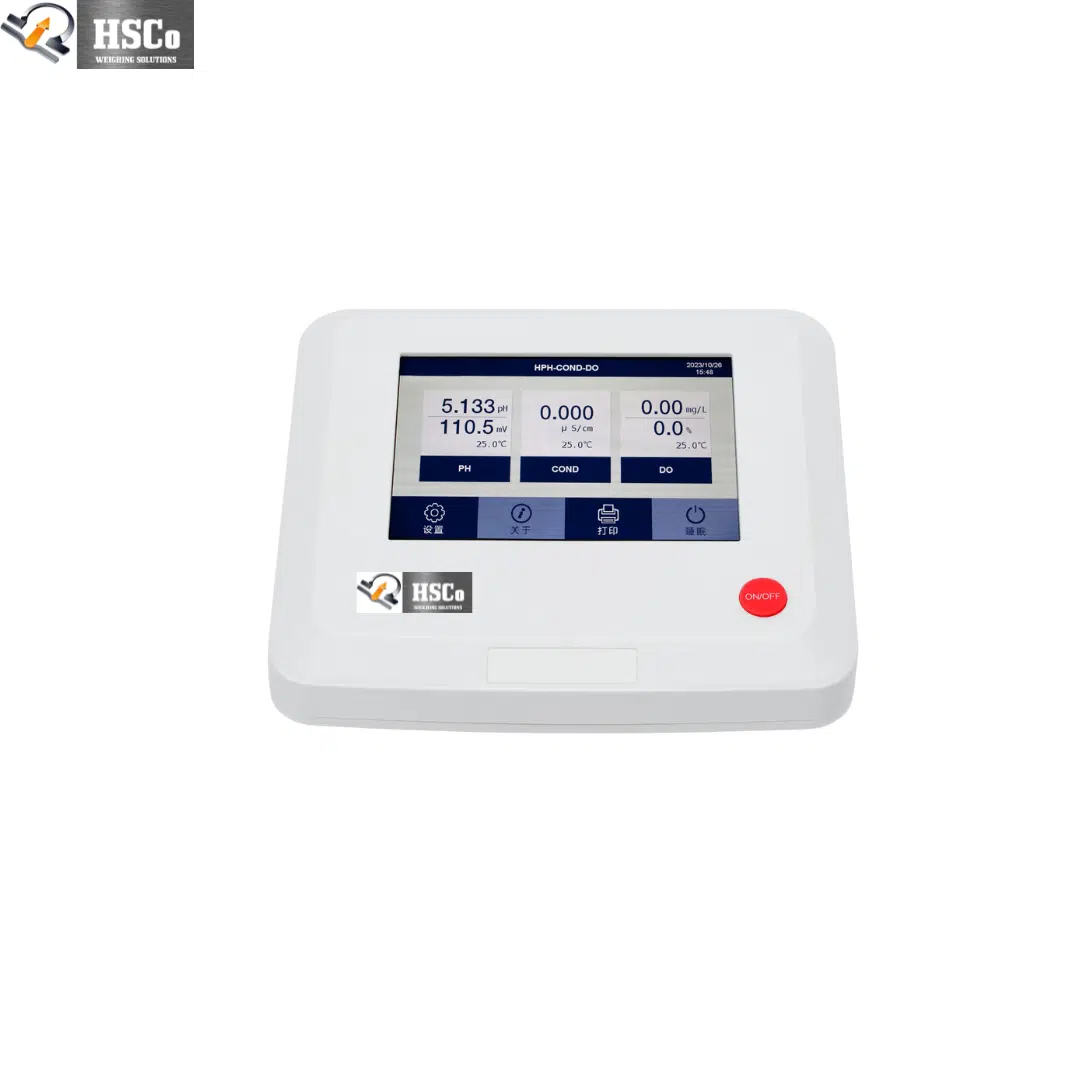

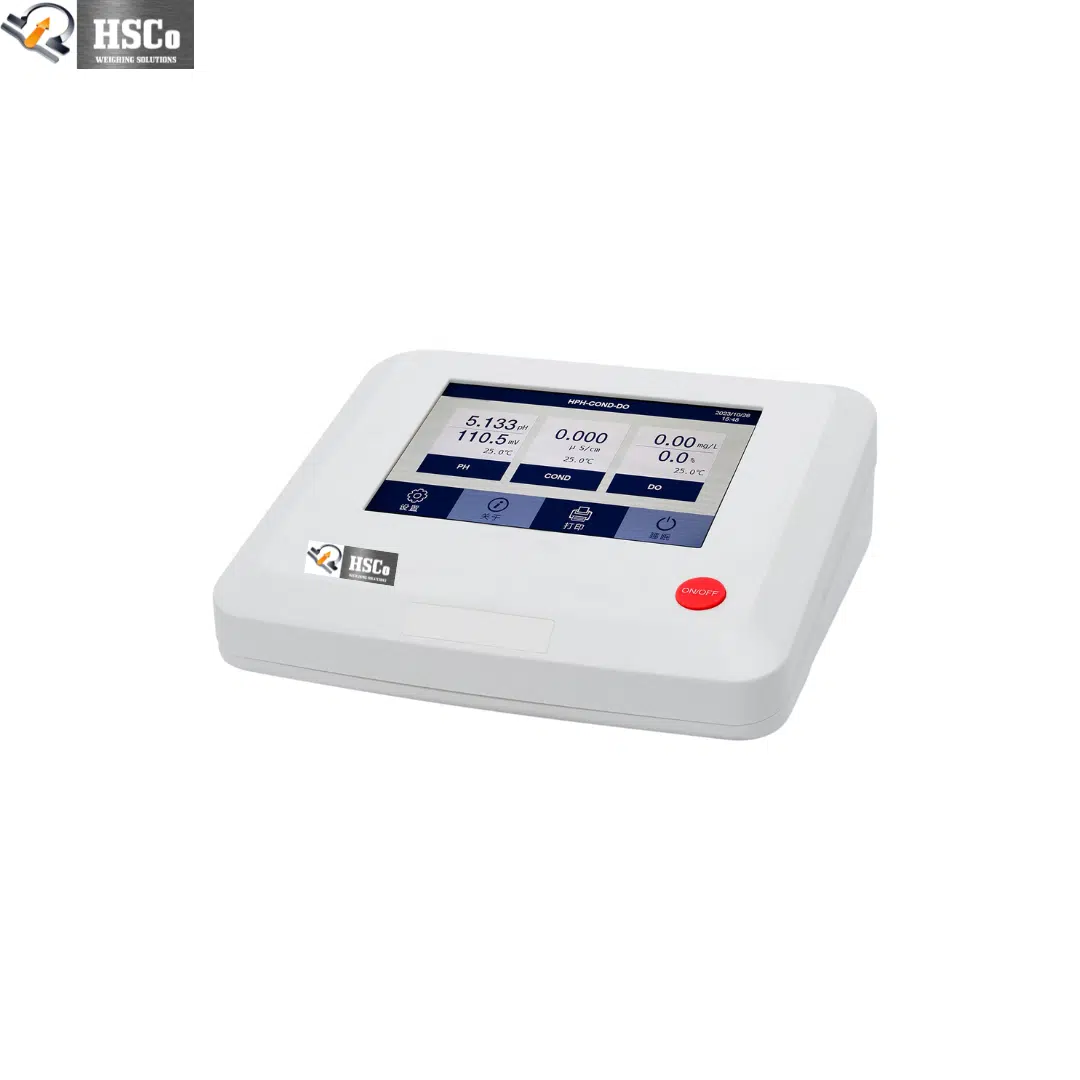

The HSCM Master series touch-screen meters measure pH, conductivity and dissolved oxygen (DO) on the bench: one parameter, or up to all three in a single instrument. A large touch screen shows readings and temperature together, calibration is automatic with up to five pH points, and every kit comes with a flexible probe holder and a magnetic stirrer. Results store with date and time and export to a PC, printer or USB stick.
Why labs choose it
- Seven models: pH, conductivity, DO, or any combination up to all three.
- Touch screen showing values and temperature at once.
- Auto calibration. 1–5 point pH with automatic buffer detection.
- Temperature compensated. ATC for pH, conductivity and DO.
- Data logging. 500 to 1,500 records with date and time; export to PC, printer or USB stick.

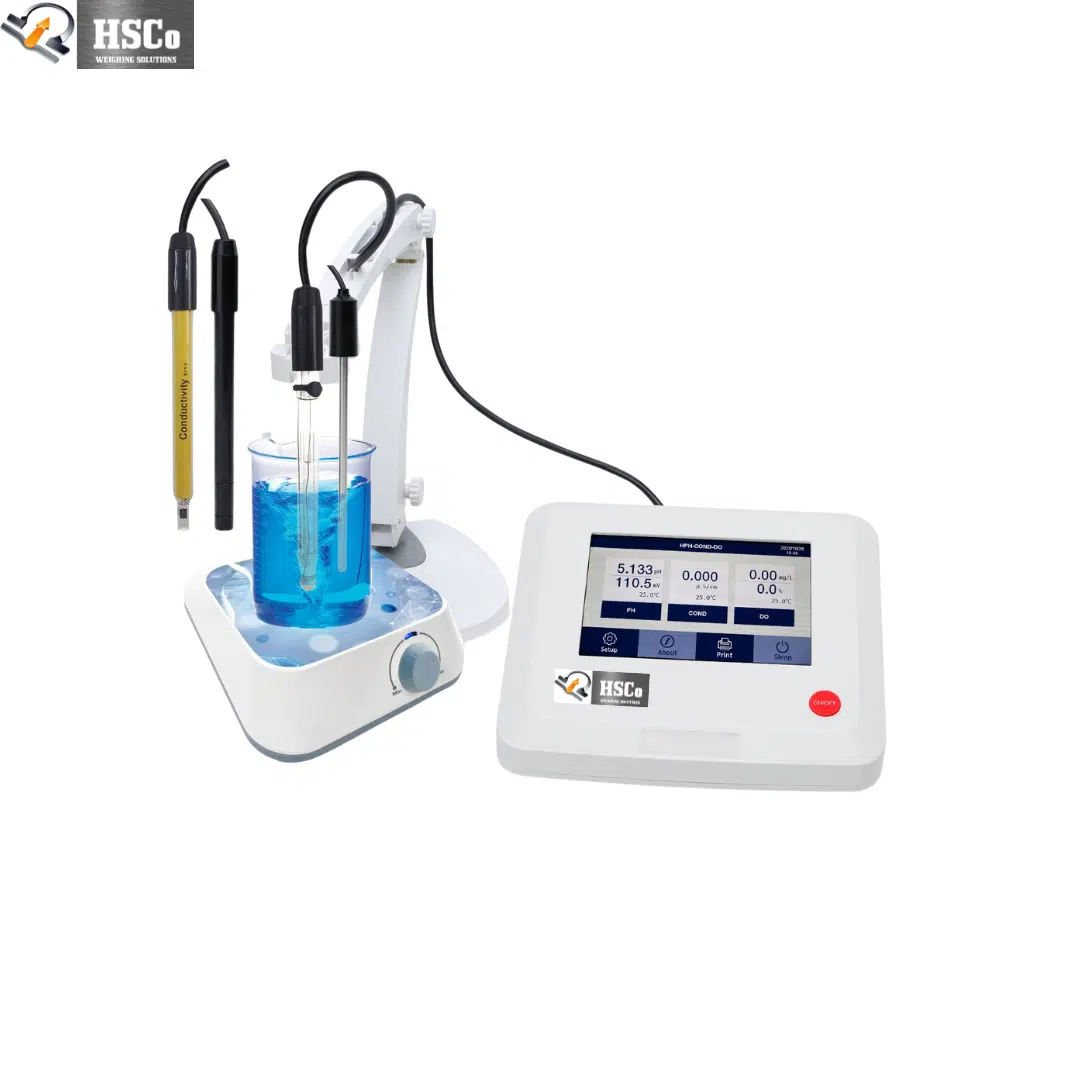

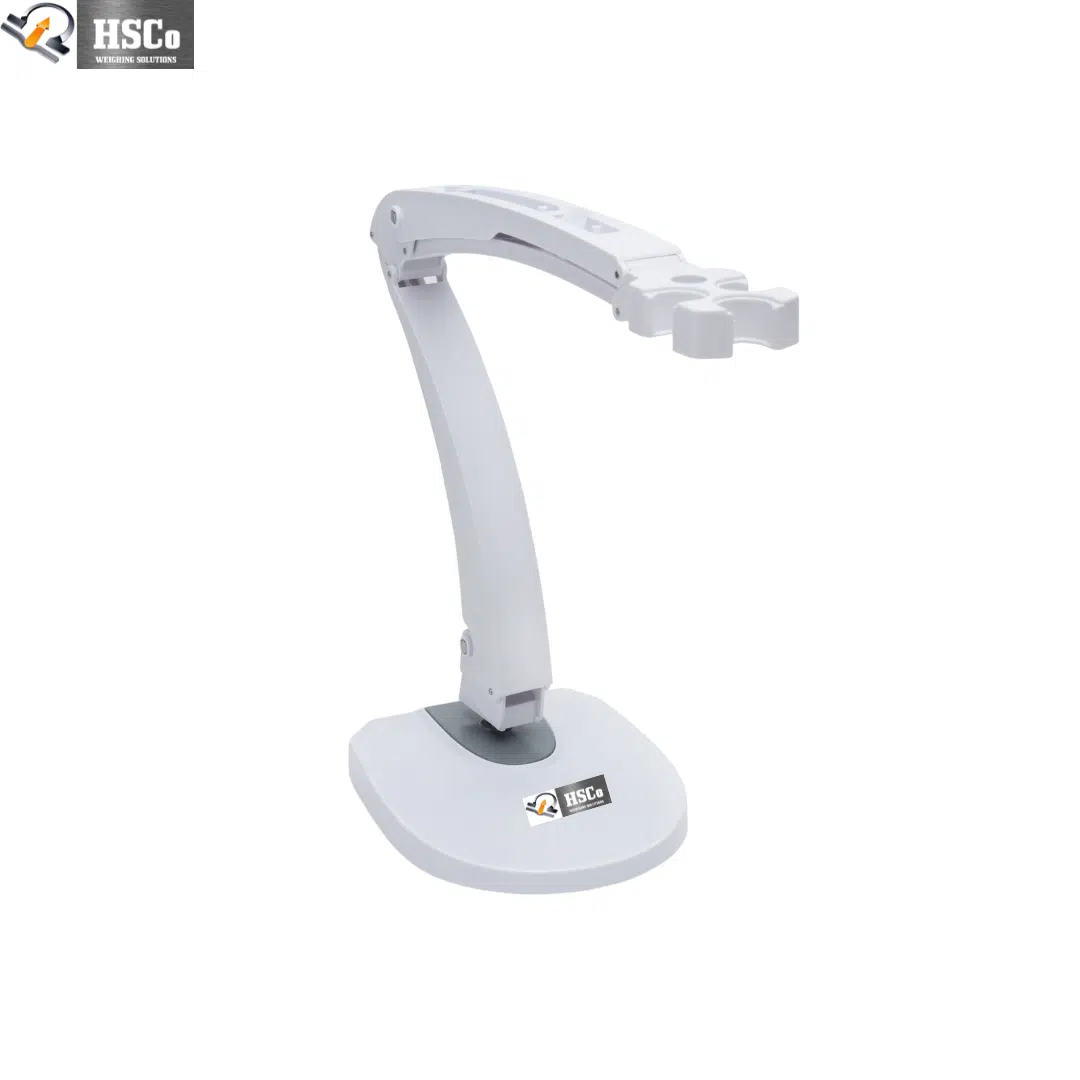

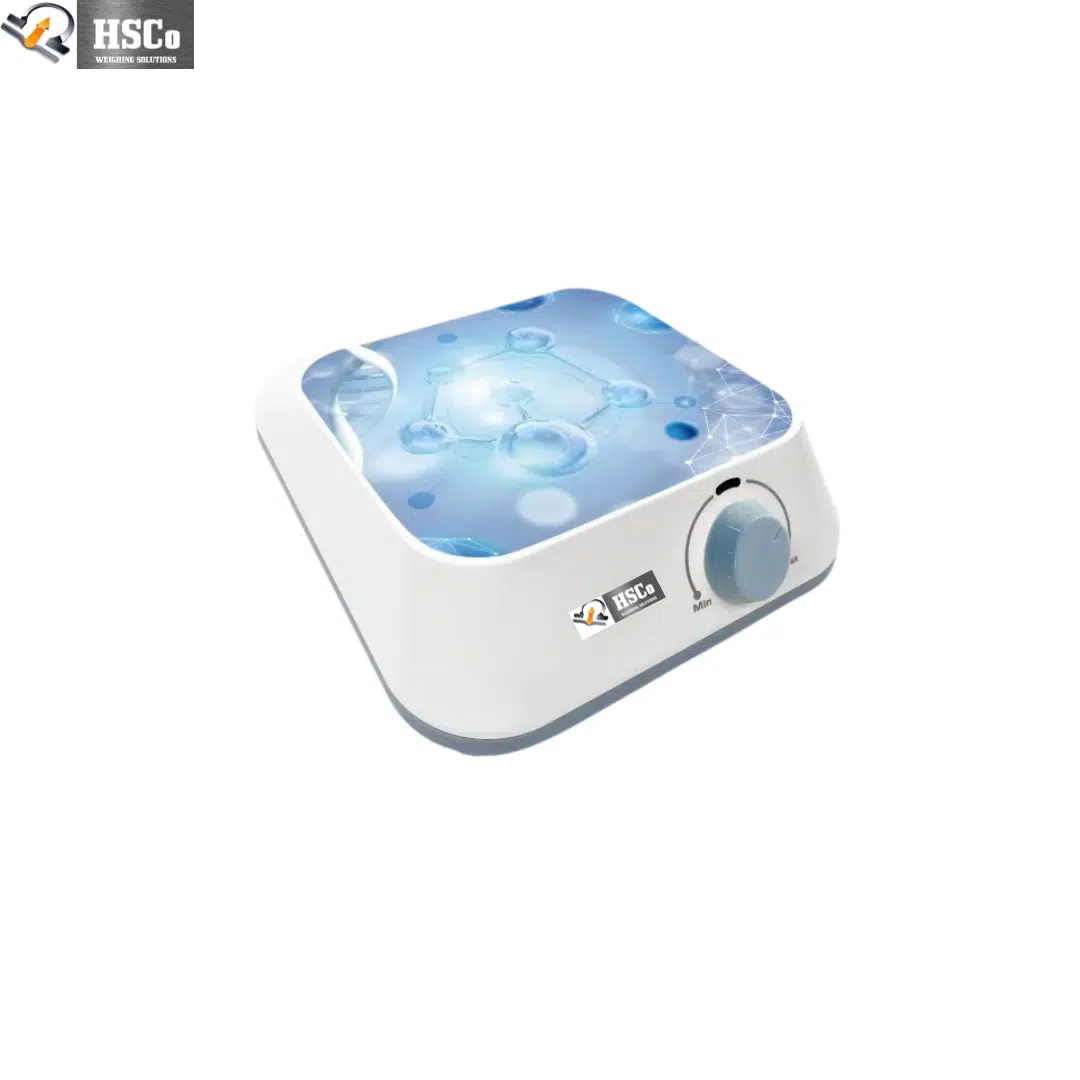

- Complete kit. Probes, solutions, flexible holder for 3 electrodes plus temperature probe, and a magnetic stirrer.
Models
| Model | Measures | Data storage |
|---|---|---|
| HSCM-P200T | pH, mV (ORP), temperature | 500 records |
| HSCM-E200T | Conductivity, TDS, salinity, resistivity, temperature | 500 records |
| HSCM-D200T | DO, temperature | 500 records |
| HSCM-PC200T | pH + conductivity | 1,000 records |
| HSCM-PD200T | pH + DO | 1,000 records |
| HSCM-CD200T | Conductivity + DO | 1,000 records |

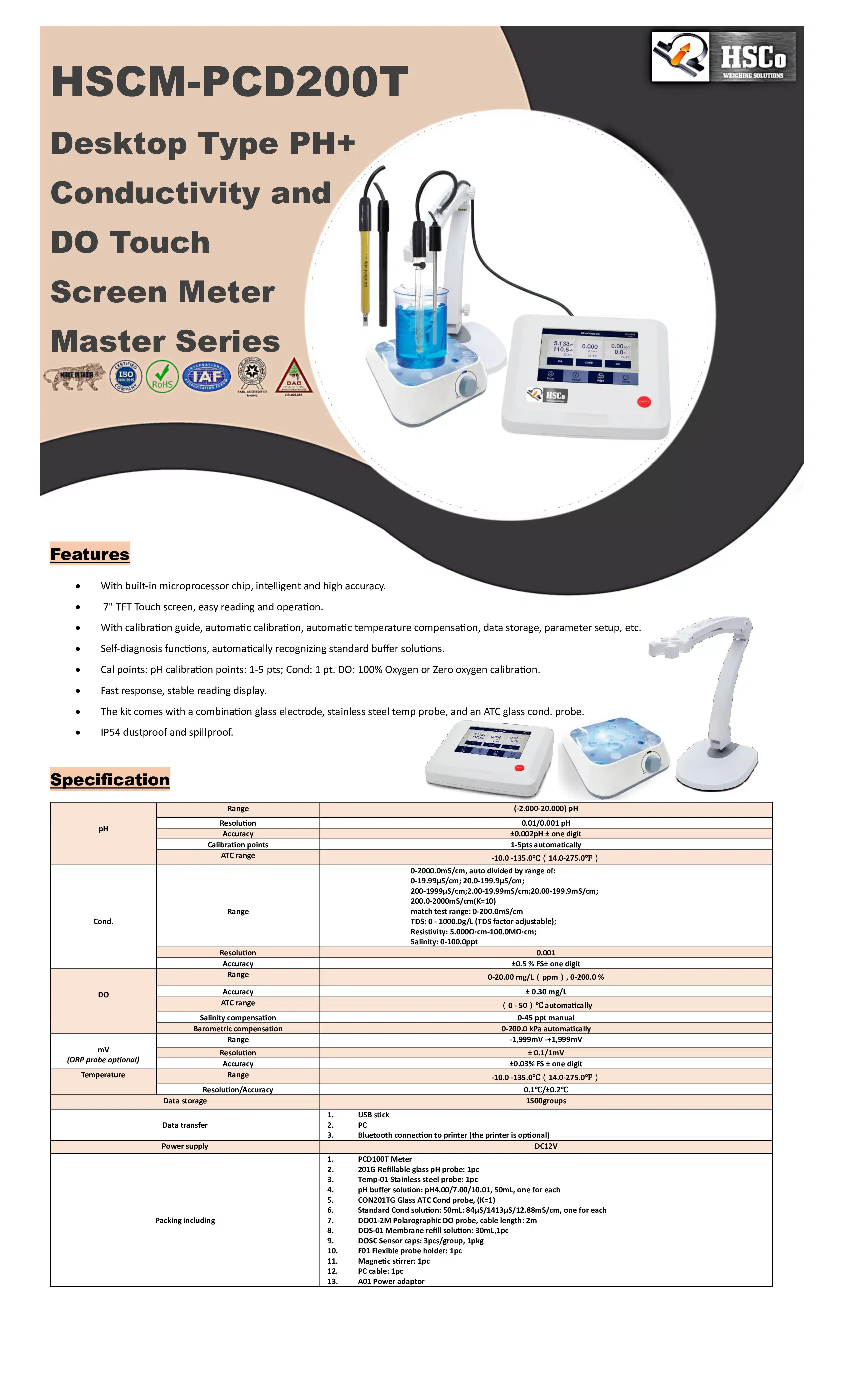

| HSCM-PCD200T | pH + conductivity + DO | 1,500 records |
Specifications
| pH range / resolution | −2.000 to 20.000 pH / 0.01 or 0.001 |
|---|---|
| pH calibration | 1 – 5 points, automatic |
| pH ATC | −10 to 135 °C |
| ORP | ±1999.9 mV, 0.1 mV; ±0.03% FS |
| Conductivity | 0 – 2000.0 mS/cm, auto-ranging; ±0.5% FS; one-point auto calibration; ATC 0 – 50 °C |
| TDS / salinity / resistivity | 0 – 1000.0 g/L (factor adjustable) / 0 – 100.00 ppt / 5 Ω·cm – 100 MΩ·cm |
| DO | 0 – 20.00 mg/L, ±0.30 mg/L; 0 – 200% saturation |
| DO compensation | Automatic pressure (0 – 200 kPa) and temperature (0 – 50 °C); manual salinity 0 – 45 ppt |
| Temperature | −10 to 135 °C, ±0.2 °C |
| Data export | PC, printer, USB stick |
| Power | 12 V DC adaptor |
| Warranty | 1 year |
In the box (by model)
Meter; glass refillable pH probe 201G; stainless-steel temperature probe; glass ATC conductivity probe (K = 1.0); polarographic DO probe with membrane caps and refill solution; pH 4.00 / 7.00 / 10.01 buffers; 84 µS, 1413 µS and 12.88 mS/cm conductivity standards; PC cable; flexible probe holder; magnetic stirrer; power adaptor.
Where it is used
Pharmaceutical, food and beverage, chemical, paint and ink labs, R&D, environmental testing and water and wastewater treatment. For the Edge series, see the Edge touch-screen meter; for a simple bench pH meter, the desktop pH meter. Browse all pH and conductivity meters.
Questions buyers ask
pH, conductivity (with TDS, salinity and resistivity) and dissolved oxygen, depending on the model.
One to five, with automatic buffer recognition.
Yes, to a PC, printer or USB stick, with date and time.
Yes, a magnetic stirrer and a flexible probe holder come with every model.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the parameters you need. Hindustan Scale Company, Mumbai, since 1955.
