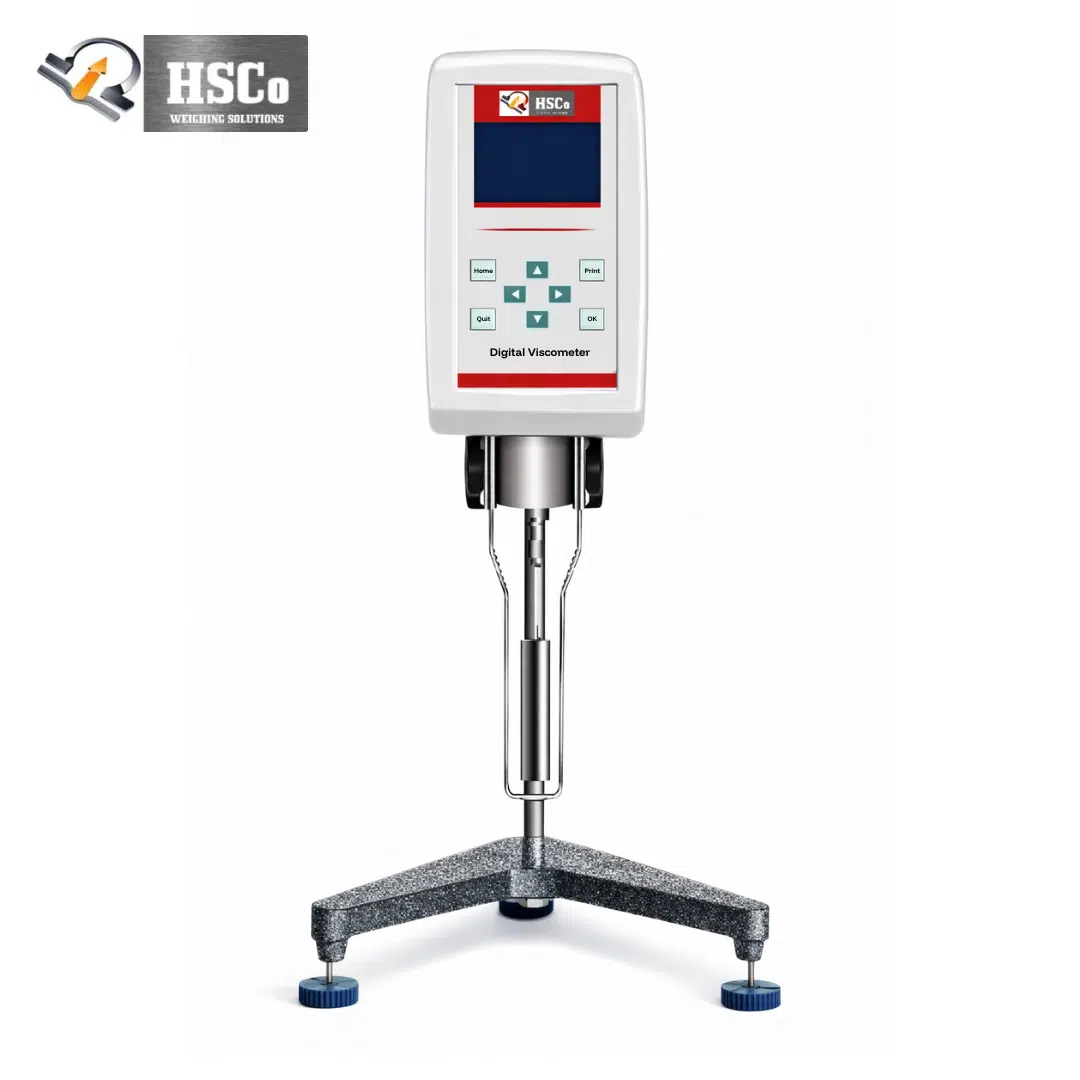

The HSCo standard viscometer with keypad is a rotational viscometer for measuring the viscosity of liquids from 1 mPa·s up to 2 million mPa·s, depending on the model. Simple keypad control, variable spindle speeds, automatic stop once the reading is stable and ±2% accuracy on Newtonian liquids make it a practical QC instrument for paints, pharma, food, cosmetics and petrochemicals. It comes in a carry case with spindles and stand.
Why labs choose it
- Five ranges from 60,000 to 2,000,000 mPa·s; the optional 0 spindle reads down to 0.1–100 mPa·s.
- Easy keypad. Dedicated function keys, no accidental touch inputs.
- Automatic measurement. The spindle stops by itself once the reading is stable.
- Accurate. ±2% on Newtonian liquids, with a servo motor and encoder feedback for smooth low speeds.
- Connects. Temperature sensor, PC (RS232) and printer interfaces.
- Stable stand and a carry case for storage.
Models
| Model | Measuring range | Spindle speeds |
|---|---|---|
| HSC-VISCKEY-60K | 1 – 60,000 mPa·s | 6, 12, 30, 60 rpm |
| HSC-VISCKEY-80K | 1 – 80,000 mPa·s | 0.3 – 60 rpm (8 speeds) |
| HSC-VISCKEY-800K | 1 – 800,000 mPa·s | 6, 12, 30, 60 rpm |
| HSC-VISCKEY-1000K | 1 – 100,000 mPa·s | 0.3 – 60 rpm (8 speeds) |
| HSC-VISCKEY-2000K | 1 – 2,000,000 mPa·s | 0.3 – 60 rpm (8 speeds) |
| Spindles | 1, 2, 3, 4 (optional 0 spindle for 0.1–100 mPa·s) |
|---|---|
| Accuracy | ±2% (Newtonian liquids) |
| Measurement | Single automatic measurement; stops when stable |
| Interfaces | Temperature sensor, PC, printer |
| Power | AC 110–240 V, 50/60 Hz; DC 12 V |
| Working environment | 5 – 35 °C; humidity ≤ 80% |
| Size and weight | 415 × 335 × 370 mm; 4.6 kg |
| Warranty | 1 year |
Where it is used
Paints and inks, pharmaceuticals, food and beverages, cosmetics, petrochemicals, chemicals and R&D labs. Add a viscometer stand or spindles; browse all density and viscosity meters.
Questions buyers ask
By the thickest sample: up to 60,000 mPa·s for thin liquids, up to 2 million for pastes.
±2% for Newtonian liquids.
Yes, with the optional 0 spindle (0.1–100 mPa·s).
Yes, it has PC and printer interfaces.
Order or ask for a quotation
Choose the range above, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your sample type. Hindustan Scale Company, Mumbai, since 1955.
