Tank Weighing Assembly HSC MT2 – 500 kg to 10 t, Shear Beam Module with Stop Bolt
Price on Request
Tank weighing assembly HSC MT2 (500 kg to 10 t): shear-beam load cell module between base and top plates with a side stop bolt, mounts directly to the tank, support bolt against overturning, nickel-plated alloy steel or stainless steel. 1-year warranty.

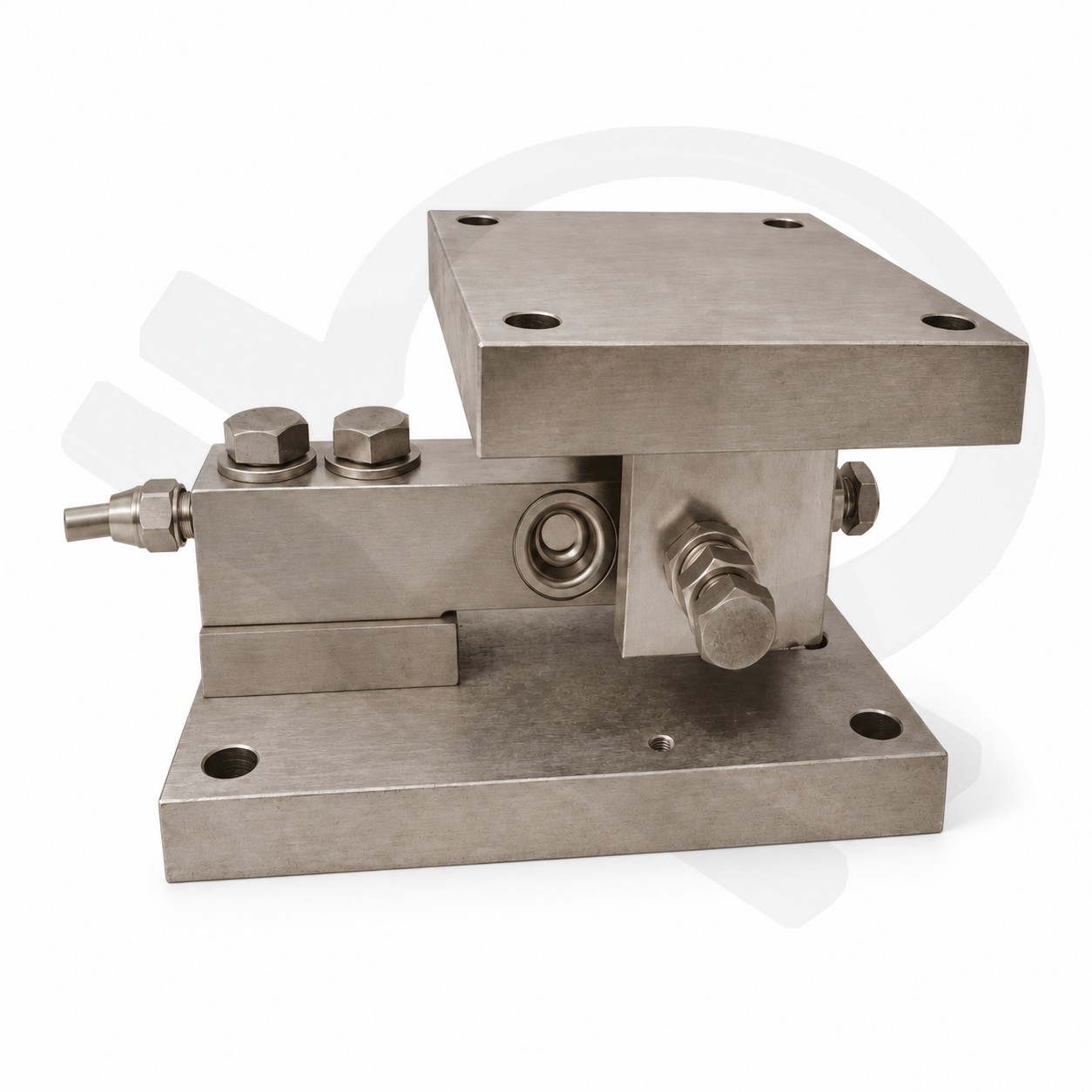

The HSC MT2 tank weighing assembly (500 kg to 10 t) turns a small tank, hopper or vessel into a scale. Each module holds a shear-beam load cell between a base plate and a top plate, with a side stop bolt, and mounts directly to the tank; a support bolt stops the tank overturning. It is made of nickel-plated alloy steel or stainless steel and connects through a junction box to a weighing indicator.
Why plants choose it
- Mounts directly to tanks, hoppers and vessels.
- Anti-overturn support bolt for safety.
- High accuracy and stability for process control.
- Rugged: nickel-plated alloy steel or stainless steel.
- 500 kg to 10 t, in capacities and layouts to suit.
Specifications
| Series | HSC MT2 load cell mounting assembly |
|---|---|
| Capacity | 500 kg to 10 t |
| Load cell | Shear beam, between base plate and top plate, with a side stop bolt |
| Mounting | Mounts directly to the tank; support bolt against overturning |
| Material | Nickel-plated alloy steel / stainless steel |
| System parts pictured | Mounting assembly, junction box, weighing indicator, printing indicator, load cell cable |
| Uses | Tank, silo and hopper weighing; platform scales |
| Warranty | 1 year |
Which tank weighing assembly?
For another module in the same range, see the MT3 series (500 kg to 10 t); for larger tanks, the 1AX series (5 t to 100 t). Complete systems: the indoor and outdoor tank weighing systems. Browse all tank weighing scales.
Where it is used
Small and medium tanks, hoppers and vessels in process plants, and platform scales.
Questions buyers ask
How many modules does a tank need?
Usually one per leg or support; tell us the tank layout and full weight and we will size it.
What capacity does the MT2 series cover?
500 kg to 10 t per module.
What stops the tank tipping?
A support bolt in each assembly prevents overturning.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the tank size, number of legs and full weight. Hindustan Scale Company, Mumbai, since 1955.
