The HSCo HSC-C-RK20TT is a refrigerated high-speed bench-top centrifuge. It spins at up to 20,000 rpm (27,800 × g), takes up to 4 × 100 ml, and holds the chamber anywhere from −20 to +40 °C within ±1 °C, so samples stay cold through the run. A French Tecumseh compressor with non-CFC R134a refrigerant does the cooling, and a high-torque AC frequency-conversion motor gives fast acceleration and braking, with 9 acceleration and 10 braking levels. It is microcomputer-controlled with an LCD screen, locks its lid electronically and alarms on over-speed, over-temperature and imbalance.
Why labs choose the RK20TT
- Up to 20,000 rpm / 27,800 × g.
- Keeps samples cold: −20 to +40 °C, ±1 °C, Tecumseh compressor.
- Up to 4 × 100 ml, with rotors for tubes from 0.2 ml upward.
- Accurate speed: ±30 rpm.
- Long runs: timer from 1 minute to 99 h 59 min.
- Safe: electronic lid lock; over-speed, over-temperature and imbalance alarms.

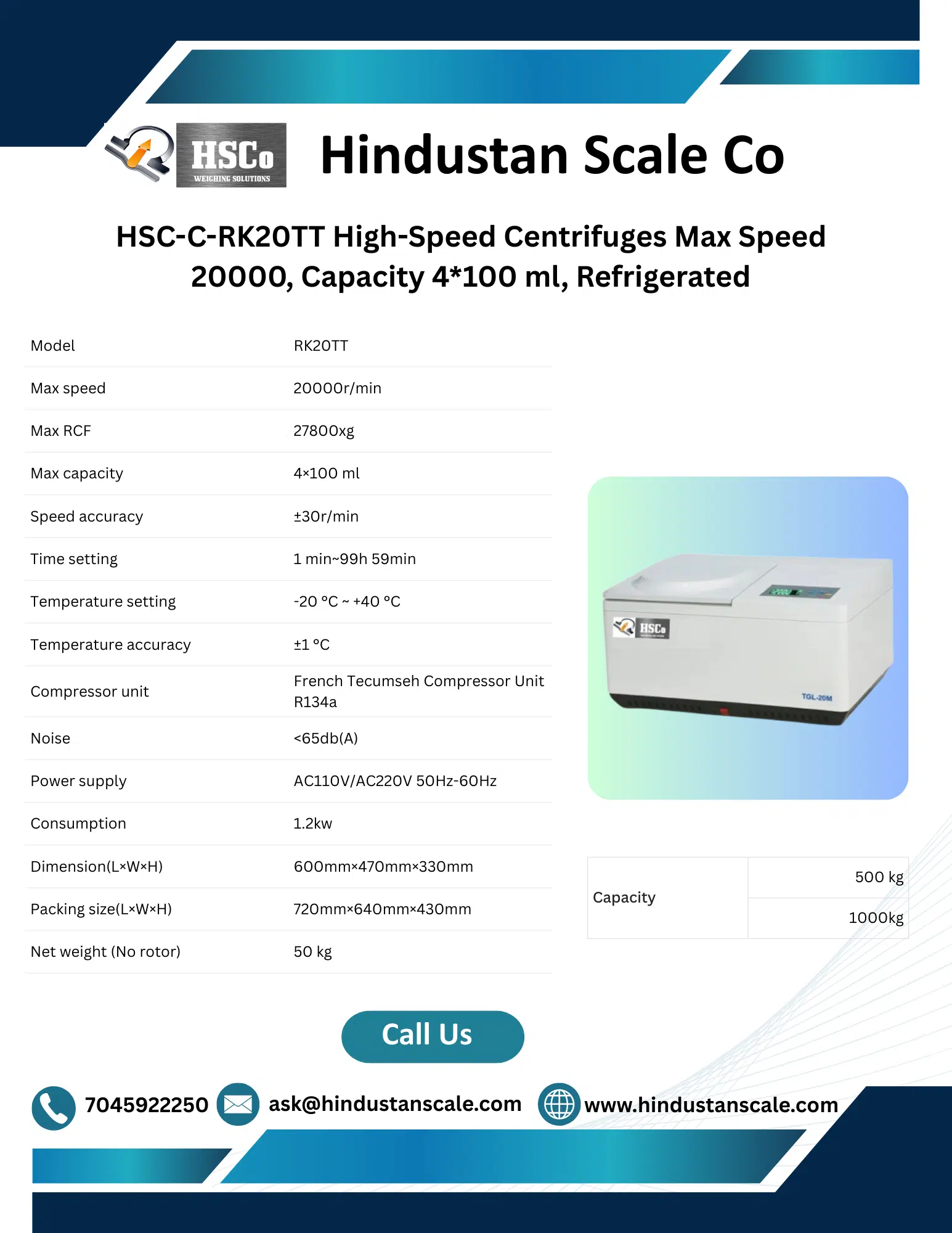

Specifications
| Model | HSC-C-RK20TT (RK20TT) |
|---|---|
| Maximum speed | 20,000 rpm |
| Maximum RCF | 27,800 × g |
| Maximum capacity | 4 × 100 ml |
| Speed accuracy | ±30 rpm |
| Timer | 1 min to 99 h 59 min |
| Temperature setting | −20 to +40 °C, accuracy ±1 °C |
| Refrigeration | French Tecumseh compressor, R134a (non-CFC) |
| Drive and control | AC frequency-conversion motor; microcomputer control, LCD screen; 9 acceleration and 10 braking levels, free coast-down |
| Safety | Electronic lid lock, self-locking; over-speed, over-temperature and imbalance detection with automatic alarm |
| Noise | Under 65 dB(A) |
| Power | AC 110 V / 220 V, 50 – 60 Hz; 1.2 kW |
| Size | 600 × 470 × 330 mm (L × W × H); packed 720 × 640 × 430 mm |
| Net weight | 50 kg (without rotor) |
| Rotors shown | 12 or 24 × 1.5 / 2.2 ml; 48 × 0.5 ml; 10 or 12 × 5 ml; 4 or 12 × 10 ml; 8 × 15 ml; 6 × 50 ml; 4 × 100 ml; 2 × 48 holder |
| Warranty | 1 year |
Which centrifuge?
For 18,000 rpm, see the HSC-C-RK18TT; for 25,000 rpm and 6 × 100 ml, the HSC-C-RK25TT. Without cooling, for small tubes, the HSC-C-NK16TT. Rotors and adapters are also sold separately: see centrifuge rotors and adapters. Browse all centrifuges.
Where it is used
Clinical and research labs: clinical specimens, biological samples and routine separations that must stay cold.
Questions buyers ask
You can set the chamber from −20 to +40 °C; it holds the setting within ±1 °C.
The 4 × 100 ml rotor runs at up to 12,000 rpm (13,000 × g). The top speed of 20,000 rpm (27,800 × g) is reached with the small-tube rotor.
Yes. The timer goes from 1 minute up to 99 hours 59 minutes.
Order or ask for a quotation
Tell us your tubes and volumes so we can suggest the rotor. Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
