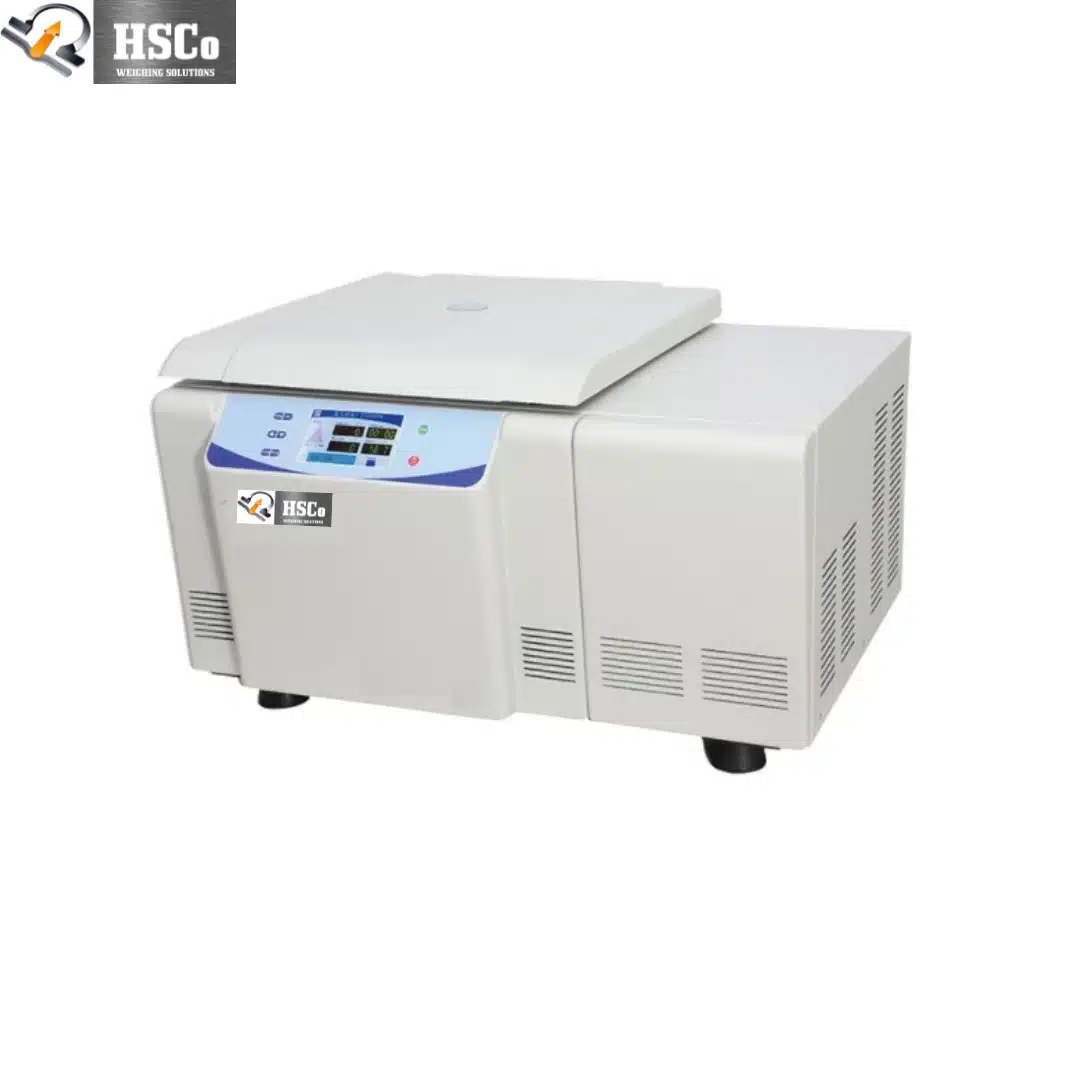

The HSC-C-RK25TT (model RK25TT) is a refrigerated high-speed centrifuge that spins up to 25,000 rpm, over 50,000 × g, and takes up to 6 × 100 ml, while a French Tecumseh compressor with non-CFC R404a refrigerant holds samples between −20 °C and +40 °C within ±1 °C. It suits clinical diagnostics, biotechnology and molecular biology: separating proteins, purifying samples and spinning down micro tubes. An LCD touch screen, a variable-frequency motor, automatic rotor recognition (option), 9 acceleration and 10 braking levels, and alarms for over-speed, over-temperature and imbalance make it easy and safe to run. Nine rotors cover micro tubes to 100 ml bottles.
Why labs choose it
- Up to 25,000 rpm, more than 50,000 × g.
- Cooled: −20 °C to +40 °C, ±1 °C; French Tecumseh compressor, R404a.
- Up to 6 × 100 ml; rotors for micro tubes and 5 – 100 ml tubes.
- Easy to use: LCD touch screen; up to 6 stored programs.
- Safe: electronic lid lock; over-speed, over-temperature and imbalance alarms; rotor recognition (option).
- Quiet: under 65 dB(A).

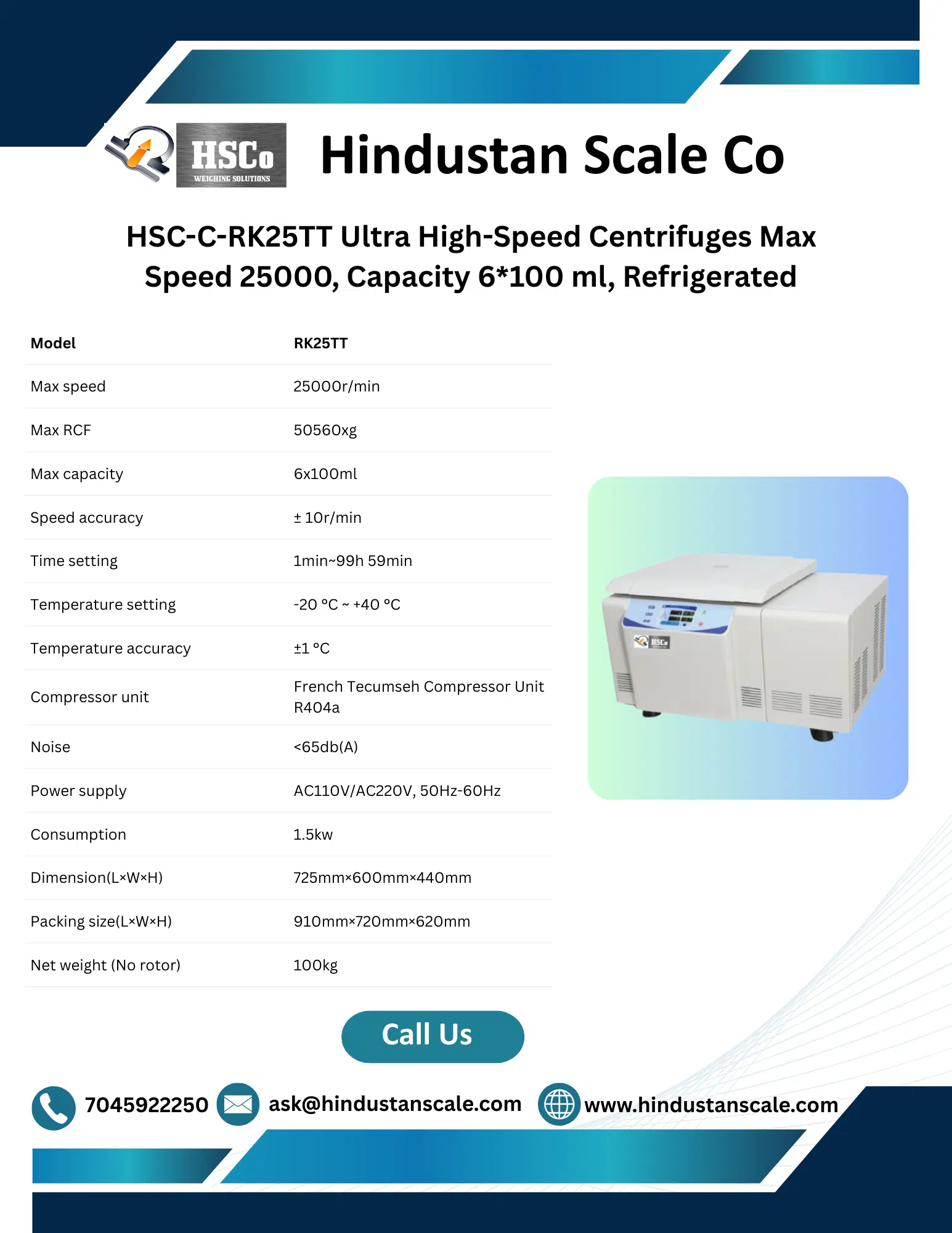

Specifications
| Model | HSC-C-RK25TT (RK25TT) |
|---|---|
| Type | High speed, refrigerated |
| Max speed / RCF | 25,000 rpm / 50,560 × g |
| Max capacity | 6 × 100 ml |
| Speed accuracy | ±10 rpm |
| Timer | 1 min – 99 h 59 min |
| Temperature | −20 °C to +40 °C, ±1 °C |
| Refrigeration | French Tecumseh compressor, non-CFC R404a |
| Control | Microcomputer; LCD touch screen; up to 6 programs; 9 acceleration / 10 deceleration levels; free coast-down |
| Motor | AC variable-frequency, high torque |
| Safety | Electronic lid lock; over-speed, over-temperature and imbalance alarms; automatic rotor recognition (option) |
| Noise | < 65 dB(A) |
| Power | 110 V or 220 V AC, 50 – 60 Hz; 1.5 kW |
| Size (L × W × H) | 725 × 600 × 440 mm; packed 910 × 720 × 620 mm |
| Net weight | 100 kg without rotor |
| Warranty | 1 year |
Rotors
| Rotor | Capacity | Max speed | Max RCF | Adaptors |
|---|---|---|---|---|
| No. 1 | 12 × 1.5 / 2.2 ml | 25,000 rpm | 44,720 × g | 0.2 ml, 0.5 ml |
| No. 2 | 12 × 5 ml | 14,000 rpm | 21,912 × g | 0.5 ml, 1.5 ml |
| No. 3 | 12 × 10 ml | 19,000 rpm | 36,715 × g | 1.5 ml, 5 ml |
| No. 4 | 6 × 50 ml | 13,000 rpm | 17,940 × g | 10, 15, 20 ml |
| No. 5 | 48 × 1.5 ml | 19,000 rpm | 38,987 × g | 0.2 ml, 0.5 ml |
| No. 7 | 24 × 1.5 / 2.2 ml | 21,000 rpm | 42,149 × g | 0.2 ml, 0.5 ml |
| No. 8 | 6 × 85 ml | 12,000 rpm | 15,805 × g | 15, 20, 50 ml |
| No. 9 | 6 × 100 ml | 10,000 rpm | 11,960 × g | 10 ml, 20 ml |
| No. 10 | 6 × 30 ml | 20,000 rpm | 35,328 × g | – |
Which centrifuge?
For 4 × 1,000 ml in a floor-standing unit, see the HSC-C-RT25FLR; for a benchtop refrigerated model to 17,500 rpm, the HSC-C-RT17.5TT. Browse all centrifuges.
Where it is used
Clinical diagnostics, biotechnology and molecular biology labs: separating proteins, purifying samples and spinning down micro tubes.
Questions buyers ask
Up to 25,000 rpm and over 50,000 × g; the highest rotor figure listed is 44,720 × g with rotor No. 1.
Anywhere from −20 °C to +40 °C, within ±1 °C.
From 0.2 ml micro tubes (with adaptors) up to 100 ml bottles, using the rotors in the table.
Order or ask for a quotation
Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the rotors you need. Hindustan Scale Company, Mumbai, since 1955.
