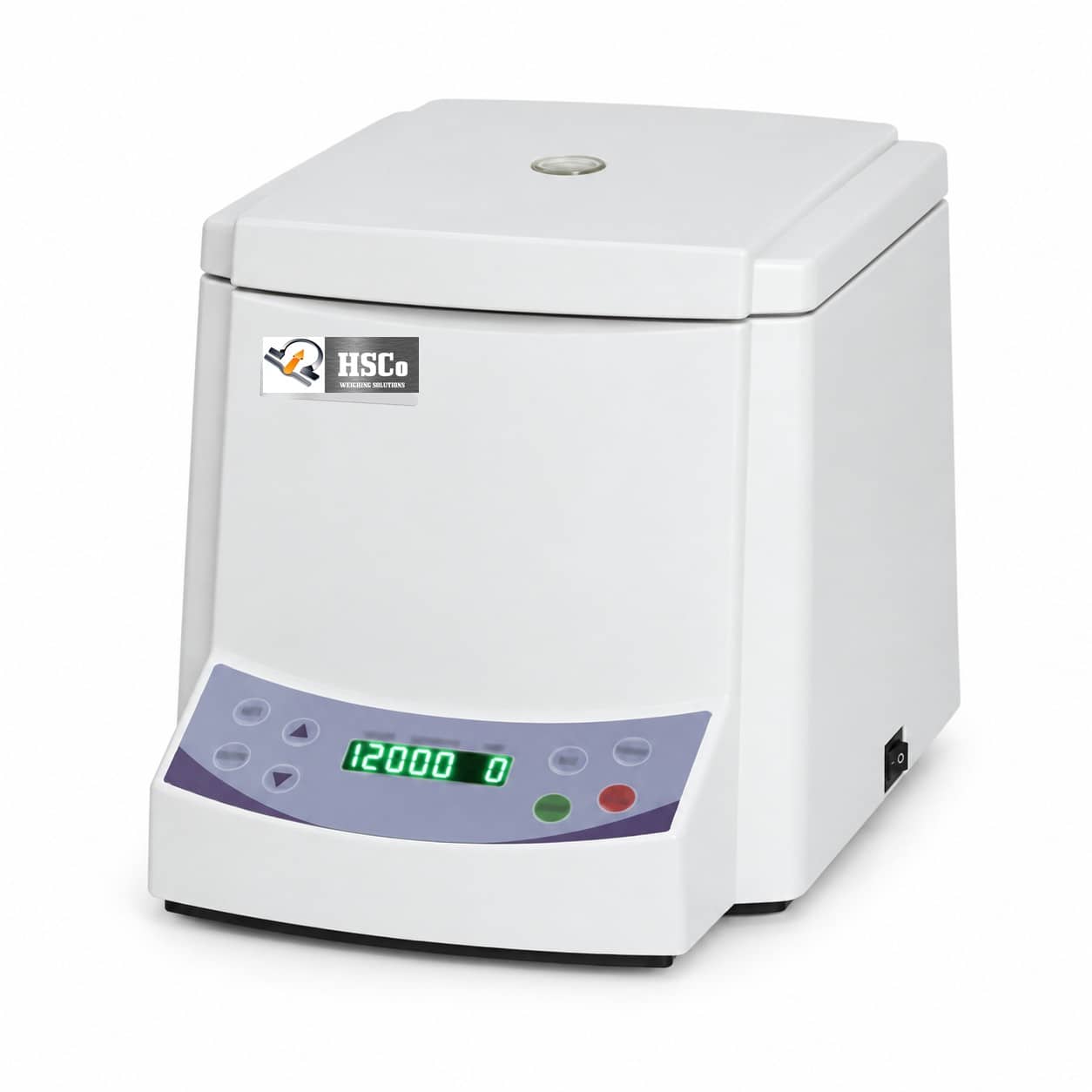

The HSCo HSC-C-NK16TT is a compact, non-refrigerated bench-top centrifuge for small tubes: 1.5 and 2.2 ml tubes, 5 ml tubes, and 0.2 or 0.5 ml tubes with adaptors. It spins at up to 16,000 rpm (17,800 × g). A brushless DC motor keeps it quiet and holds the speed accurately, and a microcomputer with a digital display makes it simple to run. The lid locks electronically, and the centrifuge alarms on over-speed, over-temperature and imbalance. It is small and light, 9 kg without a rotor, for clinical and research labs.
Why labs choose the NK16TT
- Up to 16,000 rpm / 17,800 × g with the 12 × 1.5 / 2.2 ml rotor.
- Four rotor choices: 12, 18 or 24 × 1.5 / 2.2 ml, or 10 × 5 ml.
- Quiet: brushless DC motor, under 65 dB(A).
- Safe: electronic lid lock; over-speed, over-temperature and imbalance alarms.
- Compact: 230 × 310 × 240 mm, 9 kg.

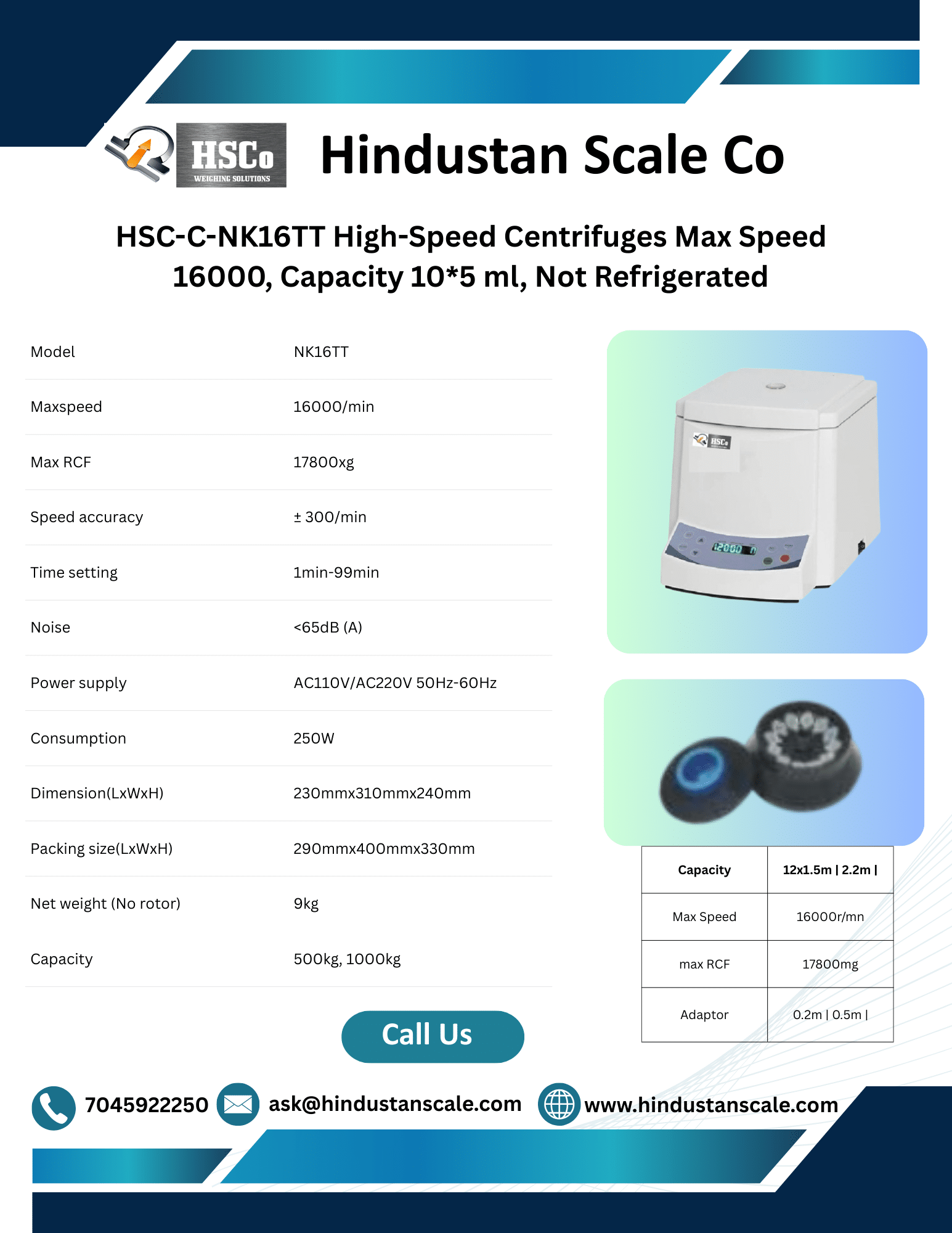

Specifications
| Model | HSC-C-NK16TT (NK16TT) |
|---|---|
| Maximum speed | 16,000 rpm |
| Maximum RCF | 17,800 × g |
| Maximum capacity | 10 × 5 ml |
| Speed accuracy | ±300 rpm |
| Timer | 1 – 99 min |
| Noise | Under 65 dB(A) |
| Cooling | None (non-refrigerated) |
| Drive and control | Brushless DC motor; microcomputer control, digital display |
| Safety | Electronic lid lock, self-locking; over-speed, over-temperature and imbalance detection with automatic alarm |
| Power | AC 110 V / 220 V, 50 – 60 Hz; 250 W |
| Size | 230 × 310 × 240 mm (L × W × H); packed 290 × 400 × 330 mm |
| Net weight | 9 kg (without rotor) |
| Warranty | 1 year |
| Rotor | Tubes | Max speed | Max RCF | Adaptors |
|---|---|---|---|---|
| No. 1 | 12 × 1.5 / 2.2 ml | 16,000 rpm | 17,800 × g | 0.2, 0.5 ml |
| No. 2 | 10 × 5 ml | 13,000 rpm | 11,400 × g | 0.5, 1.5 ml |
| No. 3 | 18 × 1.5 / 2.2 ml | 13,200 rpm | 16,110 × g | 0.2, 0.5 ml |
| No. 4 | 24 × 1.5 / 2.2 ml | 10,000 rpm | 10,500 × g | 0.2, 0.5 ml |
Which centrifuge?
For 4 × 100 ml bottles, see the HSC-C-NK16.5TT (16,500 rpm). To keep samples cold, the refrigerated micro centrifuge HSC-C-RT17TT. Spare rotors and adapters: centrifuge rotors and adapters. Browse all centrifuges.
Where it is used
Clinical and research labs: processing diagnostic samples, biochemical assays and routine lab work.
Questions buyers ask
Up to 16,000 rpm (17,800 × g) with rotor No. 1. The other rotors run at 10,000 to 13,200 rpm; see the rotor table.
1.5 and 2.2 ml tubes (12, 18 or 24 per rotor), 5 ml tubes (10 per rotor), and 0.2 or 0.5 ml tubes with adaptors.
No, it is non-refrigerated. For cooling, see the refrigerated models.
Order or ask for a quotation
Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
