Digital Control Heating Mantle – 50 ml to 20 L, up to 450 °C
Price range: ₹2,400.00 through ₹4,500.00 (ex. GST) (₹2,832.00 – ₹5,310.00 incl. GST)
Digital control heating mantles for round-bottom flasks: 50 ml to 5 L (10 and 20 L to order), control RT+20 to 250 °C, heater to 450 °C, digital display. Sensor sold separately.

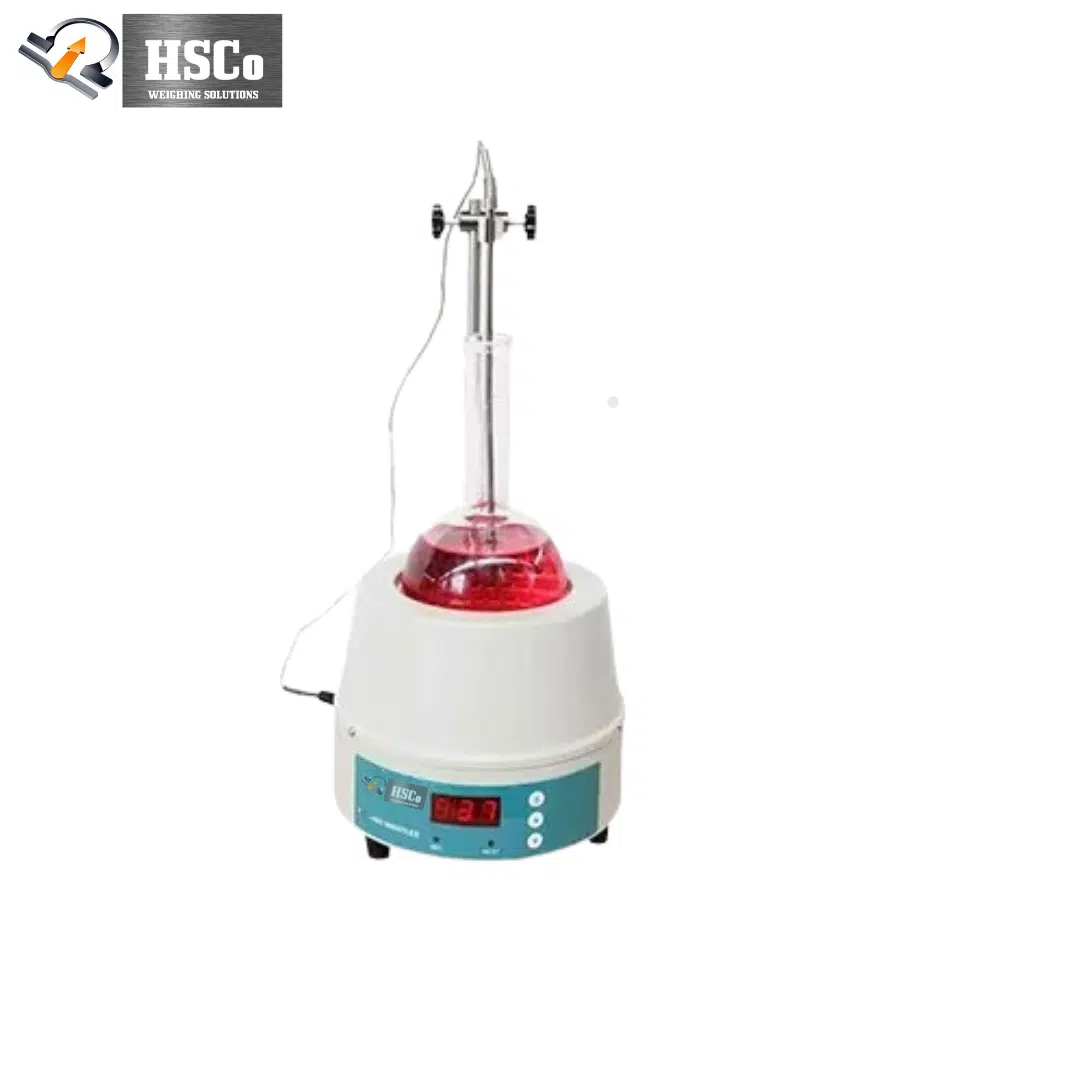

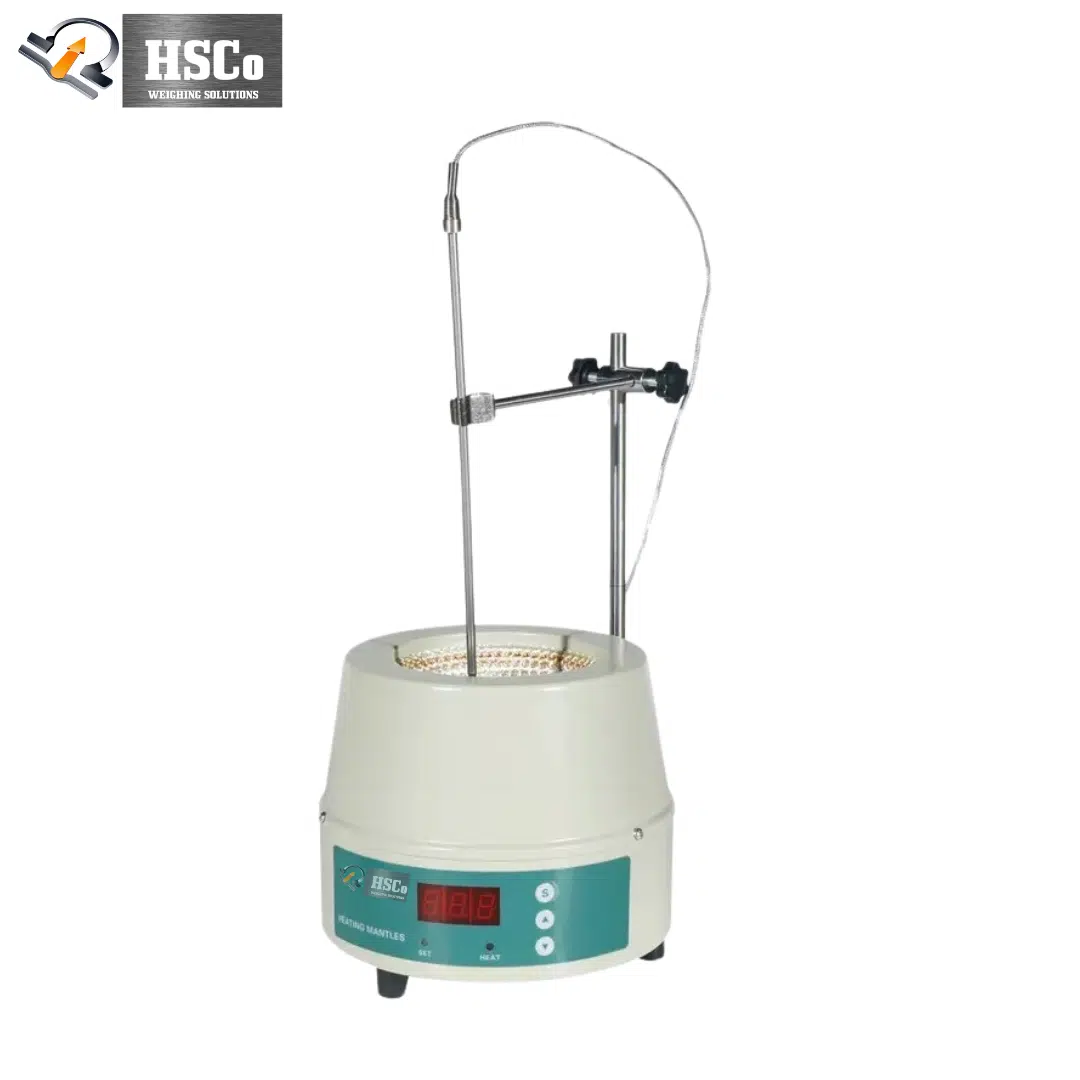

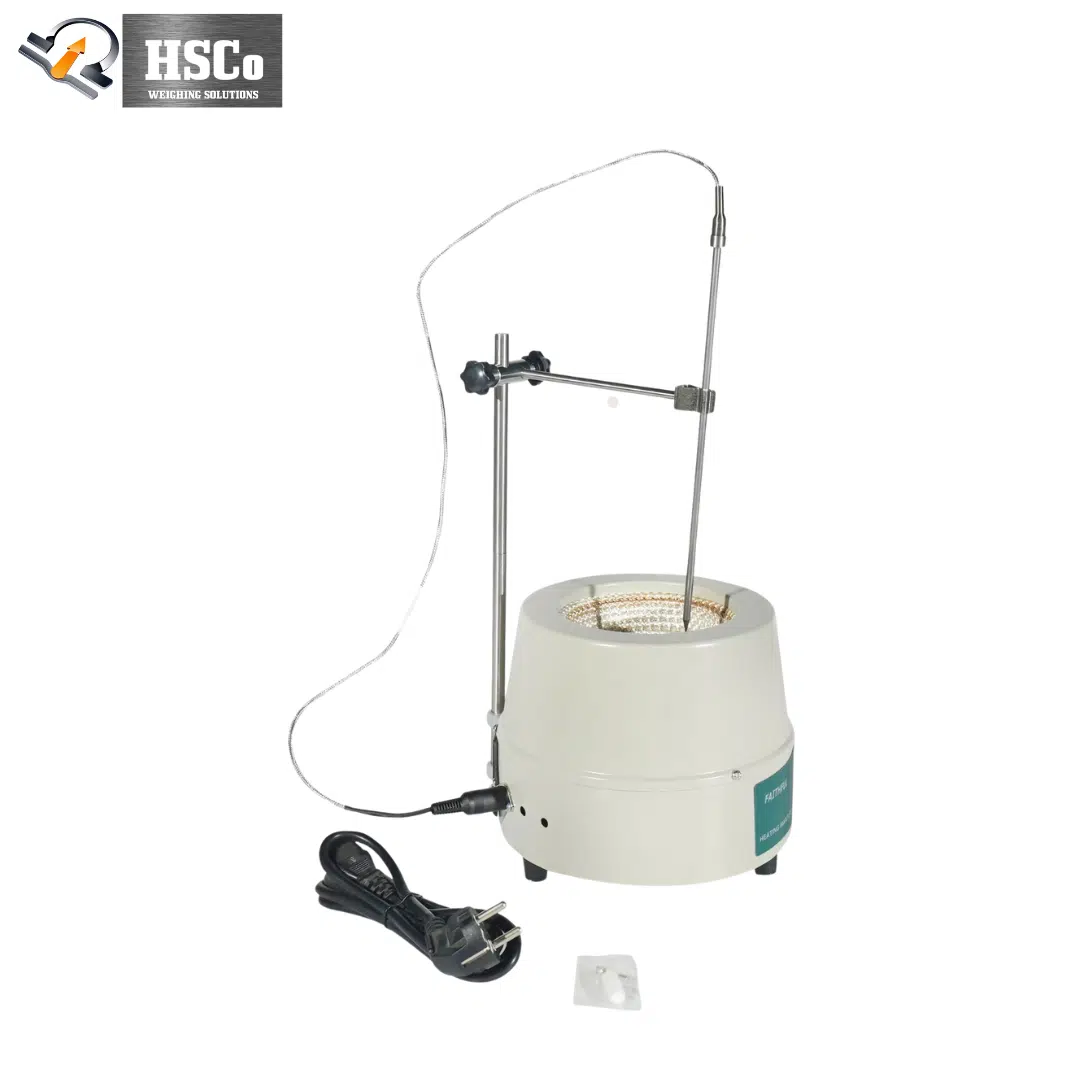

HSCo digital control heating mantles heat round-bottom flasks evenly and without an open flame, for distillation, boiling and reflux. A digital controller holds the set temperature from 20 °C above room temperature up to 250 °C (heater up to 450 °C), with a clear digital display. Sizes run from 50 ml to 5,000 ml as standard, with 10 and 20 litre versions built to order.
Why labs choose them
- Flame-free, even heating of round-bottom flasks.
- Digital control: RT+20 to 250 °C with a real-time display.
- Heater up to 450 °C.
- Every common flask size from 50 ml to 5 L; 10 L and 20 L on order.
- Built for long runs in busy labs.

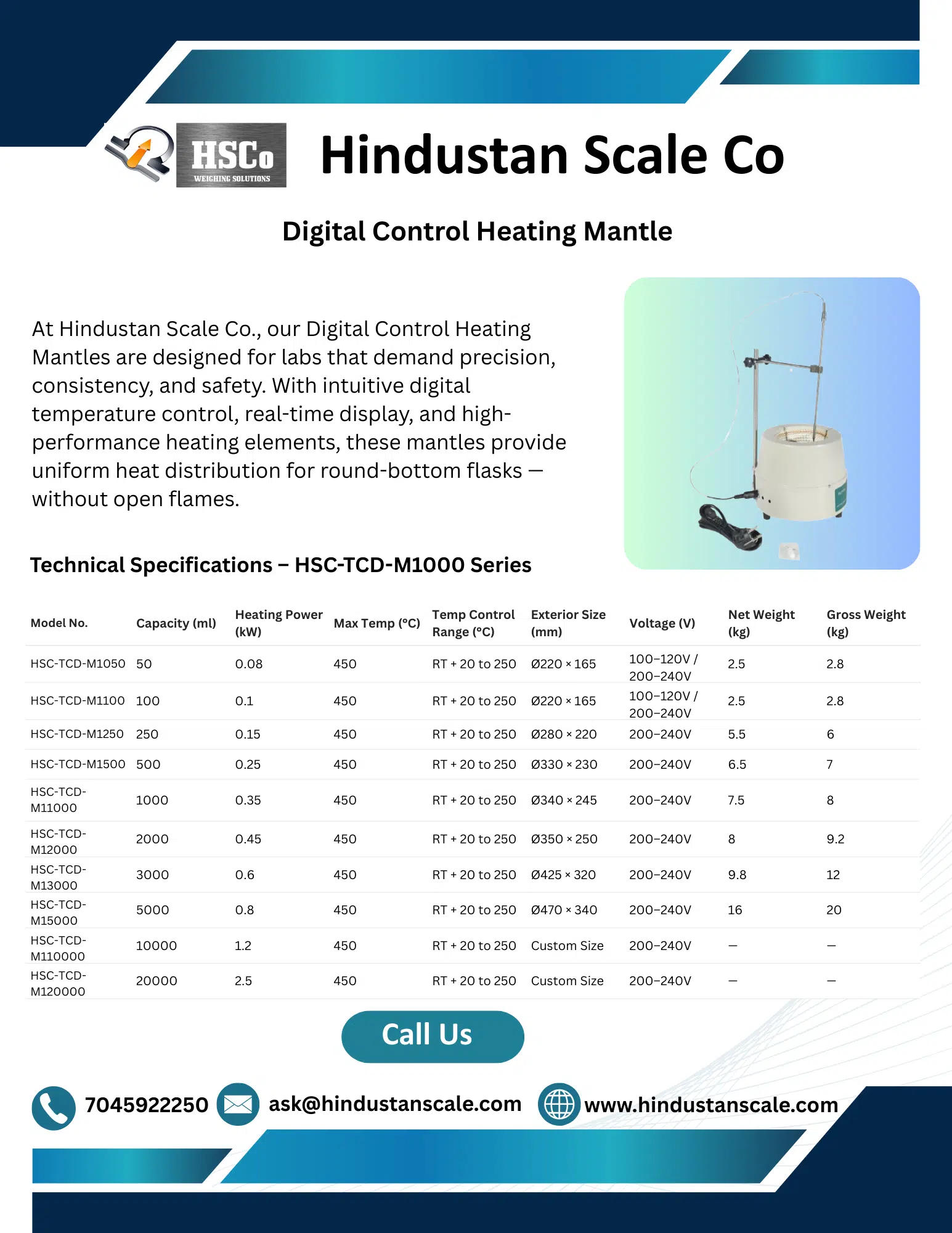

Models
| Model | Flask size | Heating power | Exterior (mm) | Voltage | Net / gross weight |
|---|---|---|---|---|---|
| HSC-TCD-M1050 | 50 ml | 0.08 kW | Ø220 × 165 | 100–120 V / 200–240 V | 2.5 / 2.8 kg |
| HSC-TCD-M1100 | 100 ml | 0.10 kW | Ø220 × 165 | 100–120 V / 200–240 V | 2.5 / 2.8 kg |
| HSC-TCD-M1250 | 250 ml | 0.15 kW | Ø280 × 220 | 200–240 V | 5.5 / 6.0 kg |
| HSC-TCD-M1500 | 500 ml | 0.25 kW | Ø330 × 230 | 200–240 V | 6.5 / 7.0 kg |
| HSC-TCD-M11000 | 1,000 ml | 0.35 kW | Ø340 × 245 | 200–240 V | 7.5 / 8.0 kg |
| HSC-TCD-M12000 | 2,000 ml | 0.45 kW | Ø350 × 250 | 200–240 V | 8.0 / 9.2 kg |
| HSC-TCD-M13000 | 3,000 ml | 0.60 kW | Ø425 × 320 | 200–240 V | 9.8 / 12.0 kg |
| HSC-TCD-M15000 | 5,000 ml | 0.80 kW | Ø470 × 340 | 200–240 V | 16.0 / 20.0 kg |
| HSC-TCD-M110000 | 10,000 ml | 1.20 kW | Custom size | 200–240 V | — |
| HSC-TCD-M120000 | 20,000 ml | 2.50 kW | Custom size | 200–240 V | — |
All models: maximum heater temperature 450 °C; control range RT+20 to 250 °C. The temperature sensor is sold separately.
Where they are used
Distillation, boiling and reflux in chemistry labs, pharma R&D and industry. See also the HSC-HM heating mantle and the Soxhlet extraction unit; browse all temperature control equipment.
Questions buyers ask
50 ml to 5,000 ml as standard; 10 and 20 litres to order.
Controlled from 20 °C above room temperature to 250 °C; the heater reaches 450 °C.
No, it is sold separately. Ask us for the current price.
No, it heats electrically.
Order or ask for a quotation
Choose the size above, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
| Size in ml | 100, 250, 500, 1000, 2000, 3000, 5000 |
|---|
