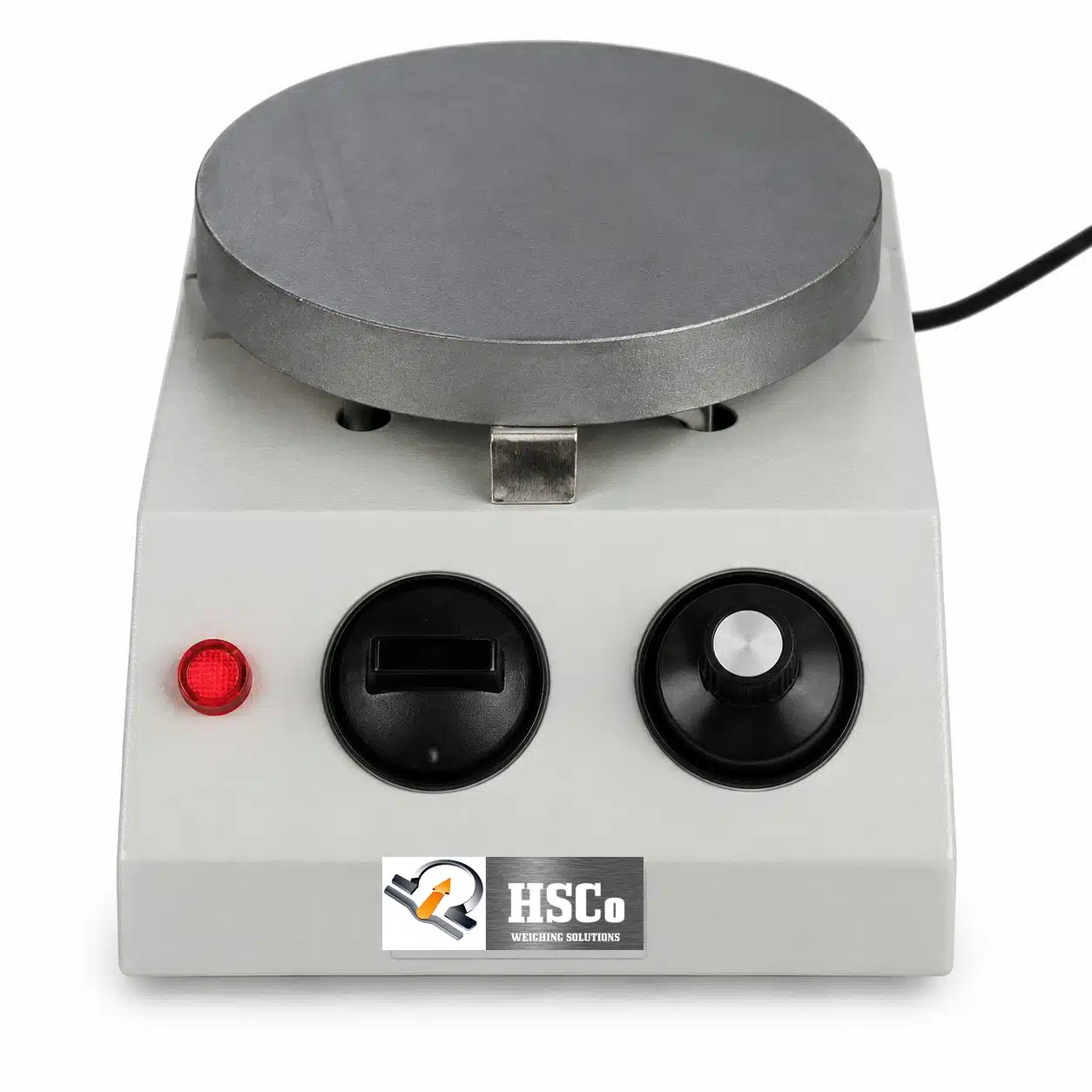

The HSCo HSC-HP hot plate has a cast-iron top, round or rectangular, ground to a smooth level surface, for heating solutions, drying samples and general lab and industrial heating. Its Nichrome heating element takes the surface up to 350 °C, set with a regulator or a thermostat. It runs on 230 V single-phase mains and comes in two round and four rectangular sizes, from 1.2 to 3 kW.
Why labs choose it
- Cast-iron top, smooth and level, for even heat.
- Up to 350 °C surface temperature.
- Regulator or thermostat control.
- Six sizes: 8″ and 12″ round; 10 × 12″ to 18 × 24″ rectangular.
- Powder-coated body for long life.
Specifications
| Top | Size | Rating |
|---|---|---|
| Round | 8″ diameter | 1.2 kW |
| Round | 12″ diameter | 2.0 kW |
| Rectangular | 10″ × 12″ | 1.2 kW |
| Rectangular | 10″ × 16″ | 1.5 kW |
| Rectangular | 12″ × 18″ | 2.0 kW |
| Rectangular | 18″ × 24″ | 3.0 kW |
| Maximum surface temperature | 350 °C |
|---|---|
| Control | Regulator or thermostat |
| Heating element | Nichrome wire |
| Top plate | Cast iron, round or rectangular, smooth and levelled |
| Body | Powder coated |
| Power | 230 V AC, 50 Hz, single phase |
| Warranty | 1 year |
Which hot plate?
With a stainless-steel top up to 250 °C, see the stainless steel hot plate; to heat and stir together, the hot plate magnetic stirrer HSC-MSH-150. Browse all magnetic stirrers.
Where it is used
Heating solutions, drying samples and other heating work in laboratories and industry.
Questions buyers ask
The surface reaches up to 350 °C.
Round 8″ and 12″; rectangular 10 × 12″, 10 × 16″, 12 × 18″ and 18 × 24″.
With a regulator or a thermostat.
Order or ask for a quotation
Choose the size and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
