Drying Oven cum Incubator HSC-O-DOIDF – RT+5 to 300 °C, 30 to 230 L
Price on Request
Double-function drying oven and incubator: incubator RT+5–80 °C, drying oven 80–300 °C, forced air, two-section PID with PT100, 0.1 °C display, timer with auto stop, mirror stainless-steel chamber. Six sizes, 30–230 L; B (LED) and BE (LCD, independent limiter) versions. 1-year warranty.

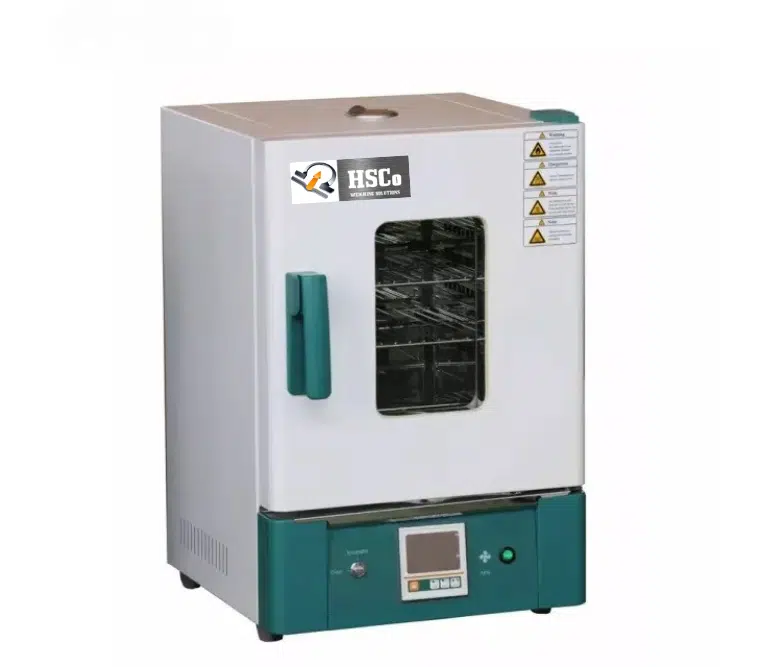

The HSC-O-DOIDF is a two-in-one lab cabinet that works as an incubator from 5 °C above room temperature to 80 °C, and as a drying oven from 80 to 300 °C. A fan circulates the air, and a two-section PID controller with a PT100 sensor holds the temperature, shown to 0.1 °C, with ±2.5% uniformity. The chamber is mirror-finish stainless steel. It comes in six sizes, from 30 to 230 litres, in two versions. The B version has an LED display and an over-temperature alarm. The BE version adds an LCD, a separate digital temperature limiter and an adjustable-speed fan. It suits labs, research centres and industry that need to dry materials and incubate biological samples.
Why labs choose it
- Two jobs, one cabinet. Incubator RT+5 – 80 °C; drying oven 80 – 300 °C.
- Even heat. Forced air circulation; uniformity ±2.5%.
- Precise control. Two-section PID, PT100 sensor, 0.1 °C display, overshoot self-tuning.
- Runs by itself. 0 – 9,999 minute timer with wait function and auto stop; power-off memory.
- Extra safety on the BE version. A separate digital temperature limiter as well as the over-temperature alarm.
- Six sizes from 30 to 230 litres.
Models
| Model (B / BE) | Volume | Inner W × L × H (mm) | Outer W × L × H (mm) | Power | Current (220 V) | Shelf positions | Net / gross weight |
|---|---|---|---|---|---|---|---|
| HSC-O-DOIDF-30B / 30BE | 30 L | 310 × 310 × 310 | 460 × 510 × 695 | 0.8 kW | 3.6 A | 5 | 33 / 37 kg |
| HSC-O-DOIDF-45B / 45BE | 45 L | 350 × 350 × 350 | 500 × 550 × 735 | 1.2 kW | 5.5 A | 6 | 37 / 43 kg |
| HSC-O-DOIDF-65B / 65BE | 65 L | 400 × 350 × 450 | 550 × 550 × 840 | 1.8 kW | 7.2 A | 8 | 44 / 49 kg |
| HSC-O-DOIDF-85B / 85BE | 85 L | 450 × 420 × 450 | 590 × 610 × 830 | 2.0 kW | 9.0 A | 8 | 50 / 56 kg |
| HSC-O-DOIDF-125B / 125BE | 125 L | 500 × 450 × 550 | 636 × 680 × 915 | 2.3 kW | 10.5 A | 11 | 60 / 65 kg |
| HSC-O-DOIDF-230B / 230BE | 230 L | 600 × 500 × 750 | 735 × 835 × 1115 | 3.0 kW | 13.6 A | 17 | 94 / 120 kg |
Specifications
| Temperature range | Incubator: room temperature +5 °C to 80 °C; drying oven: 80 – 300 °C |
|---|---|
| Resolution / stability / uniformity | 0.1 °C / ±1 °C / ±2.5% |
| Air circulation | Forced convection |
| Controller | Two-section intelligent PID; touch-button setting; LED display (B) or LCD (BE) |
| Timer | 0 – 9,999 min, with timing wait function |
| Operation | Fixed-temperature running, timing, auto stop |
| Other functions | Sensor deviation correction, overshoot self-tuning, parameter lock, power-off memory; BE: adjustable-speed fan (not on 230BE) |
| Sensor | PT100 |
| Safety | B: over-temperature sound and light alarm; BE: digital independent temperature limiter plus alarm |
| Construction | Mirror stainless-steel inner chamber; cold-rolled steel outer shell with electrostatic powder coating, or embossed stainless-steel shell; rock-wool insulation; stainless-steel heater |
| Exhaust | Ø35 mm at the top, also usable as a test hole |
| Load per shelf / shelf spacing | 15 kg / 40 mm |
| Supplied with | 2 shelves, 4 shelf frames |
| Options | Spare shelf; BE: RS485 interface, printer, program controller, remote control, USB-stick storage, wireless SMS alarm, 4.3-inch colour touch-screen controller |
| Warranty | 1 year |
Which oven?
For drying under vacuum, see the vacuum drying oven; for incubation only, the high-precision constant temperature incubator. Browse all ovens and furnaces.
Where it is used
Laboratories, research centres and industry: drying and sterilising materials, and growing microbial cultures and incubating biological samples.
Questions buyers ask
Yes. Set it from 5 °C above room temperature to 80 °C as an incubator, or from 80 to 300 °C as a drying oven.
B has an LED display and an over-temperature alarm; BE adds an LCD, a separate digital temperature limiter, an adjustable-speed fan and more options such as RS485 and a printer.
By your load: 30, 45, 65, 85, 125 or 230 litres, each shelf carrying up to 15 kg.
Yes. Set the timer up to 9,999 minutes and it stops automatically.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the size and version you need. Hindustan Scale Company, Mumbai, since 1955.
