Table Top Green Label Load Cell – 80, 120, 150 kg, Single Point, Pan up to 400 × 400 mm
Price on Request
Single-point aluminium load cell for table-top and bench scales: 80, 120 or 150 kg, pans up to 400 × 400 mm, 2.0 mV/V, C2 / C3, IP65 glue-sealed, 130 × 22 × 40 mm with 6 × M6 holes, 2 m cable. For price computing, retail, counting and check-weighing scales. 1-year warranty.

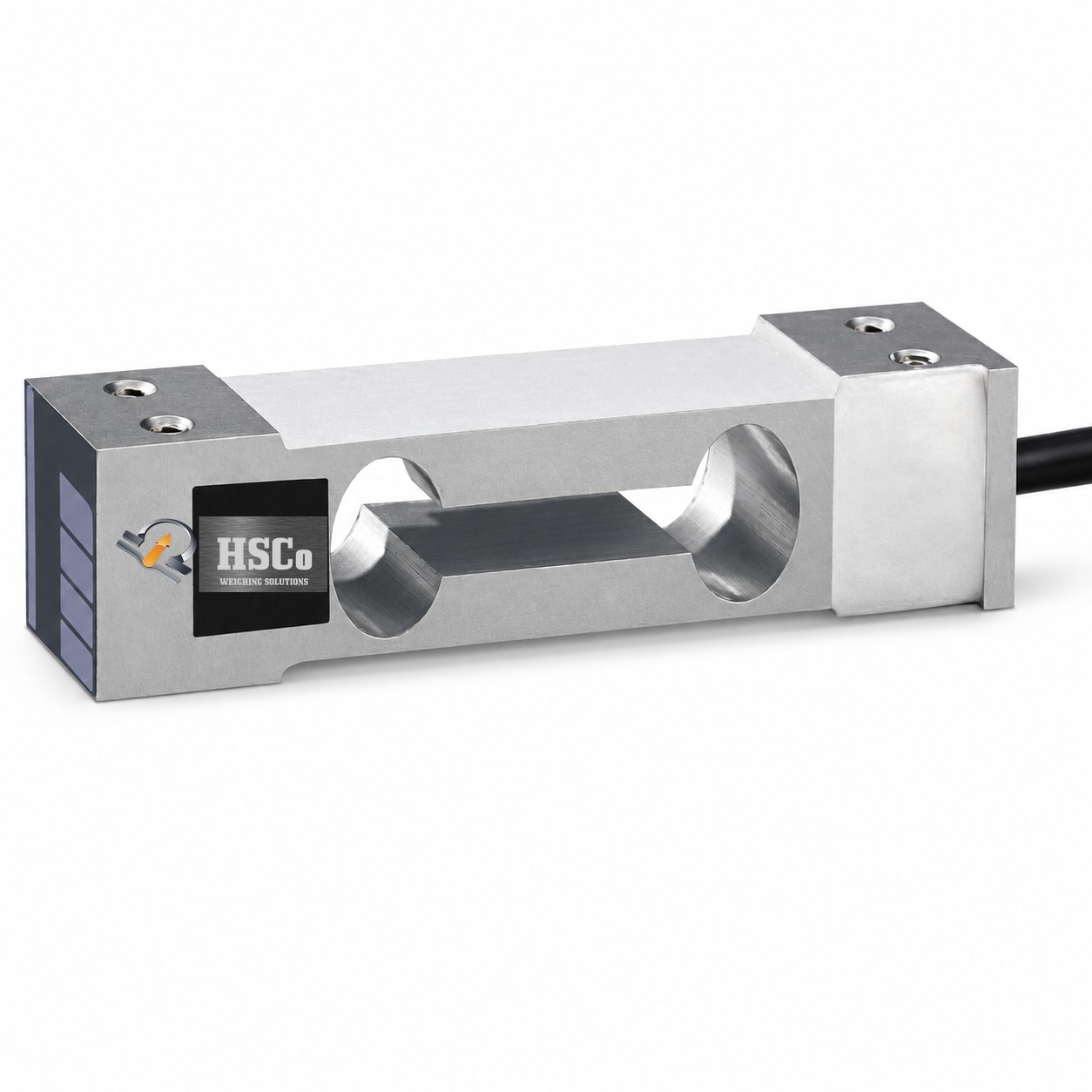

The HSCo table top green label load cell is a single-point aluminium load cell for bench, price computing, retail, counting and check-weighing scales, in 80, 120 and 150 kg capacities. It supports pans up to 400 × 400 mm, is anodised and glue-sealed to IP65, and is easy to mount on its six M6 holes. It gives 2.0 mV/V to class C2 or C3.
Why scale makers choose it
- 80, 120 and 150 kg.
- Single point: pans up to 400 × 400 mm.
- Accurate: C2 / C3, non-linearity under ±0.03% FS.
- Sealed to IP65, anodised aluminium.
- Compact: 130 × 22 × 40 mm, easy to mount.
Specifications
| Type | Single point, strain gauge |
|---|---|
| Capacities | 80, 120, 150 kg |
| Max. pan | 400 × 400 mm |
| Accuracy class | C2 / C3 |
| Rated output | 2.0 ± 0.1 mV/V |
| Excitation | 9 V DC (maximum 12 V DC) |
| Non-linearity | < ±0.03% of full-scale output |
| Creep (30 min) | < ±0.025% of full-scale output |
| Zero balance | < ±1% of full-scale output |
| Input / output resistance | 400 ± 10 Ω / 350 ± 5 Ω |
| Insulation resistance | Above 5,000 MΩ |
| Safe / ultimate load | 120% / 150% of rated capacity |
| Temperature compensated | −10 to +40 °C |
| Material / sealing | Aluminium alloy, colourless anodised; glue-sealed to IP65 |

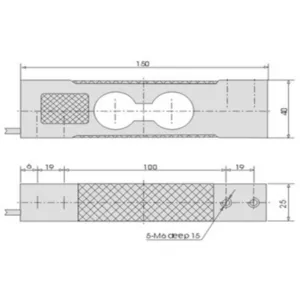

| Size / mounting | 130 × 22 × 40 mm; 6 × M6 threaded holes |
| Cable | 4 mm, 2 m |
| Warranty | 1 year |
Which load cell?

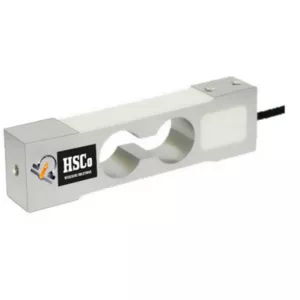

For platform scales from 100 to 500 kg, see the platform green label load cell; for table-top and mini platform scales, the table top cum mini platform load cell. Browse all load cells.
Where it is used
Bench scales, price computing and retail scales, electronic counting scales and check-weighing scales.
Questions buyers ask
Which capacities are available?
80, 120 and 150 kg.
What pan size does it support?
Up to 400 × 400 mm.
How is it mounted?
By six M6 threaded holes on its 130 × 22 × 40 mm body.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
