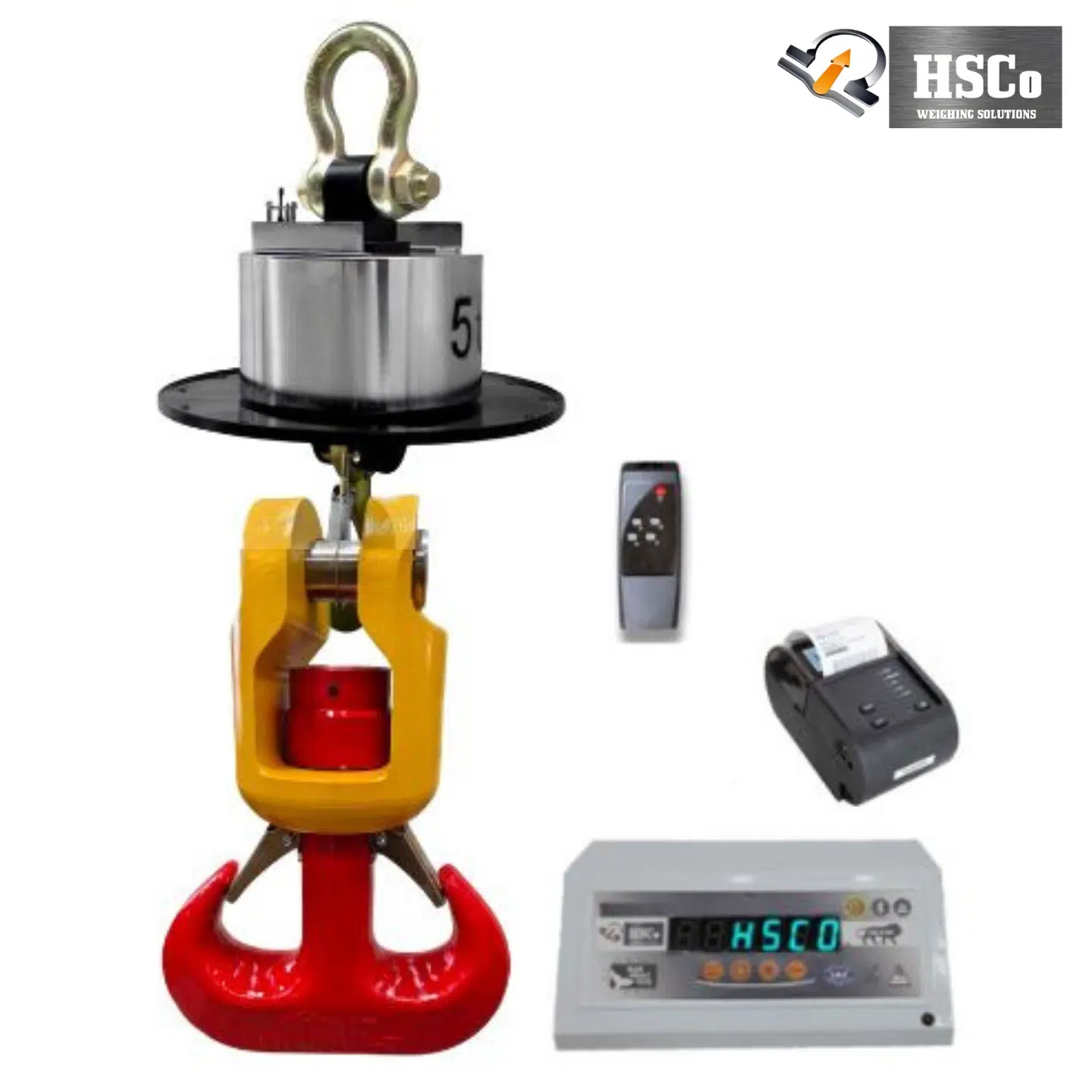

The HSCo CRHSSDJH is the CRHSS stainless-steel heat resistant crane scale fitted with a double J hook, for weighing hot loads in steel plants and foundries. Its heavy-duty stainless body is rated for heat up to 1,600 °C, with a superior metal heat-proof load cell. It comes with a hand remote, an external indicator with front and back displays, and a thermal printer for weight slips. It is made in 3, 5, 10, 20 and 50 tonnes and is stamped by the Legal Metrology department.
Why steel plants choose it
- Double J hook at the bottom.
- Stainless-steel body, heat resistant up to 1,600 °C.
- Read and print away from the heat: external indicator (front and back displays) and thermal printer.
- Hand remote for tare and other functions.
- Weatherproof: rust and water resistant, water-resistant PCB.
- Stamped by the Legal Metrology department.
Specifications
| Capacity | Accuracy |
|---|---|
| 3,000 kg | 1 kg |
| 5,000 kg | 2 kg |
| 10,000 kg | 5 kg |
| 20,000 kg | 5 kg |
| 50,000 kg | 5 kg |
| Model | CRHSSDJH (CRHSS series with double J hook) |
|---|---|
| Body | Heavy-duty stainless steel; heat resistant up to 1,600 °C |
| Load cell | Superior metal die-cast, heat proof; 200% overload |
| Rigging | Shackle top, double J hook bottom |
| Supplied with | Hand remote, external indicator (front and back displays), thermal printer |
| Functions | Tare, zero, auto zero tracking, auto calibration, auto power saving, sleep mode; digital overload indication |
| Power | 230 V AC ±10%, 50 Hz / 9 V DC; 6 V rechargeable battery (backup time depends on the model) |
| Working temperature (electronics) | 0 – 40 °C |
| Options | Bluetooth, RS-232, USB, Wi-Fi display |
| Certification | Legal Metrology stamped; ISO 9001:2015 certified company; Made in India |
| Warranty | 1 year |
Which heat resistant crane scale?
With a standard hook, see the CRHSS series, or the 20 t CRHSSH20K and 5 t CRHSSH5K with a printer display. For a die-cast body up to 1,000 °C, the CRHHR10K. Browse all crane scales.
Where it is used
Steel and thermal industries, heating processes, die manufacturing, alloy moulding and metal casting, docks and heavy industry.
Questions buyers ask
Is it stamped?
Yes, by the Legal Metrology department.
How hot a load can it weigh?
Its stainless body is rated for heat up to 1,600 °C.
Which capacities are available?
3, 5, 10, 20 and 50 tonnes, reading in 1 kg (3 t), 2 kg (5 t) or 5 kg steps.
How is the weight recorded?
On the external indicator, with a thermal printer for weight slips.
Order or ask for a quotation
The price shown is for the smallest model; call us for the others. Choose the capacity and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
