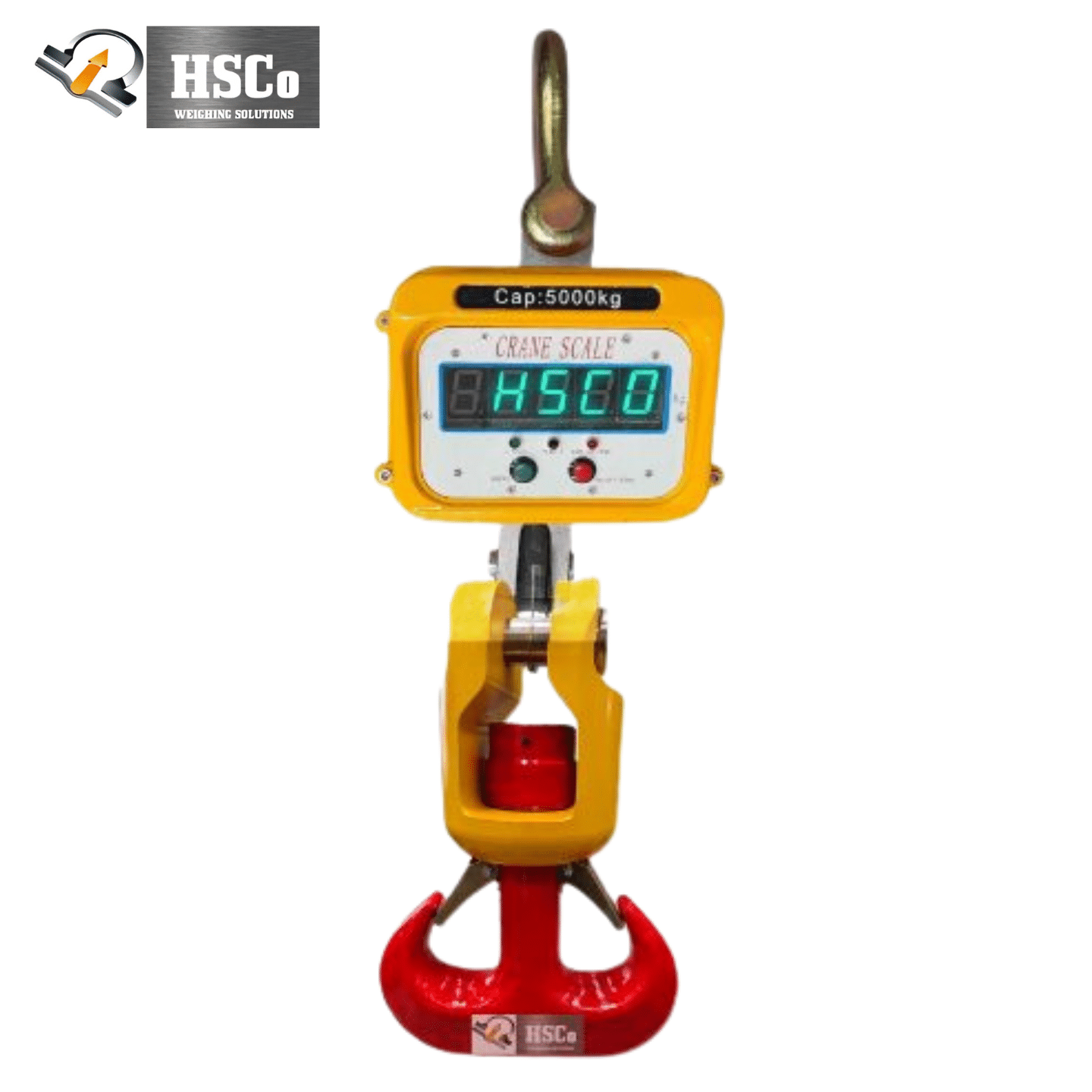

The HSCo CRHDJH is the CRH electronic crane scale fitted with a double J hook. It has a heavy-duty die-cast aluminium body with a 90+ micron powder coating, a superior metal die-cast load cell and an extra-bright jumbo green display that can be read from a distance and from all sides. A jumbo remote (range up to 10 m) handles tare, calibration and switching off, and the water-resistant PCB and rust- and water-resistant build suit all weather. It is made from 1 to 50 tonnes and is stamped by the Legal Metrology department.
Why buyers choose the CRHDJH
- Double J hook at the bottom, shackle at the top.
- Die-cast aluminium body, 90+ micron powder coating, rust and water resistant.
- Jumbo green display, extra bright, wide viewing angle.
- Jumbo remote with tare, calibration and an OFF button.
- Stable on moving loads: stability chip and high internal counts.
- Stamped by the Legal Metrology department.
Specifications
| Model | CRHDJH (CRH series with double J hook) |
|---|---|
| Capacities | 1,000, 2,000, 3,000, 5,000, 10,000, 20,000, 50,000 kg (choose above) |
| Body | Heavy-duty die-cast aluminium, ultra powder coating 90+ micron |
| Load cell | Superior metal die-cast; rust and water resistant; 200% overload; life up to 10 years |
| Rigging | Shackle top, double J hook bottom |
| Display | Extra-bright jumbo green LED, wide viewing angle; the decimal point shows when the weight is stable |
| Remote | Jumbo remote: tare, calibration, OFF; range up to 10 m |
| Functions | Tare, zero, auto zero tracking, auto calibration, auto power saving, sleep mode; digital overload indication |
| Electronics | Stability chip for moving loads; high internal counts; water-resistant PCB; direct charging |
| Power | 230 V AC ±10%, 50 Hz / 9 V DC, 1 A; rechargeable battery, fast charge (backup time depends on the model) |
| Operating temperature | 0 – 40 °C |
| Options | Remote display (green 20 mm LED, range up to 200 m); handheld display with thermal printer (up to 30,000 records, range up to 30 m); jumbo display in red or green (4-inch, range up to 20 m); printer output |
| Certification | Legal Metrology stamped; ISO 9001:2015 certified company; Made in India |
| Warranty | 1 year |
| Capacity | Crane body L × W × H (mm) |
|---|---|
| 1,000, 2,000, 3,000 kg | 230 × 212 × 190 |
| 5,000 kg | 255 × 212 × 188 |
| 10,000 kg | 257 × 212 × 188 |
Which crane scale?
With a standard hook, see the CRH crane scale. For hot loads, the CRHSSDJH stainless-steel heat resistant crane scale with double J hook. For 1,000 kg in a smaller body, the CRSDJH1000 hanging scale with double J hook. Browse all crane scales.
Where it is used
Steel and wood industries, construction, cranes, docks and naval use, and heavy industries.
Questions buyers ask
1, 2, 3, 5, 10, 20 and 50 tonnes.
Yes. Add a remote display (range up to 200 m) or a handheld display with a printer (range up to 30 m).
Yes. It has a water-resistant PCB and a rust- and water-resistant build for all-weather use.
Order or ask for a quotation
Choose the capacity and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
