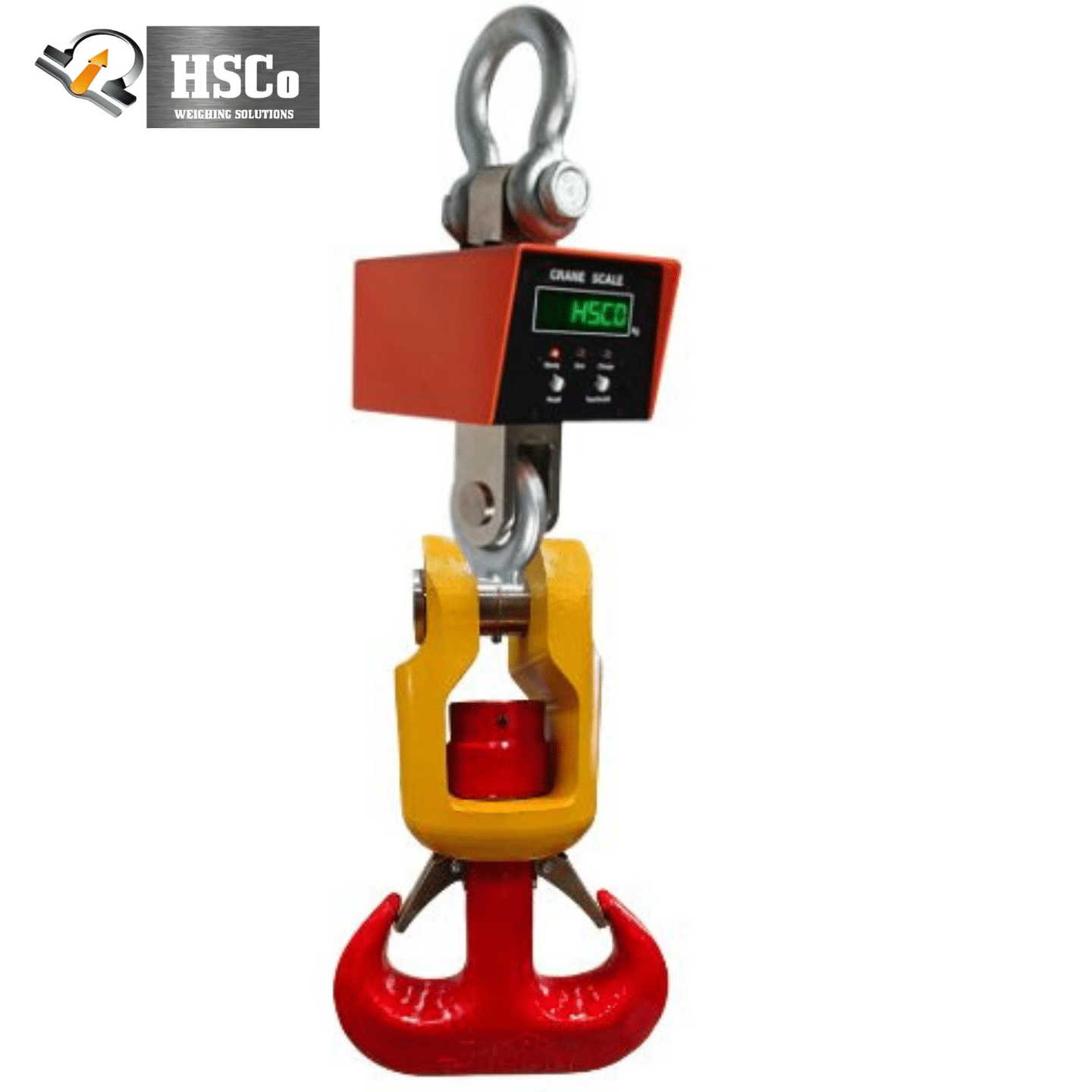

The HSCo CRH B DJH is the CRH B heavy crane scale fitted with a double J hook, for loads of 20, 30 or 50 tonnes in steel works, construction, docks and heavy industry. It has a heavy-duty die-cast body with a 90+ micron powder coating, a superior metal die-cast load cell and an extra-bright jumbo green display. A jumbo remote (range up to 10 m) handles tare, calibration and switching off, a stability chip steadies readings on moving loads, and the water-resistant PCB suits all weather. It is stamped by the Legal Metrology department.
Why buyers choose the CRH B DJH
- Double J hook at the bottom, shackle at the top.
- Heavy loads: 20, 30 or 50 tonnes.
- Jumbo green display, extra bright, wide viewing angle.
- Jumbo remote with tare, calibration and an OFF button.
- Stable on moving loads: stability chip and high internal counts.
- Stamped by the Legal Metrology department.
Specifications
| Model | CRH B DJH (CRH B series with double J hook) |
|---|---|
| Capacities | 20,000, 30,000, 50,000 kg (choose above) |
| Body | Heavy-duty die-cast, ultra powder coating 90+ micron |
| Load cell | Superior metal die-cast, stainless-steel composite; rust and water resistant; 200% overload; life up to 10 years |
| Rigging | Shackle top, double J hook bottom |
| Display | Extra-bright jumbo green LED, wide viewing angle; the decimal point shows when the weight is stable |
| Remote | Jumbo remote: tare, calibration, OFF; dust and water resistant; range up to 10 m |
| Functions | Tare, zero, auto zero tracking, auto calibration, auto power saving, sleep mode; digital overload indication |
| Electronics | Stability chip for moving loads; high internal counts; water-resistant PCB; direct charging |
| Power | 230 V AC ±10%, 50 Hz / 9 V DC, 1 A; rechargeable battery, fast charge (backup time depends on the model) |
| Operating temperature | 0 – 40 °C |
| Options | Remote display (green 20 mm LED, range up to 200 m); handheld display with thermal printer (up to 30,000 records, range up to 30 m); jumbo display in red or green (4-inch, range up to 20 m); printer output |
| Certification | Legal Metrology stamped; ISO 9001:2015 certified company; Made in India |
| Warranty | 1 year |
Which crane scale?
With a standard hook, see the CRH B heavy crane scale. For 1 to 50 t with a double J hook, the CRHDJH; for hot loads, the CRHSSDJH stainless-steel heat resistant crane scale. Browse all crane scales.
Where it is used
Steel and wood industries, construction, cranes, docks and naval use, and heavy industries.
Questions buyers ask
20, 30 and 50 tonnes.
Yes. Add a remote display (range up to 200 m) or a handheld display with a printer (range up to 30 m).
Yes. It has a water-resistant PCB and a rust- and water-resistant build for all-weather use.
