Plate Ring Load Cell HSC LCD-5 – 7.5 and 10 t, for Crane Scales and Safety Load, IP68
Price on Request
Plate-ring load cell HSC LCD-5: flat alloy-steel plate, 7.5 or 10 t, for crane scales and safety-load monitoring, IP67 or IP68, 2.0 mV/V, ±0.10% FS, safe 150% / limit 180%, 6.5 m cable, OIML R60. 1-year warranty.

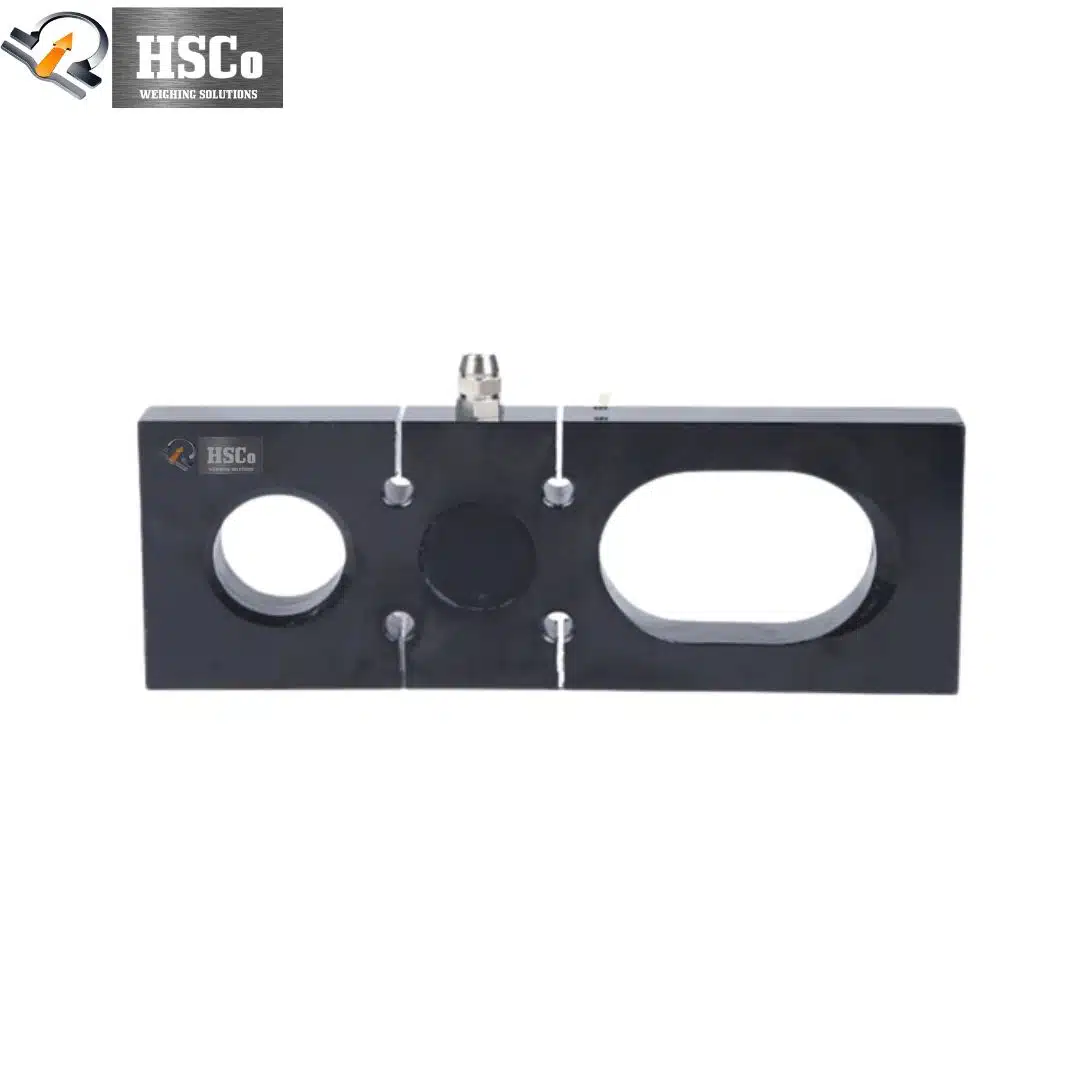

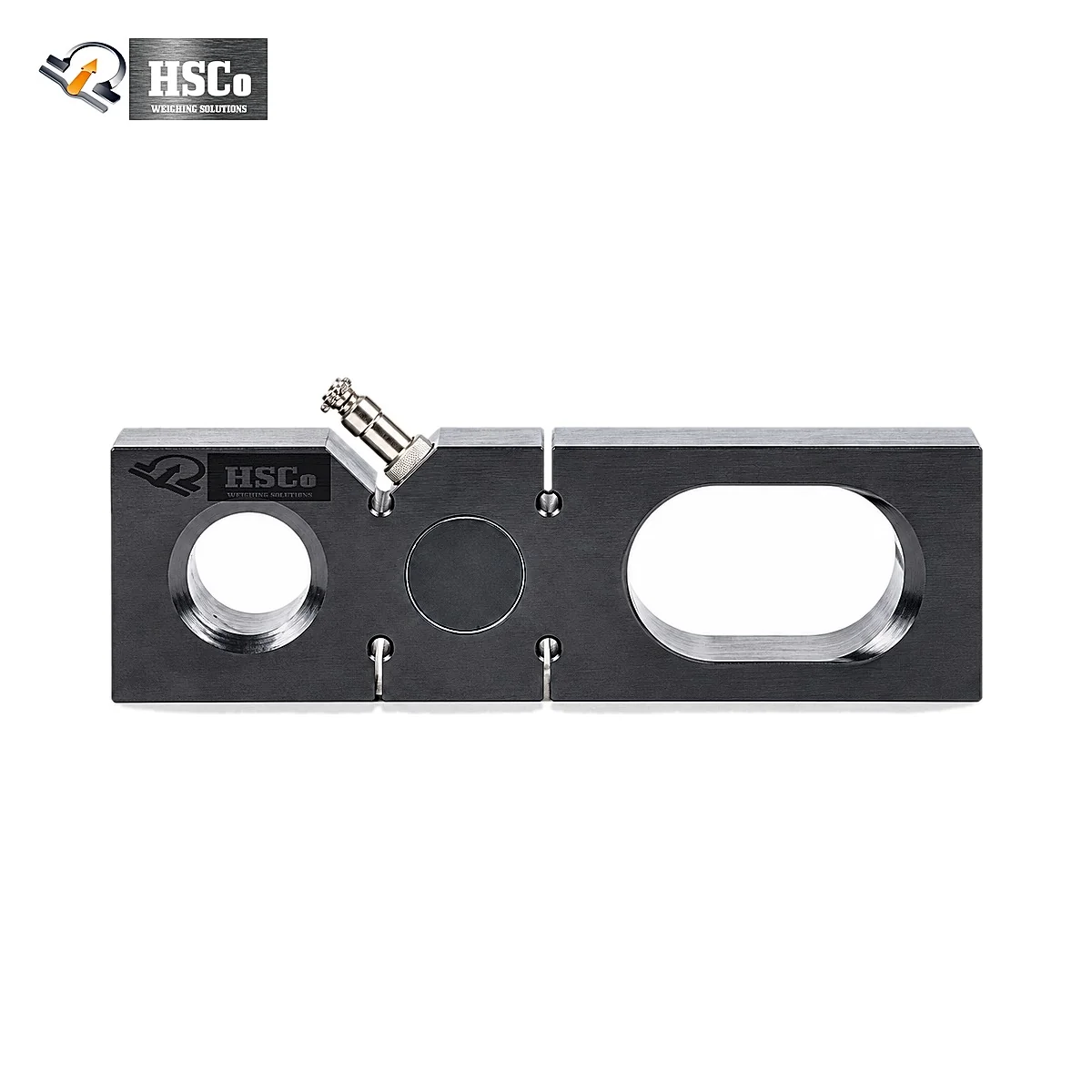

The HSC LCD-5 is a plate-ring load cell: a flat alloy-steel plate with a round hole at one end and a slot at the other, in 7.5 and 10 tonne capacities. It is used in crane scales and for safety-load monitoring. It is well sealed (IP67 or IP68), gives 2.0 mV/V with ±0.10% FS total error, and comes with a 6.5 m cable.
Why scale makers choose it
- Flat plate-ring design.
- 7.5 and 10 t capacities.
- Well sealed: IP67 or IP68.
- Long 6.5 m cable.
Specifications
| Model | HSC LCD-5 |
|---|---|
| Type | Plate ring (link plate) |
| Capacities | 7.5, 10 t |
| Sensitivity | 2.0 ± 0.002 mV/V |
| Total error | ±0.10% FS max |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC max |
| Input / output impedance | 350 ± 10 Ω / 350 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP67 or IP68 |
| Material | Alloy steel |
| Size (drawing) | 230 mm long, 70 mm high; Ø35 mm hole |
| Cable | 6.5 m, Ø5.5 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
For a plate-and-loop link from 5 to 12.5 t, see the LCD-4; for hook-scale cells up to 10 t, the LCD-1 or the LCD-2. Browse all load cells.
Where it is used
Crane scales and safety-load monitoring on lifting equipment.
Questions buyers ask
7.5 and 10 tonnes.
6.5 m, Ø5.5 mm.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
