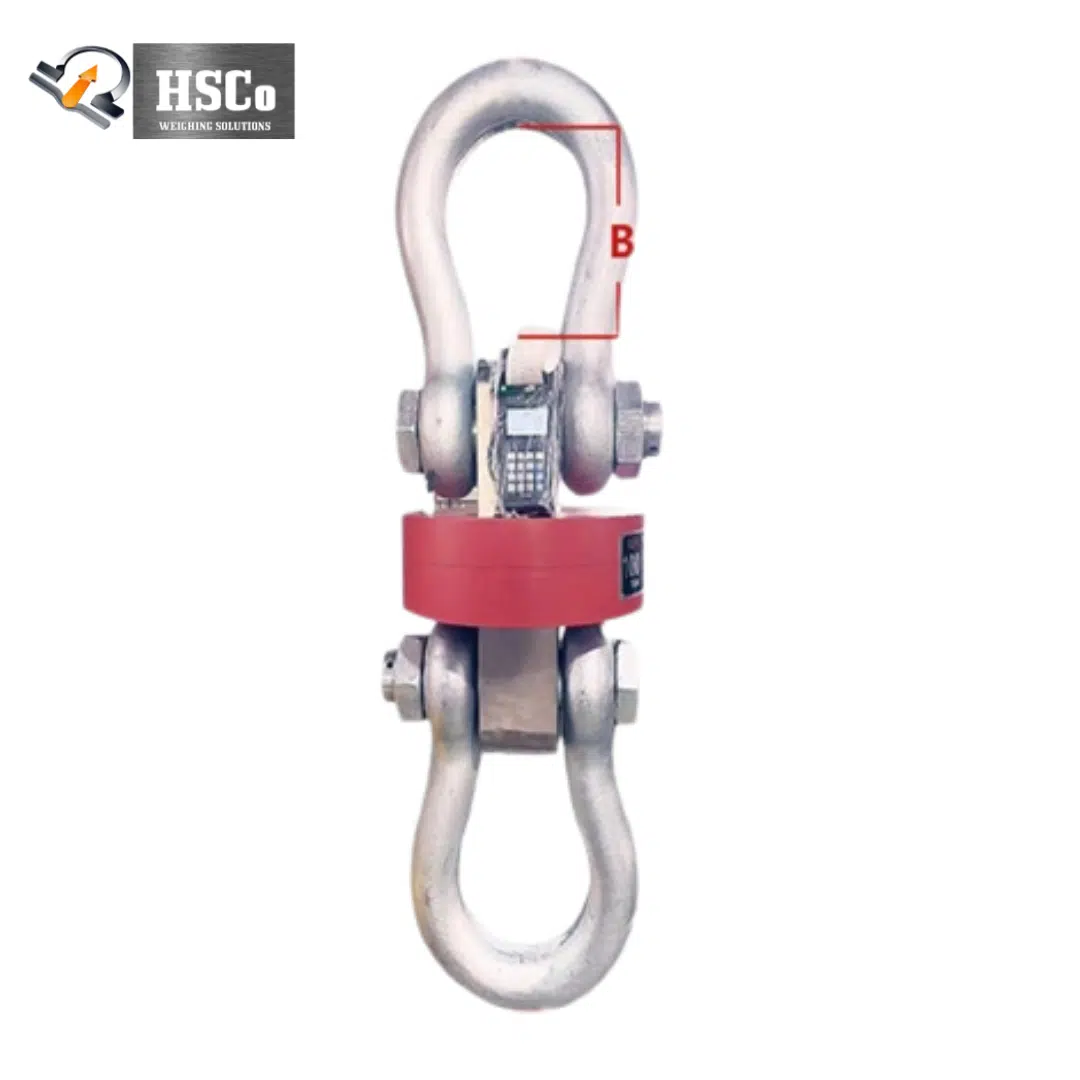

The HSCo HSC-WXC series is a heavy-duty digital crane scale for very large loads: 100, 150, 200 and 300 tonnes. It is a load link hung between shackles, with the weight sent to a handheld or desktop indicator with a built-in printer, so the operator reads and prints the weight well away from the lift. It has a stability chip for swinging loads, a water-resistant PCB and a load cell rated for 200% overload. It is used in steel plants, shipyards, heavy construction and logistics.
Why buyers choose it
- 100 to 300 t in one compact load link.
- Read and print away from the load: handheld or desktop indicator with printer.
- Steady readings on swinging loads, with a stability chip.
- Strong load cell rated for 200% overload, life up to 10 years.
- All-weather: water-resistant PCB, rust-resistant load cell.
- Charge while in use: no need to take the battery out.

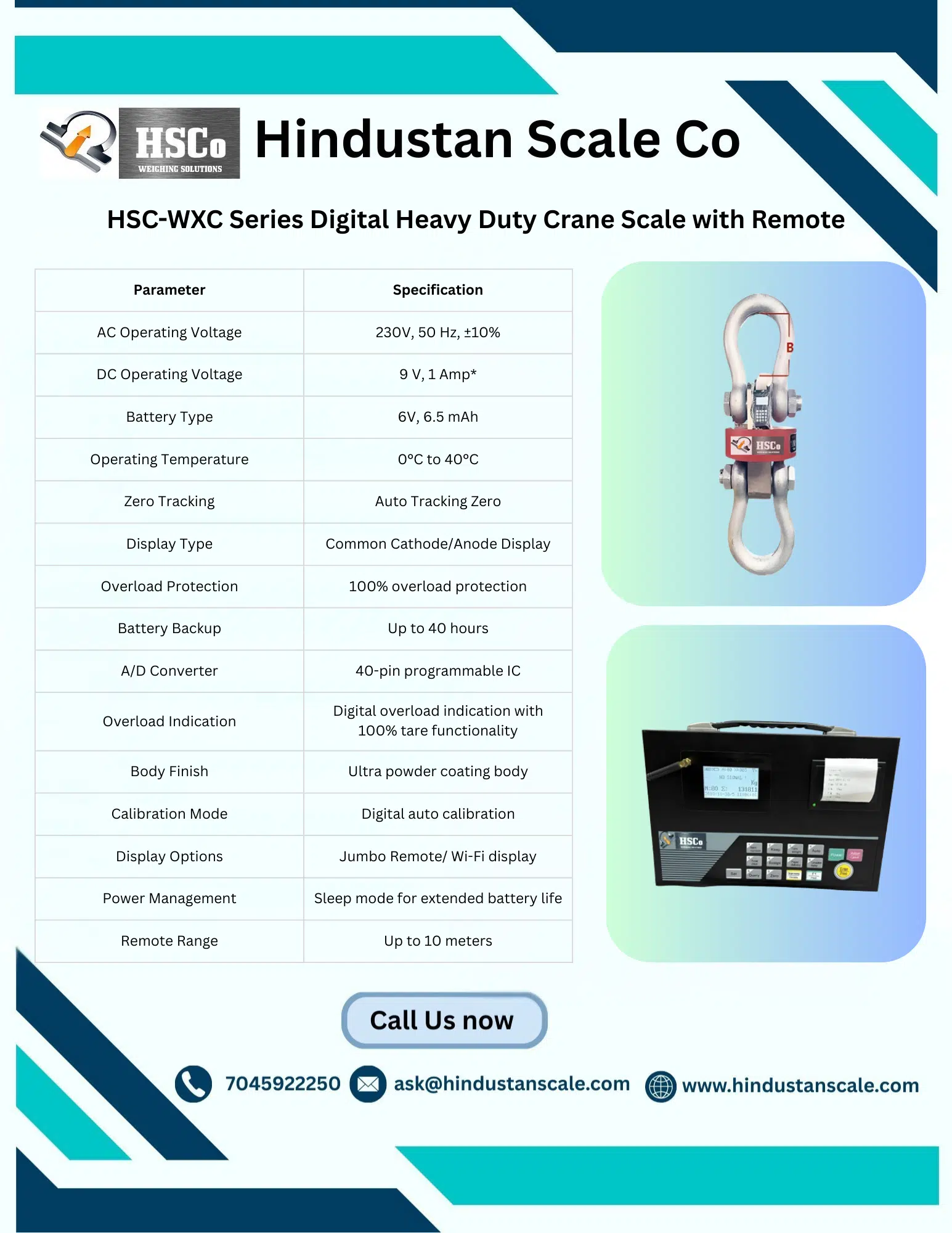

Specifications
| Model | HSC-WXC series |
|---|---|
| Capacities | 100 t, 150 t, 200 t, 300 t |
| Build | Load link with top and bottom shackles; powder-coated body |

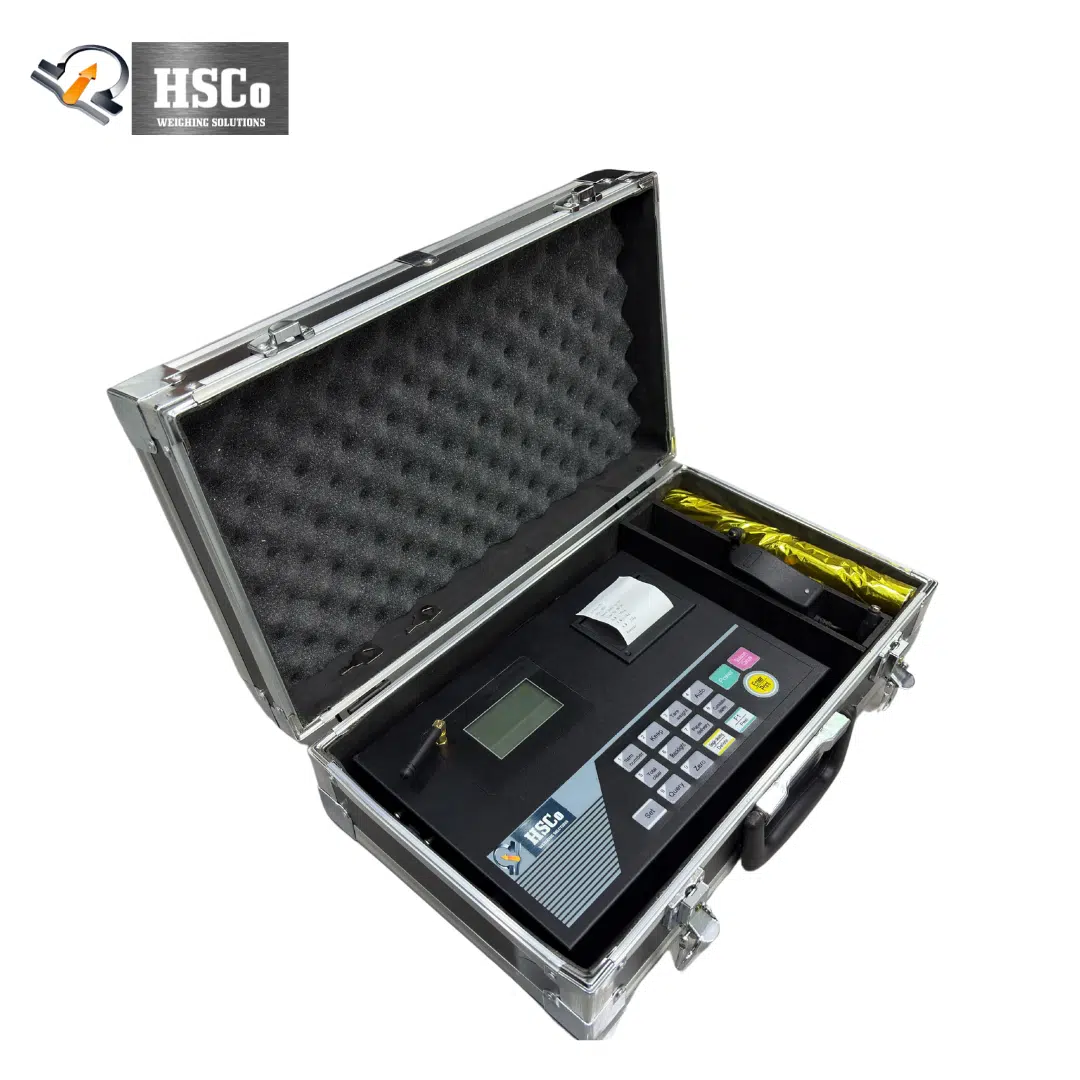

| Indicator | Handheld wireless indicator with printer (in a carry case) or desktop indicator with printer |
| Functions | Tare, zero, auto zero tracking, digital auto calibration, sleep mode; digital overload indication |
| Load cell | 200% overload; rust and water resistant; life up to 10 years |
| Power | 230 V AC ±10%, 50 Hz / 9 V DC; 6 V rechargeable battery (backup time depends on the model) |
| Working temperature | 0 – 40 °C |
| Remote range | Up to 10 m |
| Options | Handheld display storing up to 30,000 records with printer (range up to 30 m); remote display (range up to 200 m); jumbo display; Bluetooth; double J hook |
| Certification | ISO 9001:2015 certified company |
| Warranty | 1 year |
Which crane scale?
For 3 to 50 t, see the CRHJD crane scale with jumbo display or the CRHBT Bluetooth series; for hot loads, the HSC-NZS heat resistant crane scale. Browse all connectivity and customised scales.
Where it is used
Steel yards and plants, shipyards and ports, heavy construction and bridge work, logistics centres and warehouses handling very heavy lifts.
Questions buyers ask
100, 150, 200 and 300 tonnes.
On a handheld or desktop indicator with a built-in printer, away from the lift.
Yes. A stability chip steadies the reading on moving loads.
Order or ask for a quotation
The price shown is for the smallest model; call us for the others. Choose the capacity, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
