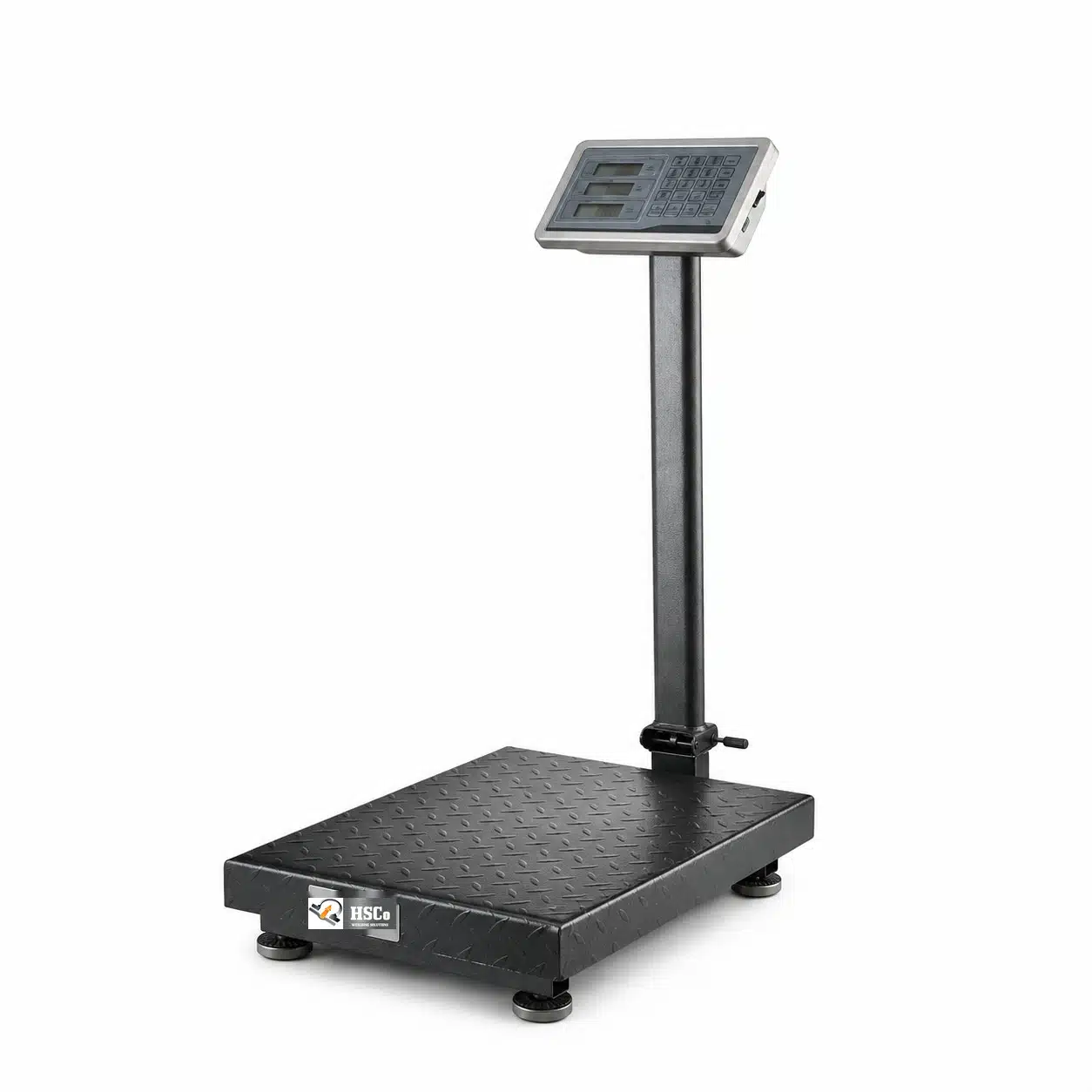

Counting Platform Scale – HSC -CPS

Model: HSC-CPS Series
Type: Electronic Counting Platform Scale

General Specifications

• Capacity Range: 100 kg / 150 kg / 300 kg (custom capacities available)

• Readability (Least Count): 5 g / 10 g (depending on model)

• Platform Size: 300×300 mm, 400×400 mm, 500×500 mm, 600×600 mm, or customized

• Material: Heavy-duty MS / SS platform with powder-coated frame

Load Cell

• Type: Single-point or shear-beam high-accuracy load cell

• Protection: IP67 or IP68 rated, temperature compensated

• Accuracy: ±0.02% of full scale

• Overload Protection: Up to 150% of rated capacity

Indicator / Display

• Display Type: Bright red LED / LCD with backlight

• Display Units: Weight, piece weight, total count

• Keyboard: 20-key numeric keypad for sample entry and calibration

• Features:

  • Auto zero and tare function

  • Memory storage for unit weight and accumulated count

  • RS-232 / RS-485 serial output for printer or computer connectivity

  • Battery backup with low power indication

  • Optional label / slip printer interface

Power & Environmental

• Power Supply: 230 V AC ±10%, 50 Hz; inbuilt rechargeable battery (6V / 4Ah)

• Operating Temperature: 0°C to +50°C

• Humidity: ≤85% RH (non-condensing)

• Protection Class: IP65 (indicator), IP67 (load cell)
