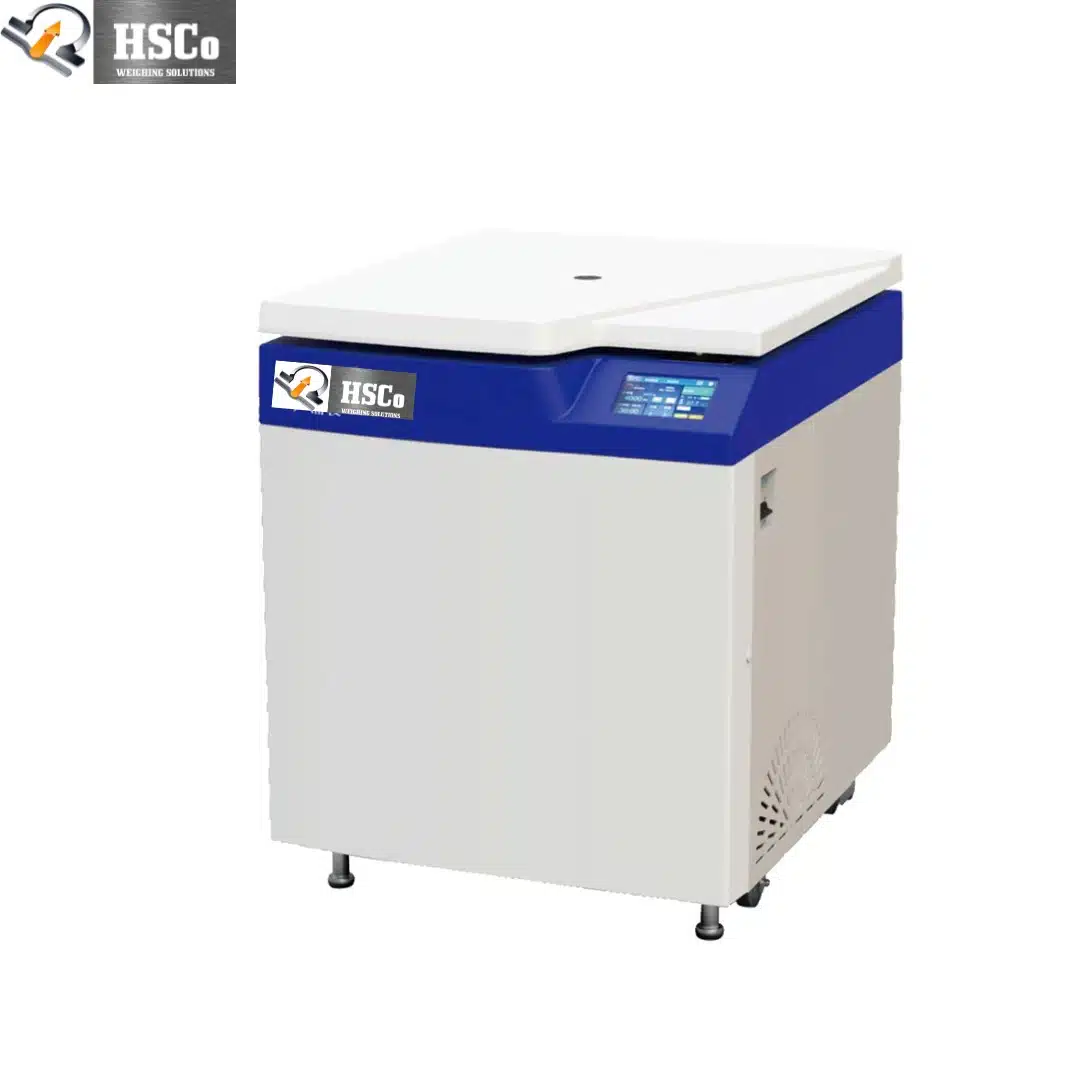

The HSCo HSC-C-RT23FLR is a floor-standing, refrigerated ultra high-speed centrifuge: up to 23,000 rpm (60,900 × g) and up to 4 × 1,000 ml, with the chamber held anywhere from −20 to +40 °C within ±1 °C by a French Tecumseh compressor with R404a refrigerant. The speed holds within ±10 rpm and the timer runs from 1 second to 99 h 59 min 59 s. Rotors range from 24 micro tubes to 4 × 1,000 ml bottles, with continuous-flow rotors for 1,000 or 3,000 ml.
Why labs choose the RT23FLR
- Up to 23,000 rpm / 60,900 × g.
- Up to 4 × 1,000 ml.
- Keeps samples cold: −20 to +40 °C, ±1 °C.
- Continuous-flow rotors for 1,000 or 3,000 ml.
- Accurate speed: ±10 rpm.

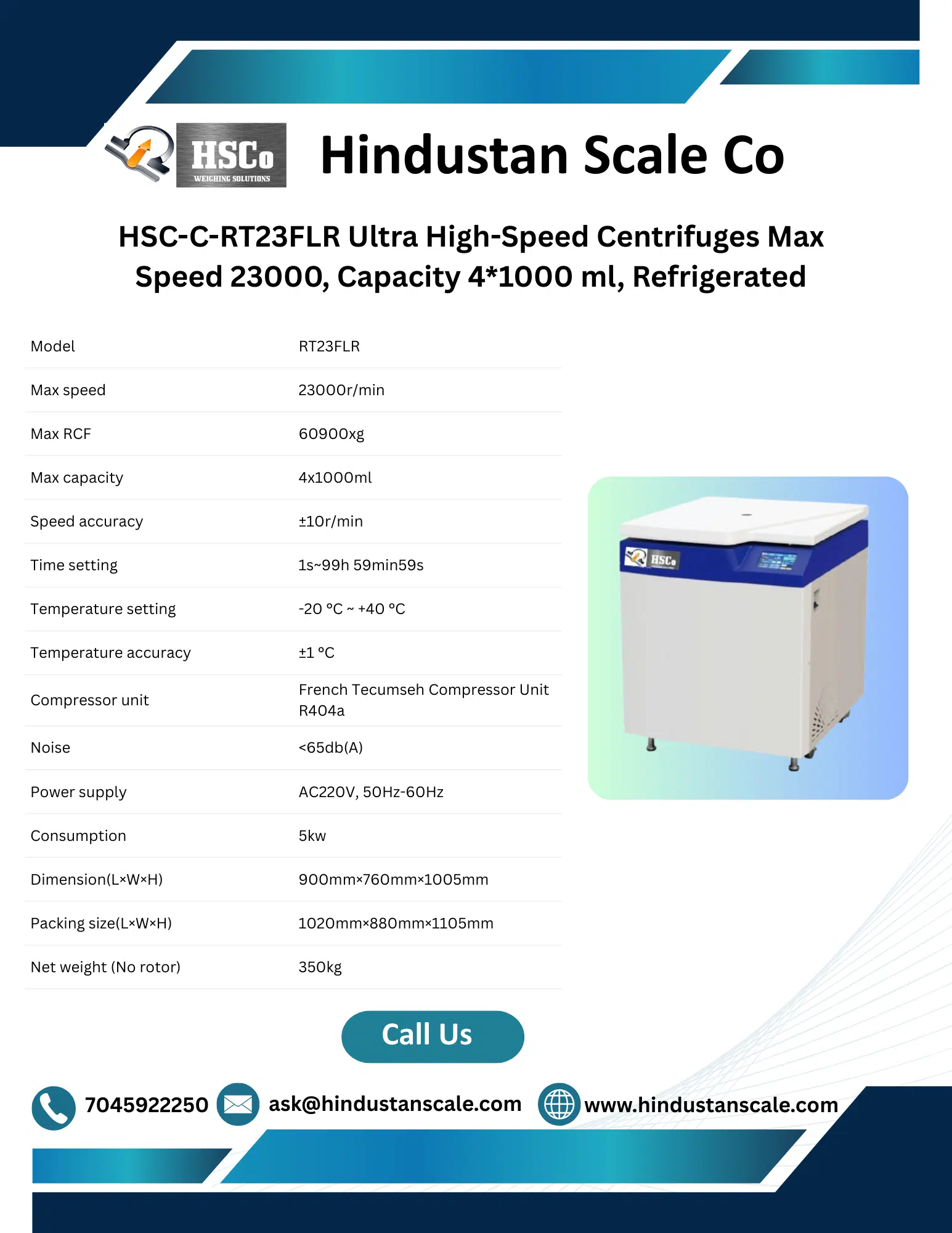

Specifications
| Model | HSC-C-RT23FLR (RT23FLR) |
|---|---|
| Type | Floor-standing, refrigerated, ultra high speed |
| Maximum speed / RCF | 23,000 rpm / 60,900 × g |
| Maximum capacity | 4 × 1,000 ml |
| Speed accuracy | ±10 rpm |
| Timer | 1 s – 99 h 59 min 59 s |
| Temperature | −20 to +40 °C, accuracy ±1 °C |
| Refrigeration | French Tecumseh compressor, R404a |
| Noise | Under 65 dB(A) |
| Power | AC 220 V, 50 – 60 Hz; 5 kW |
| Size | 900 × 760 × 1,005 mm; packed 1,020 × 880 × 1,105 mm |
| Net weight | 350 kg (without rotor) |
| Warranty | 1 year |
| Rotor shown | Capacity | Max speed | Max RCF |
|---|---|---|---|
| No. 1 | 10 × 5 ml (adaptors 0.5, 1.5 ml) | 23,000 rpm | 55,000 × g |
| No. 1 | 24 × 1.5 / 2.2 ml (adaptors 0.2, 0.5 ml) | 23,000 rpm | 55,000 × g |
| No. 2 | 16 × 10 ml (adaptors 1.5, 5 ml) | 23,000 rpm | 60,900 × g |
| No. 3 | 8 × 50 ml (adaptors 10, 20 ml) | 18,000 rpm | 40,930 × g |
| No. 4 | 6 × 250 ml (adaptors 50, 100 ml) | 14,000 rpm | 30,200 × g |
| No. 5 | 6 × 500 ml (adaptors 50, 100, 250 ml) | 10,000 rpm | 17,800 × g |
| No. 6 | 4 × 1,000 ml (adaptors 100, 250, 300, 500 ml) | 7,000 rpm | 9,980 × g |
| No. 7 continuous | 1,000 ml; flow 200 – 600 ml/min; aluminium alloy | 16,000 rpm | 28,100 × g |
| No. 8 continuous | 3,000 ml; flow 200 – 800 ml/min; aluminium alloy | 10,000 rpm | 14,800 × g |
| No. 9 / 10 swing-out | 4 × 50 ml, 4 × 85 ml or 8 × 50 ml | 10,000 rpm | 15,316 / 17,329 × g |
Which centrifuge?
For 25,000 rpm, see the HSC-C-RT25FLR; for 22,000 rpm and 6 × 600 ml, the HSC-C-RT22FLR. Browse all centrifuges.
Where it is used
High-speed, high-volume separations that must stay cold, in research, clinical and industrial labs.
Questions buyers ask
Up to 23,000 rpm (60,900 × g) with the 16 × 10 ml rotor; see the rotor table for the others.
Four 1,000 ml bottles, or up to 3,000 ml in the continuous-flow rotor.
You can set the chamber from −20 to +40 °C; it holds the setting within ±1 °C.
