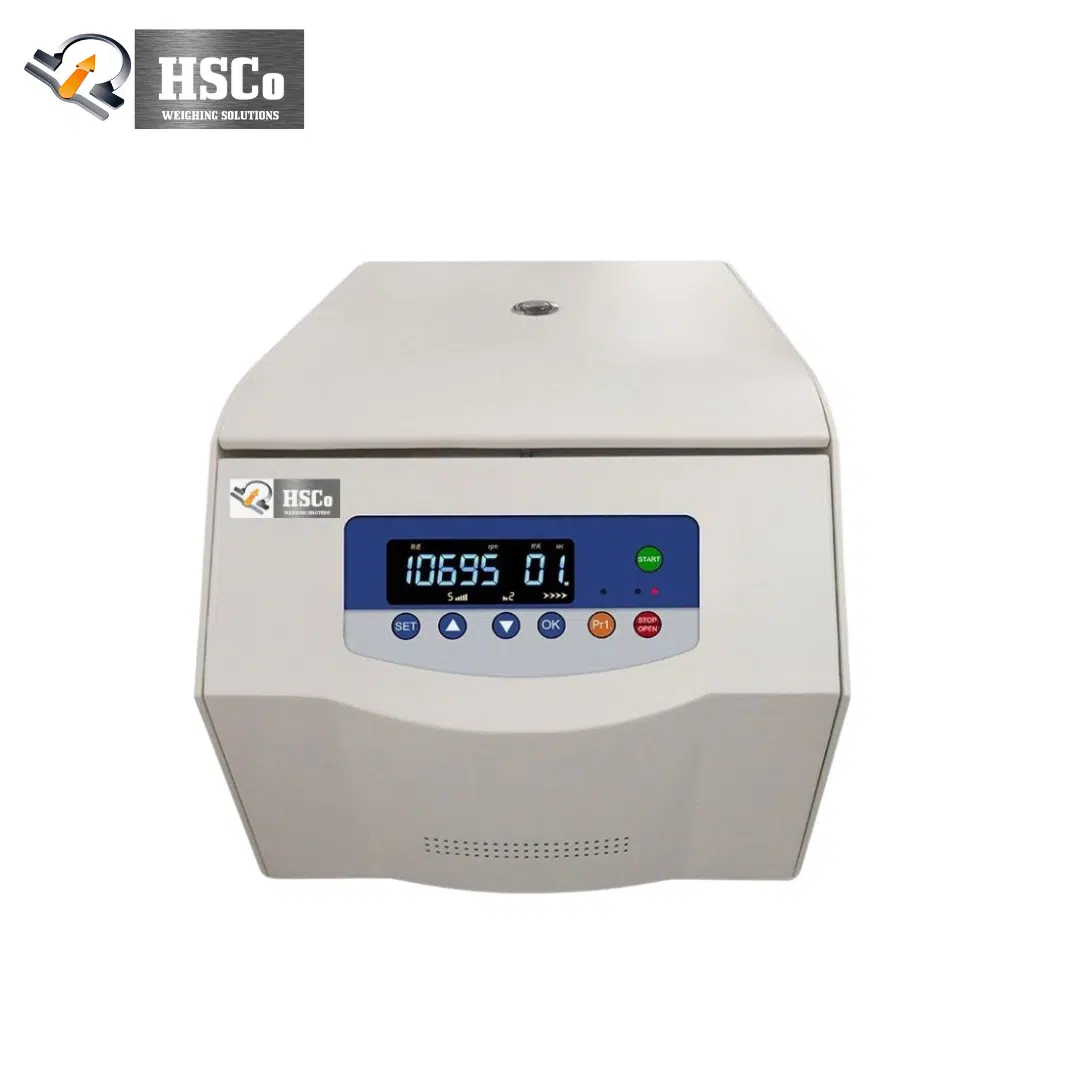

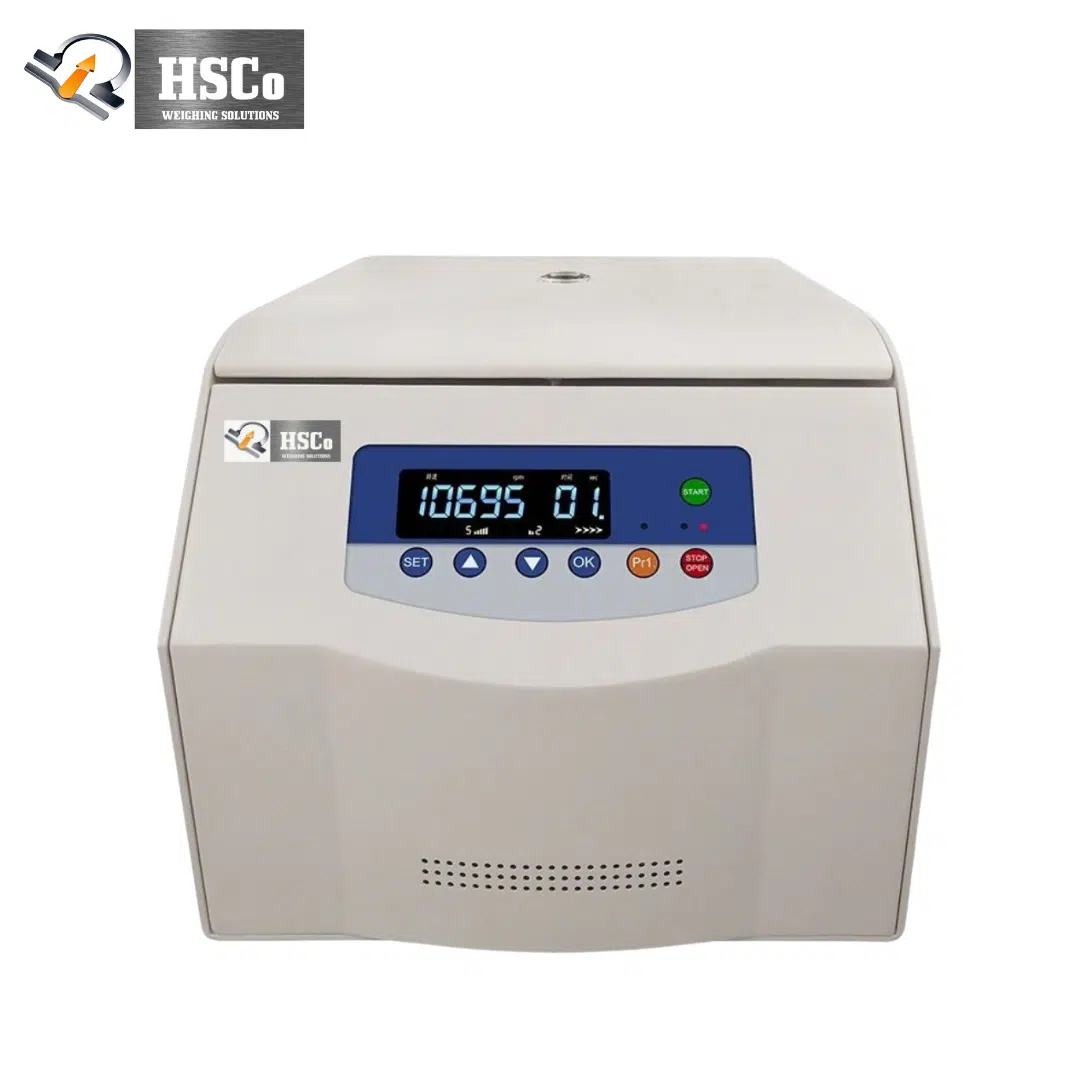

HSC-C-HS1000 – High-Speed Centrifuge for Advanced Lab Applications
The HSC-C-HS1000 High-Speed Centrifuge by Hindustan Scale Co. is designed to meet the demanding needs of diagnostic labs, research institutes, molecular biology units, and biotech centers. With speeds up to 16,500 RPM and RCF values up to 23,120 x g, it offers powerful, precise separation with a wide range of rotors to suit PCR tubes, test tubes, and round-bottom tubes. This benchtop centrifuge combines performance, flexibility, and safety in one compact machine.
Durable Design & Powerful Performance

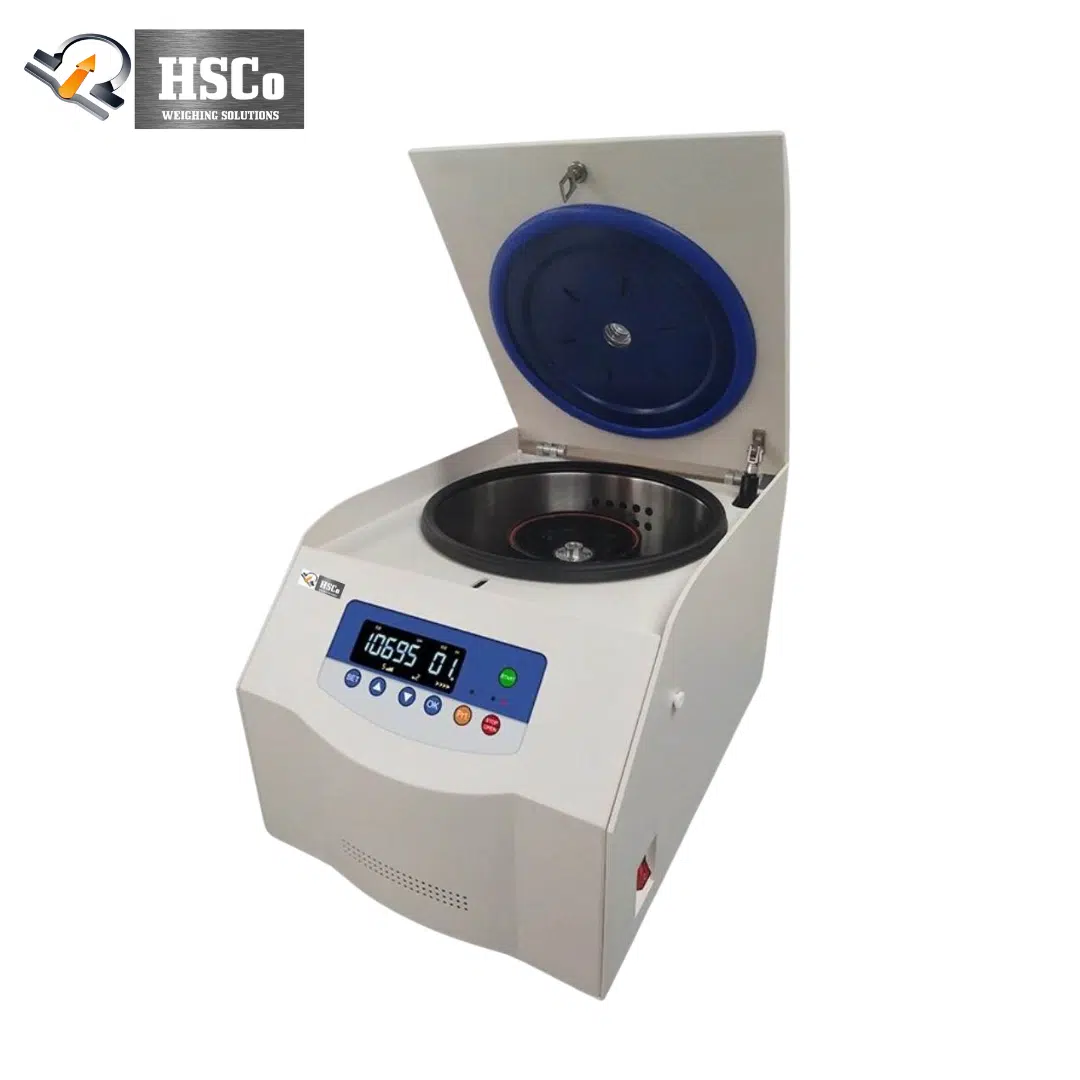

Rugged metal housing, reinforced metal lid, and 304 stainless steel chamber, compatible with most disinfectants and autoclaving
Transparent observation window for speed and noise inspection
High-efficiency frequency conversion A.C. motor with microprocessor-based control

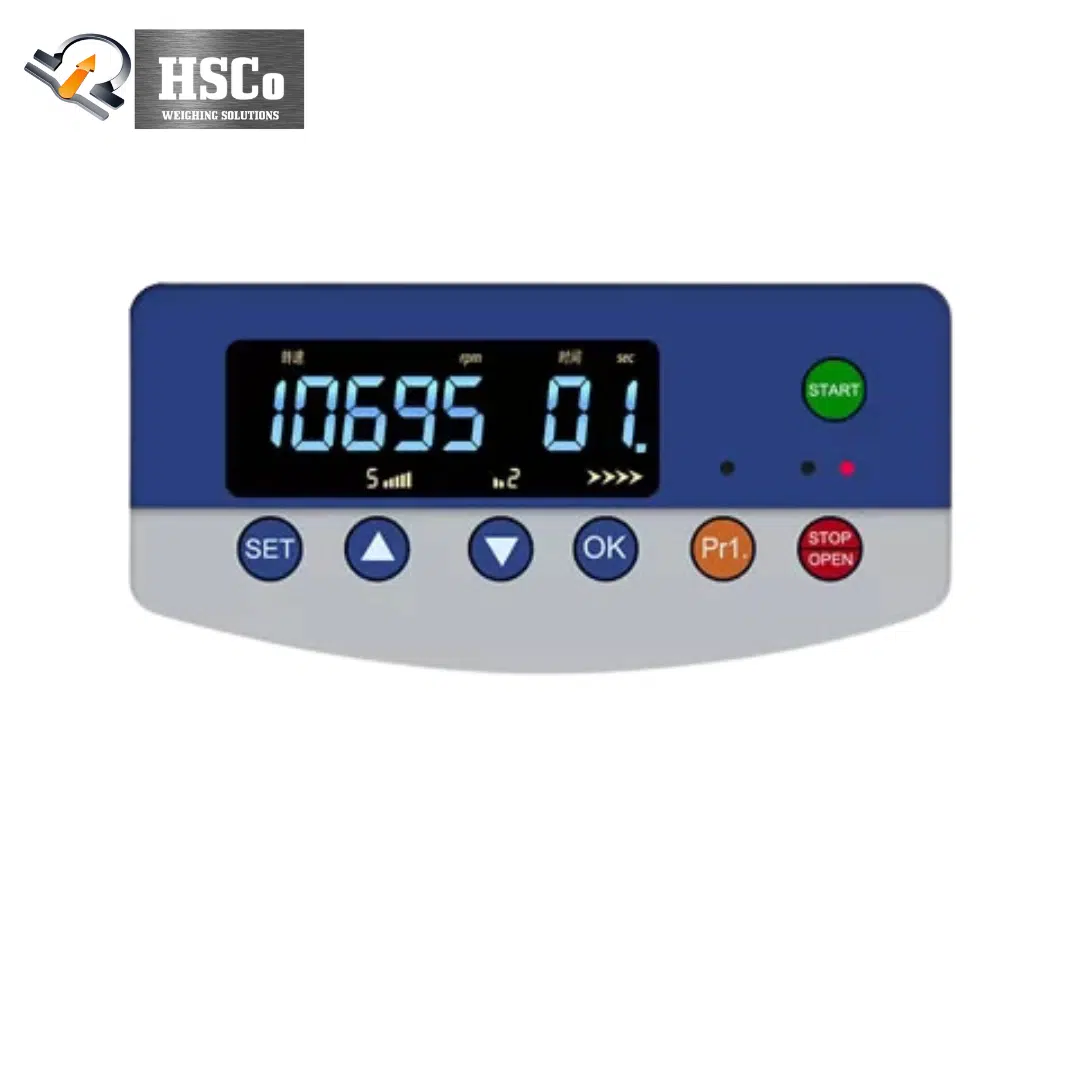

Intuitive 7” LCD display shows speed, RCF, time, rotor type, acceleration/deceleration profile, and error messages
Double-layer sealing ring ensures long-term airtight operation
User-Friendly & Efficient
Programmable memory with storage for up to 30 protocols
One-key access to frequently used programs
10 acceleration/deceleration settings for smooth and precise control, avoiding sample resuspension
3-level damping system reduces vibration and enhances stability
Rotor auto-recognition and fast loading/unloading with universal rotor connector
Ultra-quiet operation (≤58 dB) with patented “Mute” noise-reduction tech
Wide rotor compatibility – supports microtubes, conical tubes, PCR strips, and up to 4 × 100 ml capacity
Built-in Safety Features
Conforms to IEC 61010 global safety standards
Electrical lid interlock and auto shutdown when lid is open
Emergency lid release in case of power failure
Lid drop protection via gas hinge design
Protection systems for over-speed, overheat (motor/chamber), imbalance, and rotor misidentification
Technical Specifications
| Feature | Value |
|---|---|
| Model Number | HSC-C-HS1000 |
| Speed Range | 0–16,500 RPM (adjustable) |
| Max RCF | Up to 23,120 ×g |
| Max Capacity | 4 × 100 ml |
| Speed Accuracy | ±10 RPM |
| Display | 7” LCD Touchscreen |
| Timer | 0–99 minutes adjustable |
| Noise Level | ≤58 dB(A) |
| Accel/Decel Levels | 10/10 |
| Motor Type | Frequency Converter Motor |
| Power Supply | AC 220V, 50Hz, 600W |
| Dimensions (L×W×H) | 470 × 345 × 295 mm |
| Net Weight (w/o rotor) | 30 kg |
