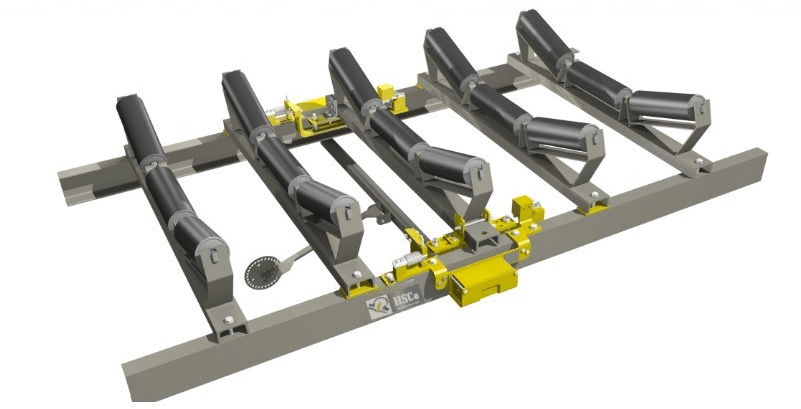

The HSC belt weighing system weighs material continuously as it travels on a conveyor, so plants know their flow rate and totals without stopping production. Precision idler rollers on sealed shear-beam load cells bolt into an existing conveyor, for belts from 400 to 1,800 mm wide, and a digital indicator shows the rate in tonnes per hour and the running total, with 4–20 mA, Modbus RS-485 and pulse outputs for PLC and SCADA.
Why plants install belt weighers
- Continuous weighing. Real-time flow rate (TPH) and totalised output without interrupting the process.
- Fits existing conveyors. Modular bolt-on assembly, belts 400–1,800 mm (custom sizes too).
- Accurate. ±0.25% to ±0.5% of full scale, repeatability better than 0.1%.
- Talks to your control room. 4–20 mA, RS-485 Modbus RTU and pulse outputs.
- Built for harsh sites. IP67/IP68 load cells, IP65 electronics, galvanised or powder-coated frame.
Specifications
| Model | HSC-BWS series |
|---|---|
| Frame | Heavy-duty welded mild steel; epoxy or galvanised finish |
| Idlers | Precision steel rollers (V-type or flat), sealed bearings |
| Belt width | 400 – 1,800 mm; custom sizes available |
| Load cells | Shear beam, IP67 / IP68; 100 kg to 20,000 kg as per application |
| Accuracy | ±0.25% to ±0.5% of full scale (depends on conveyor condition and calibration) |
| Repeatability | Better than 0.1% of reading |
| Overload protection | Up to 150% of rated capacity |
| Indicator | Digital, LCD / LED; rate, total and set points |
| Functions | Totaliser, rate (TPH), auto zero, span calibration |
| Outputs | 4–20 mA, RS-485 (Modbus RTU), pulse |
| Power | 230 V AC, 50 Hz; 24 V DC optional |
| Operating temperature | −10 to +55 °C |
| Protection | IP65 electronics; IP67 load cells |
| Options | Belt speed sensor (encoder), surge-protected junction box, remote display, printer interface, SCADA / HMI integration |
| Warranty | 1 year |
Where it is used
Cement, mining and quarries, steel plants, power plants (coal feed), fertilisers, and bulk material handling for inventory, feed control and production monitoring. For vehicle weighing, see the HSCMTW weighbridge.
Questions buyers ask
The weight of material passing on the conveyor, shown as a flow rate (tonnes per hour) and a running total.
Yes. It is a modular bolt-on assembly for belts 400–1,800 mm wide.
±0.25% to ±0.5% of full scale, depending on the conveyor and calibration.
Yes, through 4–20 mA, Modbus RS-485 or pulse outputs.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the belt width, belt speed, material and tonnes per hour. Hindustan Scale Company, Mumbai, since 1955.
