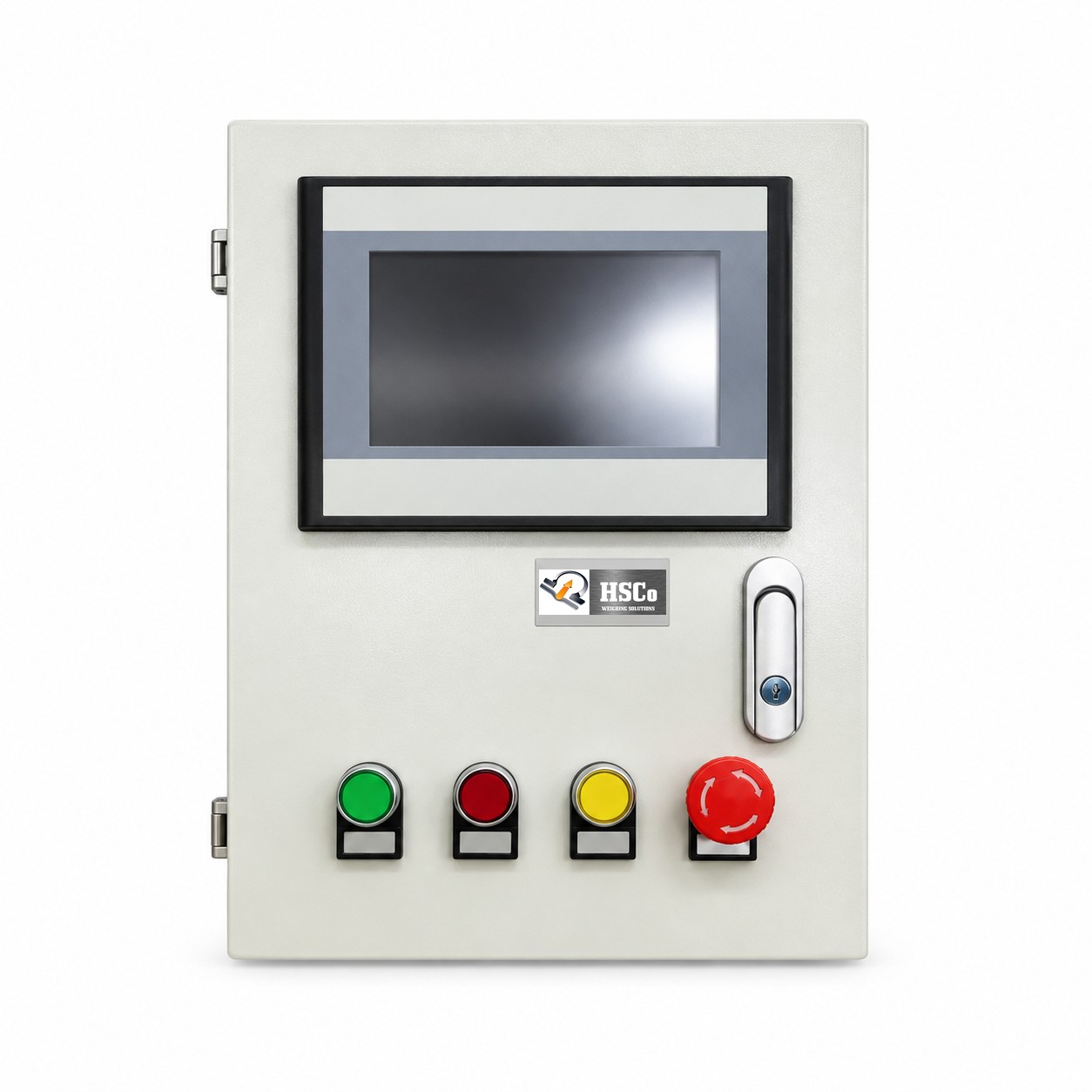

The HSCo HSC-BWC batch weighing controller runs a weighing and batching process from one touchscreen panel. It reads up to four load cells, doses each ingredient by weight to your recipe, and switches feeders and discharge through up to 8 relay outputs. It stores 100 recipes, keeps batch reports on USB, SD card or PC, and talks to PLCs and SCADA over RS-232, RS-485 or Modbus RTU. It is used for cement, chemicals, food processing and pharmaceuticals, wherever each batch must be the same.
Why plants choose it
- 7″ or 10″ touchscreen with a multilingual interface.
- Up to 8 relay outputs for batching and discharge control.
- 100 recipes in memory; batch sequence programming.
- ±0.01% of full scale, 24-bit converter, up to 200 readings a second.
- Connects to your plant: RS-232, RS-485, Modbus RTU; Ethernet optional; PLC and SCADA compatible.
- Batch reports on USB, SD card or PC.
Specifications
| Model | HSC-BWC series |
|---|---|
| Display | 7″ or 10″ TFT touchscreen, multilingual |
| Load cell inputs | 1 – 4 (350 Ω each) |
| Excitation | 5 V or 10 V DC, short-circuit protected |
| A/D converter | 24-bit sigma-delta; up to 200 samples per second |
| Accuracy | ±0.01% of full scale |
| Batch control | Up to 8 relay outputs (batching and discharge) |
| Memory | 100 recipes / batches |
| Software | Auto tare, batching sequence programming, error alarm, weight tolerance setting |
| Communication | RS-232, RS-485, Modbus RTU; Ethernet optional |
| Data logging | USB, SD card, PC connectivity for batch reports |
| Enclosure | Industrial-grade metal or ABS, panel mount |
| Power | 230 V AC ±10%, 50 Hz |
| Working temperature | 0 – 50 °C |
| Options | Printer interface, SCADA integration, remote monitoring |
| Warranty | 1 year |
Where it fits
For a complete concrete plant, see the wet mix batching plant HSCOWMP; for weighing tanks and silos on load cells, the outdoor tank weighing system; for filling bags by weight, the filling scale / bagging machine. Browse all weigh check systems.
Where it is used
Cement and concrete, chemicals, food processing and pharmaceuticals: ingredient blending and batching.
Questions buyers ask
One to four, 350 Ω each.
Yes: RS-232, RS-485 and Modbus RTU, with Ethernet as an option.
On USB, SD card or a connected PC.
Order or ask for a quotation
Tell us your ingredients, batch size and number of load cells. Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
