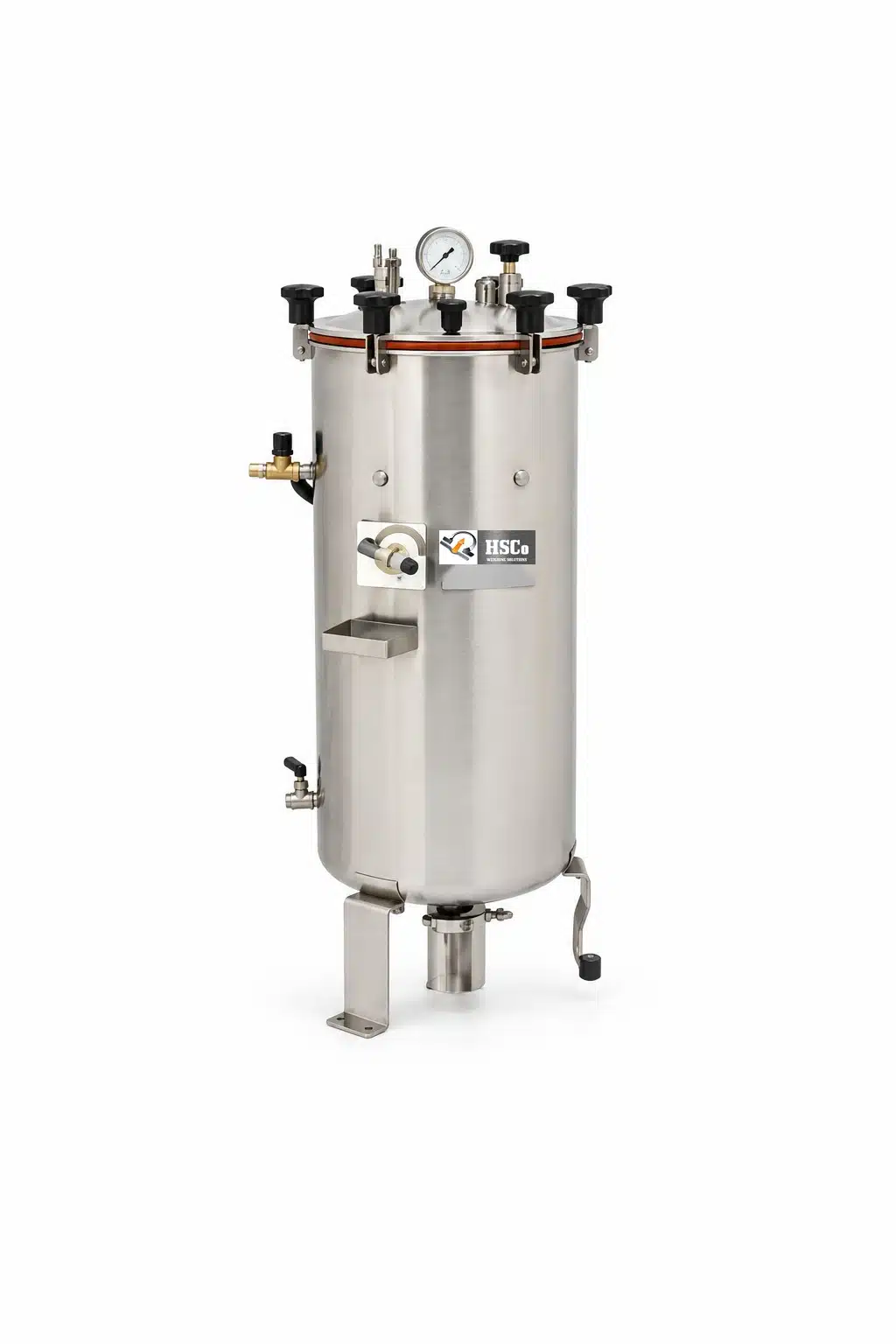

The HSC-ACV vertical autoclave sterilises instruments, media and glassware with steam under pressure. It is used in laboratories, hospitals, pharmaceutical units and research centres. It is double-walled and made entirely of SS 304. It works at up to 15 psi on a single-phase 230 V supply and comes with two safety valves, a pressure gauge, a steam-release valve and a drain valve. A jointless silicone gasket seals the lid, which opens with a foot lift. Seven sizes run from 25 to 215 litres. A digital temperature controller with timer, low-water and pressure cut-offs, and a stainless-steel basket are available as options.
Why labs choose it
- All stainless steel. Double-walled SS 304 construction.
- Safe. Two safety valves, pressure gauge, steam-release valve and drain valve.
- Tight seal. Jointless silicone rubber gasket.
- Easy to open. Foot-operated lid lift.
- Seven sizes from 25 to 215 litres.
- Add automation with the optional digital temperature controller and timer, low-water cut-off and pressure cut-off.
Sizes
| Chamber size | Capacity | Heater rating |
|---|---|---|
| 10 × 18 in | 25 L | 2 kW |
| 12 × 20 in | 35 L | 2 kW |
| 14 × 22 in | 50 L | 2 kW |
| 18 × 24 in | 95 L | 4 kW |
| 18 × 30 in | 120 L | 4.5 kW |
| 22 × 30 in | 178 L | 5 kW |
| 22 × 36 in | 215 L | 6 kW |
Specifications
| Model | HSC-ACV |
|---|---|
| Construction | Double walled, SS 304 throughout |
| Working pressure | Up to 15 psi |
| Operation | Electric |
| Safety and valves | Two safety valves, pressure gauge, steam-release valve, drain valve at the bottom |
| Lid | Jointless silicone rubber gasket; foot lifting arrangement |
| Power supply | 230 V AC, 50 Hz, single phase |
| Optional | Digital temperature controller cum indicator with timer; low water level cut-off; pressure cut-off switch; stainless-steel basket |
| Warranty | 1 year |
Which autoclave?
For automatic control, see the fully automatic vertical autoclave HSC-ACVF. Browse all ovens and furnaces.
Where it is used
Sterilising instruments, culture media and glassware in laboratories, hospitals, pharmaceutical units and research centres.
Questions buyers ask
Up to 15 psi.
By your load: 25, 35, 50, 95, 120, 178 or 215 litres. The larger sizes need a 4 to 6 kW supply.
Add the optional digital controller with timer, and the low-water and pressure cut-offs.
Double-walled SS 304, with a silicone gasket on the lid.
Order or ask for a quotation
Choose the capacity and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the size and options you need. Hindustan Scale Company, Mumbai, since 1955.
