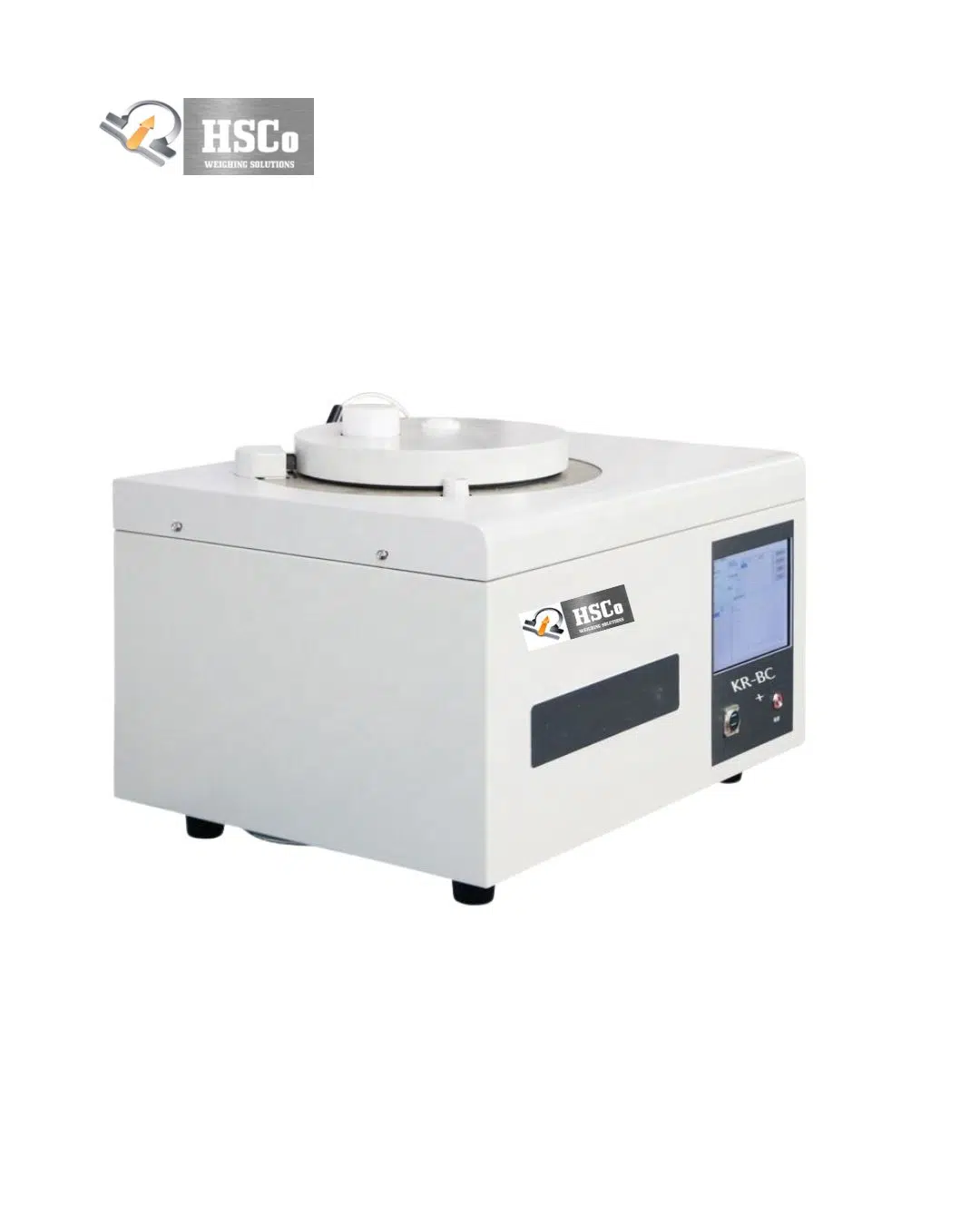

Calorimeter HSC-CM – Simple, Bomb or Digital, for Calorific Value and Specific Heat
Price on Request
Laboratory calorimeter in simple, bomb or digital versions: heat of combustion, specific heat and enthalpy change; double-walled insulated jacket, stirred vessel, ±0.1 °C temperature measurement, stainless-steel bomb to about 30 atm with electric ignition. 1-year warranty.
The HSC calorimeter measures the heat of combustion, specific heat and enthalpy changes of solids, liquids and semi-solids. It is used in chemical, pharmaceutical, food, fuel and teaching laboratories. It comes as a simple calorimeter, a bomb calorimeter or a digital calorimeter, depending on your application. Each has a double-walled insulated jacket to minimise heat loss, a stirred inner vessel, and temperature measurement to ±0.1 °C or better (0.01 °C resolution on the digital type). The bomb model has a stainless-steel bomb rated to about 30 atm, with electric fuse-wire ignition.
Why labs choose it
- Three versions: simple, bomb or digital, to match the test.
- Stable readings. Double-walled insulated jacket and motor-driven or magnetic stirring.
- Precise temperature. ±0.1 °C or better; 0.01 °C resolution on the digital type.
- Safe bomb. Stainless steel, about 30 atm, with gas-release and safety valves and an interlocked ignition circuit.
- Complete kit. Bomb head and vessel, fuse wire, oxygen filling connection, crucible, measuring cylinder, thermometer and spanners.
Specifications
| Types | Simple, bomb or digital calorimeter (by application) |
|---|---|
| Measures | Heat of combustion, specific heat, enthalpy change |
| Samples | Solid, liquid and semi-solid |
| Outer jacket | Double walled, insulated; stainless steel or powder coated; non-conductive |
| Inner vessel | Polished stainless steel or aluminium, with cover and stirrer |
| Temperature measurement | Digital or mercury thermometer; 0 – 50 °C or higher by model; ±0.1 °C or better; 0.01 °C resolution (digital) |
| Stirring | Motor-driven or magnetic |
| Bomb (bomb model) | Stainless steel, corrosion resistant; about 30 atm; gas-release valve, ignition terminals, safety valve |
| Ignition | Electric, fuse wire and electrodes; 6 – 12 V DC circuit |
| Water jacket | Typically 1 – 2 litres (laboratory model) |
| Range | Up to 10,000 calories per gram of sample |
| Power | 220 – 240 V AC, 50/60 Hz |
| Supplied with | Bomb head and vessel, nickel-chromium fuse wire, oxygen filling connection, measuring cylinder, thermometer, crucible, spanner set |
| Options | Digital display with automatic calorific-value calculation; data logging and PC software; automatic oxygen filling and pressure control |
| Warranty | 1 year |
Where it is used
Calorific value of fuels and food; heat of reaction and specific heat in chemical and pharmaceutical labs; and teaching labs in colleges. Browse all laboratory analytical instruments.
Questions buyers ask
The heat released when a sample burns in oxygen inside a sealed steel bomb, which gives its calorific value.
A simple calorimeter for specific heat and teaching; a bomb calorimeter for calorific value of fuels and foods; the digital version for automatic calculation and data logging.
±0.1 °C or better, with 0.01 °C resolution on the digital type.
The bomb head and vessel, fuse wire, oxygen filling connection, crucible, measuring cylinder, thermometer and spanner set.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your samples and the version you need. Hindustan Scale Company, Mumbai, since 1955.
