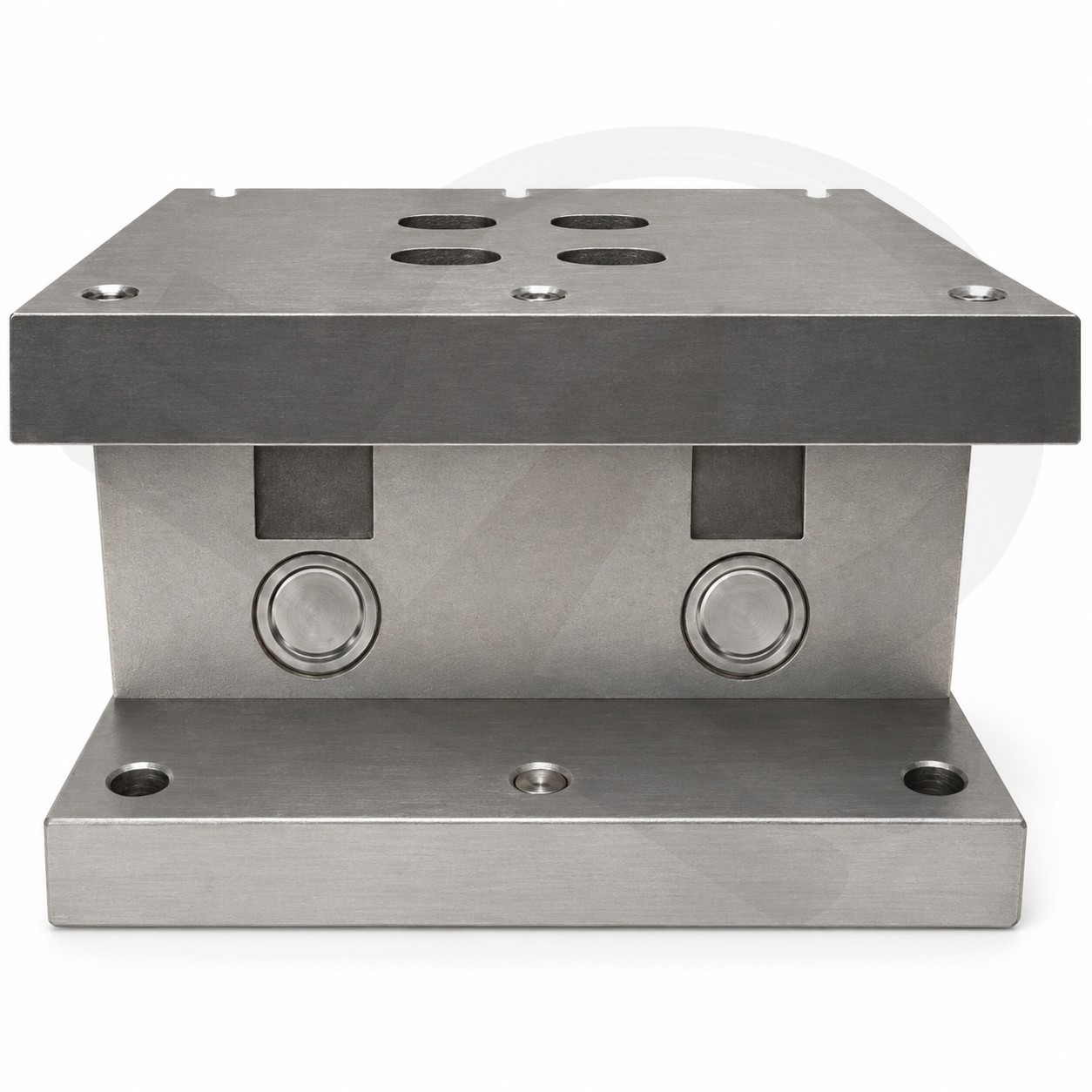

Tank Weighing Assembly HSC QFM – 20 t to 80 t, Block-Type Load Cell Mounting Module
Price on Request
Tank weighing assembly HSC QFM: block-type load cell mounting module for tanks, hoppers and vessels, 20 t to 80 t, mounts directly under the tank, support bolt against overturning, nickel-plated alloy steel or stainless steel, connects to control and data systems. 1-year warranty.
The HSC QFM series load cell assembly turns a tank, hopper or vessel into a weighing scale. Each block-type module mounts directly under the tank and has a support bolt that stops the tank overturning. The series covers 20 t to 80 t, is built for harsh plant conditions and easy to maintain, and connects through a junction box to a weighing indicator or straight into your control and data-logging systems. It is also used under hopper scales and platform scales.
Why plants choose the QFM
- 20 t to 80 t, in capacities and layouts to suit.
- Mounts directly under tanks, hoppers and vessels.
- Anti-overturn support bolt for safety.
- Accurate and stable for process control.
- Connects easily to control and data acquisition systems.
Specifications
| Series | HSC QFM load cell mounting assembly |
|---|---|
| Capacity | 20 t to 80 t |
| Mounting | Mounts directly to the tank; support bolt against overturning |
| Material | Nickel-plated alloy steel / stainless steel |
| Connection | Integrates with control systems and data acquisition systems |
| System parts pictured | Mounting assembly, junction boxes, weighing indicator, printing indicator, load cell cable |
| Uses | Tank and hopper weighing; platform scales |
| Warranty | 1 year |
Which tank weighing assembly?
Also for 20 t to 80 t, see the ZSJ series; for up to 150 t, the MQS1 series; for 5 t to 100 t, the 1AX series. Complete systems: the indoor and outdoor tank weighing systems. Browse all tank weighing scales.
Where it is used
Tanks, hoppers and vessels in process plants, and platform scales.
Questions buyers ask
What capacity does the QFM series cover?
20 t to 80 t. Tell us the tank’s full weight and number of legs and we will size it.
Can it connect to our control system?
Yes. It integrates with control systems and data acquisition systems, or with an HSCo weighing indicator.
What stops the tank tipping?
A support bolt in each assembly prevents overturning.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the tank size, number of legs and full weight. Hindustan Scale Company, Mumbai, since 1955.
