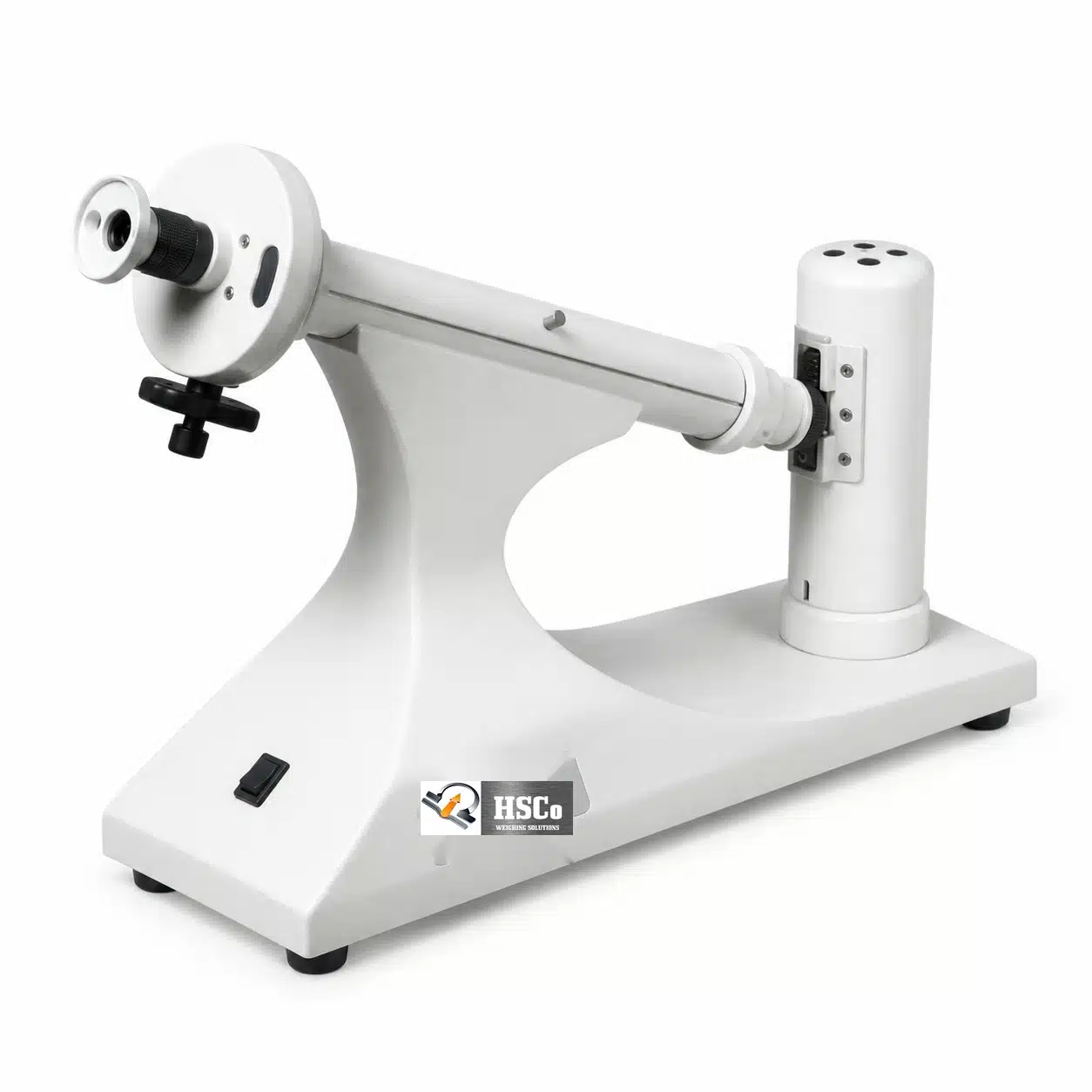

The HSC polarimeter measures the optical rotation of optically active substances, from −180° to +180°, to find purity, concentration and specific rotation. It uses the sodium D-line (589.44 nm) and Glan–Thompson prisms, reads optical rotation precisely (the reading and accuracy depend on the version), and takes 100 mm and 200 mm sample tubes. It is used for sugar analysis, pharmaceuticals, chemicals and essential oils.
Why labs choose it
- Full range. −180° to +180° optical rotation.
- Precise readings for specific rotation work.
- Quality optics. Glan–Thompson polarizer and analyzer.
- Clear reading – ask us which version is available.
- Temperature control option with an external water bath.
Specifications
| Measuring range | −180° to +180° optical rotation |
|---|---|
| Minimum reading | Depends on the version – ask us |
| Accuracy / repeatability | Depends on the version – ask us |
| Wavelength | Sodium D-line, 589.44 nm |
| Light source | High-intensity sodium lamp; LED optional |
| Polarizer and analyzer | Glan–Thompson prism |
| Sample tubes | 100 mm and 200 mm standard |
| Temperature control | Optional, with external water bath connection |
| Display | Depends on the version – ask us |
| Power | 230 V ±10%, 50 Hz, single phase |
| Working temperature | 10 – 40 °C |
| Size / weight | About 600 × 250 × 350 mm / 8 – 10 kg |
| Warranty | 1 year |
Where it is used
Sugar analysis, pharmaceutical research and QC, chemical testing and essential-oil studies. For sugar content by refractive index, see the refractometer; browse all laboratory equipment.
Questions buyers ask
How much a sample rotates polarised light, which gives purity, concentration and specific rotation.
It depends on the version; ask us for the figures of the unit we quote.
100 mm and 200 mm as standard.
Ask us which version is available now and its reading.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the model you need. Hindustan Scale Company, Mumbai, since 1955.
