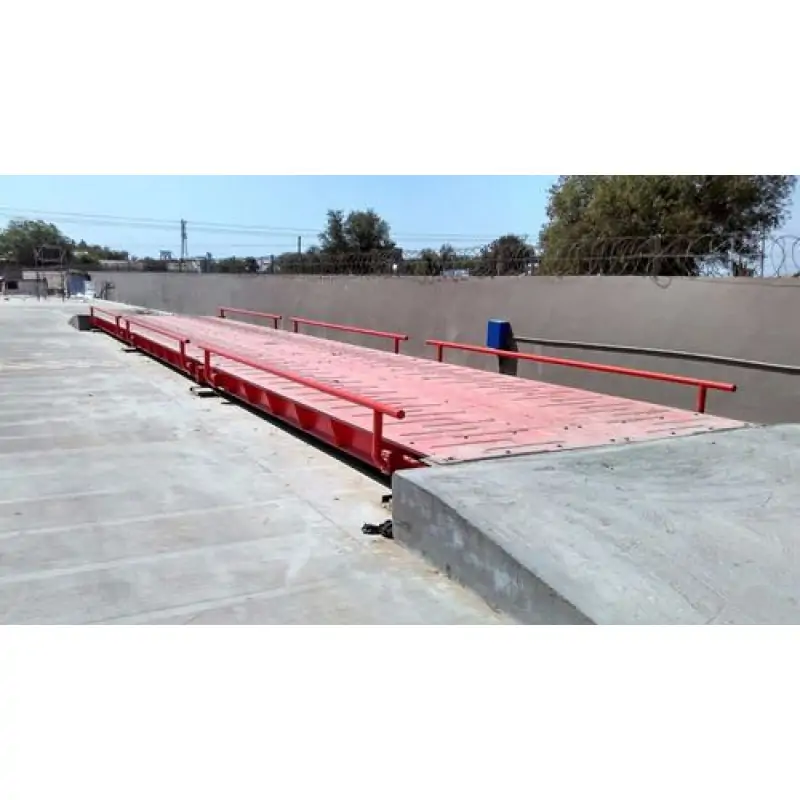

The HSCMTW is HSCo’s electronic weighbridge for weighing loaded trucks and heavy vehicles. It is built on a heavy-duty IS 2062 steel frame designed with a 50% overload margin, protected by a water-repellent coating for monsoons and wash-downs, and installed by HSCo’s own technicians. It comes in eleven standard sizes from 10 to 120 tonnes, stands on double-ended shear beam load cells and connects to HSCo’s desktop and Android software. Every weighbridge is supplied with government certification and a user manual.
Standard sizes

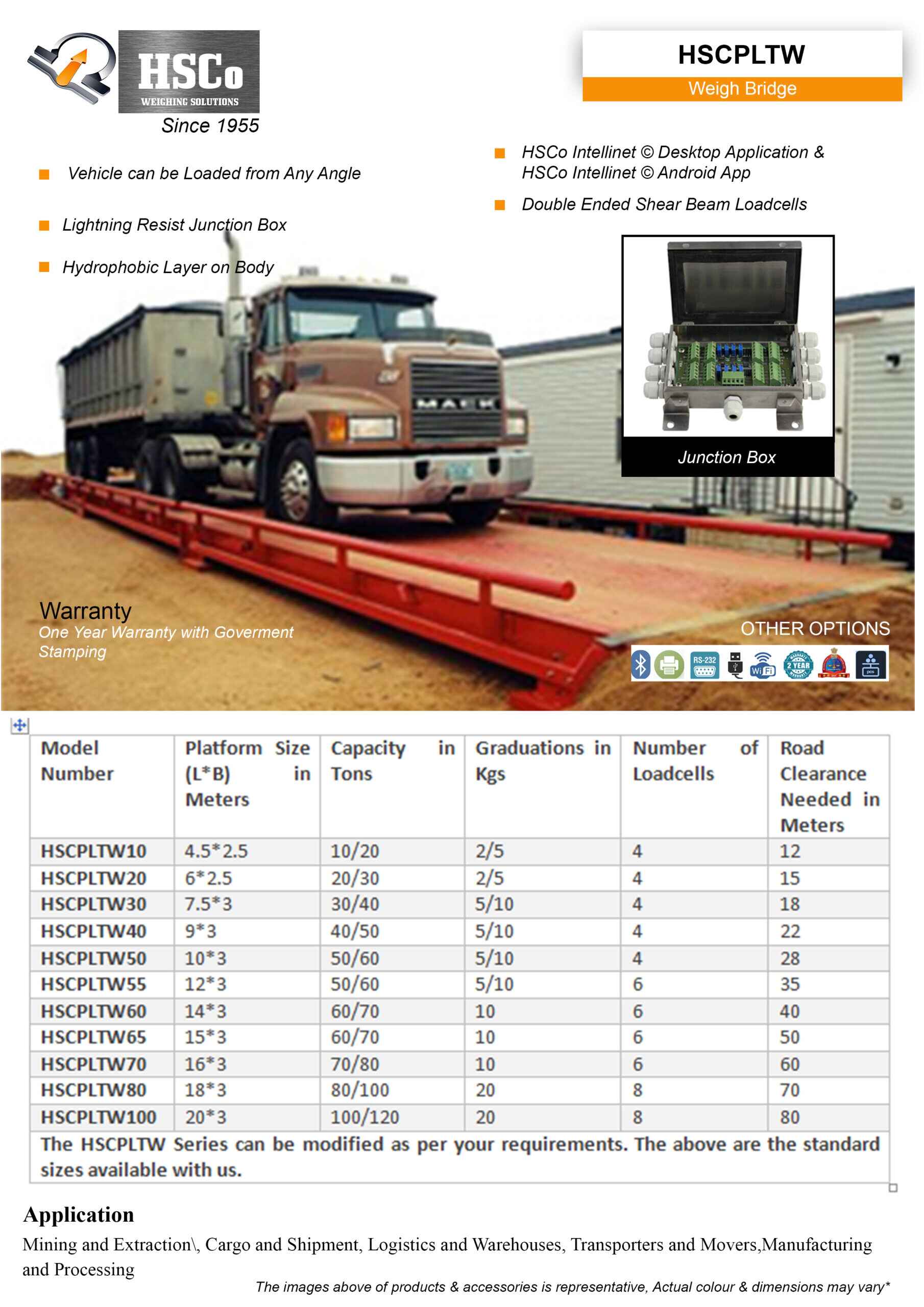

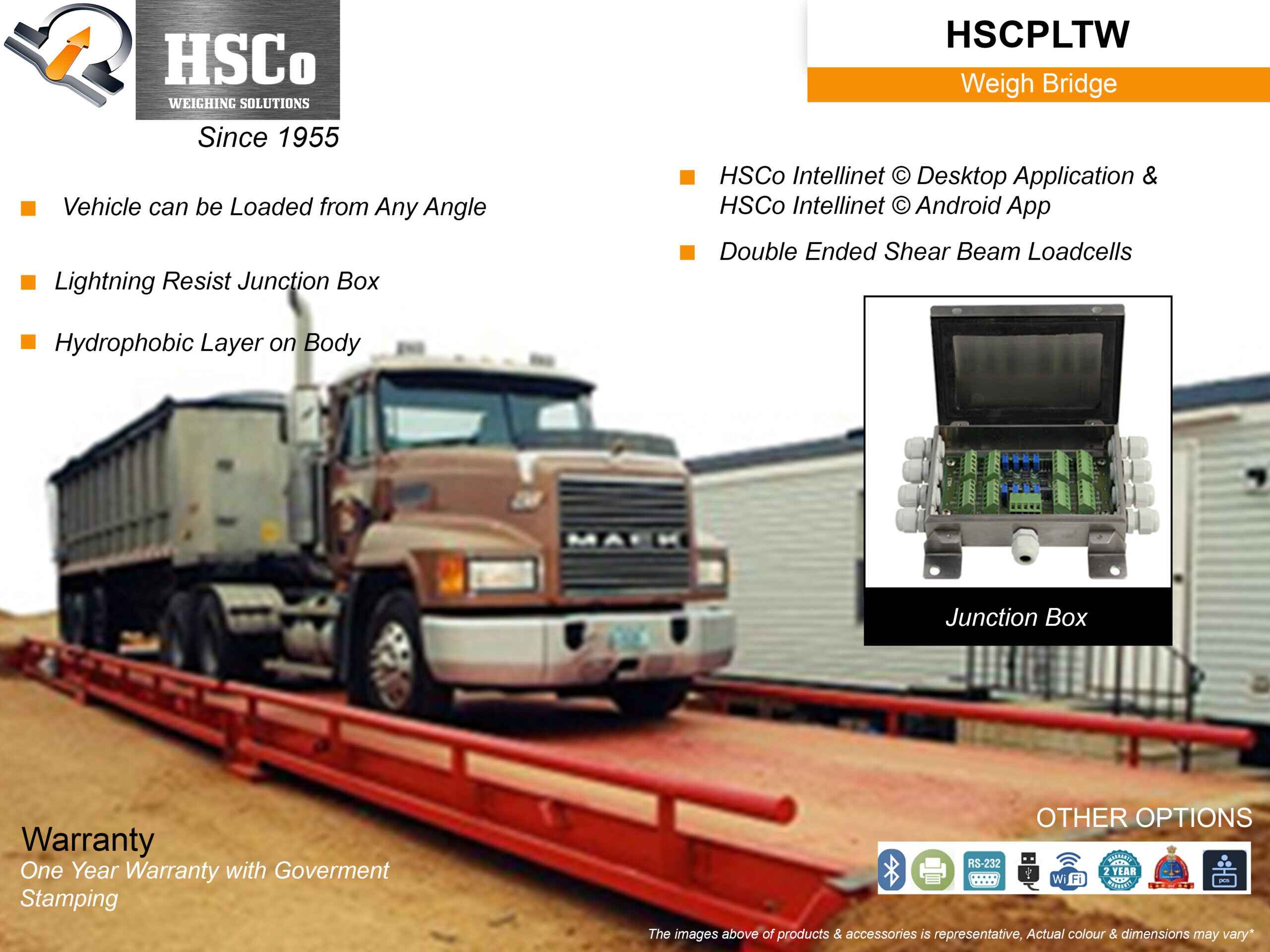

The HSCMTW is also sold under the model names HSCPLTW and HSCPTW. Eleven standard sizes run from a 4.5 m, 10-tonne platform to a 20 m, 120-tonne platform:
| Model | Platform (L × B) | Capacity | Graduation | Load cells | Road clearance needed |
|---|---|---|---|---|---|
| HSCPLTW10 | 4.5 × 2.5 m | 10 / 20 t | 2 / 5 kg | 4 | 12 m |
| HSCPLTW20 | 6 × 2.5 m | 20 / 30 t | 2 / 5 kg | 4 | 15 m |
| HSCPLTW30 | 7.5 × 3 m | 30 / 40 t | 5 / 10 kg | 4 | 18 m |
| HSCPLTW40 | 9 × 3 m | 40 / 50 t | 5 / 10 kg | 4 | 22 m |
| HSCPLTW50 | 10 × 3 m | 50 / 60 t | 5 / 10 kg | 4 | 28 m |
| HSCPLTW55 | 12 × 3 m | 50 / 60 t | 5 / 10 kg | 6 | 35 m |
| HSCPLTW60 | 14 × 3 m | 60 / 70 t | 10 kg | 6 | 40 m |
| HSCPLTW65 | 15 × 3 m | 60 / 70 t | 10 kg | 6 | 50 m |
| HSCPLTW70 | 16 × 3 m | 70 / 80 t | 10 kg | 6 | 60 m |
| HSCPLTW80 | 18 × 3 m | 80 / 100 t | 20 kg | 8 | 70 m |
| HSCPLTW100 | 20 × 3 m | 100 / 120 t | 20 kg | 8 | 80 m |
These are the standard sizes; any size can be modified to your requirements.
What goes into an HSCMTW

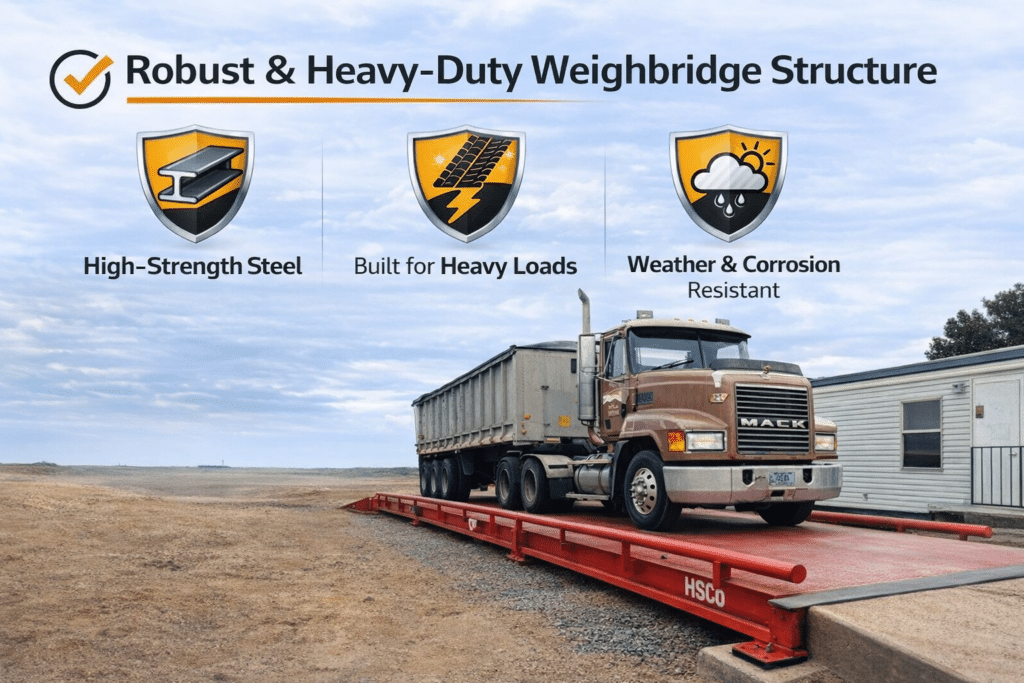

- A frame that does not flex. The whole frame is IS 2062 heavy-duty steel. Load-carrying members are designed for 50% overload and sized to avoid deformation or deflection, and the frame takes lateral and longitudinal stress from a fully loaded vehicle entering from either end.
- A deck vehicles do not skid on. Ribs welded to the top deck give tyres grip in rain and when braking.

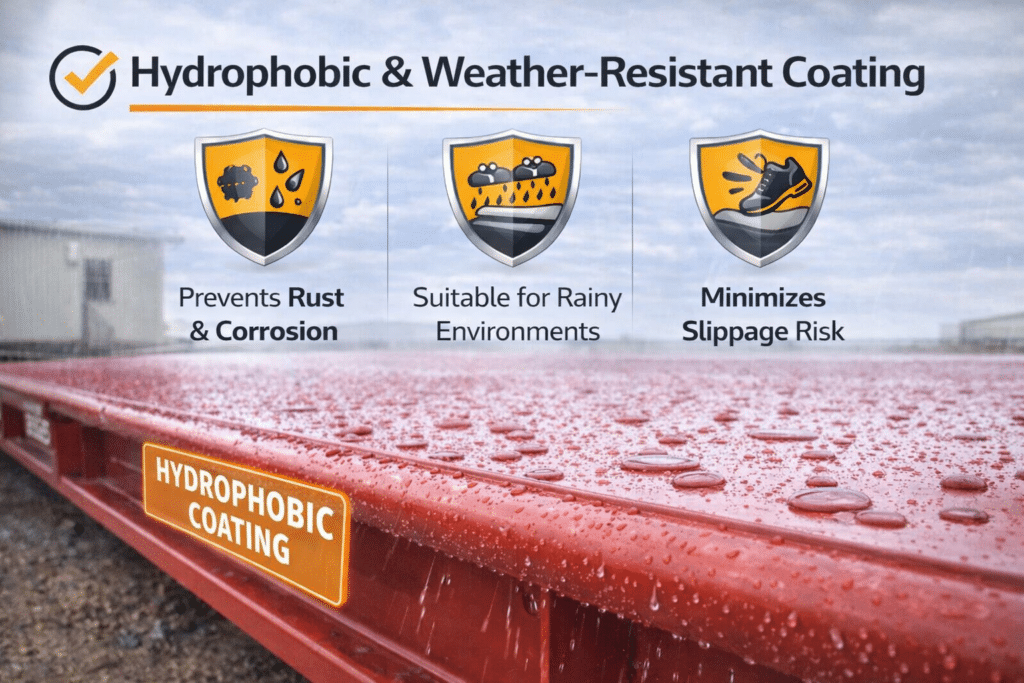

- Protection from rust and spills. Two coats of red oxide primer and enamel paint, then a layer of HSCO Hydra, HSCo’s hydrophobic coating, keep the top plate from rusting in the monsoon and resist acid and chemical spills and detergent washing.

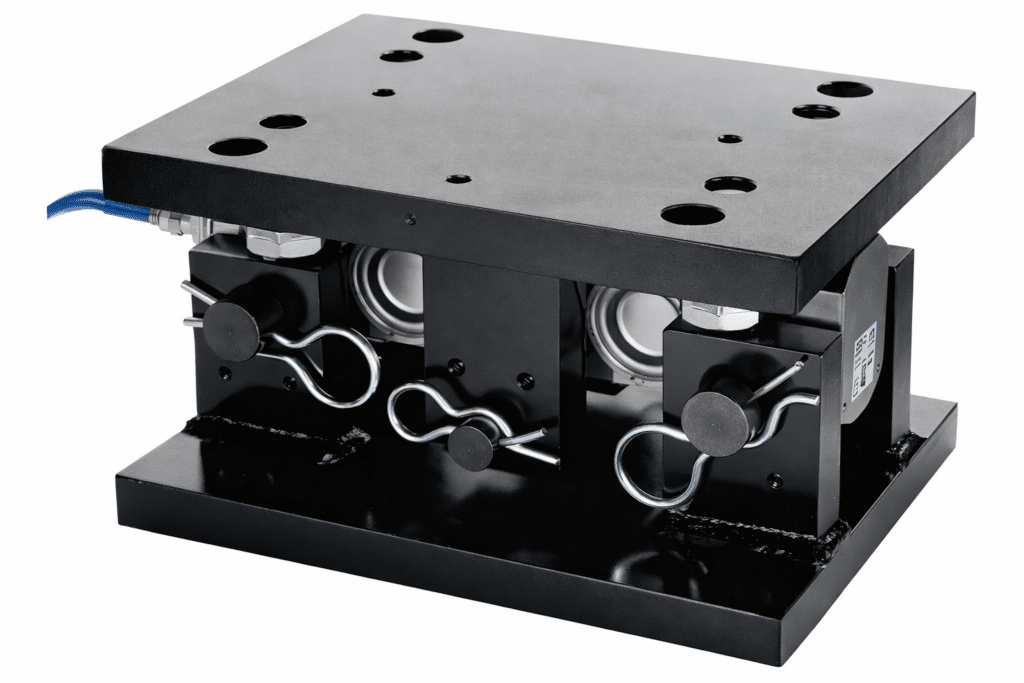

- Load cells that are looked after. In-house made load-cell housings protect the load cells from mechanical damage and braking forces and take load from any direction.

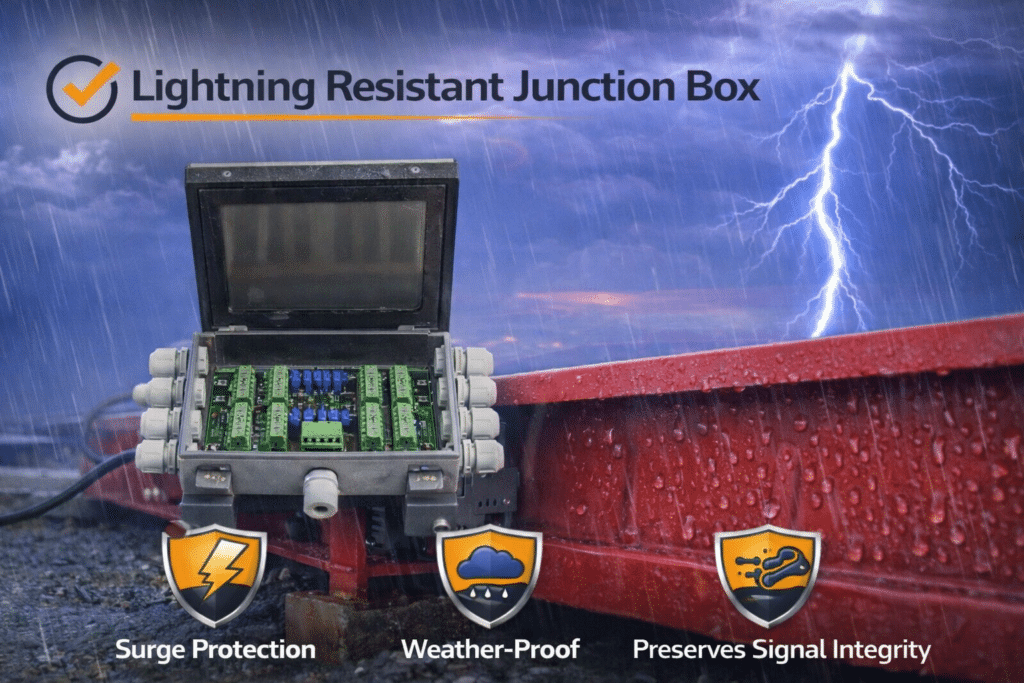

- Safer electronics. A lightning-resistant junction box shields the electronics from lightning strikes and electrostatic discharge.
Construction at a glance
| Frame material | IS 2062 heavy-duty steel |
|---|---|
| Design margin | 50% overload on load-carrying structures |
| Top deck | Welded ribs against skidding |
| Paint | Two coats: red oxide primer and enamel |
| Surface coating | HSCO Hydra hydrophobic, anti-rust, acid-resistant layer |

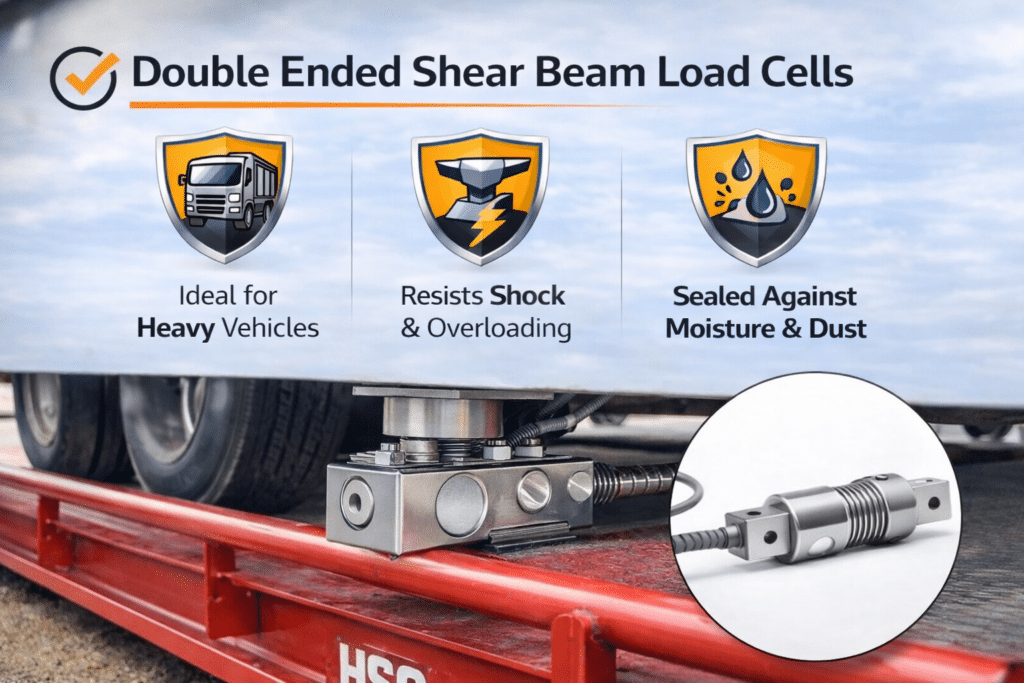

| Load cells | Double-ended shear beam, hermetically sealed; 4, 6 or 8 by size; in-house housings; load from any direction |

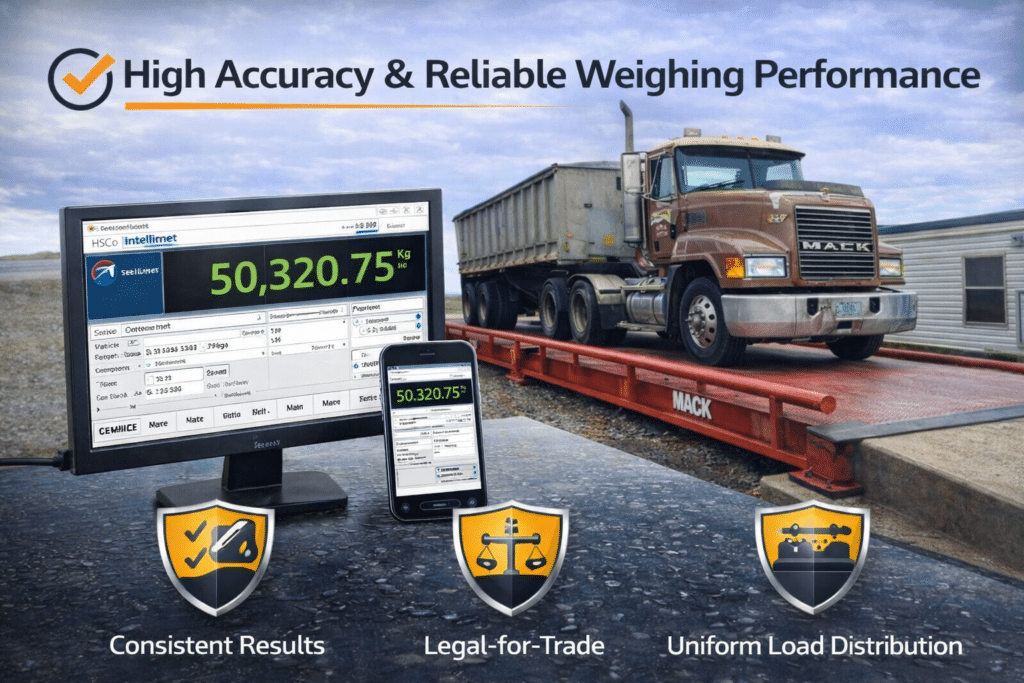

| Software | HSCo Intellinet desktop application and Android app |
| Surge protection | Lightning-resistant junction box |
| Supplied with | Government certification, user manual, installation by HSCo technicians |
| Warranty | 1 year |
Where it is used
Mining and quarrying, cargo and shipping yards, logistics parks and warehouses, transporters, and manufacturing and processing plants that buy or sell by the truckload. HSCo weighbridges also work abroad, with installations in Saudi Arabia, Muscat (Oman) and Paraguay.
Planning a weighbridge: what to tell us
- The heaviest vehicle you will weigh, loaded, which sets the capacity.
- The longest vehicle, which sets the platform length.
- The space and ground available at the site; the table gives the road clearance each size needs.
- What should happen to each weight: printed slip, software, ERP or a camera record. HSCo can connect the weighbridge to your systems.
Read more on weighbridges (dharam kanta).
Questions buyers ask
Eleven standard sizes from 4.5 × 2.5 m (10/20 t) to 20 × 3 m (100/120 t); see the table. Other sizes can be built.
The road clearance for each size is in the table, from 12 m for the smallest to 80 m for the largest. Share your yard layout and we will confirm.
The whole frame is IS 2062 heavy-duty steel, designed with a 50% overload margin.
Two coats of primer and enamel, then HSCO Hydra, a hydrophobic coating that stops water sitting on the plate and resists acid spills and detergent washing.
Yes. A lightning-resistant junction box shields the electronics from lightning and electrostatic discharge.
HSCo’s own technicians install and set up the weighbridge, which comes with government certification and a user manual.
Yes. HSCo weighbridges are installed in Saudi Arabia, Oman and Paraguay, among other export markets.
Ask for a quotation
Weighbridges are quoted per site. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the vehicle size and load, the site location and how you want the weights recorded. Hindustan Scale Company, Mumbai, since 1955.
