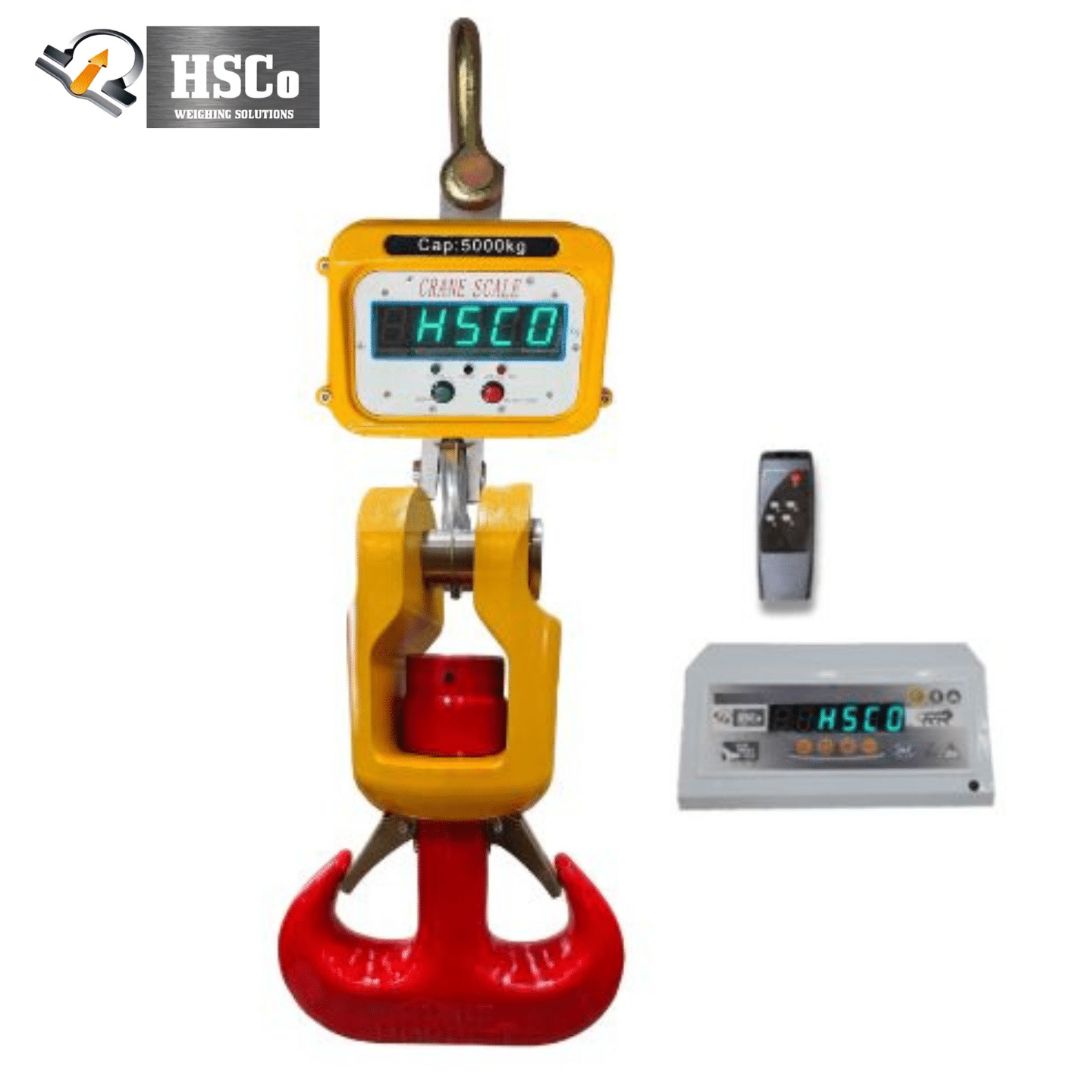

The HSCo CRHRD5KDJH is a 5,000 kg crane scale with a remote display, fitted with a double J hook. The operator reads the load on an external indicator with front and back displays, away from the suspended load, as well as on the extra-bright display on the scale, and tares it with the remote control (range up to 10 m). It has a heavy-duty die-cast aluminium body with a 90+ micron coating, a superior metal die-cast load cell and a water-resistant PCB, and it is stamped by the Legal Metrology department. It weighs in 2 kg steps.
Why buyers choose the CRHRD5KDJH
- Double J hook at the bottom, shackle at the top.
- Read the load safely: external indicator with front and back displays.
- 5,000 kg in 2 kg steps.
- Remote control for tare and other functions, up to 10 m.
- All-weather: water-resistant PCB, rust and water resistant.
- Stamped by the Legal Metrology department.
Specifications
| Model | CRHRD5KDJH (CRHRD series with double J hook) |
|---|---|
| Capacity / accuracy | 5,000 kg / 2 kg |
| Body | Heavy-duty die-cast aluminium, ultra powder coating 90+ micron |
| Load cell | Superior metal die-cast; 200% overload |
| Rigging | Shackle top, double J hook bottom |
| Displays | Extra-bright LED on the scale; external remote indicator with front and back displays |
| Remote | Remote control for tare and other functions; range up to 10 m |
| Functions | Tare, zero, auto zero tracking, auto calibration, auto power saving, sleep mode; digital overload indication |
| Power | 230 V AC ±10%, 50 Hz / 9 V DC, 1 A; 6 V rechargeable battery (backup time depends on the model) |
| Operating temperature | 0 – 40 °C |
| Options | Jumbo remote / Wi-Fi display; printer output |
| Certification | Legal Metrology stamped; Made in India |
| Warranty | 1 year |
Which crane scale?
With a standard hook in 3 to 50 t, see the CRHRD series; for 20 t, the CRHRD20K. With a double J hook and the display on the scale only, the CRHDJH. Browse all crane scales.
Where it is used
Cranes in construction, docks and naval use, steel industries, heavy industries and manufacturing.
Videos and downloads
Questions buyers ask
Why a remote display?
So the operator can read the load on the external indicator, away from the suspended load, instead of under it.
What is the capacity and step?
5,000 kg, in 2 kg steps.
Can I tare it from the ground?
Yes. The remote control tares the scale and runs its other functions, up to 10 m away.
