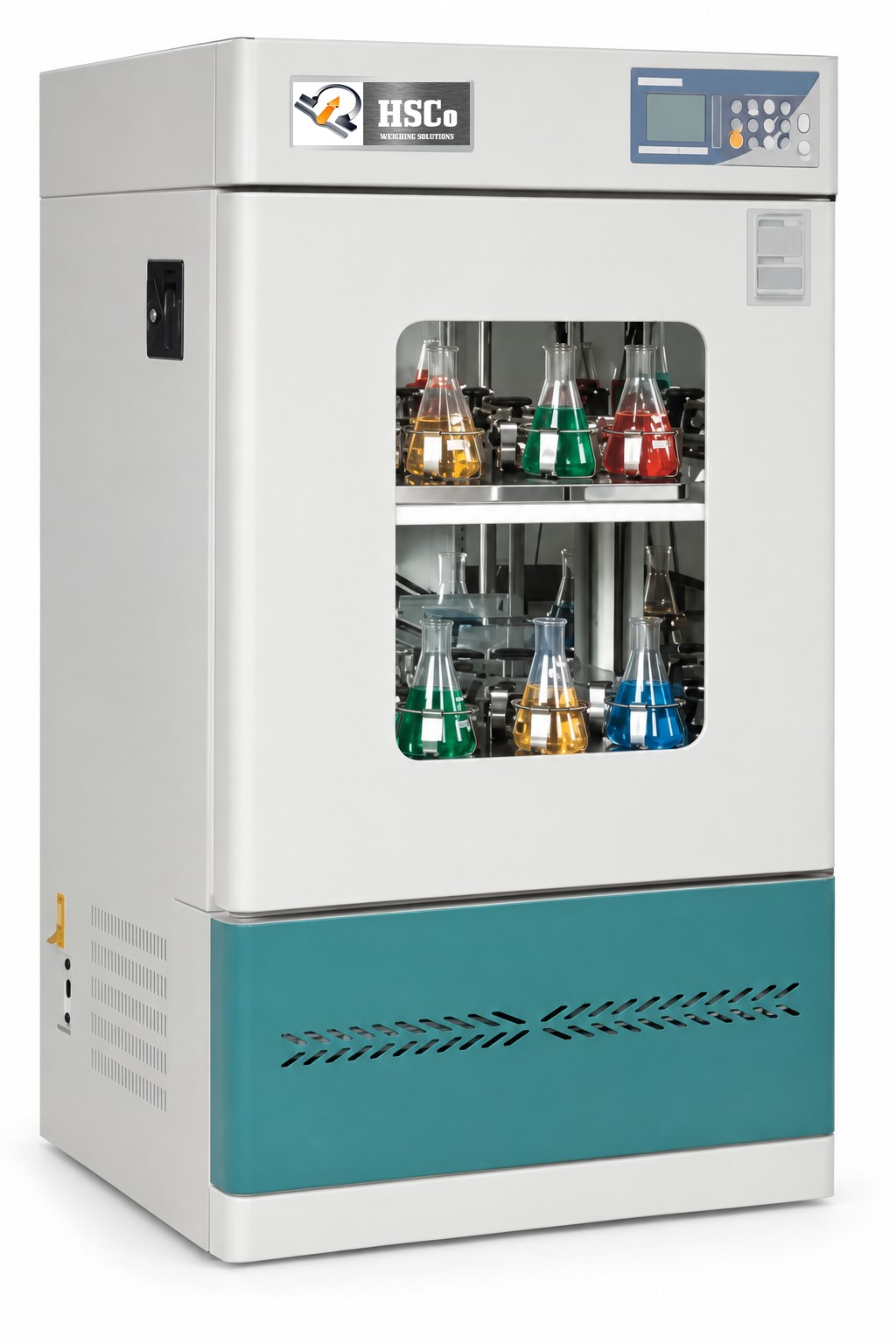

The HSCo HSC-I-VCTS vertical constant temperature shaker (shaking incubator) keeps flasks at a set temperature while it shakes them, for cell culture, microbial cultivation, biochemical reactions and sample preparation. A PID controller holds the chamber to ±0.1 °C, even to ±0.5 °C at 37 °C, and the platforms turn from 20 up to 350 rpm, or stand still for static culture, forward or reverse. Standard, continuous and multi-step program modes set temperature, speed and time together. Three cabinet sizes (175, 335 and 580 L) hold two shaking trays; C models also cool, down to 4 °C.
Why labs choose the VCTS
- Heat or cool while shaking: ambient +5 to 65 °C, or 4 to 65 °C on C models.
- Accurate: ±0.1 °C; ±1 rpm speed accuracy.
- Two trays, up to 42 × 1 L flasks in the largest size.
- Programs: multi-step temperature, speed and time.
- Safe: over-speed protection, over-temperature alarm, soft start, power-cut recovery.
Specifications
| VCTS-175 / 175C | VCTS-335 / 335C | VCTS-580 / 580C | |
|---|---|---|---|
| Chamber volume | 175 L | 335 L | 580 L |
| Plate size | 500 × 360 mm | 710 × 455 mm | 950 × 550 mm |
| Flasks (clamps) | 60 × 100 ml, 38 × 250 ml or 16 × 1 L | 100 × 100 ml, 56 × 250 ml, 44 × 500 ml or 24 × 1 L | 90 × 250 ml, 72 × 500 ml or 42 × 1 L |
| Outer size | 700 × 580 × 1,280 mm | 950 × 700 × 1,280 mm | 1,200 × 800 × 1,630 mm |
| Power (standard / C) | 600 / 850 W | 900 / 1,150 W | 1,100 / 1,400 W |
| Temperature range | Ambient +5 to 65 °C; C models 4 to 65 °C (at 25 °C room) |
|---|---|
| Accuracy / uniformity / fluctuation | ±0.1 °C / ±0.5 °C (37 °C) / ≤ 0.1 °C |
| Speed | 20 – 350 or 20 – 280 rpm (by model); 0 for static culture; forward and reverse; ±1 rpm |
| Orbit | Ø 26 mm (customisable), Ø 35 mm or Ø 50 mm |
| Control | PID microcomputer; LCD (touch screen optional); standard, continuous and program modes |
| Timer | 0 – 999 h, or continuous |
| Air circulation | Forced convection |
| Trays | 2 |
| Protection | Soft start, adjustable start speed, over-speed protection, watchdog, parameter memory and power-cut recovery, compressor overload protection and delayed start, auto defrost, over / under-temperature alarm |
| Options | Stop on door opening, UV disinfection, touch screen, USB data download |
| Power supply | AC 220 V ±10%, 50 – 60 Hz; room 5 – 30 °C |
| Warranty | 1 year |
Which shaker?
Without temperature control, see the orbital shaker HSC-OS-330; to shake in a heated water bath, the shaking water bath HSC-WBS1000. Browse all ovens and furnaces.
Where it is used
Cell culture, microbial cultivation, biochemical reactions and sample preparation in labs, research centres, pharmaceutical and biotechnology companies.
Questions buyers ask
The C models cool down to 4 °C; the standard models work from 5 °C above room temperature up to 65 °C.
Up to 16, 24 or 42 one-litre flasks, depending on the size; more of the smaller flasks. See the table.
Yes. It can run at 0 rpm for static culture, and shake forward or in reverse.
Ask for a quotation
Tell us your flask sizes, numbers and temperature range. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
